◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#109128) — 71 parça

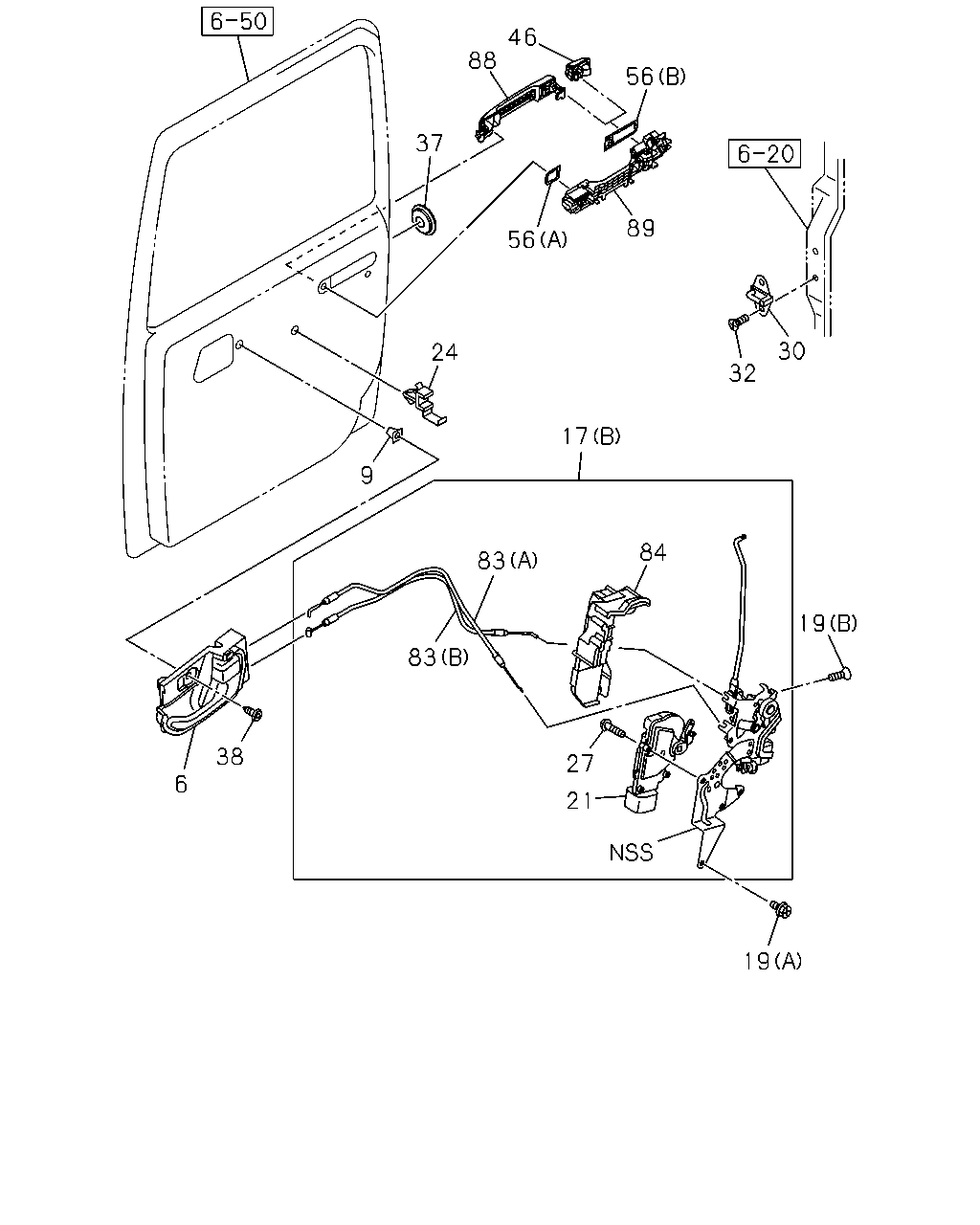

çizim 319238
56 46 88 37 56 89 30 32 17 24 9 83 83 38 6 84 19 21 27 19
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) BLACK 		8-97416-726-4 01 1 1210- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) BLACK 		8-97416-728-4 01 1 1210- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) BLACK 		8-97416-730-3 01 1 1210- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) BLACK 		8-97416-732-3 01 1 1210- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98103-988-1 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98103-989-1 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (A) 		8-98103-984-0 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (A) 		8-98103-985-0 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 		8-98103-986-1 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 		8-98103-987-1 01 1 1210- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1210- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) SCREW M6X14.5 		8-98004-342-0 06 1 1210- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-083-0 01 1 1210-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-020-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-084-0 01 1 1210-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-019-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97351-081-0 01 1 1210-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98292-018-0 01 1 1503- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97351-082-0 01 1 1210-1502 ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98292-017-0 01 1 1503- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 1210- ● ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 1210- ● ●
30 16.335 STRIKER; RR DOOR 8-98012-203-0 02 1 1210- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1210- ● ●
37 16.157 GROMMET; RR DOOR
12.182 OD=26 		8-94141-484-0 02 1 1210- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 TAPPING 		8-98184-363-0 02 1 1210- ● ●
46 16.345 COVER; OUTSIDE HANDLE
OUTSIDE HANDLE CHROME<E20> 16.270 PLATED 		8-98176-465-1 02 1 1210- ● ●
46 16.345 COVER; OUTSIDE HANDLE
EXC. OUTSIDE HANDLE CHROME<E20> 16.270 BLACK 		8-98176-463-1 02 1 1210- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
16.350 (A) 		8-98176-466-0 02 1 1210- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
(B) 		8-98176-467-2 02 1 1210- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-715-0 01 1 1210- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-717-0 01 1 1210- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-716-0 02 1 1210- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-0 01 1 1210- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-0 01 1 1210- ● ●
88 16.335 GRIP; RR DOOR
OUTSIDE HANDLE CHROME<E20> 16.330 PLATED 		8-98176-458-0 02 1 1210- ● ●
88 16.335 GRIP; RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 16.330 		8-98176-456-0 02 1 1210- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-472-4 01 1 1210- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-473-4 01 1 1210- ● ●

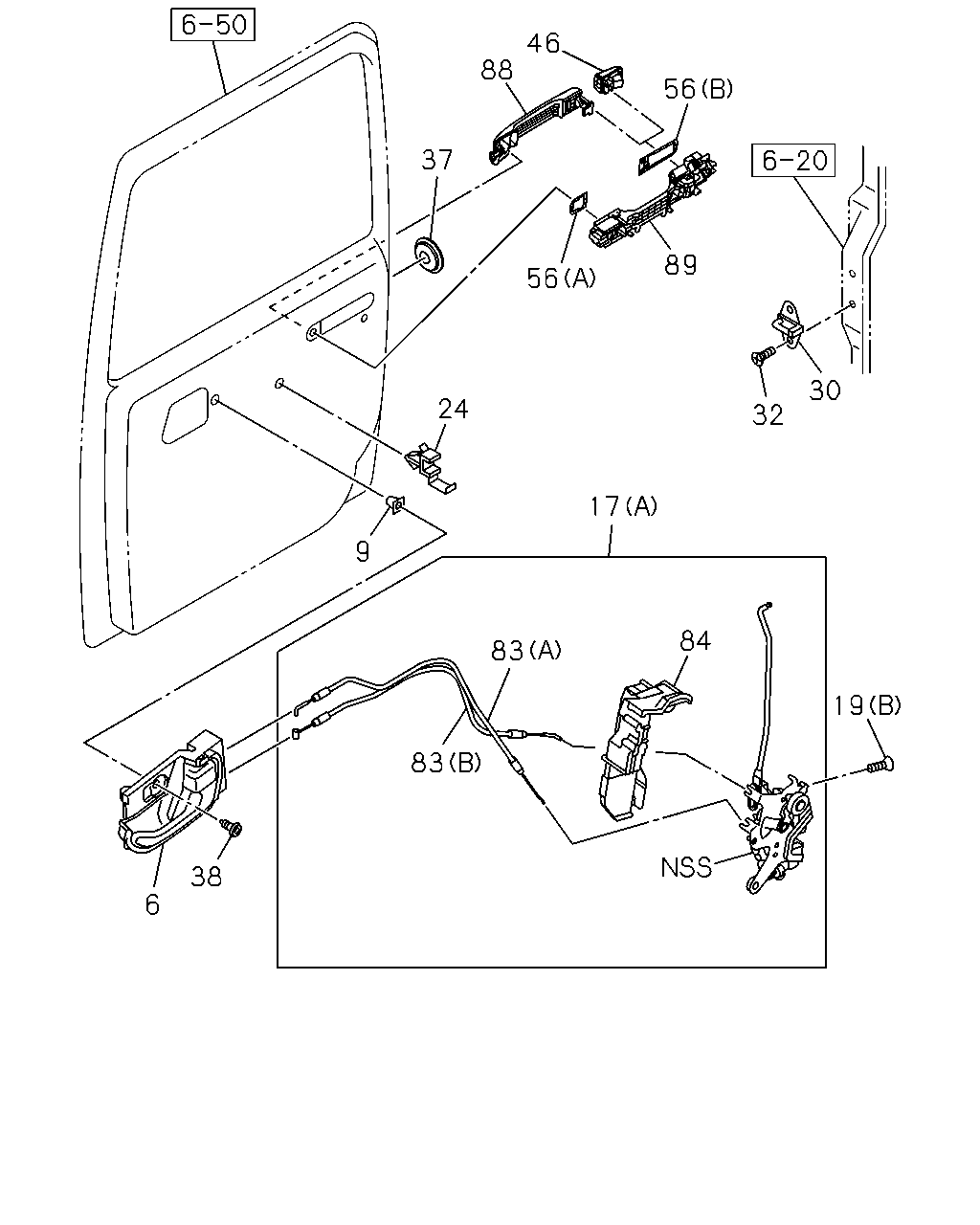

çizim 319240
46 88 37 24 17 9 32 30 56 89 56 6 38 83 83 84 19
BalonParca AdiParca NoAdetTipApplied Date A B
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) BLACK 		8-97416-726-4 01 1 1210- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA) BLACK 		8-97416-728-4 01 1 1210- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) BLACK 		8-97416-730-3 01 1 1210- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD) BLACK 		8-97416-732-3 01 1 1210- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98103-988-1 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98103-989-1 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (A) 		8-98103-984-0 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (A) 		8-98103-985-0 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 		8-98103-986-1 01 1 1210- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 		8-98103-987-1 01 1 1210- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.765 (A) M6X8 FLANGE 		8-98048-996-0 02 1 1210- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.330 (B) SCREW M6X14.5 		8-98004-342-0 06 1 1210- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 1210- ● ●
30 16.335 STRIKER; RR DOOR 8-98012-203-0 02 1 1210- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1210- ● ●
37 16.157 GROMMET; RR DOOR
12.182 OD=26 		8-94141-484-0 02 1 1210- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 TAPPING 		8-98184-363-0 02 1 1210- ● ●
46 16.345 COVER; OUTSIDE HANDLE
OUTSIDE HANDLE CHROME<E20> 16.270 PLATED 		8-98176-465-1 02 1 1210- ● ●
46 16.345 COVER; OUTSIDE HANDLE
EXC. OUTSIDE HANDLE CHROME<E20> 16.270 BLACK 		8-98176-463-1 02 1 1210- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
16.350 (A) 		8-98176-466-0 02 1 1210- ● ●
56 16.360 GASKET; HANDLE,RR DOOR
(B) 		8-98176-467-2 02 1 1210- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-715-0 01 1 1210- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-717-0 01 1 1210- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-716-0 02 1 1210- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-0 01 1 1210- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-0 01 1 1210- ● ●
88 16.335 GRIP; RR DOOR
OUTSIDE HANDLE CHROME<E20> 16.330 PLATED 		8-98176-458-0 02 1 1210- ● ●
88 16.335 GRIP; RR DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 16.330 		8-98176-456-0 02 1 1210- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-472-4 01 1 1210- ● ●
89 16.335 BRACKET; GRIP,DOOR 8-98176-473-4 01 1 1210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
