6-43 — SIDE TRIM (#109123) — 72 parça

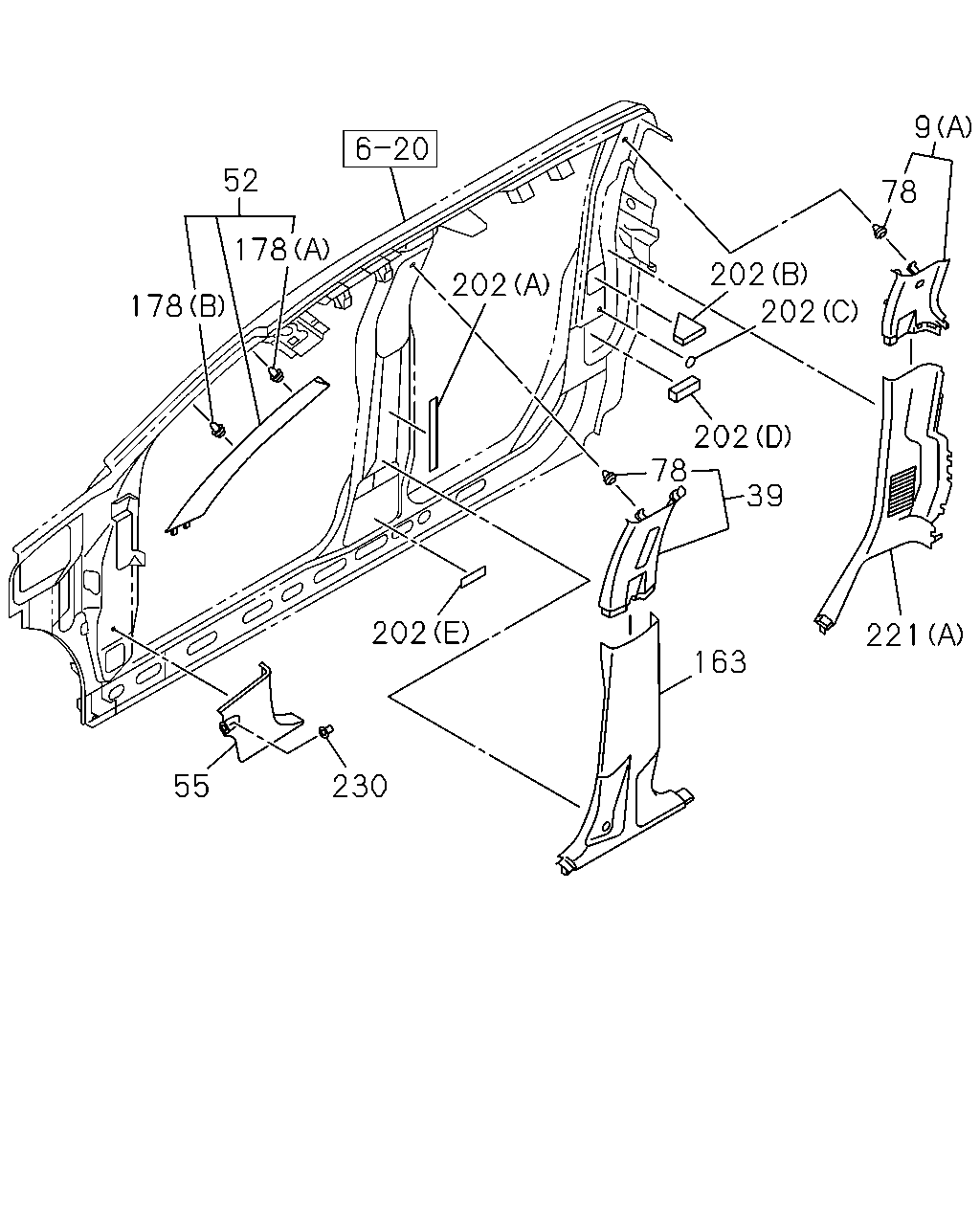

9 78 202 202 202 78 163 221 39 202 230 55 178 52 178 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	16.575 TRIM; SIDE PANEL,UPR (B) BLACK	8-97417-118-1	01	1	1210-	●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) BLACK	8-97417-120-1	01	1	1210-	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) BLACK	8-97416-969-0	01	1	1210-			●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) BLACK	8-97416-971-0	01	1	1210-			●	●
39	16.575 COVER; TRIM,CENTER PILLAR GRAY	8-97416-959-2	01	1	1210-			●	●
39	16.575 COVER; TRIM,CENTER PILLAR GRAY	8-97416-960-2	01	1	1210-			●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-677-2	01	1	1210-	●
52	16.165 COVER; TRIM,FRT PILLAR EXC. HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-677-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-678-2	01	1	1210-	●
52	16.165 COVER; TRIM,FRT PILLAR EXC. HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-678-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-679-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-679-2	01	1	1210-		●		●
52	16.165 COVER; TRIM,FRT PILLAR HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-680-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-680-2	01	1	1210-		●		●
55	16.166 PAD; TRIM,DASH SIDE BLACK	8-97416-675-3	01	1	1210-	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE BLACK	8-97424-003-0	01	1	1210-	●	●	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97351-983-0	08	1	1210-	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97351-983-0	04	1	1210-			●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97351-983-0	06	1	1210-			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR BLACK	8-97416-961-4	01	1	1210-			●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR BLACK	8-97416-963-4	01	1	1210-			●	●
178	16.165 CLIP; TRIM COVER (A)	8-98166-326-0	02	1	1210-	●	●	●	●
178	16.165 CLIP; TRIM COVER (B)	8-98139-052-0	02	1	1210-	●
178	16.165 CLIP; TRIM COVER EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98139-052-0	02	1	1210-			●
202	16.575 SEAL; CENTER PILLAR (A)	8-98179-381-3	02	1	1210-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (A)	8-98179-381-3	02	1	1210-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (B)	8-97362-563-0	02	1	1210-1401			●	●
202	16.575 SEAL; CENTER PILLAR (B)	8-98269-733-0	02	1	1402-			●	●
202	16.575 SEAL; CENTER PILLAR 16.165 (C) OD=25 BLACK	1-76798-019-0	02	1	1210-			●	●
202	16.575 SEAL; CENTER PILLAR (D)	8-97362-561-0	02	1	1210-	●	●
202	16.575 SEAL; CENTER PILLAR (D)	8-97362-561-0	06	1	1210-			●	●
202	16.575 SEAL; CENTER PILLAR (E)	8-97350-306-0	02	1	1210-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (E)	8-97350-306-0	02	1	1210-	●	●	●	●
221	16.592 TRIM; SIDE PANEL,LOWER (A) BLACK	8-97416-965-1	01	1	1210-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (A) BLACK	8-97416-967-1	01	1	1210-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) BLACK	8-97417-116-3	01	1	1210-	●	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) BLACK	8-97417-114-3	01	1	1210-	●	●
230	16.578 RETAINER; TRIM BLACK	8-97416-808-0	02	1	1210-	●	●	●	●

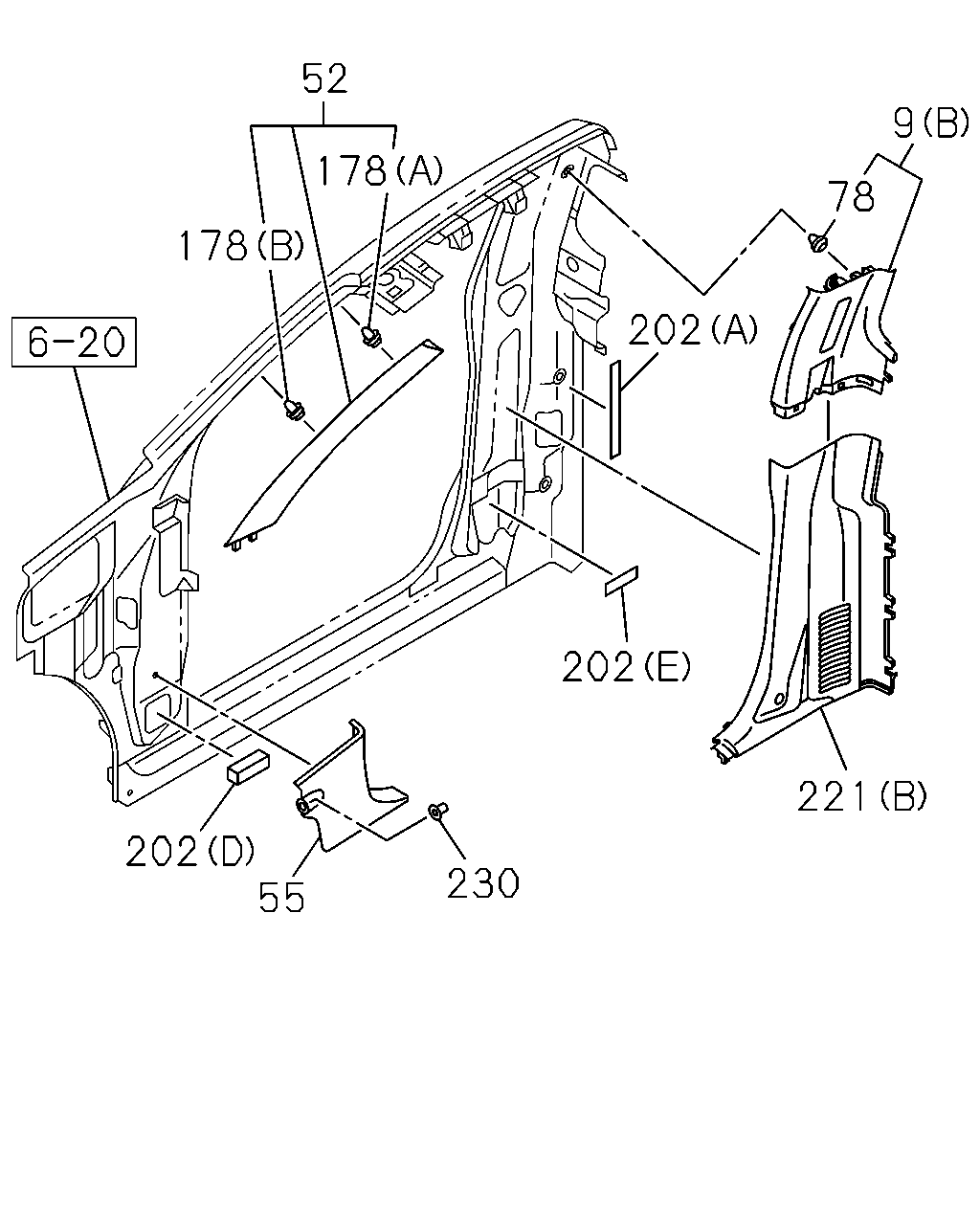

221 202 202 78 9 52 178 178 202 55 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	16.575 TRIM; SIDE PANEL,UPR (B) BLACK	8-97417-118-1	01	1	1210-	●	●
9	16.575 TRIM; SIDE PANEL,UPR (B) BLACK	8-97417-120-1	01	1	1210-	●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) BLACK	8-97416-969-0	01	1	1210-			●	●
9	16.575 TRIM; SIDE PANEL,UPR (A) BLACK	8-97416-971-0	01	1	1210-			●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-677-2	01	1	1210-	●
52	16.165 COVER; TRIM,FRT PILLAR EXC. HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-677-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-678-2	01	1	1210-	●
52	16.165 COVER; TRIM,FRT PILLAR EXC. HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-678-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-679-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-679-2	01	1	1210-		●		●
52	16.165 COVER; TRIM,FRT PILLAR HIGH RIDE SUSPENSION(7YC) GRAY	8-97416-680-2	01	1	1210-			●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97416-680-2	01	1	1210-		●		●
55	16.166 PAD; TRIM,DASH SIDE BLACK	8-97416-675-3	01	1	1210-	●	●	●	●
55	16.166 PAD; TRIM,DASH SIDE BLACK	8-97424-003-0	01	1	1210-	●	●	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97351-983-0	08	1	1210-	●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97351-983-0	04	1	1210-			●	●
78	16.165 CLIP; TRIM PAD,SIDE PANEL	8-97351-983-0	06	1	1210-			●	●
178	16.165 CLIP; TRIM COVER (A)	8-98166-326-0	02	1	1210-	●	●	●	●
178	16.165 CLIP; TRIM COVER (B)	8-98139-052-0	02	1	1210-	●
178	16.165 CLIP; TRIM COVER EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98139-052-0	02	1	1210-			●
202	16.575 SEAL; CENTER PILLAR (A)	8-98179-381-3	02	1	1210-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (A)	8-98179-381-3	02	1	1210-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (B)	8-97362-563-0	02	1	1210-1401			●	●
202	16.575 SEAL; CENTER PILLAR (B)	8-98269-733-0	02	1	1402-			●	●
202	16.575 SEAL; CENTER PILLAR 16.165 (C) OD=25 BLACK	1-76798-019-0	02	1	1210-			●	●
202	16.575 SEAL; CENTER PILLAR (D)	8-97362-561-0	02	1	1210-	●	●
202	16.575 SEAL; CENTER PILLAR (D)	8-97362-561-0	06	1	1210-			●	●
202	16.575 SEAL; CENTER PILLAR (E)	8-97350-306-0	02	1	1210-	●	●	●	●
202	16.575 SEAL; CENTER PILLAR (E)	8-97350-306-0	02	1	1210-	●	●	●	●
221	16.592 TRIM; SIDE PANEL,LOWER (A) BLACK	8-97416-965-1	01	1	1210-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (A) BLACK	8-97416-967-1	01	1	1210-			●	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) BLACK	8-97417-116-3	01	1	1210-	●	●
221	16.592 TRIM; SIDE PANEL,LOWER (B) BLACK	8-97417-114-3	01	1	1210-	●	●
230	16.578 RETAINER; TRIM BLACK	8-97416-808-0	02	1	1210-	●	●	●	●
