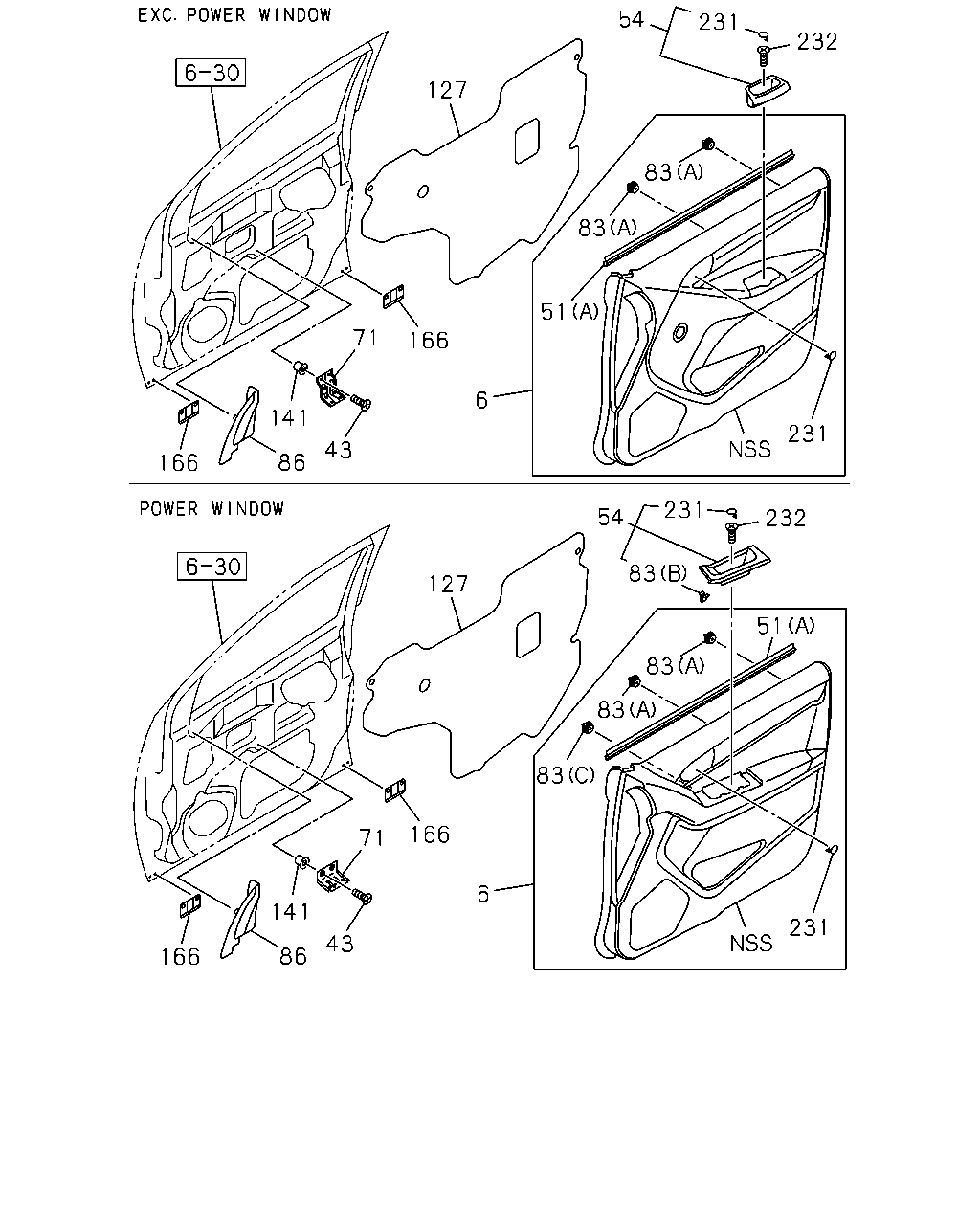

6-35 — FRONT DOOR TRIM (#109122) — 39 parça

54 231 127 232 83 83 51 166 6 71 141 166 43 86 231 54 231 232 83 51 83 83 83 127 166 231 71 6 141 43 86 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-744-8	01	1	1210-1302	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97425-710-1	01	1	1303-	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-746-8	01	1	1210-1302	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97425-714-1	01	1	1303-	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-740-7	01	1	1210-	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-742-7	01	1	1210-	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-736-8	01	1	1210-1302	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97425-708-1	01	1	1303-	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-738-8	01	1	1210-1302	●	●	●	●
6	16.165 TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97425-712-1	01	1	1303-	●	●	●	●
43	16.165 SCREW; DOOR POCKET 16.345 M5X14 TAPPING	8-98184-363-0	04	1	1210-	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1210-	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1210-	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1210-	●	●	●	●
54	16.165 BOX; FRT DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-750-1	01	1	1210-	●	●	●	●
54	16.165 BOX; FRT DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-751-1	01	1	1210-	●	●	●	●
54	16.165 BOX; FRT DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-752-5	01	1	1210-	●	●	●	●
54	16.165 BOX; FRT DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-753-5	01	1	1210-	●	●	●	●
71	14.690 BRACKET; ARM REST POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98102-215-2	02	1	1210-	●	●	●	●
71	14.690 BRACKET; ARM REST EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31>	8-98102-216-4	02	1	1210-	●	●	●	●
83	16.165 CLIP; DOOR TRIM INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98160-729-0	18	1	1309-	●	●	●	●
83	16.165 CLIP; DOOR TRIM (A)	8-98160-729-0	18	1	1210-1308	●	●	●	●
83	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98160-729-0	16	1	1309-	●	●	●	●
83	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98164-677-0	02	1	1210-	●	●	●	●
83	16.165 CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98166-326-0	02	1	1309-	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97416-748-3	01	1	1210-	●	●	●	●
86	16.155 COVER ASM; DOOR POCKET BLACK	8-97416-749-3	01	1	1210-	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-454-1	01	1	1210-	●	●	●	●
127	16.183 SEAL; DOOR INNER POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-455-1	01	1	1210-	●	●	●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31>	8-98103-524-1	01	1	1210-	●	●	●	●
127	16.183 SEAL; DOOR INNER EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31>	8-98103-523-1	01	1	1210-	●	●	●	●
141	16.165 GROMMET; SCREW,LWR COVER 10.565	8-94152-494-0	04	1	1210-	●	●	●	●
166	16.155 PLUG; HOLE	8-98197-448-0	04	1	1210-	●	●	●	●
231	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1210-	●	●	●	●
231	16.165 COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1210-	●	●	●	●
232	16.165 BOLT; DOOR TRIM 16.345 M5X14 TAPPING	8-98184-363-0	02	1	1210-	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

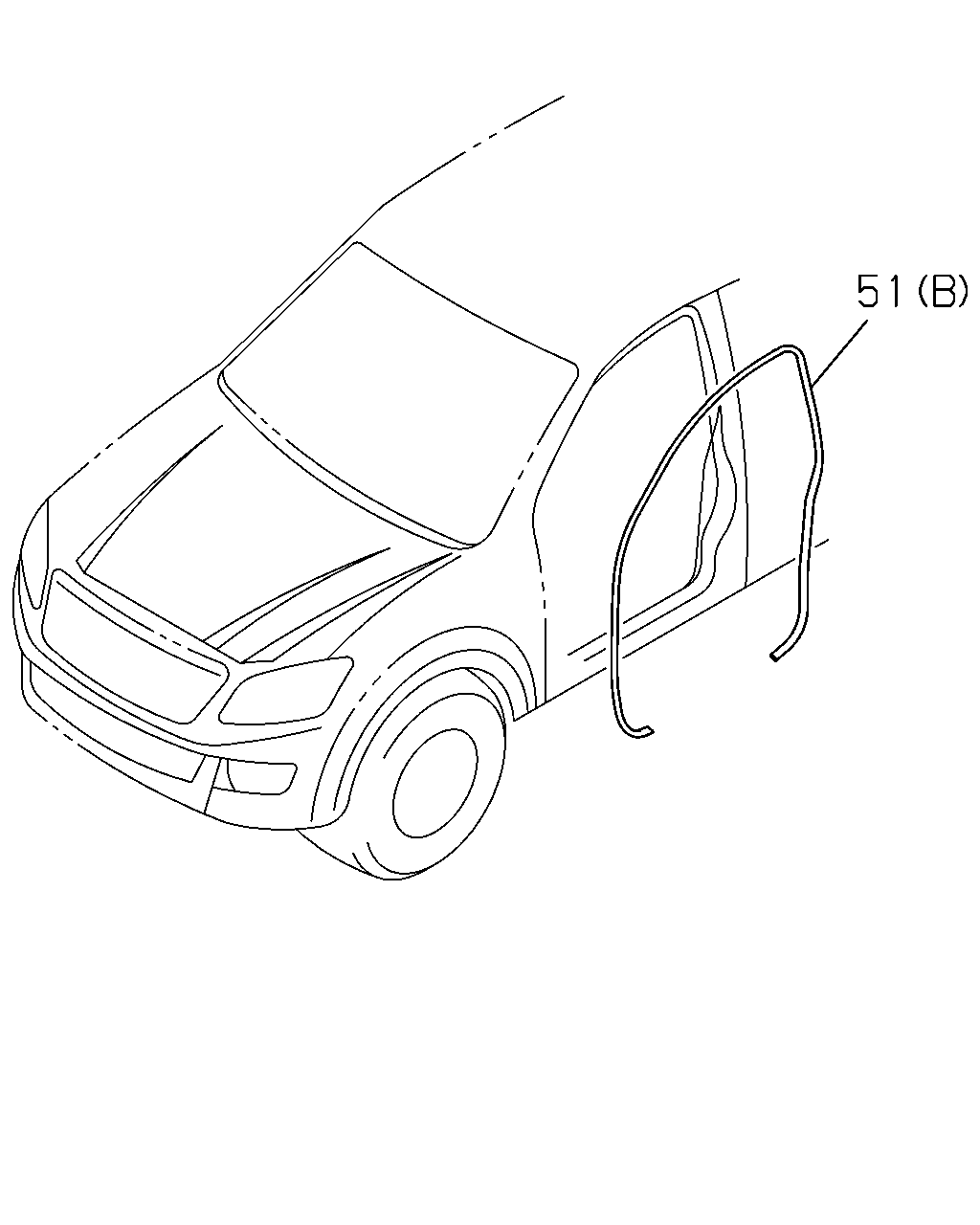

51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1210-	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1210-	●	●	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1210-	●	●	●	●
