6-32 — FRONT DOOR LOCK AND HANDLE (#109121) — 61 parça
çizim 319232
8 12 51 36 176 175 175 8 176 175 36 175 12 11 51 12 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98124-521-4 01 1 1210- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (A) 		8-98115-577-4 01 1 1210- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-98103-870-4 01 1 1210- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98121-270-4 01 1 1210- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (A) 		8-98115-578-4 01 1 1210- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) 		8-98103-868-3 01 1 1210- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98103-869-3 01 1 1210- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-086-0 01 1 1210-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-021-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97351-085-0 01 1 1210-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97351-085-0 01 1 1210-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98292-011-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98292-011-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-994-0 01 1 1210-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-022-0 01 1 1503- ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-97349-993-0 01 1 1210-1502 ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98292-012-0 01 1 1503- ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1210-1302 ● ● ● ●
12 16.330 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1303- ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) 		8-97349-997-0 02 1 1210- ● ● ● ●
12 16.330 SCREW; DOOR LK
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97349-997-0 02 1 1210- ● ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 1210- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98193-693-0 01 1 1210- ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-98193-692-0 01 1 1210- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97349-986-0 01 1 1210- ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 1210- ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1210- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) 		8-98193-690-0 01 1 1210-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98193-690-0 01 1 1210-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-690-0 01 1 1503- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-97349-988-0 01 1 1210-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (A) 		8-97349-988-0 01 1 1210-1502 ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-688-0 01 1 1210- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-691-0 01 1 1210- ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-689-0 01 1 1210- ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-992-0 01 1 1210- ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-991-0 01 1 1210- ● ● ● ●

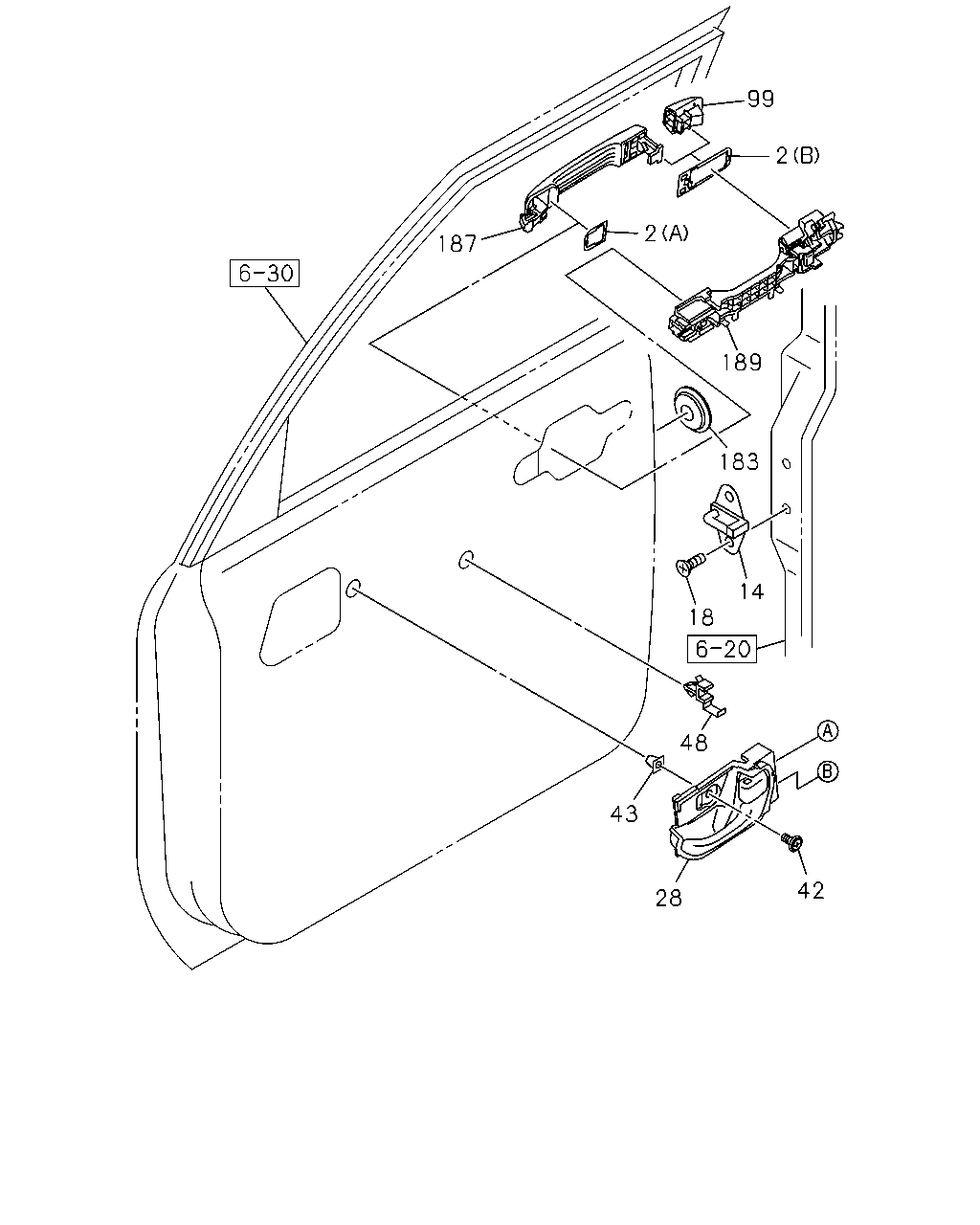

çizim 319233
187 2 99 2 189 183 14 18 48 43 28 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 02 1 1210- ● ● ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
16.360 (B) 		8-98176-467-2 02 1 1210- ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-98012-203-0 02 1 1210- ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1210- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC(RBA) BLACK 		8-97416-726-4 01 1 1210- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC(RBA) BLACK 		8-97416-728-4 01 1 1210- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM(RBD) BLACK 		8-97416-730-3 01 1 1210- ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM(RBD) BLACK 		8-97416-732-3 01 1 1210- ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING 		8-98184-363-0 02 1 1210- ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 		8-94152-494-0 02 1 1210- ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 1210- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-465-1 01 1 1210- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98176-463-1 01 1 1210- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> EXC. REMOTE CONT DOOR LOCK<AP5> PLATED 		8-98176-462-1 01 1 1210- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-462-1 01 1 1210- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>, OUTSIDEHANDLE CHROME<E20> 		8-98176-460-1 01 1 1210- ● ● ● ●
99 16.270 COVER; HOLE DOOR LOCK
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1210- ● ● ● ●
183 16.445 GROMMET
12.182 OD=26 		8-94141-484-0 02 1 1210- ● ● ● ●
187 16.330 GRIP; FRT DOOR
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-458-0 01 1 1210- ● ● ● ●
187 16.330 GRIP; FRT DOOR
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-458-0 01 1 1210- ● ● ● ●
187 16.330 GRIP; FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-456-0 01 1 1210- ● ● ● ●
187 16.330 GRIP; FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-456-0 01 1 1210- ● ● ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98176-469-4 01 1 1210- ● ● ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98176-471-4 01 1 1210- ● ● ● ●
