6-01 — FRONT BUMPER (#10912) — 150 parça

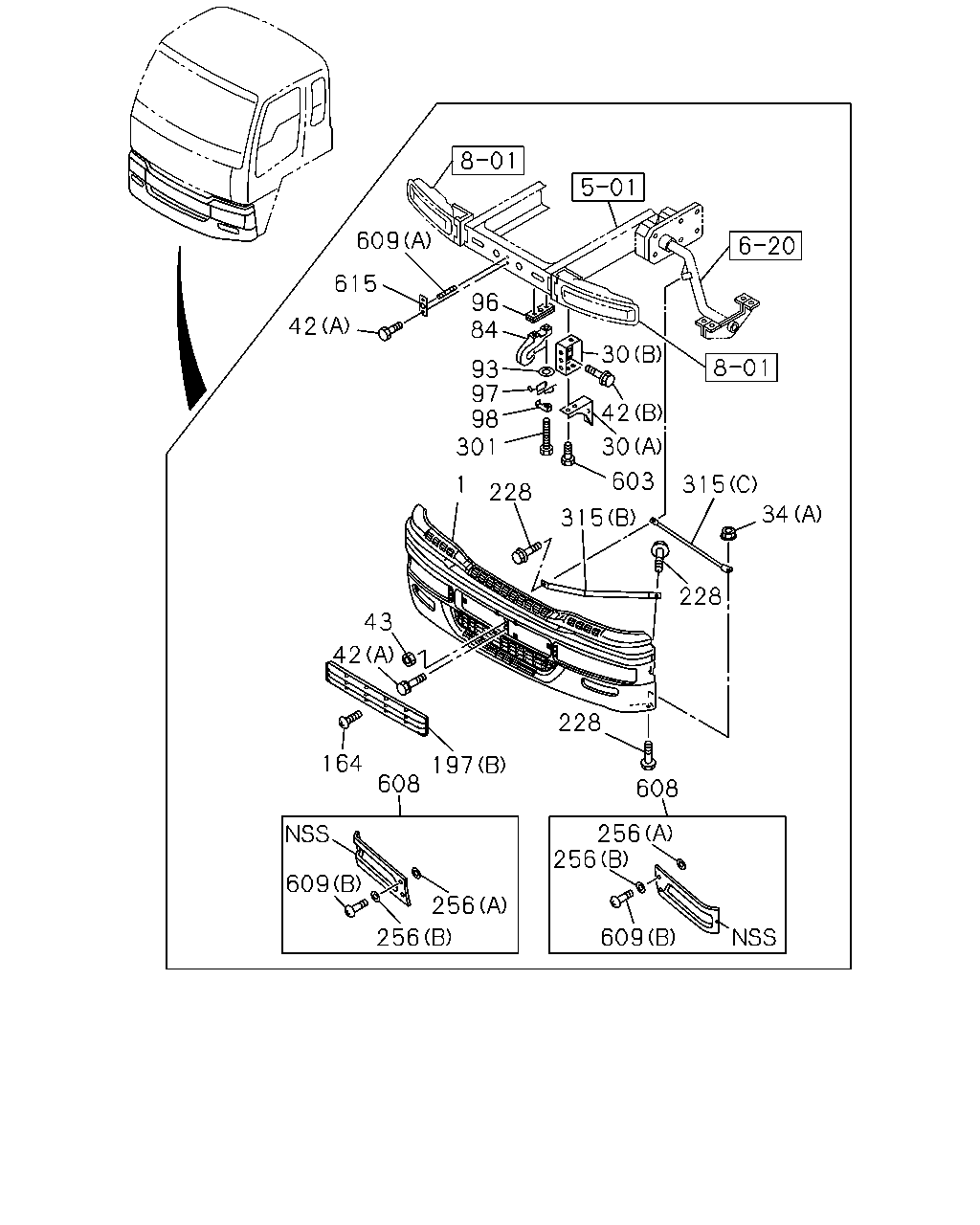

609 615 96 84 42 30 93 97 98 301 42 30 603 315 1 228 34 315 228 43 42 228 164 197 608 608 256 256 609 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FOG LAMP<T96>	1-71210-870-3	01	1	0105-0105
1	BUMPER ASM; FRT EXC. FOG LAMP<T96> WHITE	1-71210-746-5	01	1	0105-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-430-0	01	1	0105-0105
30	BRACKET; FRT BUMPER (A)	1-71230-430-0	01	1	0106-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-431-0	01	1	0105-0105
30	BRACKET; FRT BUMPER (A)	1-71230-431-0	01	1	0106-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-455-1	01	1	0105-0105
30	BRACKET; FRT BUMPER (B)	1-71230-455-1	01	1	0106-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-456-1	01	1	0105-0105
30	BRACKET; FRT BUMPER (B)	1-71230-456-1	01	1	0106-
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	17	1	0105-0105
34	NUT; BRKT,BUMPER EXC. FOG LAMP<T96> (B) M8 FLANGE	0-91150-108-0	17	1	0106-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	02	1	0105-0105
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	02	1	0106-
42	BOLT; BUMPER FRONT SPOILER<VP1> (A) M10X25 FLANGE	0-28681-025-0	07	1	0105-0105
42	BOLT; BUMPER (A) M10X25 FLANGE	0-28681-025-0	07	1	0106-
42	BOLT; BUMPER FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE	0-28081-035-0	08	1	0105-0105
42	BOLT; BUMPER (B) M10X35 FLANGE	0-28081-035-0	08	1	0106-0106
42	BOLT; BUMPER (B) M10X30 FLANGE	0-28681-030-0	08	1	0107-
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	02	1	0105-0105
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	02	1	0106-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-560-0	01	1	0105-0105
96	PLATE; DIST,HOOK	1-53497-560-0	01	1	0106-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	0105-0105
97	SPRING; FRT HOOK FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	0105-0105
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0106-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	0105-0105
98	STOPPER; SPR,FRT HOOK FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	0105-0105
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0106-
164	SCREW; AIR INT GRILLE FRONT SPOILER<VP1> M6X20	1-71260-141-0	06	1	0105-0105
164	SCREW; AIR INT GRILLE M6X20	1-71260-141-0	06	1	0106-
197	GRILLE; BUMPER (A)	1-71260-117-0	01	1	0105-0105
197	GRILLE; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-117-0	01	1	0106-
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	1-71260-157-2	01	1	0105-0105
197	GRILLE; BUMPER (B)	1-71260-157-2	01	1	0106-
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	0105-0105
228	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	0106-
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	0105-0105
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) (A)	1-71260-173-0	03	1	0106-
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	0105-0105
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	0106-
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	0105-0105
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) (A)	1-71260-153-0	03	1	0106-
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	0105-0105
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) (B)	1-71260-165-0	03	1	0106-
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	0105-0105
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	0105-0105
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) (A)	1-71260-173-0	06	1	0106-
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-0105
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-0105
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0106-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	0105-0105
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	0105-0105
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	0106-
301	BOLT; HOOK TO FRAME FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	0105-0105
301	BOLT; HOOK TO FRAME M16X80	0-10811-680-0	01	1	0106-
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0105-0105
315	STAY; BUMPER EXC. FOG LAMP<T96> (A)	1-71230-346-2	01	1	0106-
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0105-0105
315	STAY; BUMPER EXC. FOG LAMP<T96> (A)	1-71230-347-2	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-0105
315	STAY; BUMPER (B)	1-71230-381-1	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-505-0	01	1	0105-0105
315	STAY; BUMPER (C)	1-71230-505-0	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-0105
315	STAY; BUMPER (B)	1-71230-380-0	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-504-0	01	1	0105-0105
315	STAY; BUMPER (C)	1-71230-504-0	01	1	0106-
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	0105-0105
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0106-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71210-753-4	01	1	0105-0105
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71210-752-4	01	1	0105-0105
608	LID; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	0105-0105
608	LID; BUMPER	1-71210-897-0	01	1	0106-
608	LID; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	0105-0105
608	LID; BUMPER	1-71210-896-0	01	1	0106-
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	0105-0105
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) (B)	1-71260-175-0	03	1	0106-
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	0105-0105
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) (B)	1-71260-164-0	03	1	0106-
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	0105-0105
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	0105-0105
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) (B)	1-71260-175-0	06	1	0106-
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	0105-0105
609	STUD; BUMPER (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	0106-
615	BRACKET; BUMPER CENTER FRONT SPOILER<VP1>	1-71230-407-0	01	1	0105-0105
615	BRACKET; BUMPER CENTER	1-71230-407-0	01	1	0106-

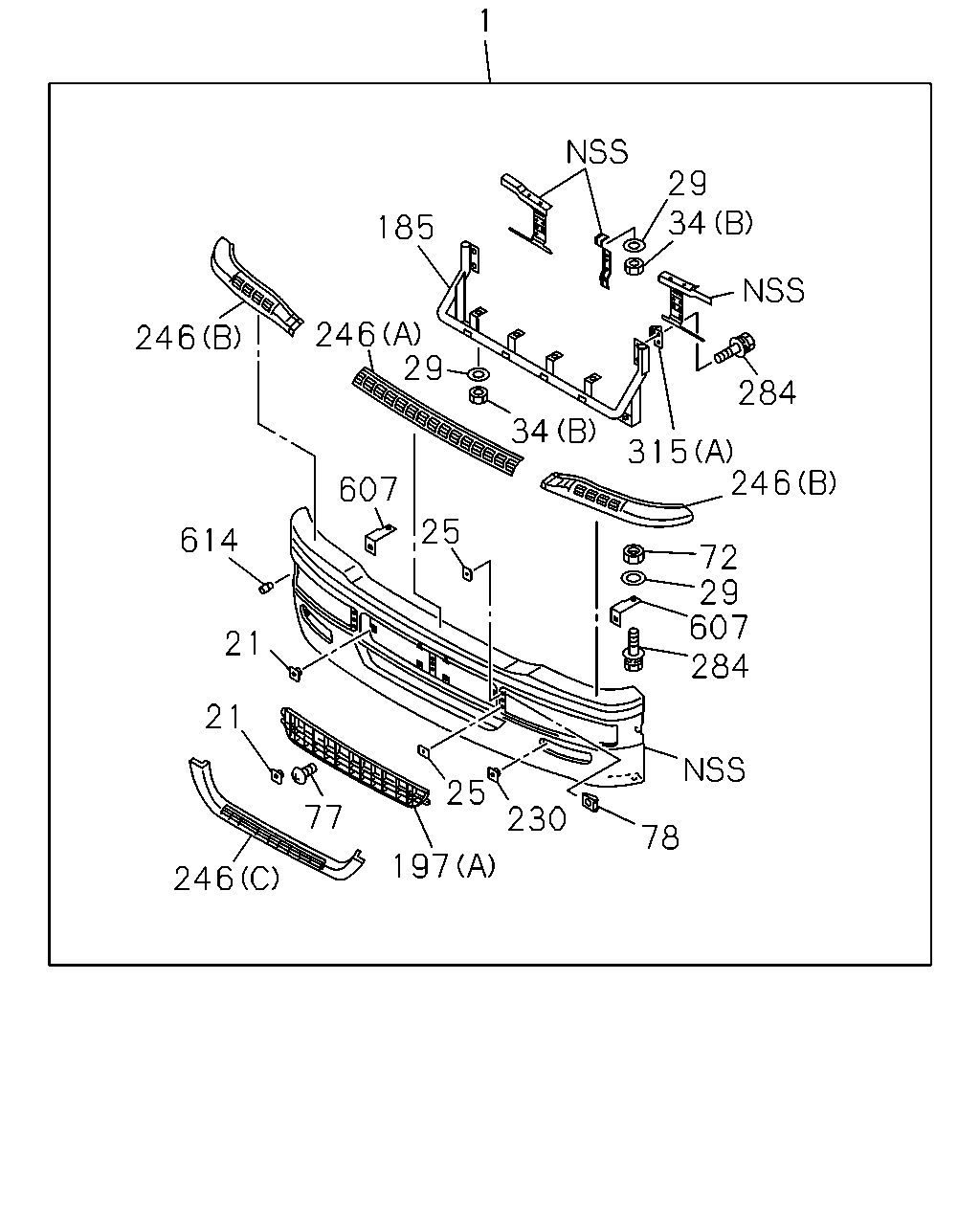

1 29 34 185 246 29 34 246 284 315 246 607 25 614 72 29 607 284 21 21 25 77 230 78 197 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FOG LAMP<T96>	1-71210-870-3	01	1	0105-0105
1	BUMPER ASM; FRT EXC. FOG LAMP<T96> WHITE	1-71210-746-5	01	1	0105-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FOG LAMP<T96> D=9X9 L=7 M5	8-94163-979-0	14	1	0212-
21	GROMMET; SCREW,BUMPER PROTECTOR D=9.7X9.7 L=8	8-94222-314-0	24	1	0105-0105
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FOG LAMP<T96> D=9.7X9.7 L=8	8-94222-314-0	24	1	0106-0211
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FOG LAMP<T96> D=9.7X9.7 L=8	8-94222-314-0	10	1	0212-
25	SPACER; PLATFORM	1-71260-162-0	06	1	0105-0105
25	SPACER; PLATFORM EXC. FOG LAMP<T96>	1-71260-162-0	06	1	0106-
29	WASHER; FRT BUMPER ID=8.4	9-09160-508-0	21	1	0105-0105
29	WASHER; FRT BUMPER EXC. FOG LAMP<T96> ID=8.4	9-09160-508-0	21	1	0106-0211
29	WASHER; FRT BUMPER EXC. FOG LAMP<T96> ID=8.4 OD=22	9-09160-708-0	19	1	0212-
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	17	1	0105-0105
34	NUT; BRKT,BUMPER EXC. FOG LAMP<T96> (B) M8 FLANGE	0-91150-108-0	17	1	0106-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	02	1	0105-0105
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	02	1	0106-
72	NUT; BRKT M8	9-09110-508-0	04	1	0105-0105
72	NUT; BRKT EXC. FOG LAMP<T96> M8	9-09110-508-0	04	1	0106-0211
72	NUT; BRKT EXC. FOG LAMP<T96> M8	9-09110-508-0	02	1	0212-
77	SCREW; BRKT M5X12	9-93490-512-0	16	1	0105-0105
77	SCREW; BRKT EXC. FOG LAMP<T96> M5X12	9-93490-512-0	16	1	0106-0211
77	SCREW; BRKT EXC. FOG LAMP<T96> M5X16 TAPPING	9-07076-516-0	14	1	0212-
78	NUT; SPIRE	1-71260-152-0	04	1	0105-0105
78	NUT; SPIRE EXC. FOG LAMP<T96>	1-71260-152-0	04	1	0106-0211
78	NUT; SPIRE EXC. FOG LAMP<T96>	1-71260-174-0	06	1	0212-
185	BRACKET; BUMPER,INNER	1-71230-406-0	01	1	0105-0105
185	BRACKET; BUMPER,INNER EXC. FOG LAMP<T96>	1-71230-406-0	01	1	0106-0211
197	GRILLE; BUMPER (A)	1-71260-117-0	01	1	0105-0105
197	GRILLE; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-117-0	01	1	0106-
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	1-71260-157-2	01	1	0105-0105
197	GRILLE; BUMPER (B)	1-71260-157-2	01	1	0106-
230	NUT; BRK,HD LAMP,LWR D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-0105
230	NUT; BRK,HD LAMP,LWR EXC. FOG LAMP<T96> D=9.7X9.7 L=8	8-94222-314-0	04	1	0106-
246	PROTECTOR; BUMPER (A)	1-71260-155-0	01	1	0105-0105
246	PROTECTOR; BUMPER EXC. FOG LAMP<T96> (A)	1-71260-155-0	01	1	0106-
246	PROTECTOR; BUMPER (C)	1-71260-156-1	01	1	0105-0105
246	PROTECTOR; BUMPER EXC. FOG LAMP<T96> (C)	1-71260-156-1	01	1	0106-
246	PROTECTOR; BUMPER (B)	1-71260-095-1	01	1	0105-0105
246	PROTECTOR; BUMPER EXC. FOG LAMP<T96> (B)	1-71260-095-1	01	1	0106-
246	PROTECTOR; BUMPER (B)	1-71260-094-1	01	1	0105-0105
246	PROTECTOR; BUMPER EXC. FOG LAMP<T96> (B)	1-71260-094-1	01	1	0106-
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0105-0105
284	BOLT; BRKT EXC. FOG LAMP<T96> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0106-0211
284	BOLT; BRKT EXC. FOG LAMP<T96> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0212-
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-0105
284	BOLT; BRKT EXC. FOG LAMP<T96> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0106-
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0105-0105
315	STAY; BUMPER EXC. FOG LAMP<T96> (A)	1-71230-346-2	01	1	0106-
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0105-0105
315	STAY; BUMPER EXC. FOG LAMP<T96> (A)	1-71230-347-2	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-0105
315	STAY; BUMPER (B)	1-71230-381-1	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-505-0	01	1	0105-0105
315	STAY; BUMPER (C)	1-71230-505-0	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-0105
315	STAY; BUMPER (B)	1-71230-380-0	01	1	0106-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-504-0	01	1	0105-0105
315	STAY; BUMPER (C)	1-71230-504-0	01	1	0106-
607	BRACKET	1-71230-454-0	02	1	0105-0105
607	BRACKET EXC. FOG LAMP<T96>	1-71230-454-0	02	1	0106-
614	STOPPER; LID	1-71260-163-0	12	1	0105-0105
614	STOPPER; LID EXC. FOG LAMP<T96>	1-71260-163-0	12	1	0106-
