◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#109118) — 146 parça

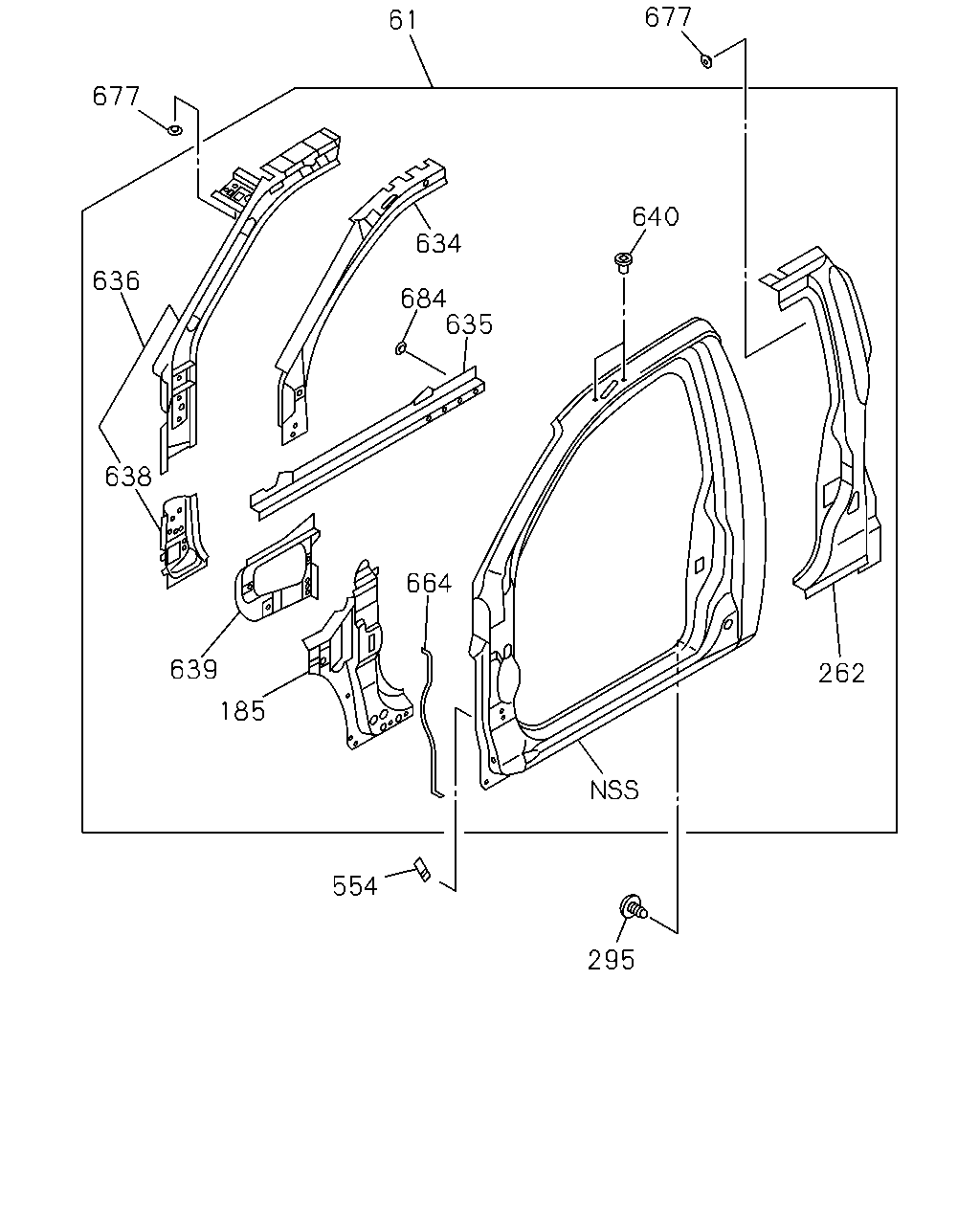

çizim 319225
677 61 677 634 635 684 640 636 638 639 185 664 554 295 262
BalonParca AdiParca NoAdetTipApplied Date A B C D
61 16.570 PANEL; SIDE OUTER 8-98103-239-6 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER 8-98103-248-2 01 1 1210-1309 ● ●
61 16.570 PANEL; SIDE OUTER 8-98233-256-4 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98103-241-7 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98103-250-2 01 1 1210-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98233-257-5 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98139-847-7 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98139-846-2 01 1 1210-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98233-258-5 01 1 1310- ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1210- ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1210- ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1210- ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1210- ● ● ● ●
262 16.575 PANEL; PILLAR 8-98104-375-9 01 1 1210-1408 ● ●
262 16.575 PANEL; PILLAR 8-98269-897-0 01 1 1409- ● ●
262 16.575 PANEL; PILLAR 8-98192-993-1 01 1 1210- ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1210- ● ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1210- ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1210- ● ● ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1210- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-503-2 01 1 1210- ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-504-2 01 1 1210- ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-793-4 01 1 1210- ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-794-4 01 1 1210- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-088-7 01 1 1210- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-088-7 01 1 1210- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-091-7 01 1 1210- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-091-7 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1210- ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1210- ● ●
640 16.570 POP NUT
INTERIOR BASIC(RBA) 09.647 M5 POP NUT 		8-97249-574-0 02 1 1210- ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1210- ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1210- ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1210- ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1210- ● ● ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1210- ● ●

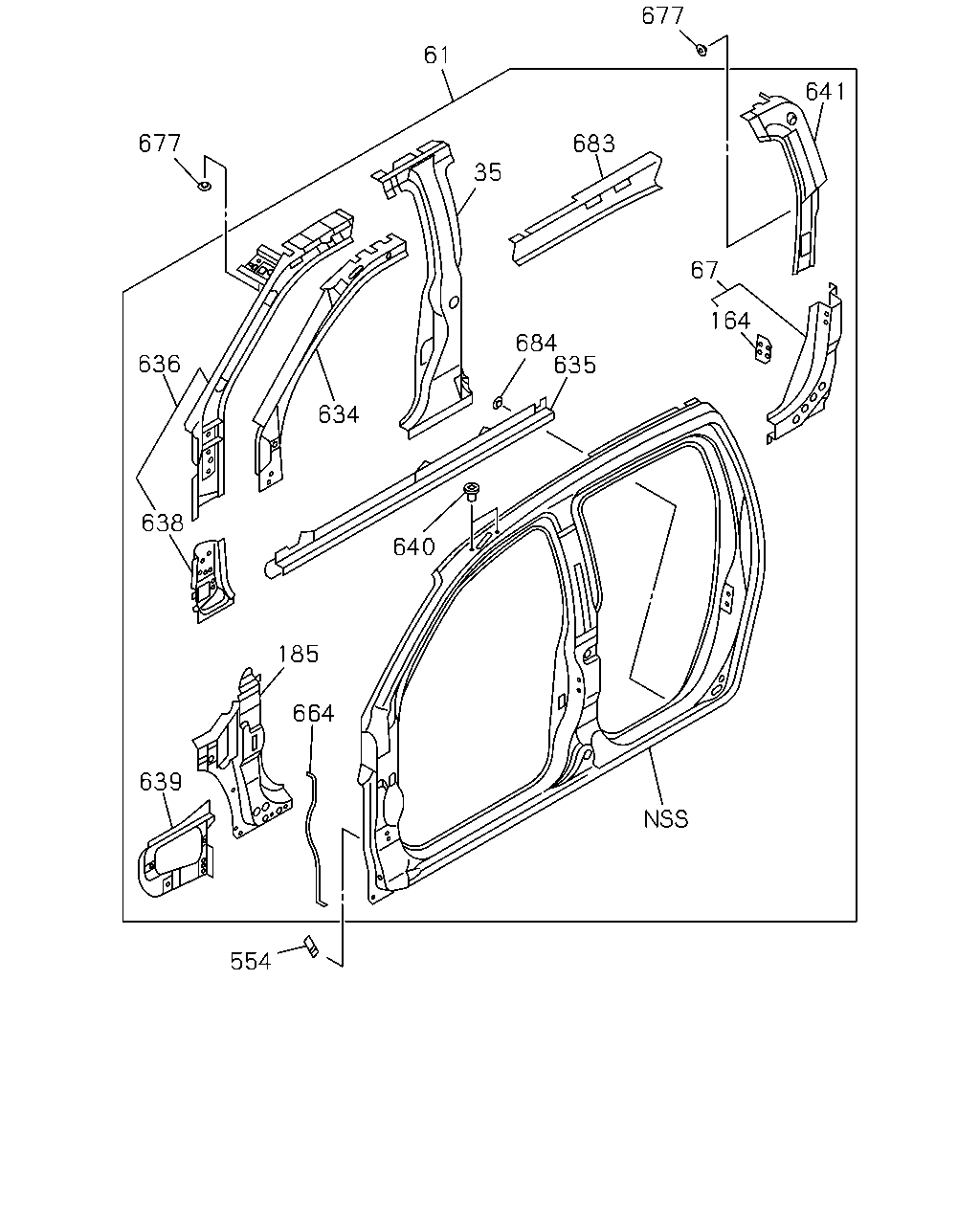

çizim 319226
677 641 67 164 635 684 640 634 677 61 636 638 185 664 639 554 683 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 16.570 PANEL; CENTER PILLAR,INNER 8-98104-766-7 01 1 1210- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98104-767-8 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER 8-98103-239-6 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER 8-98103-248-2 01 1 1210-1309 ● ●
61 16.570 PANEL; SIDE OUTER 8-98233-256-4 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98103-241-7 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98103-250-2 01 1 1210-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98233-257-5 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98139-847-7 01 1 1210- ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98139-846-2 01 1 1210-1309 ● ●
61 16.570 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98233-258-5 01 1 1310- ● ●
67 16.587 PANEL; INNER,RR PILLAR LWR 8-98104-786-6 01 1 1210- ● ●
67 16.587 PANEL; INNER,RR PILLAR LWR 8-98104-787-6 01 1 1210- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1210- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1210- ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1210- ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1210- ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1210- ● ● ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1210- ● ● ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1210- ● ● ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1210- ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1210- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-503-2 01 1 1210- ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-504-2 01 1 1210- ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-793-4 01 1 1210- ● ●
635 16.570 REINFORCEMENT; ROCKER 8-98104-794-4 01 1 1210- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-088-7 01 1 1210- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-088-7 01 1 1210- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-091-7 01 1 1210- ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98161-091-7 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-490-4 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1210- ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-98137-491-4 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1210- ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1210- ● ● ● ●
640 16.570 POP NUT
09.647 M5 POP NUT 		8-97249-574-0 02 1 1210- ● ●
640 16.570 POP NUT
INTERIOR BASIC(RBA) 09.647 M5 POP NUT 		8-97249-574-0 02 1 1210- ● ●
641 16.570 PANEL; BACK BODY PILLER 8-98121-123-6 01 1 1210- ● ●
641 16.570 PANEL; BACK BODY PILLER 8-98121-124-6 01 1 1210- ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1210- ● ● ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1210- ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1210- ● ● ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 16 1 1210- ● ● ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) 		8-98119-107-5 01 1 1210- ● ●
683 16.585 PANEL; HEADER
INTERIOR BASIC(RBA) 		8-98119-106-5 01 1 1210- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) 		8-98104-816-5 01 1 1210- ● ●
683 16.585 PANEL; HEADER
INTERIOR CUSTOM(RBD) 		8-98104-815-5 01 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 07 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1210- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 10 1 1210- ● ●

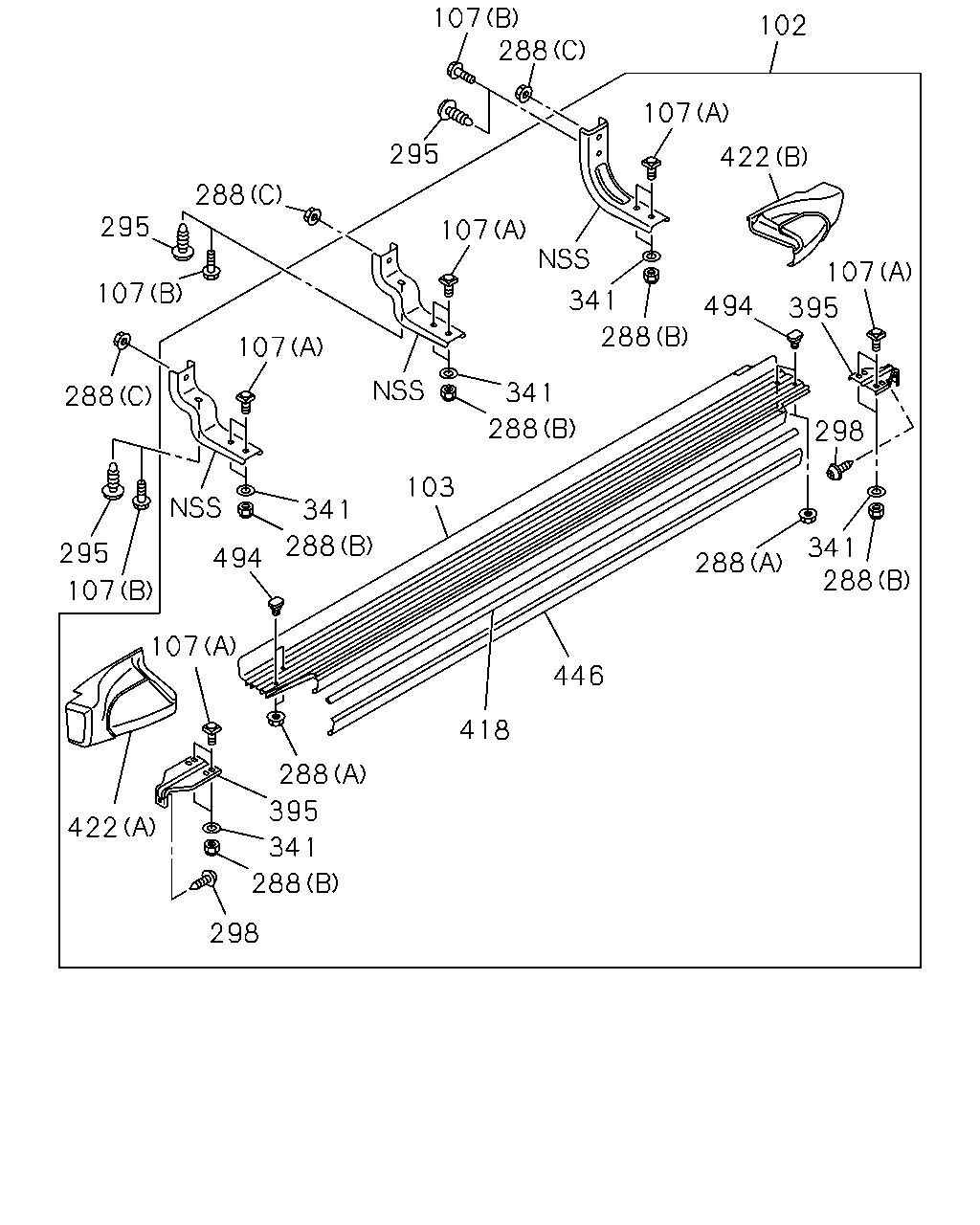

çizim 319227
107 295 288 288 295 107 288 295 107 107 341 288 494 107 422 288 395 341 288 298 418 107 341 288 103 446 341 288 107 494 422 107 395 298 341 288 288 102
BalonParca AdiParca NoAdetTipApplied Date A B C D
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-321-4 01 1 1212- ● ●
102 12.934 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-322-4 01 1 1212- ● ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-968-0 01 1 1409- ● ●
103 08.228 PLATE; STEP
SIDE STEP<6TC> 		8-98292-969-0 01 1 1409- ● ●
107 08.228 BOLT; SIDE STEP
SIDE STEP<6TC> (A) 		8-98251-460-0 20 1 1409- ● ●
107 08.228 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1210- ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.062 (A) M6 FLANGE 		0-91180-106-0 08 1 1409- ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1409- ● ●
288 08.225 NUT; STEP
SIDE STEP<6TC> 01.540 (C) M8 FLANGE 		0-91180-208-0 06 1 1210- ● ●
295 08.225 CLIP; BODY SIDE STEP
16.800 OD=18 		8-94269-290-0 04 1 1210- ● ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> 16.800 OD=18 		8-94269-290-0 06 1 1210- ● ●
298 08.309 SCREW; SIDE STEP
SIDE STEP<6TC> 01.269 M5X16 		8-98073-081-0 04 1 1409- ● ●
341 08.309 WASHER; PL,STEP
SIDE STEP<6TC> 02.559 ID=8.4 OD=18 		0-91614-608-0 20 1 1409- ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP<6TC> 		8-98292-978-0 04 1 1409- ● ●
418 08.304 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-008-0 02 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-036-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-042-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-046-1 01 1 1409- ● ●
422 08.228 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-050-1 01 1 1409- ● ●
446 08.228 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-048-0 02 1 1409- ● ●
494 08.228 STUD; BRKT
SIDE STEP<6TC> 08.077 		8-98056-035-0 08 1 1409- ● ●

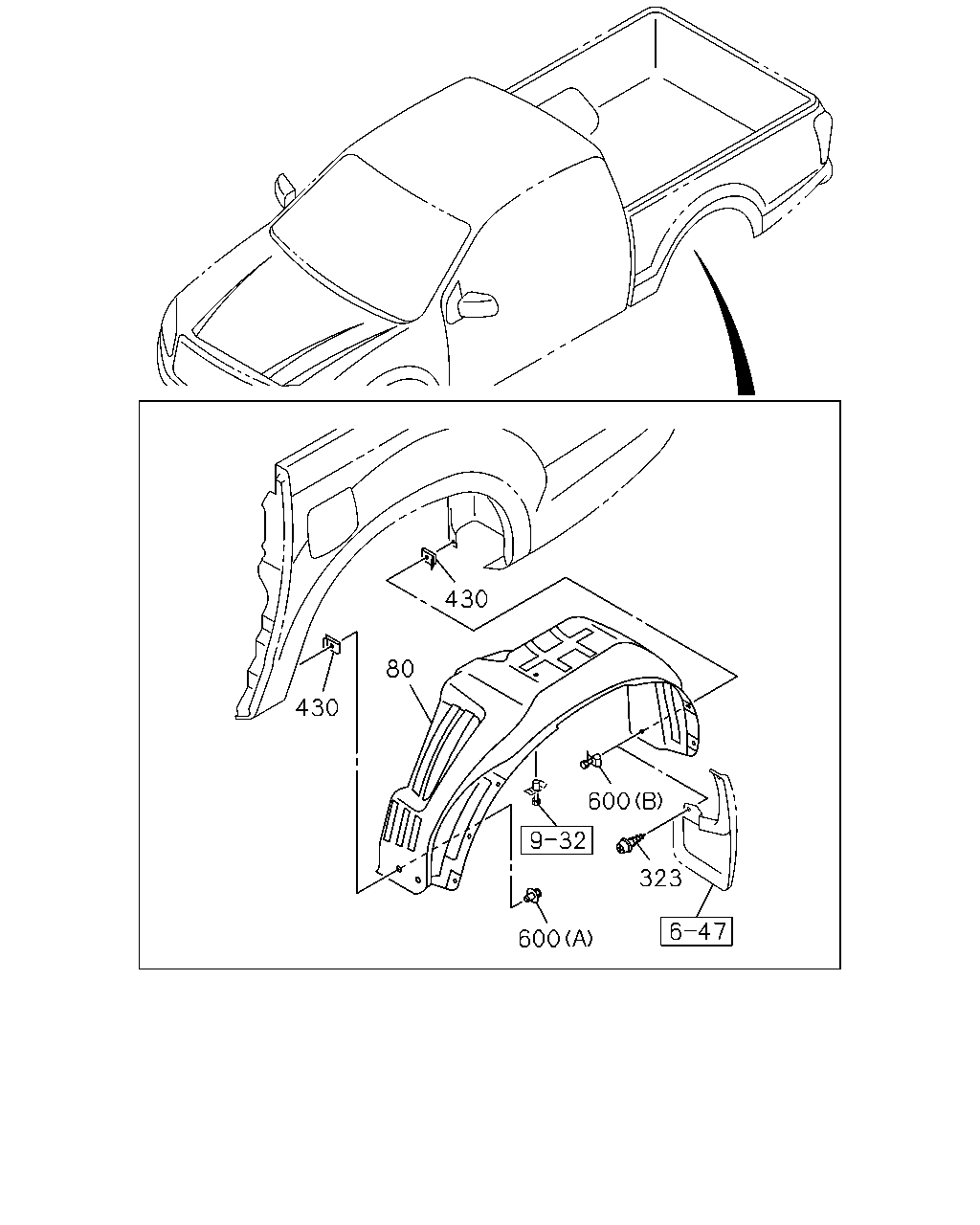

çizim 319229
430 80 430 600 323 600
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-943-4 01 1 1210- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-943-4 01 1 1210- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-944-4 01 1 1210- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-944-4 01 1 1210- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-945-5 01 1 1210- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-945-5 01 1 1210- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-946-5 01 1 1210- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-946-5 01 1 1210- ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1210- ● ● ● ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1210- ●
323 08.155 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1210- ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 08.155 		8-97125-519-0 06 1 1210- ● ● ● ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 08.155 		8-97125-519-0 02 1 1210- ●
430 16.570 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 08.155 		8-97125-519-0 02 1 1210- ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98186-355-0 04 1 1210- ● ● ● ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) 08.154 (B) 		8-94221-150-0 02 1 1210- ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 08.154 (B) 		8-94221-150-0 02 1 1210- ●
600 16.570 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 (B) 		8-94221-150-0 06 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
