◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#109113) — 23 parça

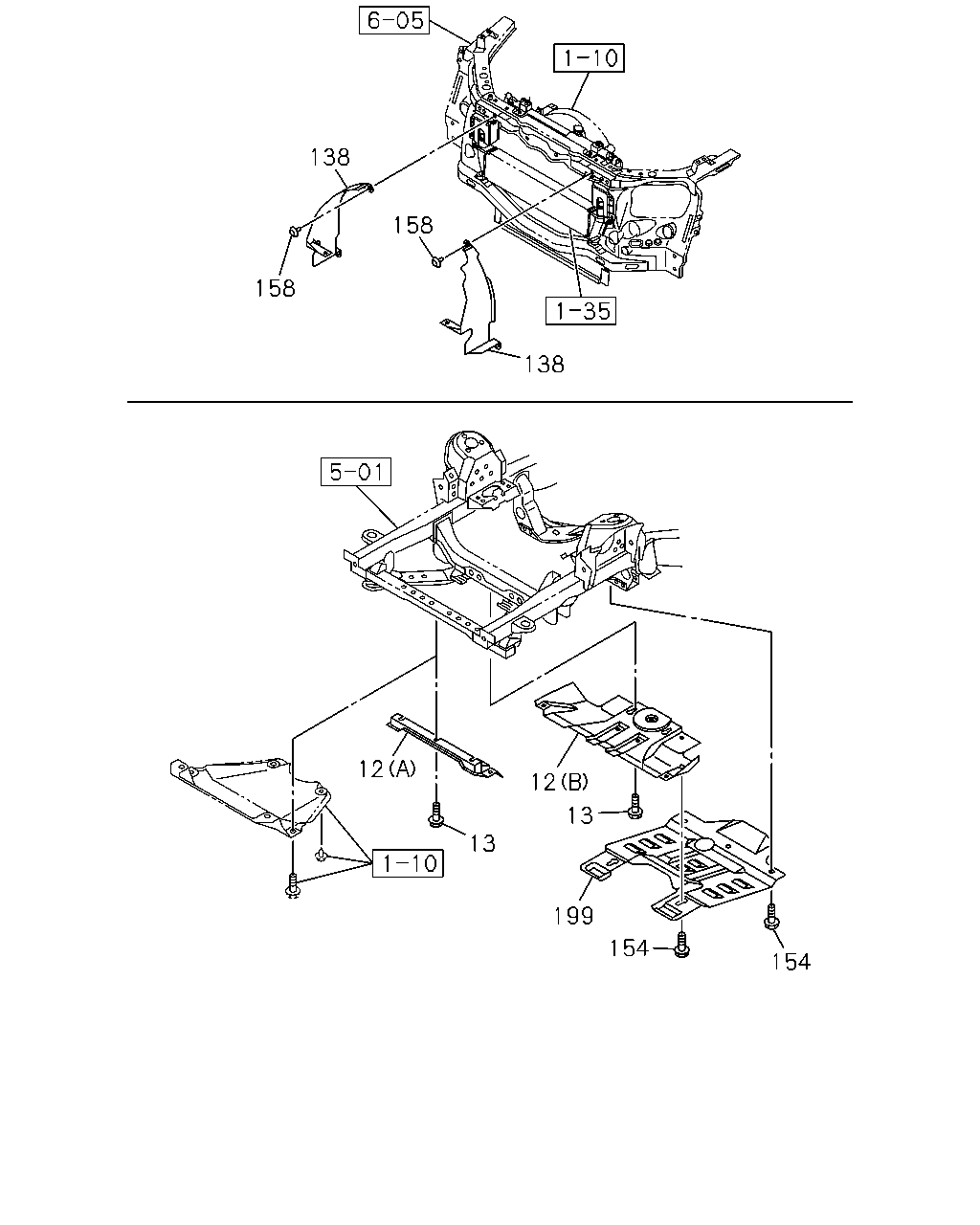

çizim 319350
138 158 158 138 12 13 12 13 199 154 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1210- ● ●
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1210- ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98102-133-3 01 1 1210-1307 ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98102-133-3 01 1 1210-1307 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1308- ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1308- ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1210- ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1210- ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-98137-586-1 01 1 1210- ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-98137-587-1 01 1 1210- ● ● ● ●
154 01.267 BOLT; COVER
01.428 M10X28 W/PL WASHER 		8-98186-487-0 04 1 1210-1307 ● ●
154 01.267 BOLT; COVER
01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1308- ● ●
158 01.269 CLIP; PROTECTOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1210- ● ● ● ●
199 01.274 PLATE; OIL PAN
01.426 		8-98131-898-1 01 1 1210-1307 ● ●
199 01.274 PLATE; OIL PAN
01.426 		8-98229-404-0 01 1 1308- ● ●

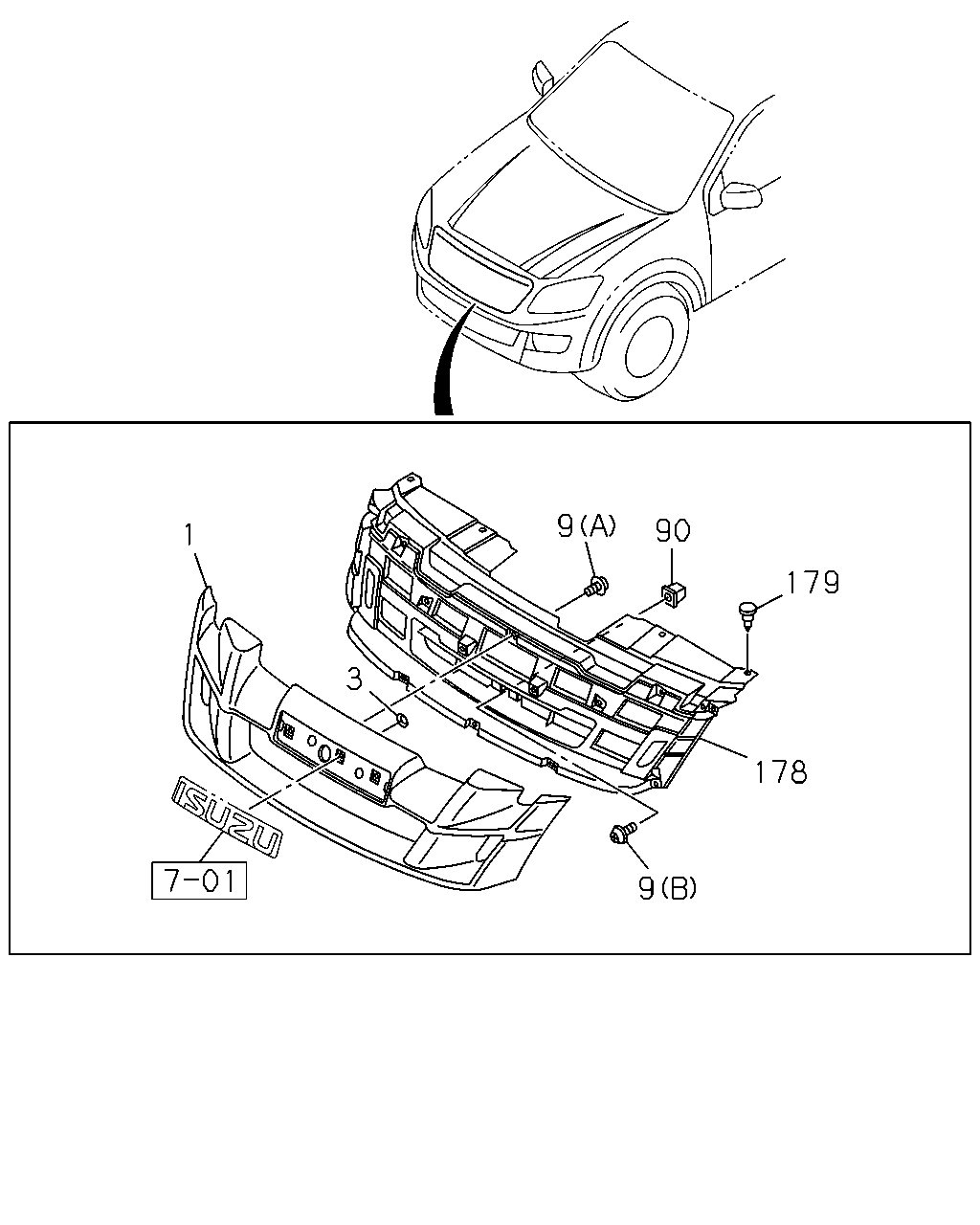

çizim 319372
1 3 9 178 179 90 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98193-869-0 01 1 1210- ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1210- ● ● ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1210- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1210- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1210- ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1210- ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1210- ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1210- ● ● ● ●
