◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10873 - CXM LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#10911) — 39 parça

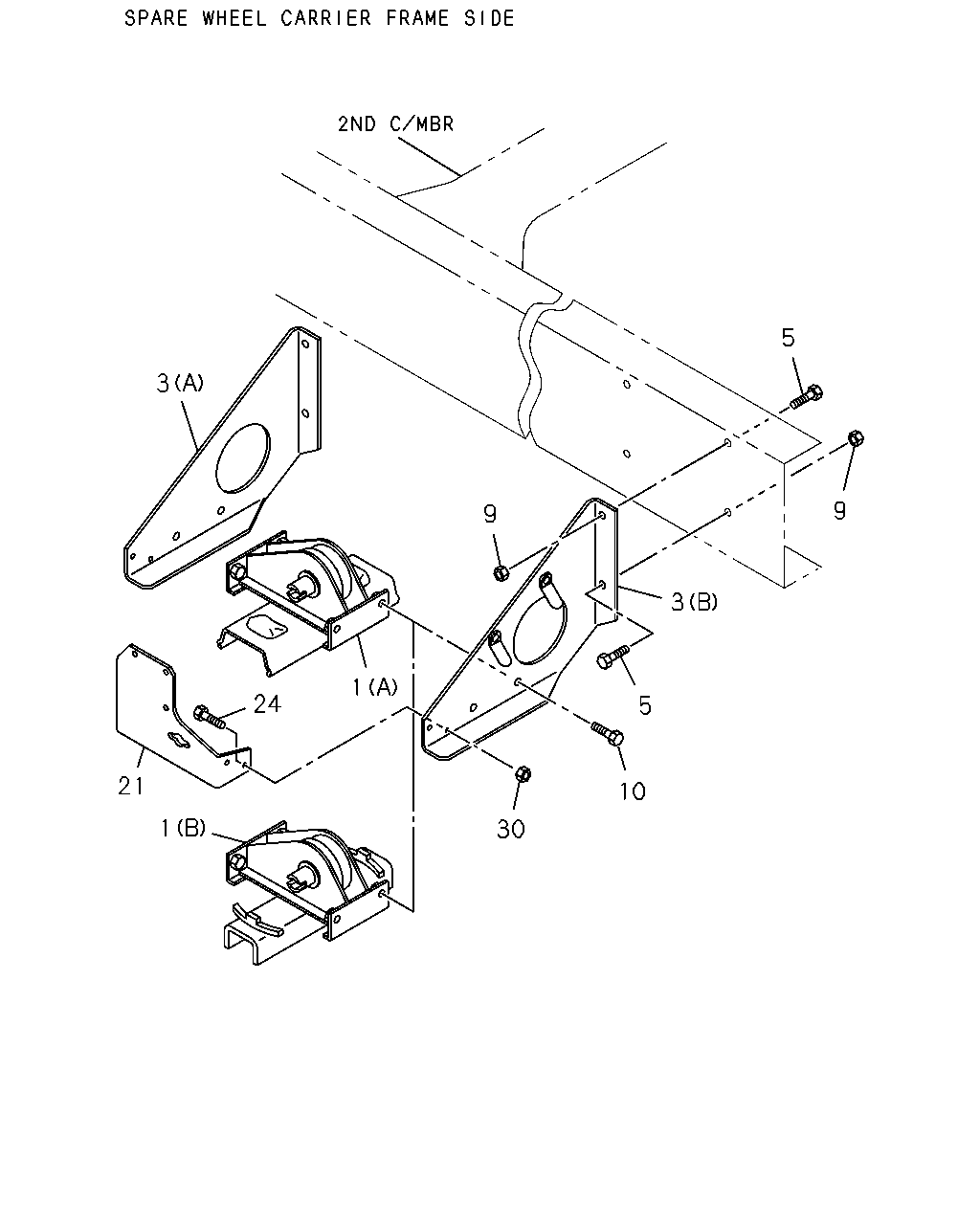

çizim 75314
5 3 9 9 3 1 24 5 10 21 1 30
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),W HEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-208-1 01 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0205-
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0105-0204
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0205-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-324-0 02 1 0105-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-323-1 02 1 0105-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 08 1 0105-
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 08 1 0105-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 0105-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0105-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-428-0 02 1 0105-
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28680-825-0 08 1 0105-
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 08 1 0105-

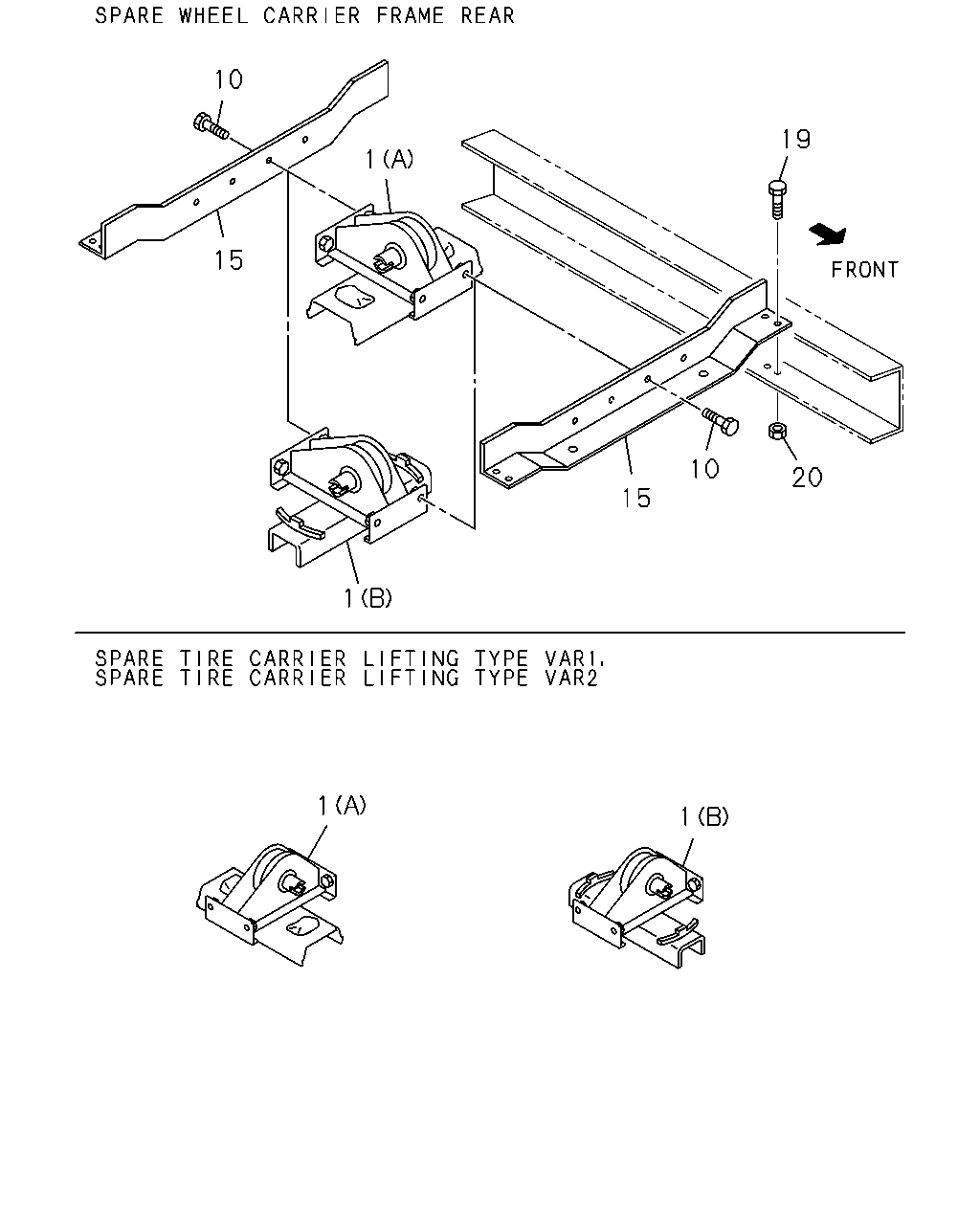

çizim 77615
10 19 1 15 10 20 15 1 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),W HEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-208-1 01 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0205-
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0105-0204
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205-
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0105-0204
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0205-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 0105-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0105-
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 0105-
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00-20<96X> M10X25 FLANGE 		0-28081-025-0 08 1 0105-
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00-20<97X> M10X35 FLANGE 		0-28081-035-0 08 1 0105-
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 0105-
