Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#109106) — 199 parça

497 497 497 497 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
485	07.039 NUT; TRANS MTG MBR,FRAME 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-	●	●	●	●
497	07.006 BOLT; C/MBR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1210-	●	●
497	07.006 BOLT; C/MBR 4JA1-T ENG(LP0) EXC. SKID PLATE<7WE> 01.267 (A) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1210-	●	●
497	07.006 BOLT; C/MBR 02.277 (C) M10X120 FLANGE	0-28066-012-0	04	1	1210-	●	●	●	●
497	07.006 BOLT; C/MBR 07.395 (D) M12X30 FLANGE	0-28651-230-0	08	1	1210-	●	●	●	●
497	07.006 BOLT; C/MBR 03.023 (B) M10X35 FLANGE	0-28661-035-0	04	1	1210-	●
497	07.006 BOLT; C/MBR EXC. HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE	0-28661-035-0	04	1	1210-		●
497	07.006 BOLT; C/MBR HIGH RIDE SUSPENSION(7YC) 03.023 (B) M10X35 FLANGE	0-28661-035-0	06	1	1210-		●
497	07.006 BOLT; C/MBR 03.023 (B) M10X35 FLANGE	0-28661-035-0	06	1	1210-			●	●

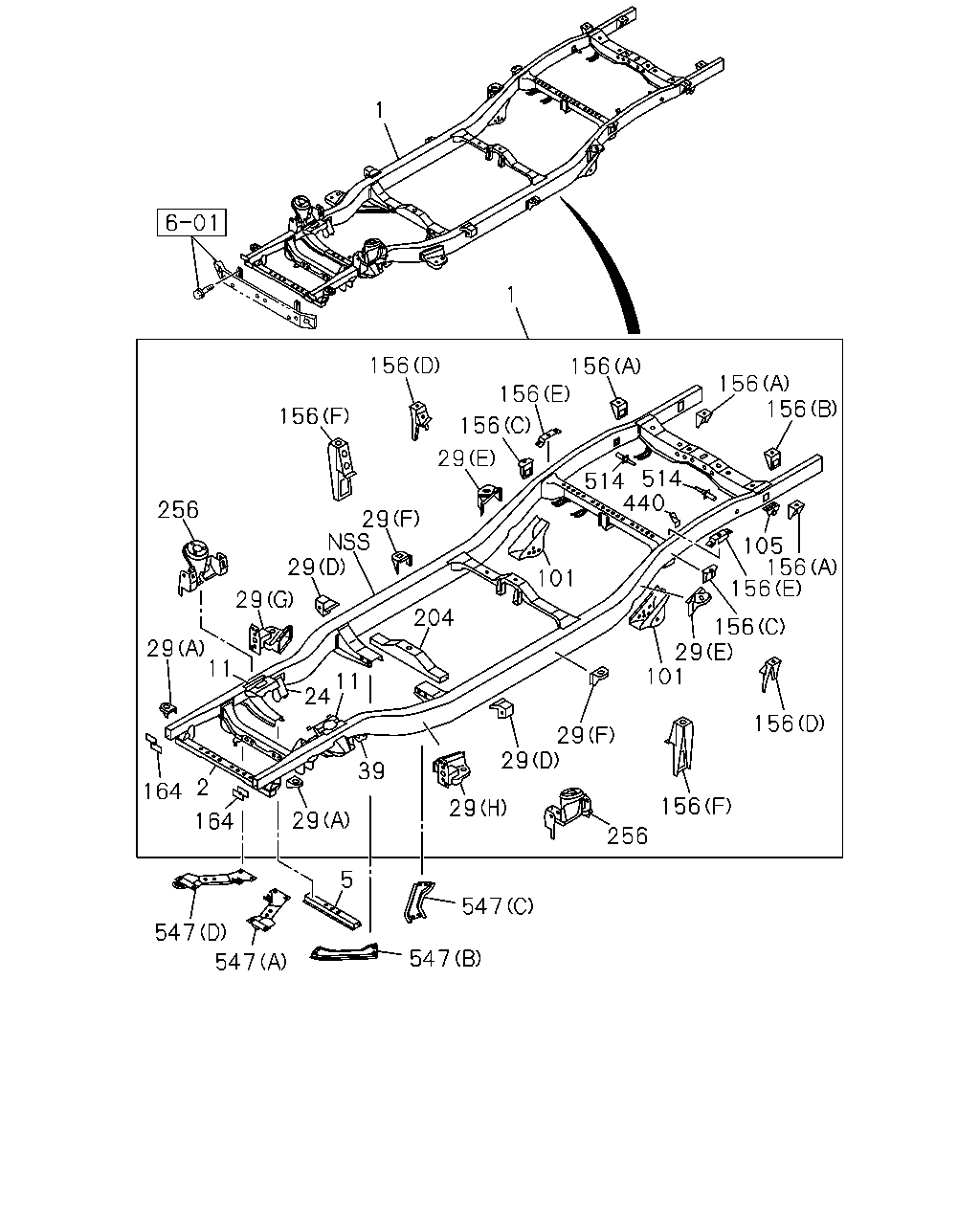

1 1 156 156 156 156 156 156 514 514 156 440 29 29 29 29 29 256 11 11 24 204 39 29 164 2 164 29 256 29 156 29 156 101 156 29 156 105 156 547 5 547 547 547 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98102-255-5	01	1	1210-	●
1	07.003 FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98102-287-3	01	1	1210-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-98102-290-4	01	1	1210-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-98102-257-5	01	1	1210-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-275-3	01	1	1210-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98102-249-3	01	1	1210-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-273-3	01	1	1210-				●
2	07.010 MEMBER; CROSS,1ST	8-98106-701-1	01	1	1210-	●	●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98106-736-2	01	1	1210-	●
5	07.010 MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-736-2	01	1	1210-		●
5	07.010 MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-98173-915-1	01	1	1210-		●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98173-916-0	01	1	1210-1307			●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98229-450-0	01	1	1308-			●	●
11	00.029 BRACKET; ENG MTG	8-98106-793-2	01	1	1210-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1210-		●
11	00.029 BRACKET; ENG MTG	8-98106-795-1	01	1	1210-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1210-		●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-794-2	01	1	1210-		●
11	00.029 BRACKET; ENG MTG	8-98106-794-2	01	1	1210-			●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-796-2	01	1	1210-		●
11	00.029 BRACKET; ENG MTG	8-98106-796-2	01	1	1210-			●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1210-	●
24	07.105 BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1210-		●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-807-1	01	1	1210-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-807-1	01	1	1210-			●	●
29	07.330 BRACKET; CAB MTG (G)	8-98186-495-1	01	1	1210-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98186-495-1	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (H)	8-98186-496-1	01	1	1210-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-98186-496-1	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (A)	8-97942-341-3	02	1	1210-	●	●	●	●
29	07.330 BRACKET; CAB MTG (D)	8-98107-534-0	02	1	1210-	●	●	●	●
29	07.330 BRACKET; CAB MTG (F)	8-98173-497-0	02	1	1210-	●	●	●	●
29	07.330 BRACKET; CAB MTG (E)	8-98106-844-2	01	1	1210-		●		●
29	07.330 BRACKET; CAB MTG (E)	8-98106-845-2	01	1	1210-		●		●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (B)	8-98106-784-3	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (B)	8-98106-784-3	01	1	1210-			●	●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (C)	8-98106-791-3	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (C)	8-98106-791-3	01	1	1210-			●	●
39	07.112 BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1210-	●
39	07.112 BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1210-		●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-809-1	01	1	1210-		●
39	07.112 BRACKET; FRT SPR,RR	8-98106-809-1	01	1	1210-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1210-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1210-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-868-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-868-0	01	1	1210-			●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-869-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-869-0	01	1	1210-			●	●
105	07.112 BRACKET; RR SPR,RR	8-97942-294-0	02	1	1210-	●
105	07.112 BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1210-		●
105	07.112 BRACKET; RR SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-870-0	02	1	1210-		●
105	07.112 BRACKET; RR SPR,RR	8-98106-870-0	02	1	1210-			●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-98214-084-0	02	1	1210-		●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-98213-874-0	03	1	1210-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (B)	8-98213-875-0	01	1	1210-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-864-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-865-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-870-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-871-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-872-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-873-0	01	1	1210-	●		●
164	07.112 PLATE; FRT	8-98106-814-0	01	1	1210-	●	●	●	●
164	07.112 PLATE; FRT	8-98106-815-0	01	1	1210-	●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98106-759-4	01	1	1210-	●	●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98106-760-5	01	1	1210-		●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98106-761-4	01	1	1210-			●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98106-762-4	01	1	1210-				●
256	07.395 BRACKET; S/ABS	8-98106-800-2	01	1	1210-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1210-		●
256	07.395 BRACKET; S/ABS	8-98106-802-1	01	1	1210-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1210-		●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-801-6	01	1	1210-		●
256	07.395 BRACKET; S/ABS	8-98106-801-6	01	1	1210-			●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-803-4	01	1	1210-		●
256	07.395 BRACKET; S/ABS	8-98106-803-4	01	1	1210-			●	●
440	07.039 BRACKET; HOSE	8-98106-872-1	01	1	1210-	●
440	07.039 BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1210-		●
440	07.039 BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-98106-873-1	01	1	1210-		●
440	07.039 BRACKET; HOSE	8-98106-873-1	01	1	1210-			●	●
514	07.388 PIN; S/ABS	8-97942-395-1	02	1	1210-	●	●	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-909-3	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (B)	8-98173-913-0	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (C)	8-98173-914-0	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (A)	8-98177-569-1	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-907-1	01	1	1210-1307			●	●
547	07.039 BRACE; C/MBR (D)	8-98229-465-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (A)	8-98173-908-0	01	1	1210-1307			●	●
547	07.039 BRACE; C/MBR (A)	8-98229-466-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (B)	8-98173-911-0	01	1	1210-			●	●
547	07.039 BRACE; C/MBR (C)	8-98173-912-0	01	1	1210-			●	●

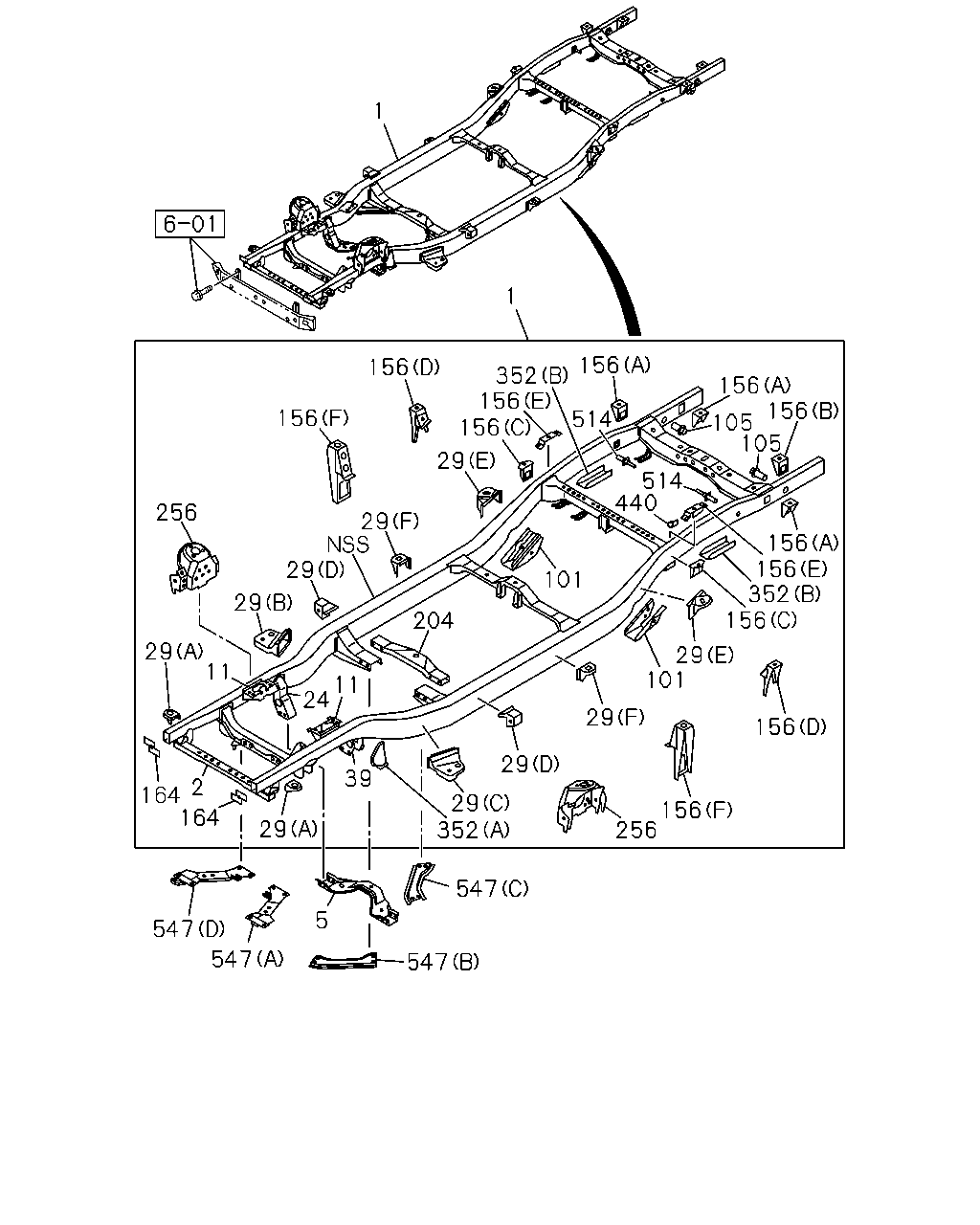

156 156 156 352 156 29 101 156 29 156 256 29 29 352 547 547 5 547 547 164 2 164 29 29 256 29 29 156 156 1 1 156 156 352 156 156 29 101 440 514 105 105 39 204 11 24 11 29 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98102-255-5	01	1	1210-	●
1	07.003 FRAME ASM A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98102-287-3	01	1	1210-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC)	8-98102-290-4	01	1	1210-		●
1	07.003 FRAME ASM M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC)	8-98102-257-5	01	1	1210-		●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-275-3	01	1	1210-			●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98102-249-3	01	1	1210-				●
1	07.003 FRAME ASM 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98102-273-3	01	1	1210-				●
2	07.010 MEMBER; CROSS,1ST	8-98106-701-1	01	1	1210-	●	●	●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98106-736-2	01	1	1210-	●
5	07.010 MEMBER; CROSS,SUSPENSION EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-736-2	01	1	1210-		●
5	07.010 MEMBER; CROSS,SUSPENSION HIGH RIDE SUSPENSION(7YC)	8-98173-915-1	01	1	1210-		●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98173-916-0	01	1	1210-1307			●	●
5	07.010 MEMBER; CROSS,SUSPENSION	8-98229-450-0	01	1	1308-			●	●
11	00.029 BRACKET; ENG MTG	8-98106-793-2	01	1	1210-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-793-2	01	1	1210-		●
11	00.029 BRACKET; ENG MTG	8-98106-795-1	01	1	1210-	●
11	00.029 BRACKET; ENG MTG EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-795-1	01	1	1210-		●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-794-2	01	1	1210-		●
11	00.029 BRACKET; ENG MTG	8-98106-794-2	01	1	1210-			●	●
11	00.029 BRACKET; ENG MTG HIGH RIDE SUSPENSION(7YC)	8-98106-796-2	01	1	1210-		●
11	00.029 BRACKET; ENG MTG	8-98106-796-2	01	1	1210-			●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-806-3	01	1	1210-	●
24	07.105 BRACKET; FRT SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-806-3	01	1	1210-		●
24	07.105 BRACKET; FRT SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-807-1	01	1	1210-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98106-807-1	01	1	1210-			●	●
29	07.330 BRACKET; CAB MTG (G)	8-98186-495-1	01	1	1210-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (G)	8-98186-495-1	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (H)	8-98186-496-1	01	1	1210-	●
29	07.330 BRACKET; CAB MTG EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-98186-496-1	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (A)	8-97942-341-3	02	1	1210-	●	●	●	●
29	07.330 BRACKET; CAB MTG (D)	8-98107-534-0	02	1	1210-	●	●	●	●
29	07.330 BRACKET; CAB MTG (F)	8-98173-497-0	02	1	1210-	●	●	●	●
29	07.330 BRACKET; CAB MTG (E)	8-98106-844-2	01	1	1210-		●		●
29	07.330 BRACKET; CAB MTG (E)	8-98106-845-2	01	1	1210-		●		●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (B)	8-98106-784-3	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (B)	8-98106-784-3	01	1	1210-			●	●
29	07.330 BRACKET; CAB MTG HIGH RIDE SUSPENSION(7YC) (C)	8-98106-791-3	01	1	1210-		●
29	07.330 BRACKET; CAB MTG (C)	8-98106-791-3	01	1	1210-			●	●
39	07.112 BRACKET; FRT SPR,RR	8-98106-808-3	01	1	1210-	●
39	07.112 BRACKET; FRT SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-808-3	01	1	1210-		●
39	07.112 BRACKET; FRT SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-809-1	01	1	1210-		●
39	07.112 BRACKET; FRT SPR,RR	8-98106-809-1	01	1	1210-			●	●
101	07.112 BRACKET; RR SPR,FRT	8-98106-866-0	01	1	1210-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-866-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-867-0	01	1	1210-	●
101	07.112 BRACKET; RR SPR,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-867-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-868-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-868-0	01	1	1210-			●	●
101	07.112 BRACKET; RR SPR,FRT HIGH RIDE SUSPENSION(7YC)	8-98106-869-0	01	1	1210-		●
101	07.112 BRACKET; RR SPR,FRT	8-98106-869-0	01	1	1210-			●	●
105	07.112 BRACKET; RR SPR,RR	8-97942-294-0	02	1	1210-	●
105	07.112 BRACKET; RR SPR,RR EXC. HIGH RIDE SUSPENSION(7YC)	8-97942-294-0	02	1	1210-		●
105	07.112 BRACKET; RR SPR,RR HIGH RIDE SUSPENSION(7YC)	8-98106-870-0	02	1	1210-		●
105	07.112 BRACKET; RR SPR,RR	8-98106-870-0	02	1	1210-			●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-98214-084-0	02	1	1210-		●		●
156	07.330 BRACKET; RR BODY MTG (A)	8-98213-874-0	03	1	1210-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (B)	8-98213-875-0	01	1	1210-	●	●	●	●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-864-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (E)	8-98106-865-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-870-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (F)	8-98213-871-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-872-0	01	1	1210-	●		●
156	07.330 BRACKET; RR BODY MTG (D)	8-98213-873-0	01	1	1210-	●		●
164	07.112 PLATE; FRT	8-98106-814-0	01	1	1210-	●	●	●	●
164	07.112 PLATE; FRT	8-98106-815-0	01	1	1210-	●	●	●	●
204	07.010 MEMBER; CROSS,TRANS MTG M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP)	8-98106-759-4	01	1	1210-	●	●
204	07.010 MEMBER; CROSS,TRANS MTG A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC)	8-98106-760-5	01	1	1210-		●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-98106-761-4	01	1	1210-			●	●
204	07.010 MEMBER; CROSS,TRANS MTG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1)	8-98106-762-4	01	1	1210-				●
256	07.395 BRACKET; S/ABS	8-98106-800-2	01	1	1210-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-800-2	01	1	1210-		●
256	07.395 BRACKET; S/ABS	8-98106-802-1	01	1	1210-	●
256	07.395 BRACKET; S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-802-1	01	1	1210-		●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-801-6	01	1	1210-		●
256	07.395 BRACKET; S/ABS	8-98106-801-6	01	1	1210-			●	●
256	07.395 BRACKET; S/ABS HIGH RIDE SUSPENSION(7YC)	8-98106-803-4	01	1	1210-		●
256	07.395 BRACKET; S/ABS	8-98106-803-4	01	1	1210-			●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (A)	8-98106-835-3	01	1	1210-		●
352	07.039 BRACKET; BUMPER RUBBER (A)	8-98106-835-3	01	1	1210-			●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (A)	8-98106-836-3	01	1	1210-		●
352	07.039 BRACKET; BUMPER RUBBER (A)	8-98106-836-3	01	1	1210-			●	●
352	07.039 BRACKET; BUMPER RUBBER HIGH RIDE SUSPENSION(7YC) (B)	8-98106-871-1	02	1	1210-		●
352	07.039 BRACKET; BUMPER RUBBER (B)	8-98106-871-1	02	1	1210-			●	●
440	07.039 BRACKET; HOSE	8-98106-872-1	01	1	1210-	●
440	07.039 BRACKET; HOSE EXC. HIGH RIDE SUSPENSION(7YC)	8-98106-872-1	01	1	1210-		●
440	07.039 BRACKET; HOSE HIGH RIDE SUSPENSION(7YC)	8-98106-873-1	01	1	1210-		●
440	07.039 BRACKET; HOSE	8-98106-873-1	01	1	1210-			●	●
514	07.388 PIN; S/ABS	8-97942-395-1	02	1	1210-	●	●	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-909-3	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (B)	8-98173-913-0	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (C)	8-98173-914-0	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (A)	8-98177-569-1	01	1	1210-	●	●
547	07.039 BRACE; C/MBR (D)	8-98173-907-1	01	1	1210-1307			●	●
547	07.039 BRACE; C/MBR (D)	8-98229-465-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (A)	8-98173-908-0	01	1	1210-1307			●	●
547	07.039 BRACE; C/MBR (A)	8-98229-466-0	01	1	1308-			●	●
547	07.039 BRACE; C/MBR (B)	8-98173-911-0	01	1	1210-			●	●
547	07.039 BRACE; C/MBR (C)	8-98173-912-0	01	1	1210-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
