◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#109105) — 48 parça

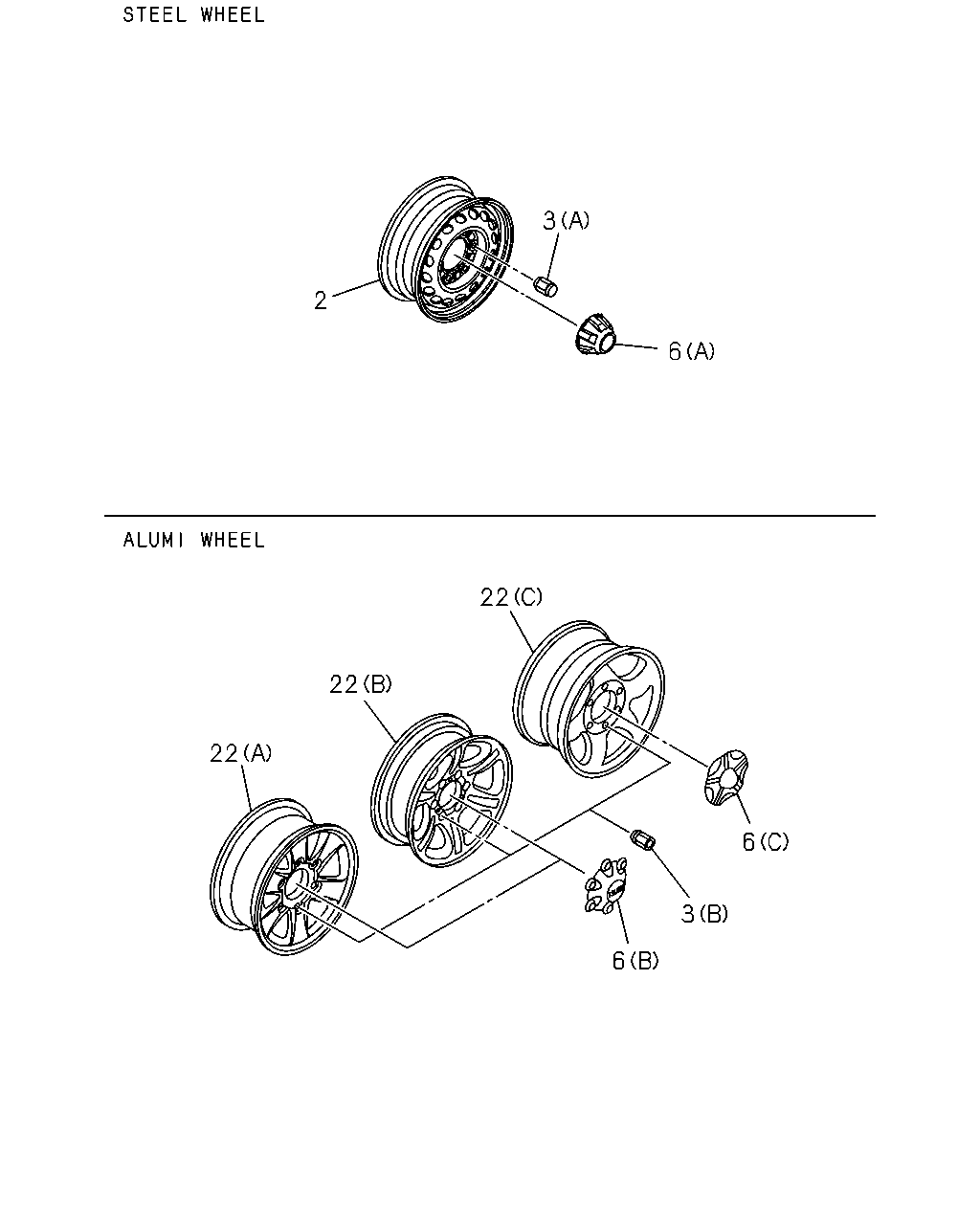

çizim 319369
2 3 6 22 22 22 6 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-97323-283-1 04 1 1210-1212 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-140-0 04 1 1301- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6.5-41 ALUMI(PF3) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-97323-283-1 01 1 1210-1212 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6.5-41 ALUMI(PF3) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-140-0 01 1 1301- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195R15C(QZO) DISC WHEEL 15X6-41 STEEL(PG1) FRONT,REAR 15X6.0J OFFSET=41 6-HOLE STEEL WHEEL 		8-97946-548-0 04 1 1210-1212 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195R15C(QZO) DISC WHEEL 15X6-41 STEEL(PG1) FRONT,REAR 15X6.0J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-142-0 04 1 1301- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195R15C(QZO) DISC WHEEL 15X6-41 STEEL(PG1) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 15X6.0J OFFSET=41 6-HOLE STEEL WHEEL 		8-97946-548-0 01 1 1210-1212 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195R15C(QZO) DISC WHEEL 15X6-41 STEEL(PG1) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 15X6.0J OFFSET=41 6-HOLE STEEL WHEEL 		8-98218-142-0 01 1 1301- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205R16C(CUY) DISC WHEEL 16X6.5 STEEL(QB5) FRONT,REAR 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL 		8-98077-813-0 04 1 1210-1212 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205R16C(CUY) DISC WHEEL 16X6.5 STEEL(QB5) FRONT,REAR 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-147-0 04 1 1301- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205R16C(CUY) DISC WHEEL 16X6.5 STEEL(QB5) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL 		8-98077-813-0 01 1 1210-1212 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 205R16C(CUY) DISC WHEEL 16X6.5 STEEL(QB5) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-147-0 01 1 1301- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 ALUMI(PF4),DISC WHEEL 16X7 STEEL(QC1) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98077-814-0 01 1 1210-1212 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 ALUMI(PF4),DISC WHEEL 16X7 STEEL(QC1) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-148-0 01 1 1301- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 STEEL(QC1) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98077-814-0 04 1 1210-1212 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 STEEL(QC1) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-148-0 04 1 1301- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 17X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98077-815-0 01 1 1210-1212 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) EXC. TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> SPARE 17X7.0J OFFSET=33 6-HOLE STEEL WHEEL 		8-98218-149-0 01 1 1301- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6-41 STEEL(PG1) (A) M12 H=30.5 		8-97333-108-0 24 1 1210- ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6-41 STEEL(PG1),DISC WHEEL 16X6.5 STEEL(QB5),DISC WHEEL 16X7 STEEL(QC1) (A) M12 H=30.5 		8-97333-108-0 24 1 1210- ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 STEEL(QB5),DISC WHEEL16X7 STEEL(QC1) (A) M12 H=30.5 		8-97333-108-0 24 1 1210- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) M12 H=23 		8-98101-983-0 24 1 1210- ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 17X7 ALUMI(PFE),DISC WHEEL 15X6.5-41 ALUMI(PF3),DISC WHEEL 16X7 ALUMI(PF4) (B) M12 H=23 		8-98101-983-0 24 1 1210- ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC WHEEL 17X7 ALUMI(PFE),DISC WHEEL 16X7 ALUMI(PF4) (B) M12 H=23 		8-98101-983-0 24 1 1210- ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) ISUZU MARK 		8-98102-993-0 04 1 1210- ●
6 05.858 CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI(PF3),DISC WHEEL 16X7 ALUMI(PF4) (B) ISUZU MARK 		8-98102-993-0 04 1 1210- ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X7 ALUMI(PF4) (B) ISUZU MARK 		8-98102-993-0 04 1 1210- ● ●
6 05.858 CAP; WHEEL
INTERIOR BASIC(RBA) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6-41 STEEL(PG1) (A) ISUZU MARK 		8-97301-998-1 04 1 1210- ●
6 05.858 CAP; WHEEL
INTERIOR BASIC(RBA) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6-41 STEEL(PG1) EXC. HIGH RIDE SUSPENSION(7YC) (A) ISUZU MARK 		8-97301-998-1 04 1 1210- ●
6 05.858 CAP; WHEEL
INTERIOR CUSTOM(RBD) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6-41 STEEL(PG1) (A) ISUZU MARK 		8-98160-806-0 04 1 1210- ●
6 05.858 CAP; WHEEL
INTERIOR BASIC(RBA) DISC WHEEL 16X6.5 STEEL(QB5),DISC WHEEL16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1210- ●
6 05.858 CAP; WHEEL
INTERIOR CUSTOM(RBD) DISC WHEEL 15X6.5-41 STEEL(BSY),DISC WHEEL 15X6-41 STEEL(PG1),DISC WHEEL 16X6. 5 STEEL(QB5),DISC WHEEL 16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1210- ●
6 05.858 CAP; WHEEL
DISC WHEEL 16X6.5 STEEL(QB5),DISC WHEEL16X7 STEEL(QC1) (A) ISUZU MARK 		8-98160-806-0 04 1 1210- ● ●
6 05.858 CAP; WHEEL
DISC WHEEL 17X7 ALUMI(PFE) (C) ISUZU MARK 		8-98107-318-3 04 1 1210- ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE 		8-98077-816-0 04 1 1210-1212 ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE 		8-98218-150-0 04 1 1301- ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (B) SPARE 15X6.5J OFFSET=41 6-HOLE 		8-98077-816-0 01 1 1210-1212 ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE(CWP) DISC WHEEL 15X6.5-41 ALUMI(PF3) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (B) SPARE 15X6.5J OFFSET=41 6-HOLE 		8-98218-150-0 01 1 1301- ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 ALUMI(PF4) (A) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE 		8-98077-818-0 04 1 1210-1212 ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 ALUMI(PF4) (A) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE 		8-98218-151-0 04 1 1301- ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 ALUMI(PF4) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (A) SPARE 16X7.0J OFFSET=33 6-HOLE 		8-98077-818-0 01 1 1210-1212 ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 245/70R16 ALS(QCQ) DISC WHEEL 16X7 ALUMI(PF4) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (A) SPARE 16X7.0J OFFSET=33 6-HOLE 		8-98218-151-0 01 1 1301- ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE 		8-98077-819-0 04 1 1210-1212 ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE 		8-98218-152-0 04 1 1301-1401 ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE 		8-98259-995-0 04 1 1402- ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (C) SPARE 17X7.0J OFFSET=33 6-HOLE 		8-98077-819-0 01 1 1210-1212 ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (C) SPARE 17X7.0J OFFSET=33 6-HOLE 		8-98218-152-0 01 1 1301-1401 ● ● ●
22 05.809 WHEEL; DISC,AL
FRT&RR 255/65R17(QZX) DISC WHEEL 17X7 ALUMI(PFE) TIRE & WHEEL SPARE,FULL SIZE, ALUMINUM<QQ6> (C) SPARE 17X7.0J OFFSET=33 6-HOLE 		8-98259-995-0 01 1 1402- ● ● ●
