Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#109104) — 149 parça

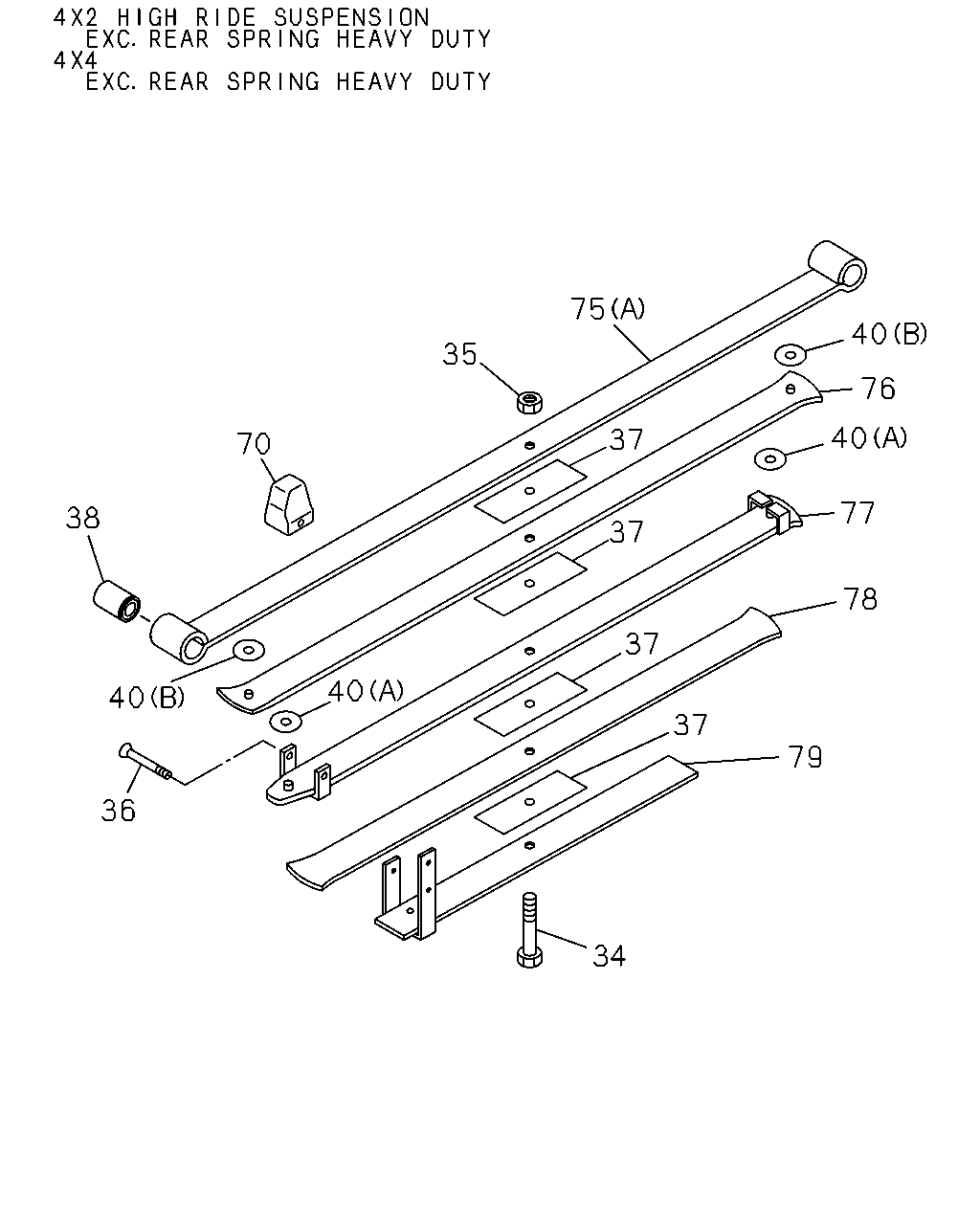

79 78 77 40 76 40 75 34 37 37 37 37 35 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: D = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98215-683-0, 98215683	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-

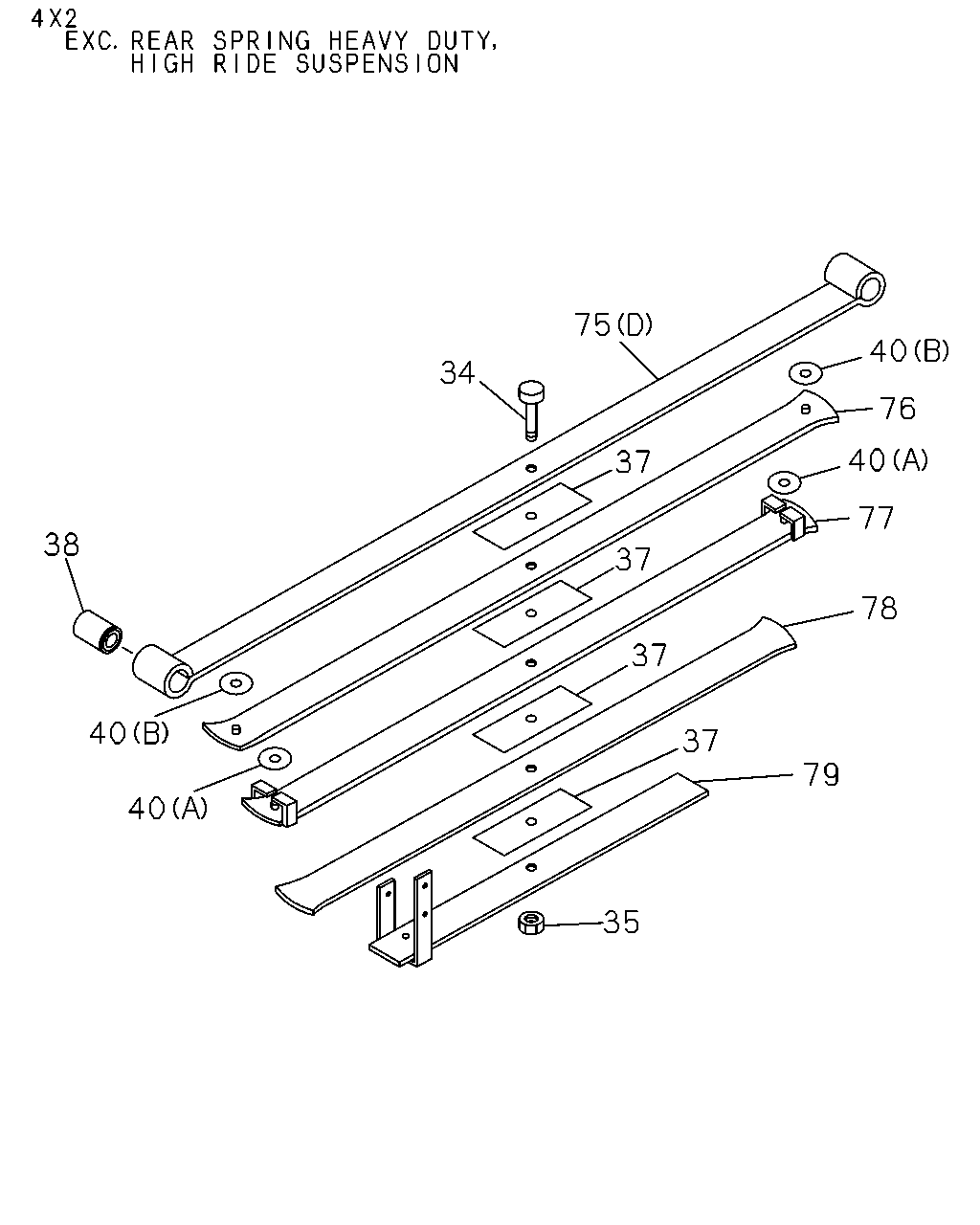

80 79 78 77 40 76 40 75 37 37 37 37 35 40 40 38 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: D = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98215-683-0, 98215683	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: A = 8-98215-677-0, 98215677	8-98215-879-0	01	1	-

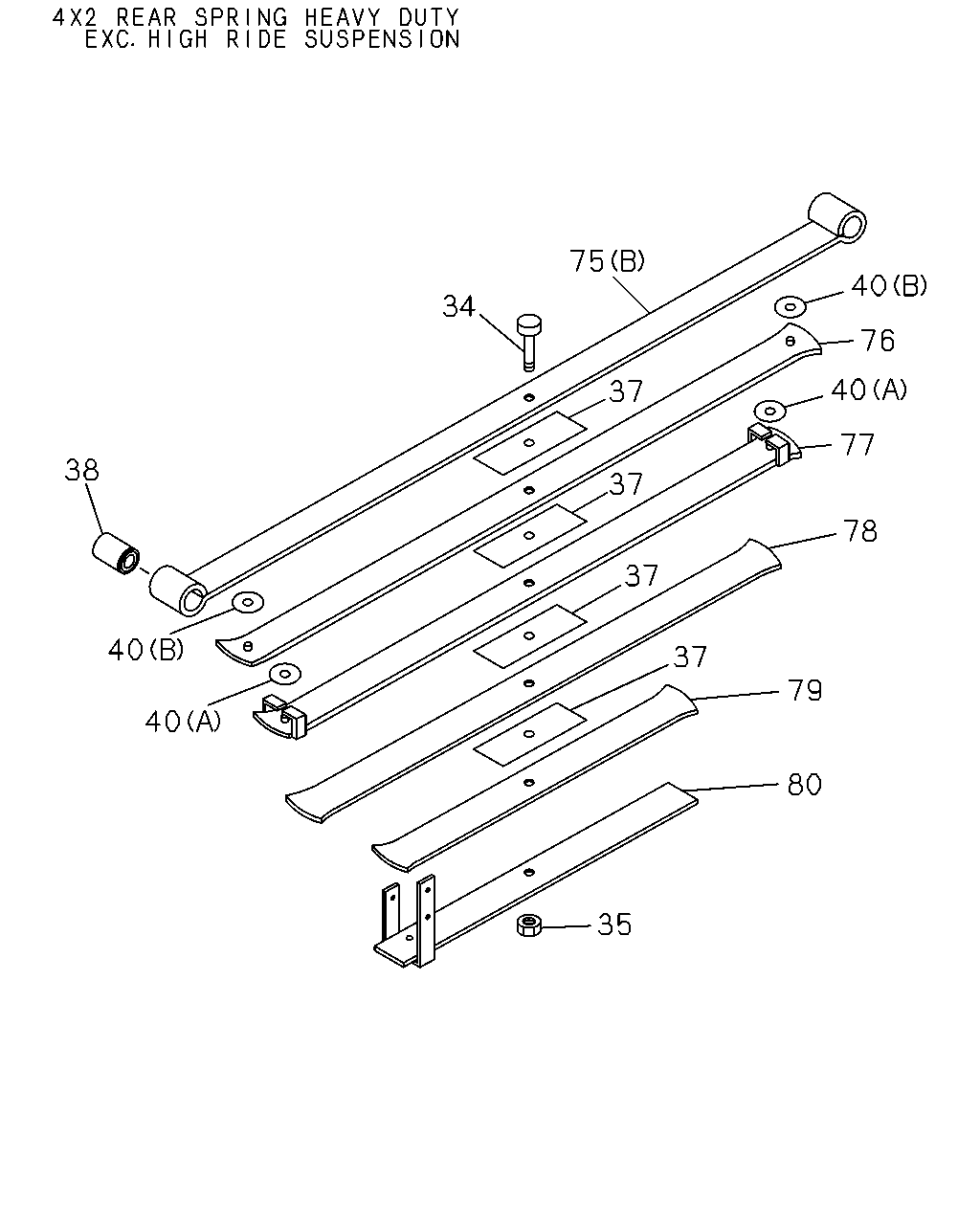

34 79 37 37 37 37 75 40 76 40 77 78 35 70 38 40 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: D = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, E = 8-98218-548-0, 98218548	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, E = 8-98218-548-0, 98218548	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98215-683-0, 98215683	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-

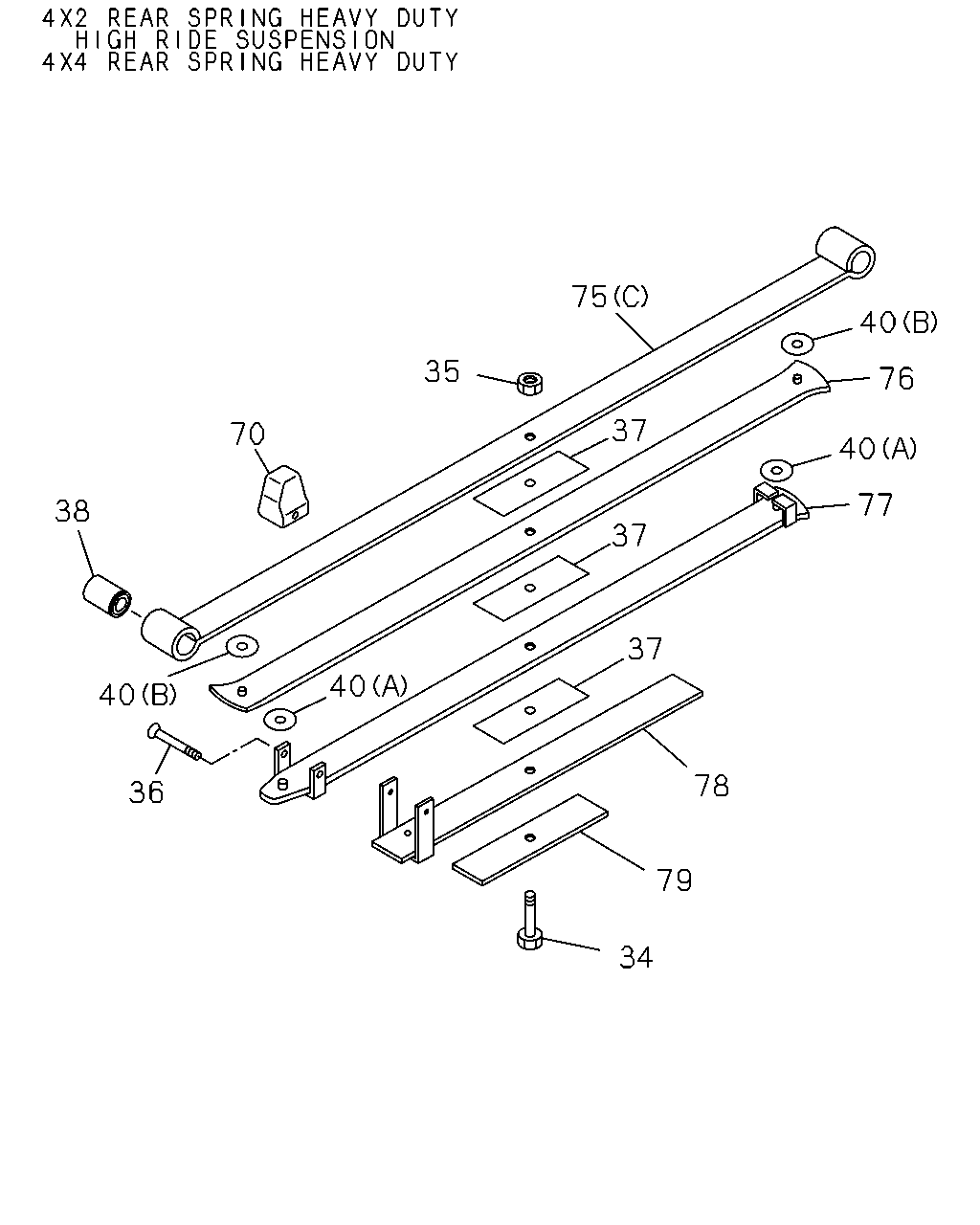

34 79 78 37 37 37 75 40 76 40 77 35 70 40 40 36 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: D = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, E = 8-98218-548-0, 98218548	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, D = 8-98218-543-0, 98218543	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684, D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98215-677-0, 98215677, B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: D = 8-98218-543-0, 98218543, E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: B = 8-98215-683-0, 98215683, E = 8-98218-548-0, 98218548	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98215-683-0, 98215683	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98215-683-0, 98215683, C = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: E = 8-98218-548-0, 98218548, F = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-
