4-61 — SHOCK ABSORBER; REAR SUSPENSION (#109103) — 13 parça

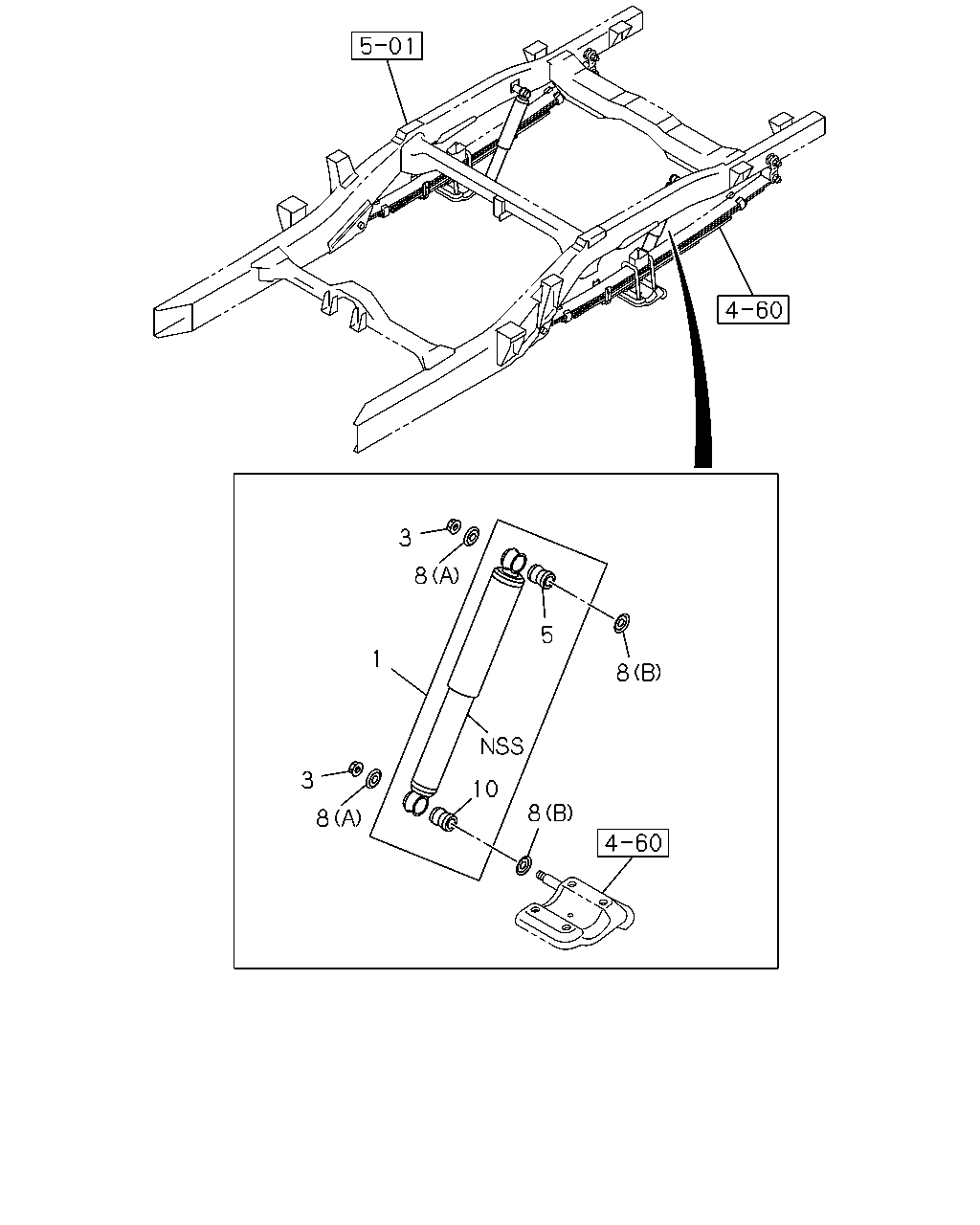

çizim 319354
8 10 8 3 1 5 8 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97947-014-3 02 1 1210- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-014-3 02 1 1210- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97947-013-2 02 1 1210- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 		8-97947-013-2 02 1 1210- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97947-017-2 02 1 1210- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97947-017-2 02 1 1210- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97947-016-2 02 1 1210- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97947-016-2 02 1 1210- ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 1210- ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 1210- ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=12.5 		8-98005-969-0 04 1 1210- ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=16.5 		8-98005-970-0 04 1 1210- ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 1210- ● ● ● ●
