3-46 — AIR DRYER
(#1091) — 39 parça
Tümü
A - FVR5MC
B - FVR5MF
◀

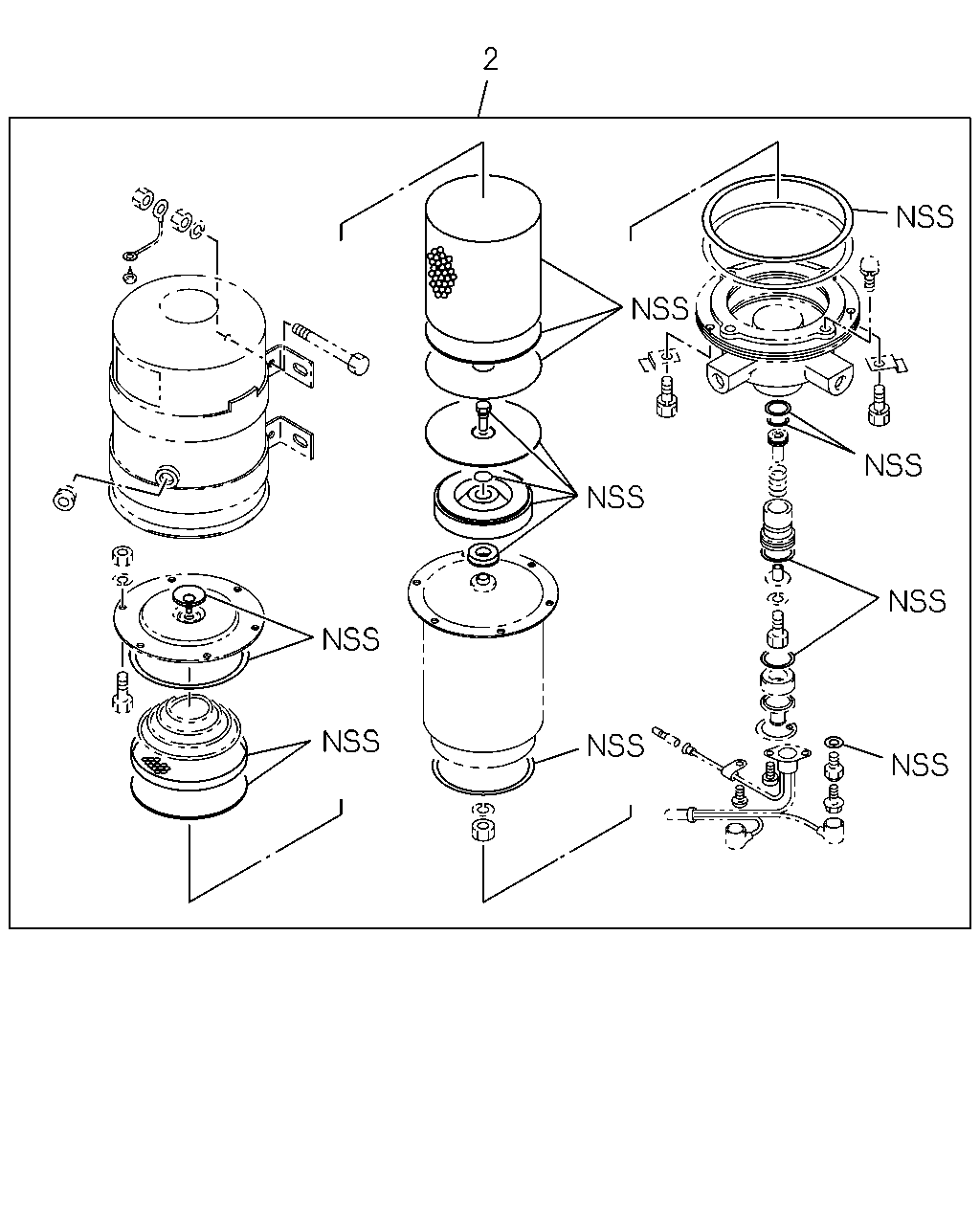

[346A] NO.3 REPAIR KIT (1 parça)

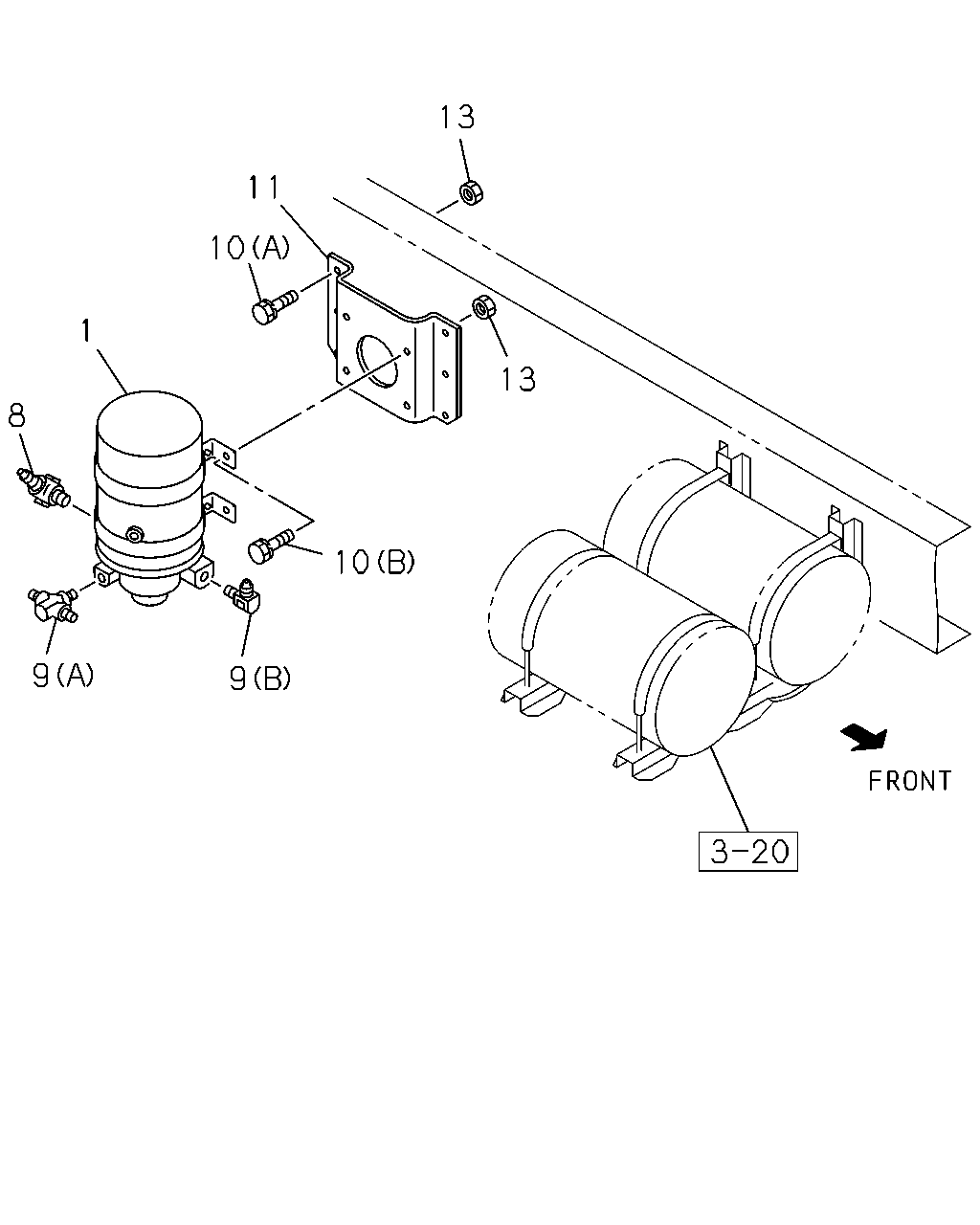

[346A] NO.1 (17 parça)

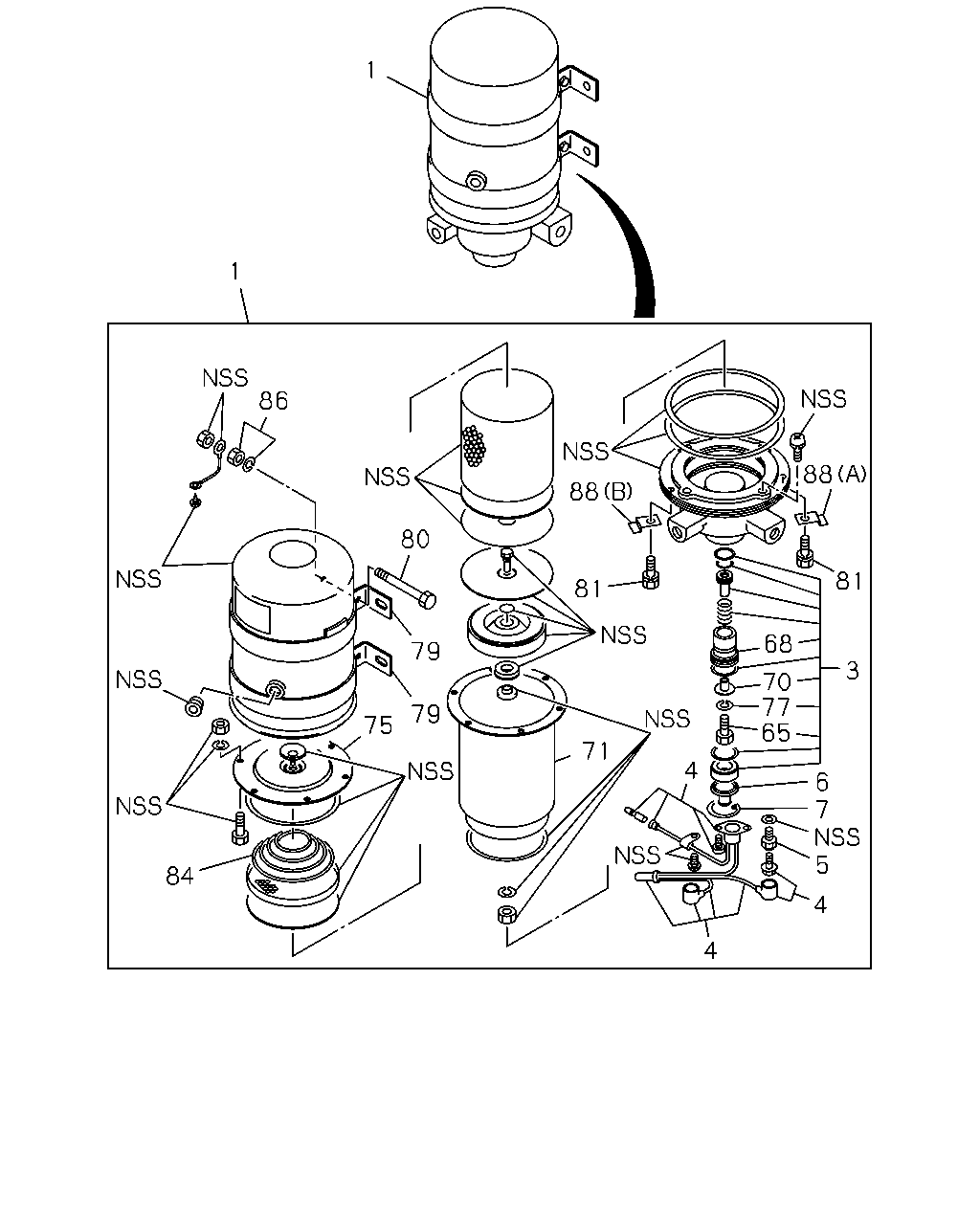

[346A] NO.2 (21 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-055-1
01
1
9202-
●
●
13
11
10
1
13
8
10
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-037-1
01
1
9202-9206
●
●
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-105-2
01
1
9207-
●
●
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW
9-09234-315-1
01
1
9202-9302
●
●
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9303-
●
●
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
9-09234-315-1
01
1
9202-9302
●
●
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9303-
●
●
9
CONNECTOR; PIPE,AIR DRYER
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> (A)
1-09660-543-0
01
1
9202-
●
●
9
CONNECTOR; PIPE,AIR DRYER
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
9-09234-315-1
02
1
9202-9301
●
●
9
CONNECTOR; PIPE,AIR DRYER
6HE1 STD ENG(46L) AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
9202-
●
10
BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X25 W/LK&PL WASHER
9-01961-025-0
04
1
9202-9204
●
10
BOLT; AIR DRYER
AIR DRYER<PS7> (B) M10X25 W/LK&PL WASHER
0-50141-025-0
04
1
9205-
●
10
BOLT; AIR DRYER
AIR DRYER<PS7> (A) M10X35 W/LK&PL WASHER
0-50141-035-0
04
1
9202-
●
●
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48195-055-0
01
1
9202-
●
13
NUT; AIR DRYER
AIR DRYER<PS7> M10
9-09110-410-0
04
1
9202-9407
●
13
NUT; AIR DRYER
AIR DRYER<PS7> M10
9-09110-510-0
04
1
9202-9407
●
●
13
NUT; AIR DRYER
AIR DRYER<PS7> M10
9-09110-510-0
04
1
9408-
●
●
13
NUT; AIR DRYER
AIR DRYER<PS7> M10
9-09110-510-0
04
1
9408-
●
1
1
86
88
88
80
81
81
68
79
3
70
77
65
79
75
71
4
6
7
5
84
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-037-1
01
1
9202-9206
●
●
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-105-2
01
1
9207-
●
●
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-057-1
01
1
9202-
●
●
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-066-0
01
1
9202-9206
●
●
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-129-0
01
1
9207-
●
●
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
9202-
●
●
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-101-0
01
1
9202-
●
●
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
9202-
●
●
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-102-0
01
1
9308-
●
●
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
9308-
●
●
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
9308-
●
●
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-156-1
01
1
9308-
●
●
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-167-0
01
1
9308-
●
●
77
WASHER; LK,VALVE
AIR DRYER<PS7>
1-48199-103-0
01
1
9308-
●
●
79
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48199-189-0
02
1
9308-
●
●
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-190-0
02
1
9308-
●
●
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-177-0
02
1
9308-
●
●
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-166-0
01
1
9308-
●
●
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-320-0
02
1
9308-
●
●
88
PLATE; STOPPER
AIR DRYER<PS7> (A)
1-48199-178-0
01
1
9308-
●
●
88
PLATE; STOPPER
AIR DRYER<PS7> (B)
1-48199-179-0
01
1
9308-
●
●
