◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#109094) — 19 parça

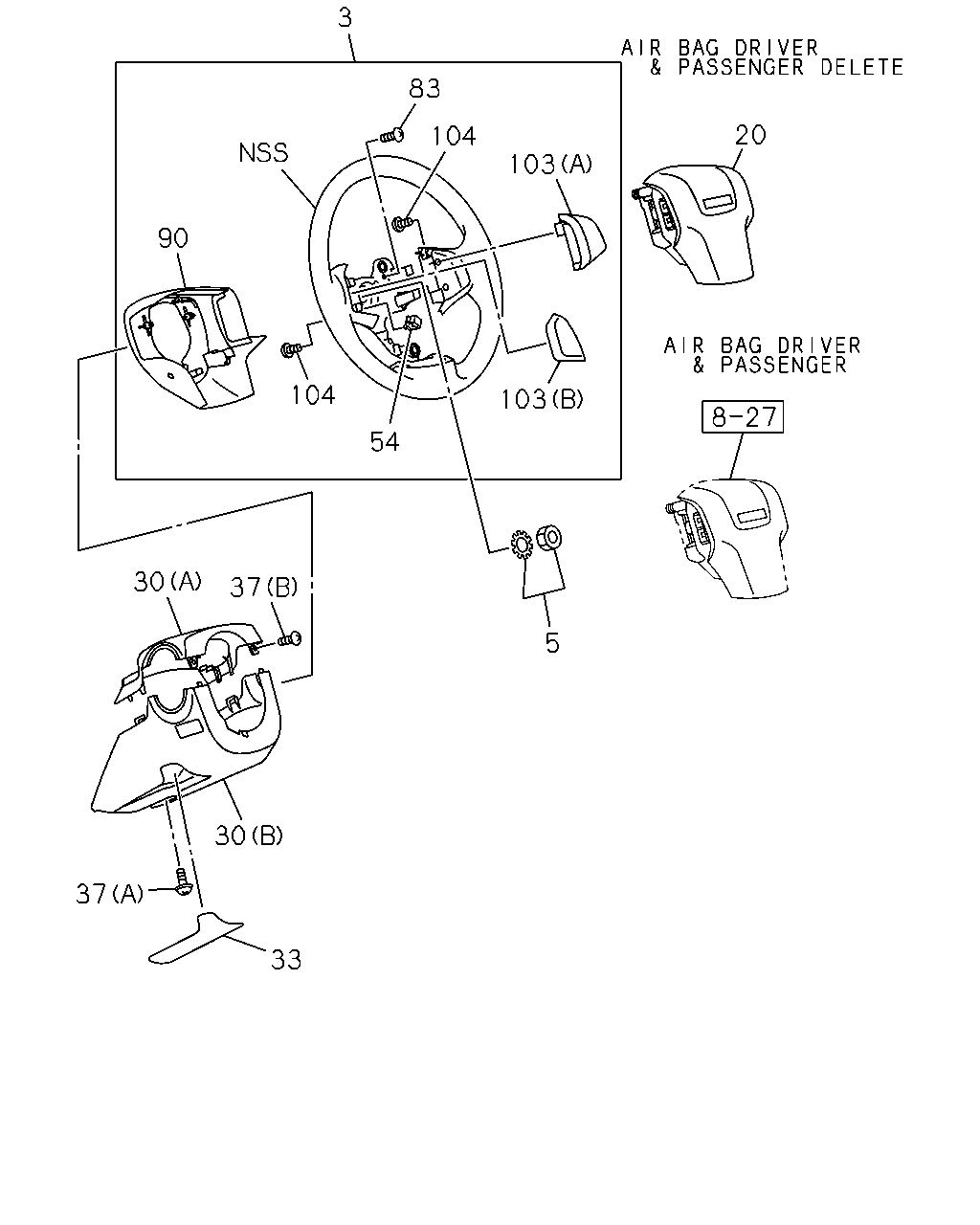

çizim 319182
3 83 90 104 104 103 54 103 20 5 30 37 37 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-796-3 01 1 1210- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) EXC. STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-797-3 01 1 1210- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-798-3 01 1 1210- ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5> BLACK 		8-97416-799-3 01 1 1210- ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 1210- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERIOR STEERING CENTER PAD BADGE<8MB> BLACK 		8-97416-803-4 01 1 1210- ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERIOR STEERING CENTER PAD BADGE <8MB> BLACK 		8-97416-804-4 01 1 1210- ● ● ● ●
30 06.518 COWL; STEERING
(A) BLACK 		8-97416-863-4 01 1 1210- ● ● ● ●
30 06.518 COWL; STEERING
(B) BLACK 		8-97417-528-6 01 1 1210- ● ● ● ●
33 06.518 COVER; STRG COWL
EXC. TILT STEERING<N33> BLACK 		8-97421-052-0 01 1 1210- ● ● ● ●
37 06.518 SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER 		0-36210-412-0 01 1 1210- ● ● ● ●
37 06.518 SCREW; STRG COWL UPR
08.083 (B) M5X16 TAPPING 		8-98167-449-0 02 1 1210- ● ● ● ●
54 02.559 CLIP; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1210- ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
09.242 M4X10 TAPPING 		0-71240-410-0 02 1 1210- ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER(AK5) 06.514 BLACK 		8-97416-856-1 01 1 1210- ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97416-859-2 01 1 1210- ● ● ● ●
103 06.514 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> (A) SILVER 		8-97416-857-1 01 1 1210- ● ● ● ●
103 06.514 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> (B) SILVER 		8-97416-858-1 01 1 1210- ● ● ● ●
104 06.514 SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> 09.242 M4X10 TAPPING 		0-71240-410-0 04 1 1210- ● ● ● ●
