◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#109092) — 80 parça

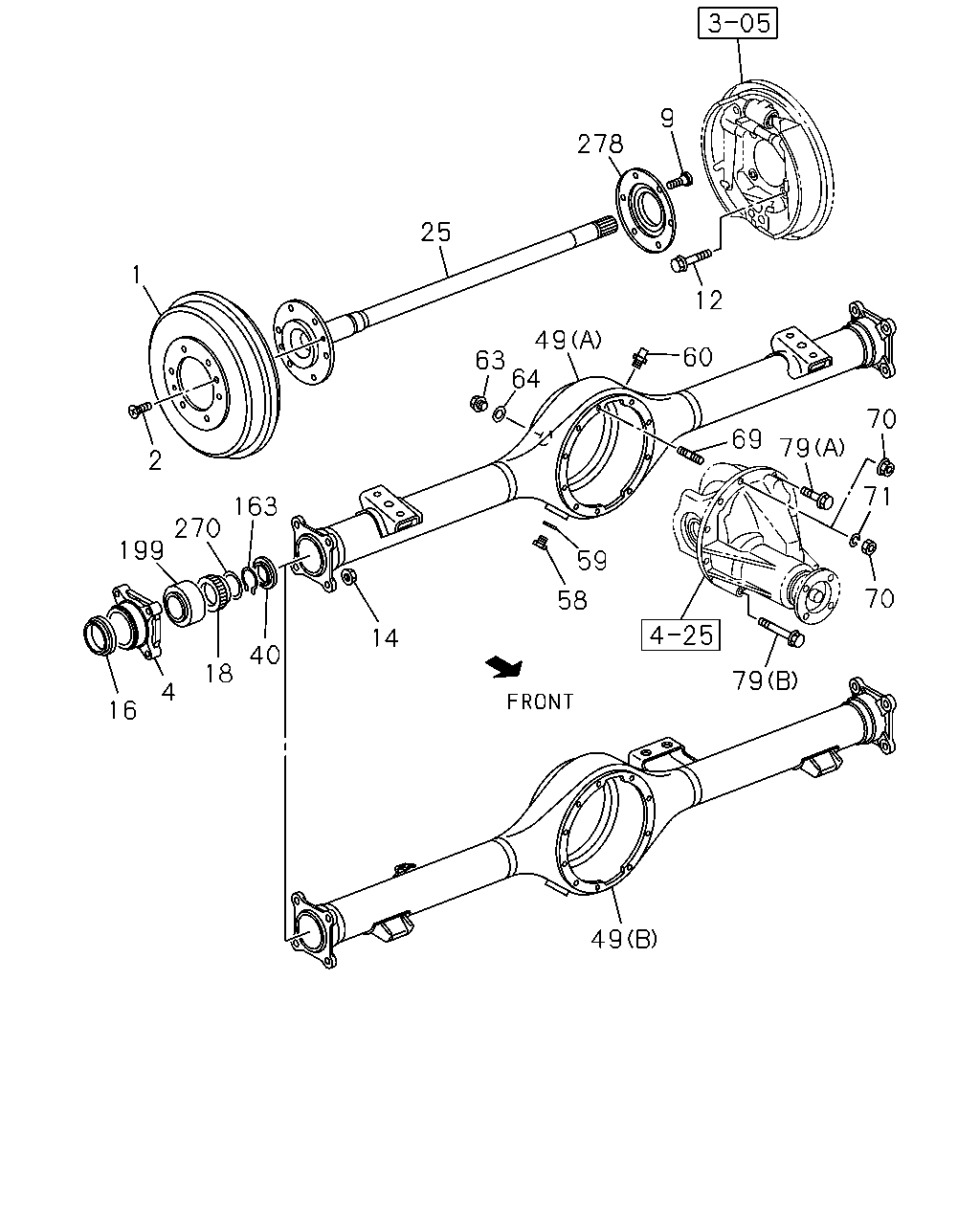

çizim 319163
49 79 70 71 70 69 79 59 58 60 12 9 278 25 63 49 64 163 14 40 270 18 199 4 16 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC) AISIN TAKAOKA 		8-97948-038-1 02 1 1403- ●
1 05.809 DRUM; BRK,RR
AISIN TAKAOKA 		8-97948-038-1 02 1 1403- ● ●
1 05.809 DRUM; BRK,RR 8-98136-491-1 02 1 1210- ●
1 05.809 DRUM; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98136-491-1 02 1 1210- ●
1 05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC) SOMBOON 		8-98061-813-1 02 1 1210- ●
1 05.809 DRUM; BRK,RR
SOMBOON 		8-98061-813-1 02 1 1210- ● ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		0-36410-616-0 02 1 1210- ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98103-449-2 02 1 1210- ●
4 05.816 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-449-2 02 1 1210- ●
4 05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC) 		8-98103-450-3 02 1 1210- ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-98103-450-3 02 1 1210- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97944-831-1 12 1 1210- ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X84 FLANGE 		8-98107-913-2 08 1 1210- ●
12 05.816 BOLT; BRG HOLDER TO CASE
EXC. HIGH RIDE SUSPENSION(7YC) M12X84 FLANGE 		8-98107-913-2 08 1 1210- ●
12 05.816 BOLT; BRG HOLDER TO CASE
HIGH RIDE SUSPENSION(7YC) M12X59 FLANGE 		8-98107-914-2 08 1 1210- ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE 		8-98107-914-2 08 1 1210- ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 1210- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-98134-394-0 02 1 1210- ● ● ● ●
18 05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98009-341-0 02 1 1210- ● ● ● ●
18 05.822 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-868-0 02 1 1210- ● ● ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98080-677-2 02 1 1210- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 		8-98107-831-1 02 1 1210- ● ●
25 05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC) 		8-98080-678-2 02 1 1210- ●
25 05.420 SHAFT; AXLE,RR 8-98080-678-2 02 1 1210- ● ●
40 05.387 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 1210- ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98080-393-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (B) 		8-98080-391-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98080-392-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98107-517-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (B) 		8-98107-514-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98107-515-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98080-422-2 01 1 1210- ●
49 05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98080-422-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) 		8-98080-420-2 01 1 1210- ●
49 05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) 		8-98080-420-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> (A) 		8-98080-421-2 01 1 1210- ●
49 05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<JR9> (A) 		8-98080-421-2 01 1 1210- ● ●
49 05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98173-632-0 01 1 1210- ●
49 05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) 		8-98173-630-0 01 1 1210- ●
49 05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<JR9> (A) 		8-98173-631-0 01 1 1210- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1210- ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1210- ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1210- ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 1210- ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1210- ● ● ● ●
69 05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) M8X25 L=36 		8-97364-104-0 02 1 1210- ● ●
69 05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) M10X31 L=43 		8-98022-413-0 02 1 1210- ● ●
69 05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) M10X31 L=43 		8-98022-413-0 02 1 1210- ●
69 05.387 STUD; AXLE CASE
M10X31 L=43 		8-98022-413-0 02 1 1210- ● ●
70 05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) M8 		5-09400-020-0 02 1 1210- ● ●
70 05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 00.833 M10 		0-91110-510-0 02 1 1210-1509 ● ●
70 05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) 00.833 M10 		0-91110-510-0 02 1 1210-1509 ●
70 05.387 NUT; CARRIER
00.833 M10 		0-91110-510-0 02 1 1210-1509 ● ●
70 05.387 NUT; CARRIER
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ● ●
70 05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1510- ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 02.559 ID=8.2 		0-91510-808-0 02 1 1210- ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 02.277 ID=10.2 		0-91510-810-0 02 1 1210-1509 ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) 02.277 ID=10.2 		0-91510-810-0 02 1 1210-1509 ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
02.277 ID=10.2 		0-91510-810-0 02 1 1210-1509 ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 06.156 (A) M8X25 W/LK WASHER 		8-98022-410-0 04 1 1210- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 06.156 (A) M8X30 W/LK WASHER 		8-98022-411-0 02 1 1210- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 06.156 (A) M8X90 W/LK WASHER 		8-98022-412-0 02 1 1210- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) (A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1210-1509 ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) (A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1210-1509 ●
79 05.387 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1210-1509 ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) 04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) 04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ●
79 05.387 BOLT; COVER TO CASE
04.085 (A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) (B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1210-1509 ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) (B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1210-1509 ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1210-1509 ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(GT3),FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 43/11(GW1),FINAL GEAR RATIO 43/10(GY2) (B) M10X90 		0-28061-090-0 01 1 1510- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5) HIGH RIDE SUSPENSION(7YC) (B) M10X90 		0-28061-090-0 01 1 1510- ●
79 05.387 BOLT; COVER TO CASE
(B) M10X90 		0-28061-090-0 01 1 1510- ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 1210- ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 1210- ● ● ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-2 02 1 1210- ● ● ● ●
270 05.855 SHIM; RETAINER
05.537 T=0.24 		9-41519-109-0 AR 1 1210- ● ● ● ●
278 05.822 CATCHER; OIL 8-98103-447-2 02 1 1210- ● ● ● ●
