Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#109087) — 202 parça

17 8 9 106 103 301 220 9 17 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-849-0	01	1	1210-1302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-849-0	01	1	1210-1302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1210-1302		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-849-0	01	1	1303-1407	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1303-1407		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97948-770-0	01	1	1408-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1408-		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A)	8-97942-850-0	01	1	1210-1407	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A)	8-97948-772-0	01	1	1408-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A)	8-97943-048-0	01	1	1210-1407		●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	1210-1407			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A)	8-97948-771-0	01	1	1408-		●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1408-			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1210-1407			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97947-642-0	03	1	1210-1302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JA1-T ENG(LP0) (C)	8-97947-642-0	03	1	1210-1302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1210-1302		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97947-642-0	03	1	1303-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSG 5 SPEED(M75) (C)	8-97947-642-0	03	1	1303-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1303-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) FRONT,CENTER	8-97947-642-0	02	1	1210-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) REAR	8-97947-643-0	01	1	1210-		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-645-0	01	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1210-				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT	0-90301-406-0	03	1	1210-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1210-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1210-			●	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1210-	●		●	●
103	05.544 BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 05.560 (A)	8-97940-114-0	01	1	1210-		●
103	05.544 BOOT; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1210-		●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1210-			●	●
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1210-			●	●
220	05.544 YOKE; SPLINED	8-97945-105-0	01	1	1210-			●	●
301	05.544 SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97947-414-0	01	1	1210-1407			●	●
301	05.544 SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97948-758-0	01	1	1408-			●	●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97946-601-0	01	1	1210-1407				●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1408-				●

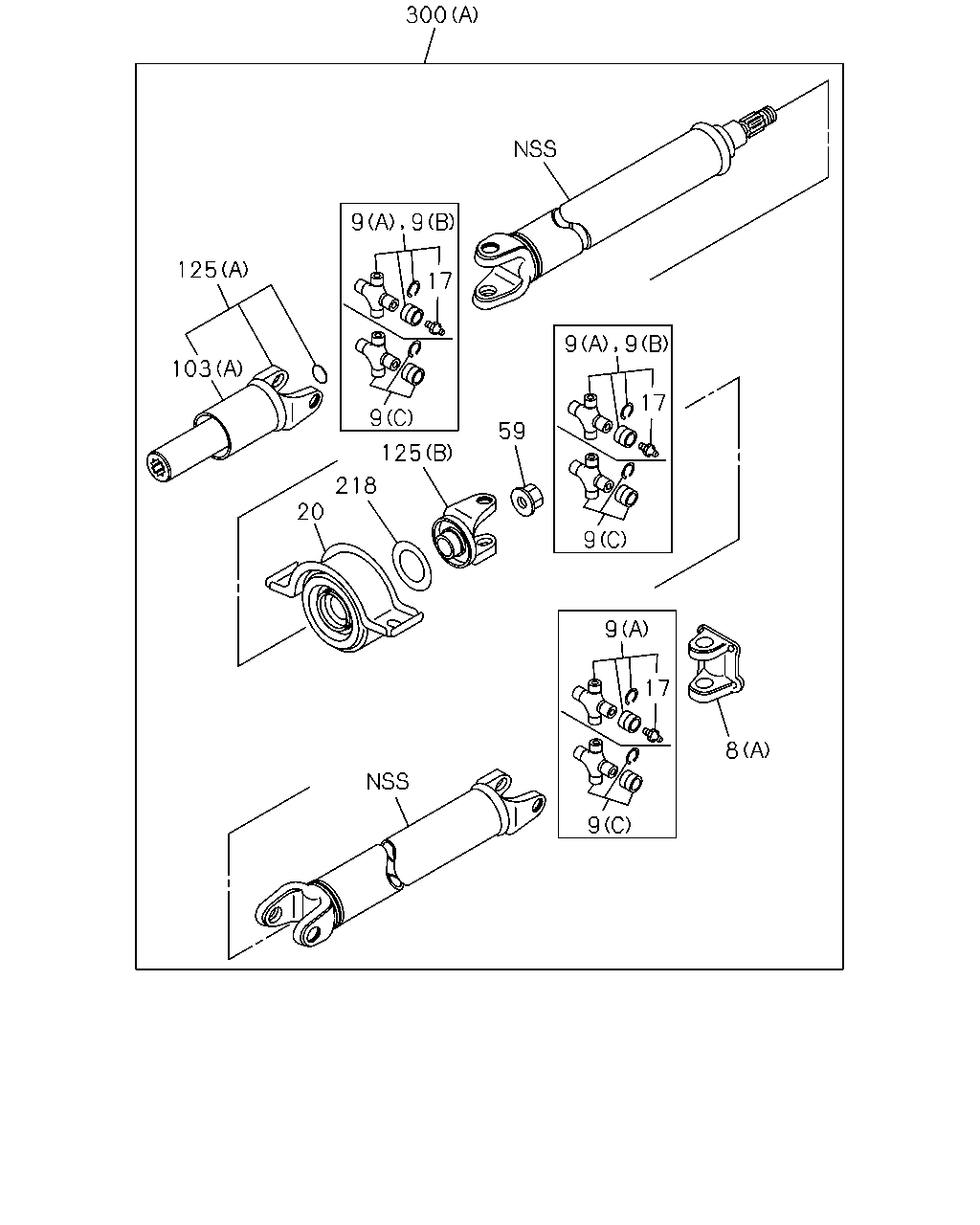

8 9 9 17 9 17 9 9 59 125 218 20 103 125 9 17 9 9 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-849-0	01	1	1210-1302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-849-0	01	1	1210-1302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1210-1302		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-849-0	01	1	1303-1407	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1303-1407		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97948-770-0	01	1	1408-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1408-		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A)	8-97942-850-0	01	1	1210-1407	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A)	8-97948-772-0	01	1	1408-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A)	8-97943-048-0	01	1	1210-1407		●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	1210-1407			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A)	8-97948-771-0	01	1	1408-		●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1408-			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1210-1407			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97947-642-0	03	1	1210-1302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JA1-T ENG(LP0) (C)	8-97947-642-0	03	1	1210-1302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1210-1302		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97947-642-0	03	1	1303-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSG 5 SPEED(M75) (C)	8-97947-642-0	03	1	1303-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1303-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) FRONT,CENTER	8-97947-642-0	02	1	1210-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) REAR	8-97947-643-0	01	1	1210-		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-645-0	01	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1210-				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT	0-90301-406-0	03	1	1210-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1210-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1210-			●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) NSK	8-97947-655-0	01	1	1210-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) NTN	8-97947-656-0	01	1	1210-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JA1-T ENG(LP0) NSK	8-97947-661-0	01	1	1210-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JA1-T ENG(LP0) NTN	8-97947-662-0	01	1	1210-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) NSK	8-97947-659-0	01	1	1210-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT A/T 5 SPEED-AISIN(MA1) NSK	8-97947-659-0	01	1	1210-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) NSK	8-97947-659-0	01	1	1210-			●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) NTN	8-97947-660-0	01	1	1210-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT A/T 5 SPEED-AISIN(MA1) NTN	8-97947-660-0	01	1	1210-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) NTN	8-97947-660-0	01	1	1210-			●	●
59	05.586 NUT; RET TO SUPPORT	8-97947-557-0	01	1	1210-	●	●
59	05.586 NUT; RET TO SUPPORT M/T MUA 5 SPEED 5H(MWQ)	8-97947-557-0	01	1	1210-			●	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1210-	●		●	●
103	05.544 BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 05.560 (A)	8-97940-114-0	01	1	1210-		●
103	05.544 BOOT; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1210-		●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1210-			●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-629-0	01	1	1210-	●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A)	8-97947-629-0	01	1	1210-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-629-0	01	1	1210-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97947-663-0	01	1	1210-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JA1-T ENG(LP0) (B)	8-97945-189-0	01	1	1210-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-631-0	01	1	1210-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97947-665-0	01	1	1210-1407		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97947-665-0	01	1	1210-1407		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-665-0	01	1	1210-1407			●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97948-769-0	01	1	1408-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97948-769-0	01	1	1408-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97948-769-0	01	1	1408-			●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-630-0	01	1	1210-				●
218	05.586 WASHER; PL,PROP SHAFT ID=30 H=40 L=35	8-97192-641-0	01	1	1210-	●	●
218	05.586 WASHER; PL,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) ID=30 H=40 L=35	8-97192-641-0	01	1	1210-			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5	8-97947-211-1	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5	8-97948-744-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A) L=1861.5	8-97947-217-0	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A) L=1861.5	8-97948-747-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A) L=1838.5	8-97947-815-0	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A) L=1838.5	8-97948-748-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97947-253-1	01	1	1210-1407		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97948-750-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840	8-97947-248-1	01	1	1210-1407		●
300	05.544 SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840	8-97948-743-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97947-255-1	01	1	1210-1407			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97948-757-0	01	1	1408-			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97947-258-1	01	1	1210-1407				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1408-				●

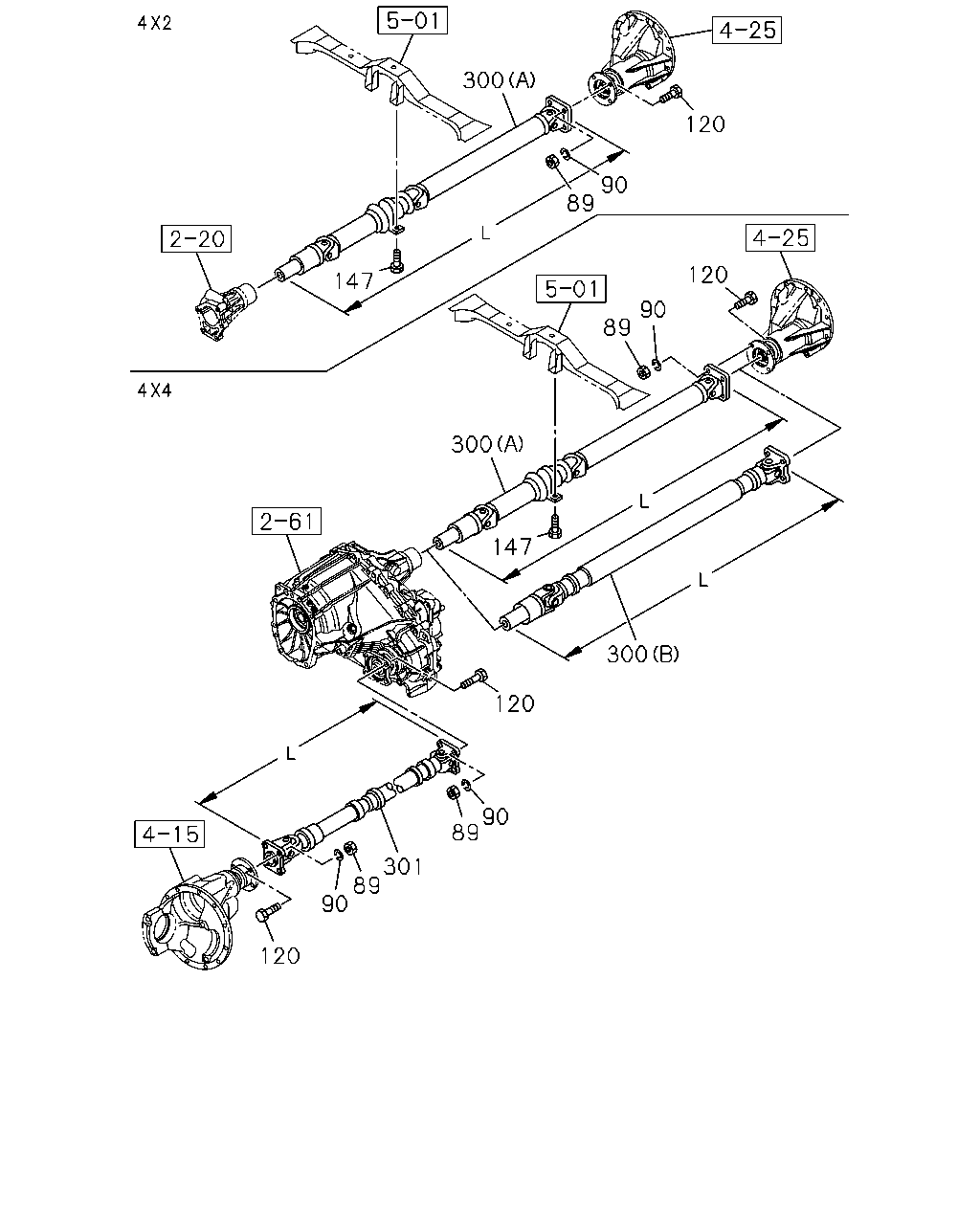

147 300 89 90 90 300 120 89 89 90 300 90 120 147 89 120 120 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	1210-	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	1210-			●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	1210-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	1210-			●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	1210-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	1210-			●	●
147	05.586 BOLT; CENTER BRG MTG 17.447 M12X25 FLANGE	0-28661-225-0	02	1	1210-	●	●
147	05.586 BOLT; CENTER BRG MTG M/T MUA 5 SPEED 5H(MWQ) 17.447 M12X25 FLANGE	0-28661-225-0	02	1	1210-			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5	8-97947-211-1	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5	8-97948-744-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A) L=1861.5	8-97947-217-0	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A) L=1861.5	8-97948-747-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A) L=1838.5	8-97947-815-0	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A) L=1838.5	8-97948-748-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97947-253-1	01	1	1210-1407		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97948-750-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840	8-97947-248-1	01	1	1210-1407		●
300	05.544 SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840	8-97948-743-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97947-255-1	01	1	1210-1407			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97948-757-0	01	1	1408-			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97947-258-1	01	1	1210-1407				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1408-				●
301	05.544 SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97947-414-0	01	1	1210-1407			●	●
301	05.544 SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97948-758-0	01	1	1408-			●	●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97946-601-0	01	1	1210-1407				●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1408-				●

8 9 17 17 9 300 103 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-849-0	01	1	1210-1302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-849-0	01	1	1210-1302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1210-1302		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-849-0	01	1	1303-1407	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97942-849-0	01	1	1303-1407		●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97948-770-0	01	1	1408-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1408-		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A)	8-97942-850-0	01	1	1210-1407	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A)	8-97948-772-0	01	1	1408-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A)	8-97943-048-0	01	1	1210-1407		●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	1210-1407			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A)	8-97948-771-0	01	1	1408-		●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1408-			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	02	1	1210-1407			●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1408-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97947-642-0	03	1	1210-1302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JA1-T ENG(LP0) (C)	8-97947-642-0	03	1	1210-1302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1210-1302		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97947-642-0	03	1	1303-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MSG 5 SPEED(M75) (C)	8-97947-642-0	03	1	1303-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1303-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) FRONT,CENTER	8-97947-642-0	02	1	1210-		●
9	05.548 JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (C) REAR	8-97947-643-0	01	1	1210-		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-645-0	01	1	1210-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1210-				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) M6 STRAIGHT	0-90301-406-0	03	1	1210-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1210-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1210-			●	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1210-	●		●	●
103	05.544 BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 05.560 (A)	8-97940-114-0	01	1	1210-		●
103	05.544 BOOT; PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1210-		●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1210-			●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-629-0	01	1	1210-	●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A)	8-97947-629-0	01	1	1210-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-629-0	01	1	1210-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97947-663-0	01	1	1210-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JA1-T ENG(LP0) (B)	8-97945-189-0	01	1	1210-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-631-0	01	1	1210-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97947-665-0	01	1	1210-1407		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97947-665-0	01	1	1210-1407		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-665-0	01	1	1210-1407			●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97948-769-0	01	1	1408-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97948-769-0	01	1	1408-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97948-769-0	01	1	1408-			●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A)	8-97947-630-0	01	1	1210-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5	8-97947-211-1	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) L=1838.5	8-97948-744-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A) L=1861.5	8-97947-217-0	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75) (A) L=1861.5	8-97948-747-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A) L=1838.5	8-97947-815-0	01	1	1210-1407	●	●
300	05.544 SHAFT ASM; PROP,RR 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A) L=1838.5	8-97948-748-0	01	1	1408-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97947-253-1	01	1	1210-1407		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97948-750-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840	8-97947-248-1	01	1	1210-1407		●
300	05.544 SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) HIGH RIDE SUSPENSION(7YC) (A) L=1840	8-97948-743-0	01	1	1408-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97947-255-1	01	1	1210-1407			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97948-757-0	01	1	1408-			●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97947-258-1	01	1	1210-1407				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1408-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
