3-60 — BRAKE PIPING; VACUUM (#109086) — 18 parça

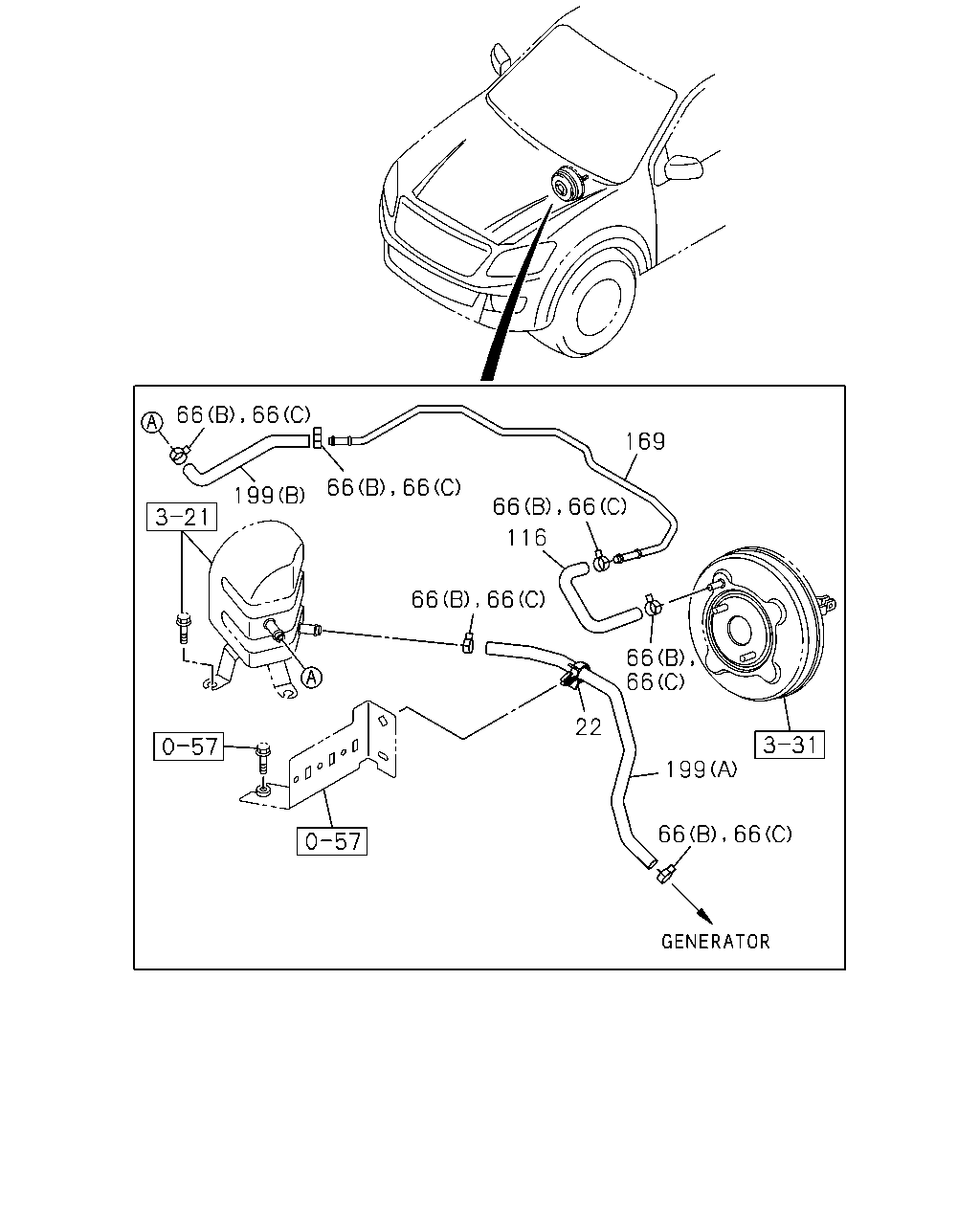

çizim 319144
66 66 199 66 66 66 66 66 66 66 66 66 66 116 22 169 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 		8-97089-536-0 01 1 1210- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) ID=15.5 		8-98035-872-0 01 1 1210-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=16 		8-98036-539-0 01 1 1210-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=16 		8-98036-539-0 02 1 1404- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (C) ID=15.5 		8-98035-872-0 06 1 1210-1403 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (B) ID=16 		8-98036-539-0 06 1 1404- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-98100-737-1 01 1 1210- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) 		8-98100-741-0 01 1 1210- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JA1-T ENG(LP0) 		8-98100-267-1 01 1 1210- ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (A) 		8-98100-739-2 01 1 1210- ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (B) 		8-98100-740-0 01 1 1210- ● ●

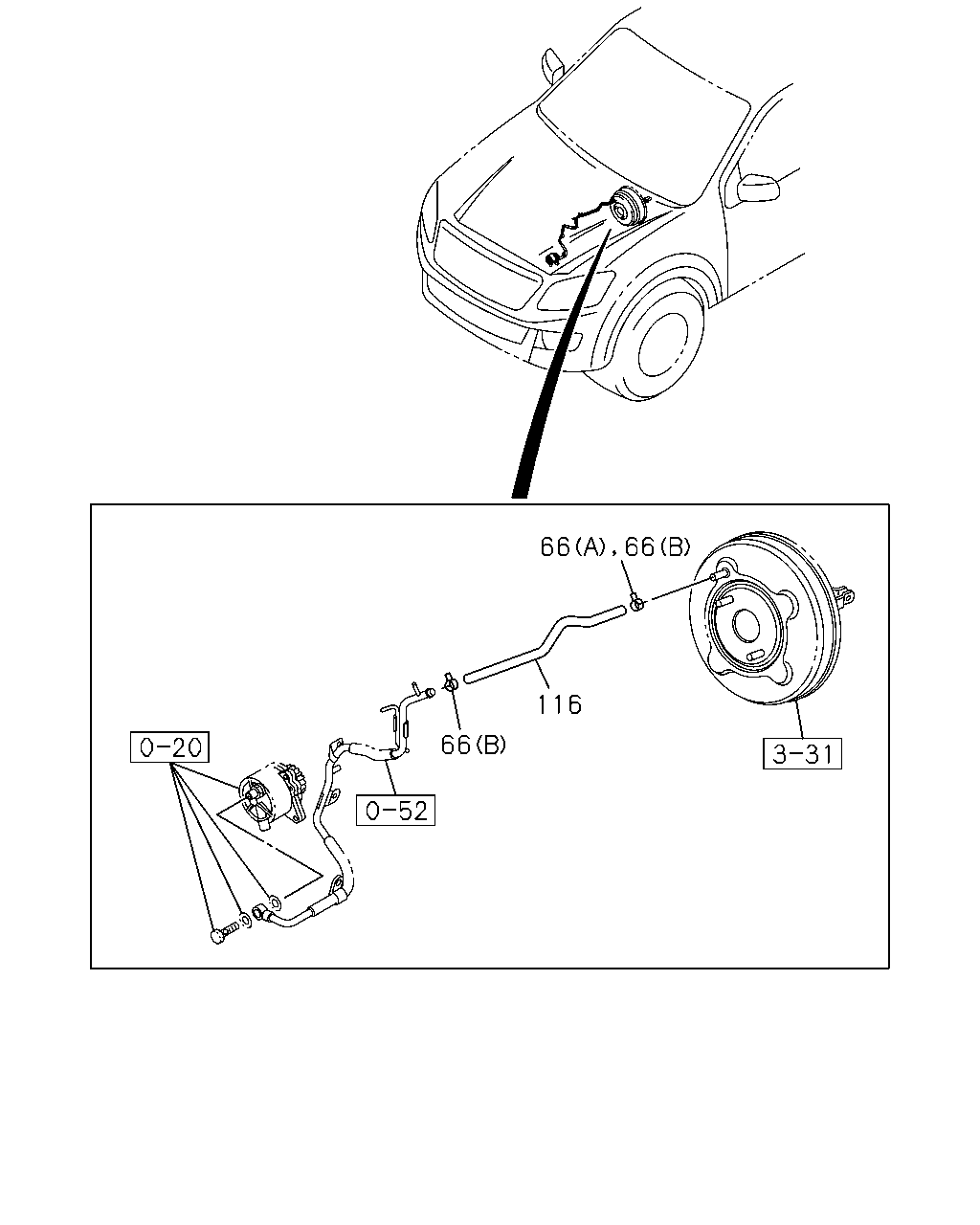

çizim 319146
66 66 116 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) ID=15.5 		8-98035-872-0 01 1 1210-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=16 		8-98036-539-0 01 1 1210-1403 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=16 		8-98036-539-0 02 1 1404- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (C) ID=15.5 		8-98035-872-0 06 1 1210-1403 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (B) ID=16 		8-98036-539-0 06 1 1404- ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-98100-737-1 01 1 1210- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) 		8-98100-741-0 01 1 1210- ● ●
