◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#109082) — 117 parça

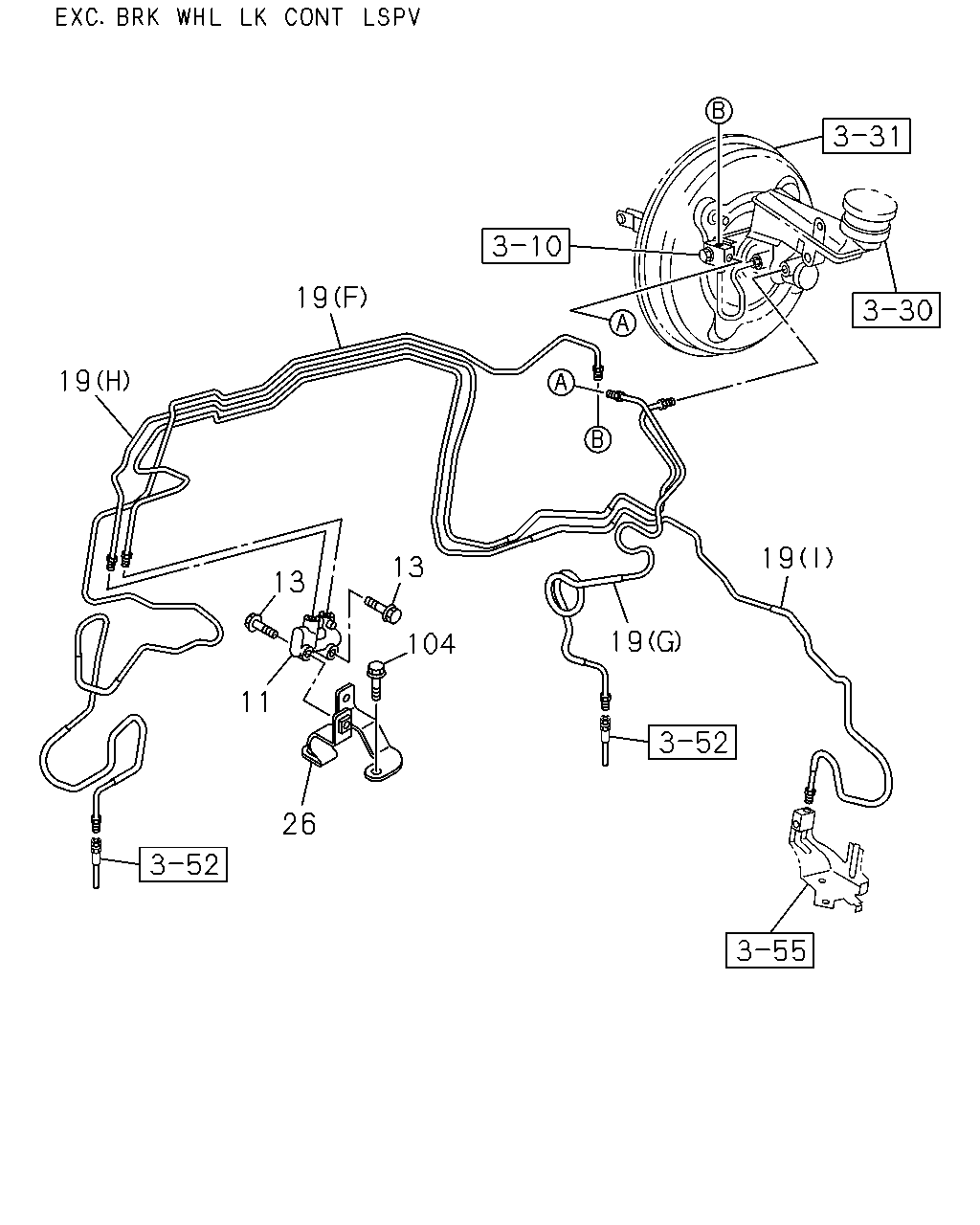

çizim 319136
19 19 13 13 11 26 104 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 1210- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98099-751-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98099-756-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98099-757-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-766-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-98099-768-3 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-769-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98118-384-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98099-771-4 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F) 		8-98186-107-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98196-385-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-379-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F) 		8-98196-376-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-941-1 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98159-941-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-98202-432-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98202-432-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) 		8-98100-764-2 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) 		8-98100-764-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F) 		8-98185-885-1 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F) 		8-98185-885-1 01 1 1210- ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98194-685-0 01 1 1210- ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1210- ● ● ● ●

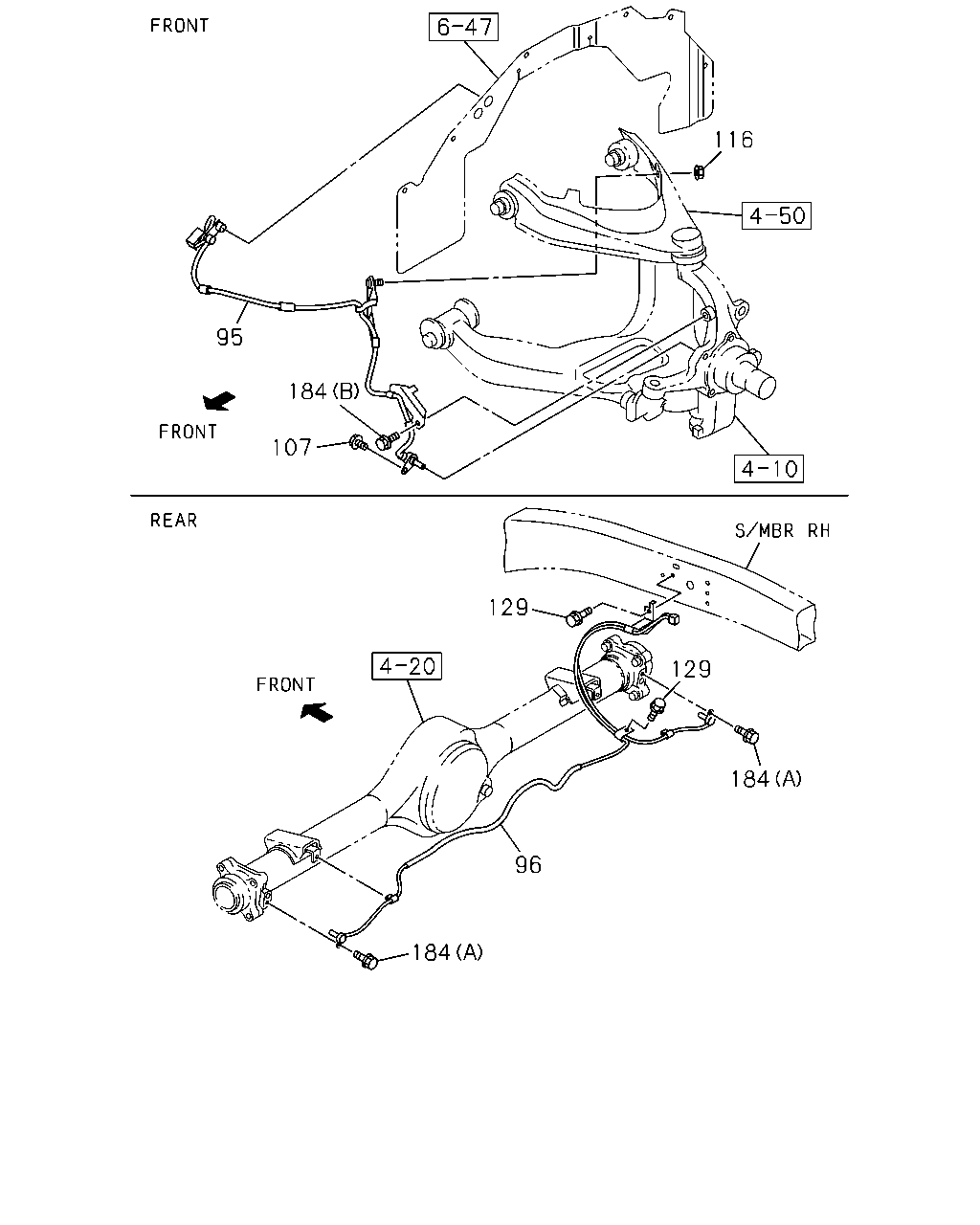

çizim 319137
116 95 184 107 129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-117-1 01 1 1210-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98292-430-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-118-1 01 1 1210-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98292-431-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-119-1 01 1 1210-1509 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-119-1 01 1 1210-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98292-432-0 01 1 1510- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98292-432-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-120-1 01 1 1210-1509 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-120-1 01 1 1210-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98292-433-0 01 1 1510- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98292-433-0 01 1 1510- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-121-1 01 1 1210- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-122-1 01 1 1210- ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-122-1 01 1 1210- ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1210-1509 ● ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1510- ● ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1210- ● ● ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1210- ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1210-1509 ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1510- ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1210- ● ● ● ●

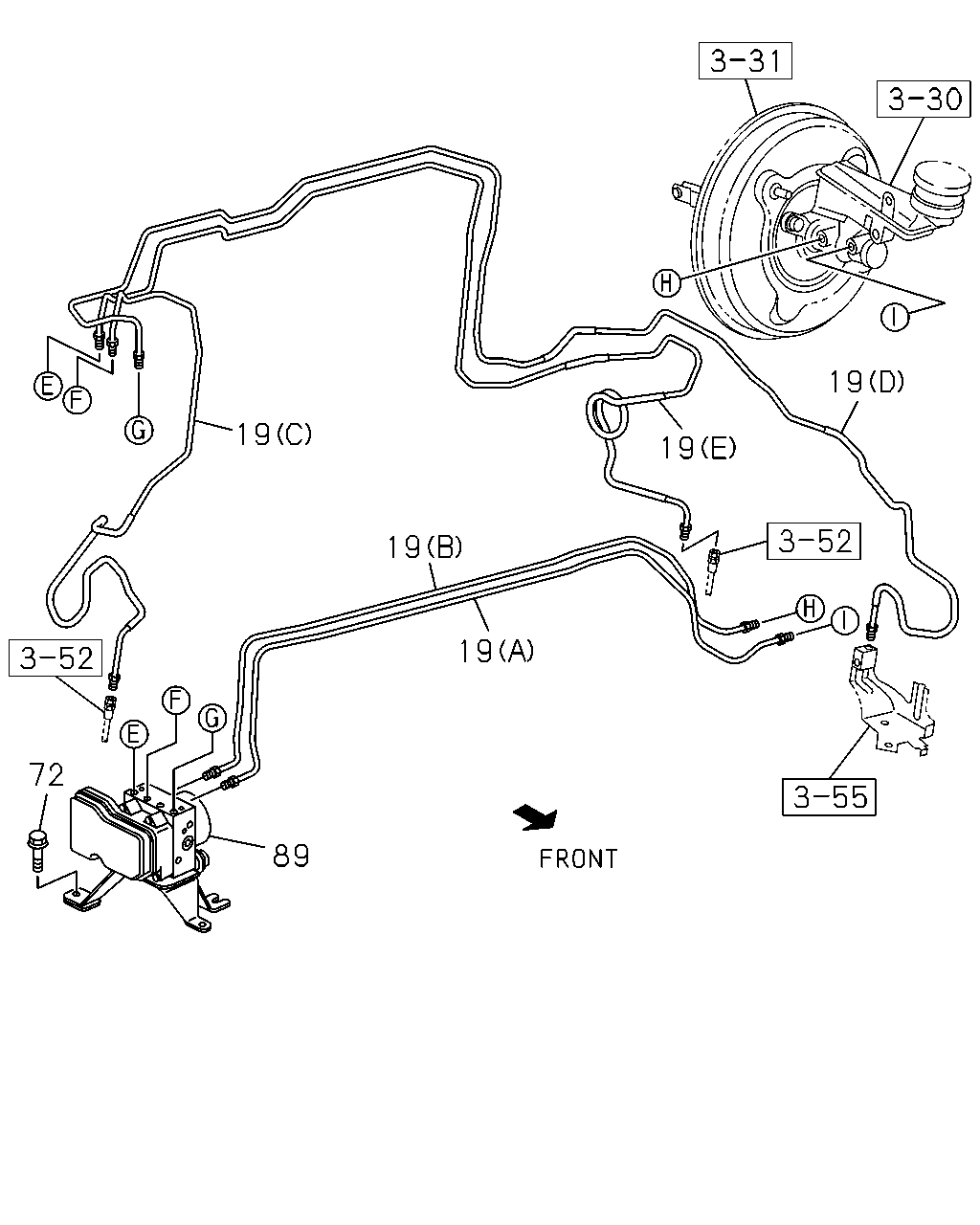

çizim 319139
19 19 19 19 19 89 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98099-751-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98099-756-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98099-757-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-766-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-98099-768-3 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-769-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98118-384-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98099-771-4 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F) 		8-98186-107-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98196-385-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-379-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F) 		8-98196-376-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-941-1 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98159-941-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-98202-432-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98202-432-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) 		8-98100-764-2 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) 		8-98100-764-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F) 		8-98185-885-1 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F) 		8-98185-885-1 01 1 1210- ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1210- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98130-300-1 01 1 1210-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98232-467-0 01 1 1302-1508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98285-166-0 01 1 1509- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98130-301-1 01 1 1210-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98232-469-0 01 1 1302-1508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98285-168-0 01 1 1509- ● ●
çizim 319429
19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98099-751-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98099-756-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98099-757-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-766-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) 		8-98099-768-3 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-769-1 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98118-384-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98099-771-4 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F) 		8-98186-107-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98196-385-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-379-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F) 		8-98196-376-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1210- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-941-1 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98159-941-1 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-98202-432-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98202-432-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) 		8-98100-764-2 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) 		8-98100-764-2 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1210- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F) 		8-98185-885-1 01 1 1210- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F) 		8-98185-885-1 01 1 1210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
