◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#109069) — 10 parça

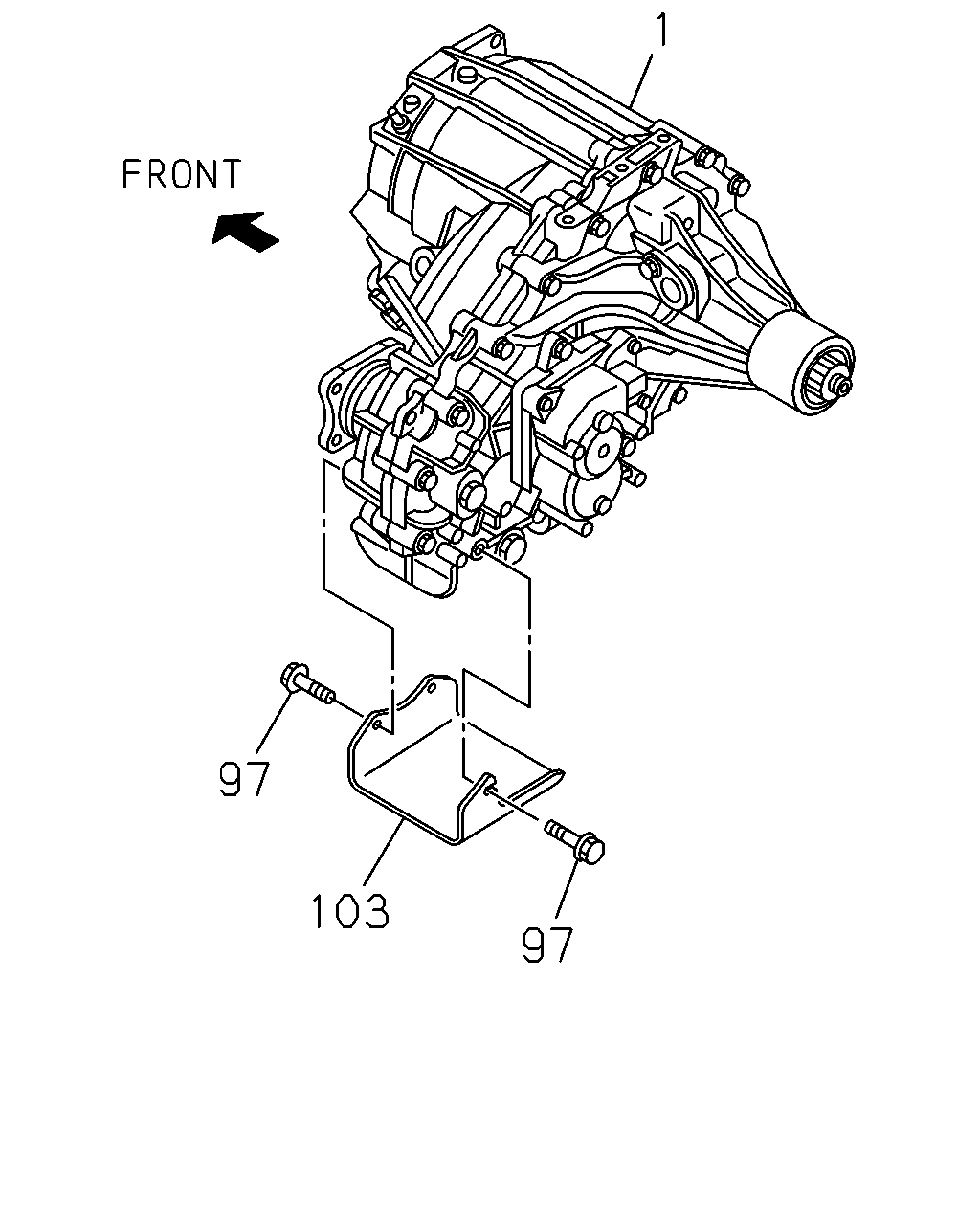

çizim 319434
1 97 103 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-871-0 01 1 1304- ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> 		8-98241-872-0 01 1 1304-1508 ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> 		8-98316-292-0 01 1 1509- ●
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) 		8-98196-934-0 01 1 1210-1303 ● ●
1 04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-934-0 01 1 1304- ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) 		8-98196-935-0 01 1 1210-1303 ● ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98196-935-0 01 1 1304-1508 ●
1 04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98316-291-0 01 1 1509- ●
97 04.512 BOLT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1210- ● ●
103 04.510 GUARD; TRANSFER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-98125-254-0 01 1 1210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
