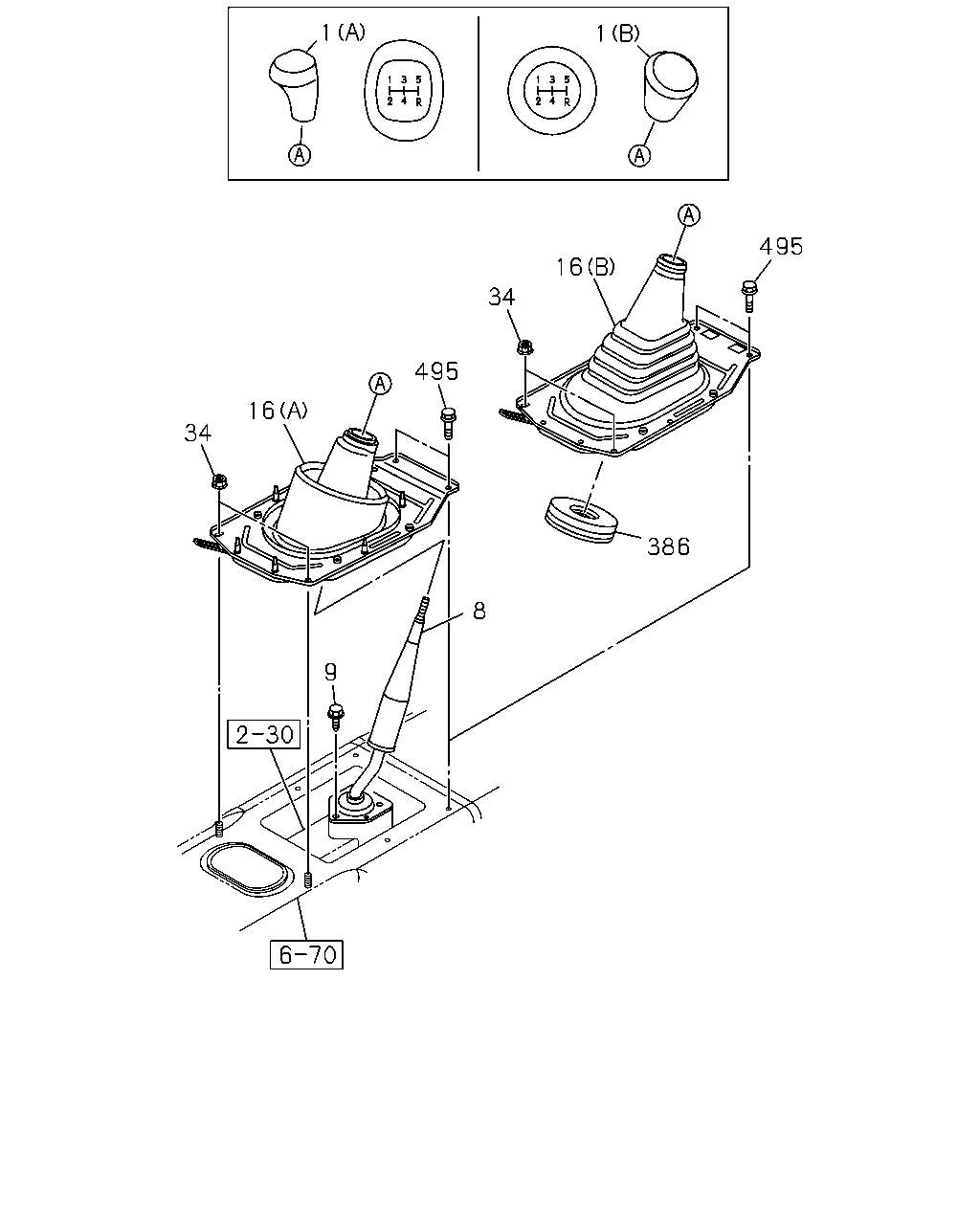

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#109057) — 15 parça
Tümü
A - M/T MSG 5 SPEED
B - M/T MUA 5 SPEED 5H
C - M/T MUA 5 SPEED 5G
◀
[235A] NO.1 (11 parça)
[235A] NO.2 (4 parça)
▶
1
1
495
386
16
34
8
495
16
34
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK
8-97416-791-3
01
1
1210-
●
●
●
1
04.006 KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER
8-97423-313-0
01
1
1210-
●
1
04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B)
8-97371-734-0
01
1
1210-
●
●
●
8
04.006 LEVER; CHANGE
8-98204-209-1
01
1
1210-
●
8
04.006 LEVER; CHANGE
8-98202-734-1
01
1
1210-
●
●
9
04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE
0-28650-820-0
03
1
1210-
●
●
●
16
04.015 BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> (A)
8-98186-367-0
01
1
1210-
●
●
●
16
04.015 BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B)
8-98186-369-0
01
1
1210-
●
●
●
34
08.915 NUT
M6 FLANGE
8-98055-704-0
02
1
1210-
●
●
●
386
04.015 INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55>
8-98191-338-0
01
1
1210-
●
●
●
495
04.012 SCREW; GROMMET
02.343 M6X16 FLANGE
0-28650-616-0
02
1
1210-
●
●
●
8
22
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
04.006 LEVER; CHANGE
8-98204-209-1
01
1
1210-
●
8
04.006 LEVER; CHANGE
8-98202-734-1
01
1
1210-
●
●
22
04.015 COVER; DUST,CHANGE LEVER
8-97945-801-0
01
1
1210-
●
●
●
24
04.008 BUSHING; CHANGE LEVER
8-97943-618-0
01
1
1210-
●
●
●
