Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#109053) — 224 parça

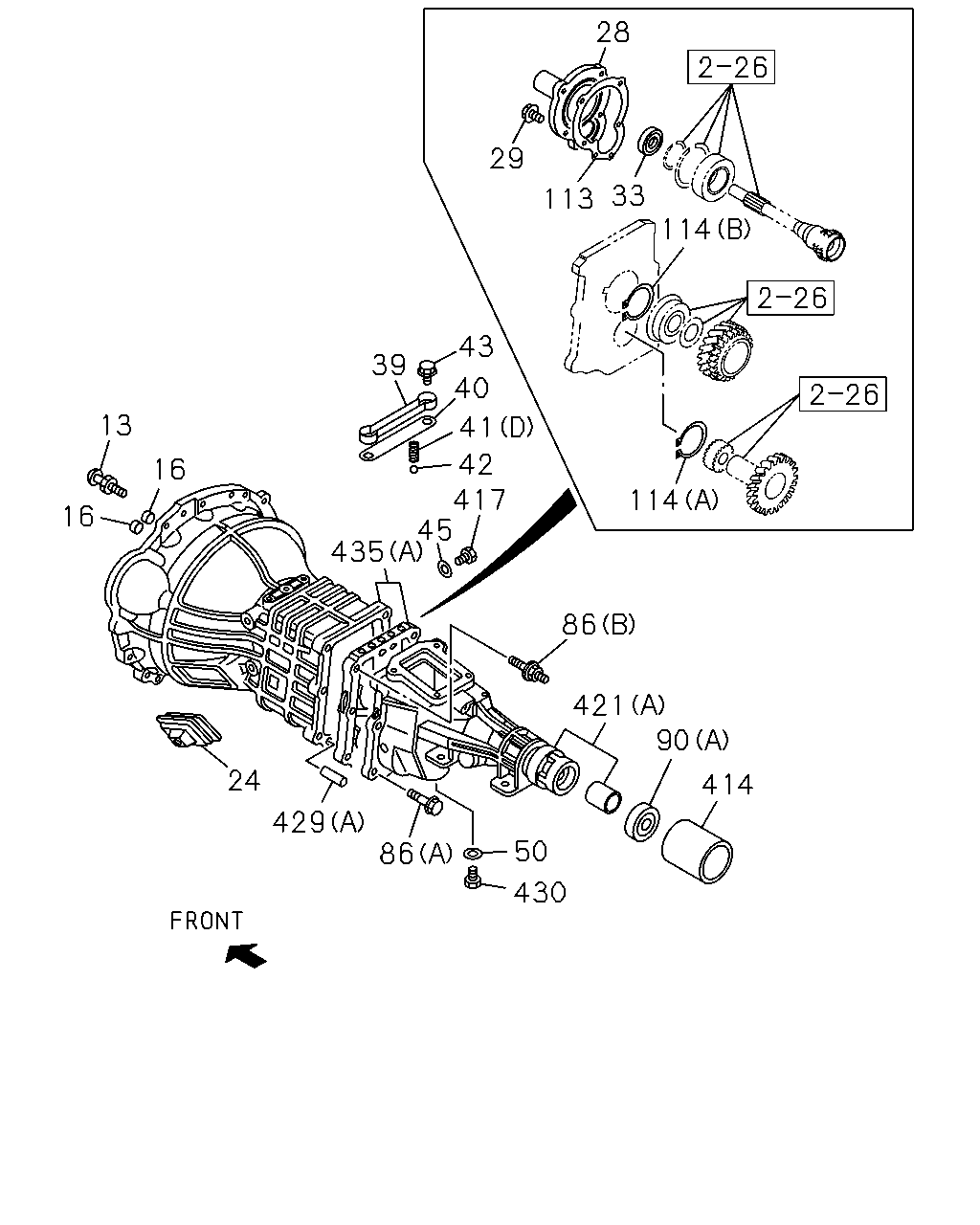

414 421 90 86 430 50 86 429 24 16 16 13 435 417 42 45 41 40 43 39 114 114 113 33 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1210-	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1210-	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1210-	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1210-		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1210-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1210-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1210-	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1210-	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1210-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1210-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1210-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1210-	●	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1210-		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1210-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1210-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1210-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1210-		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1210-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1210-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1210-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1210-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1210-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1210-		●		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1210-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1210-	●
114	04.105 RING; SNAP,BALL BRG 04.422 (A) ID=49.6	5-09589-004-0	01	1	1210-	●
114	04.105 RING; SNAP,BALL BRG 04.412 (B) ID=71.7	5-09589-005-0	01	1	1210-	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1210-	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1210-		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1210-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1210-		●		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1210-1405		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1210-1405			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1210-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-238-0	01	1	1210-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98121-716-0	01	1	1210-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1410-		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1210-	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1210-		●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1210-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1210-		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1210-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1210-	●

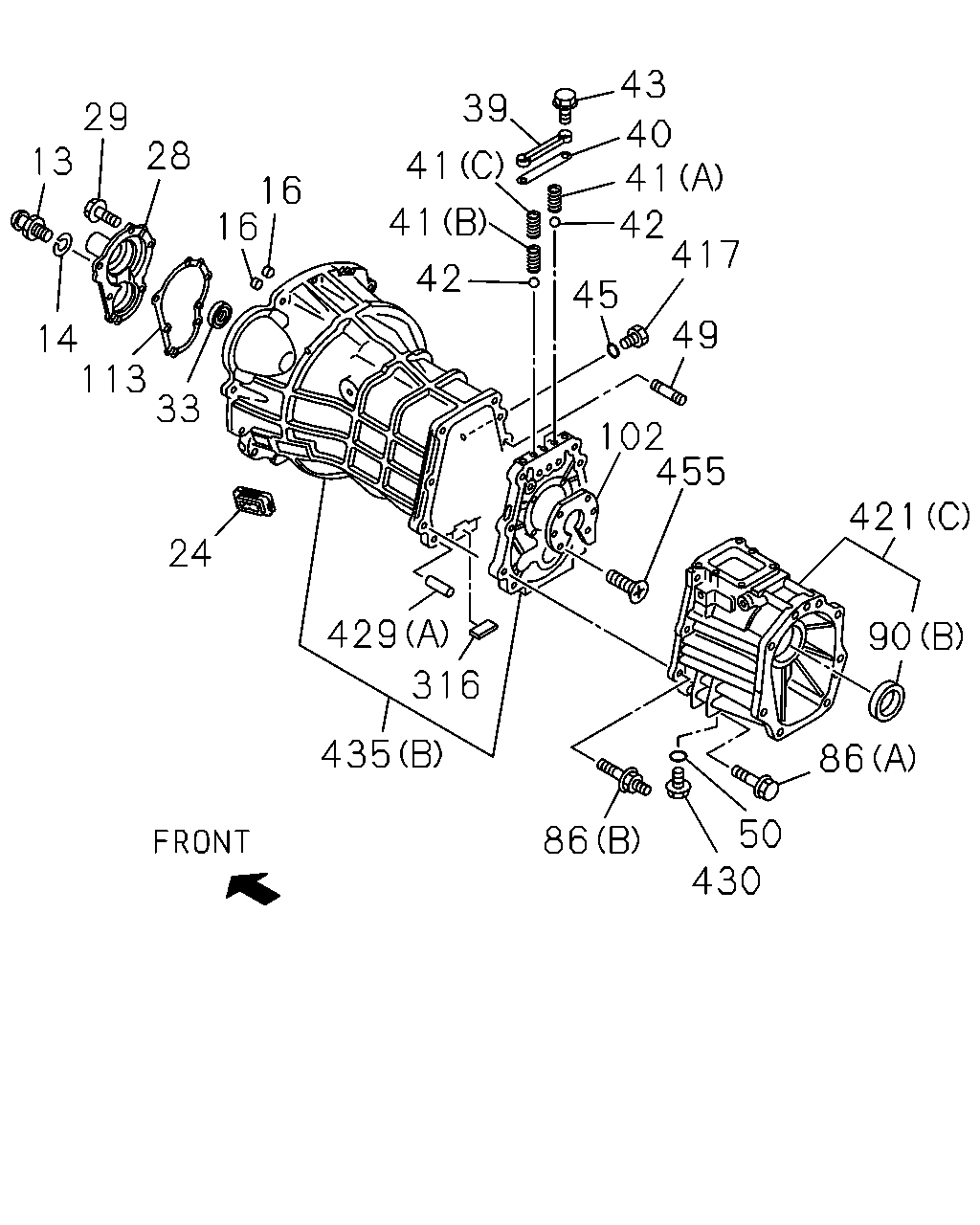

29 13 28 14 16 16 113 24 33 429 435 316 86 430 50 86 90 421 455 102 49 45 417 42 41 40 43 39 41 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1210-	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1210-		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1210-	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1210-	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1210-		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1210-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1210-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1210-	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1210-	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1210-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1210-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1210-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1210-	●	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1210-		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1210-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1210-	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1210-		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1210-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1210-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1210-		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1210-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1210-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1210-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1210-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1210-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1210-		●		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1210-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1210-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1210-	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1210-		●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1210-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1210-		●		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1210-1405		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1210-1405			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1210-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-238-0	01	1	1210-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98121-716-0	01	1	1210-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1410-		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1210-	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1210-		●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1210-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1210-		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1210-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1210-	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1210-		●	●

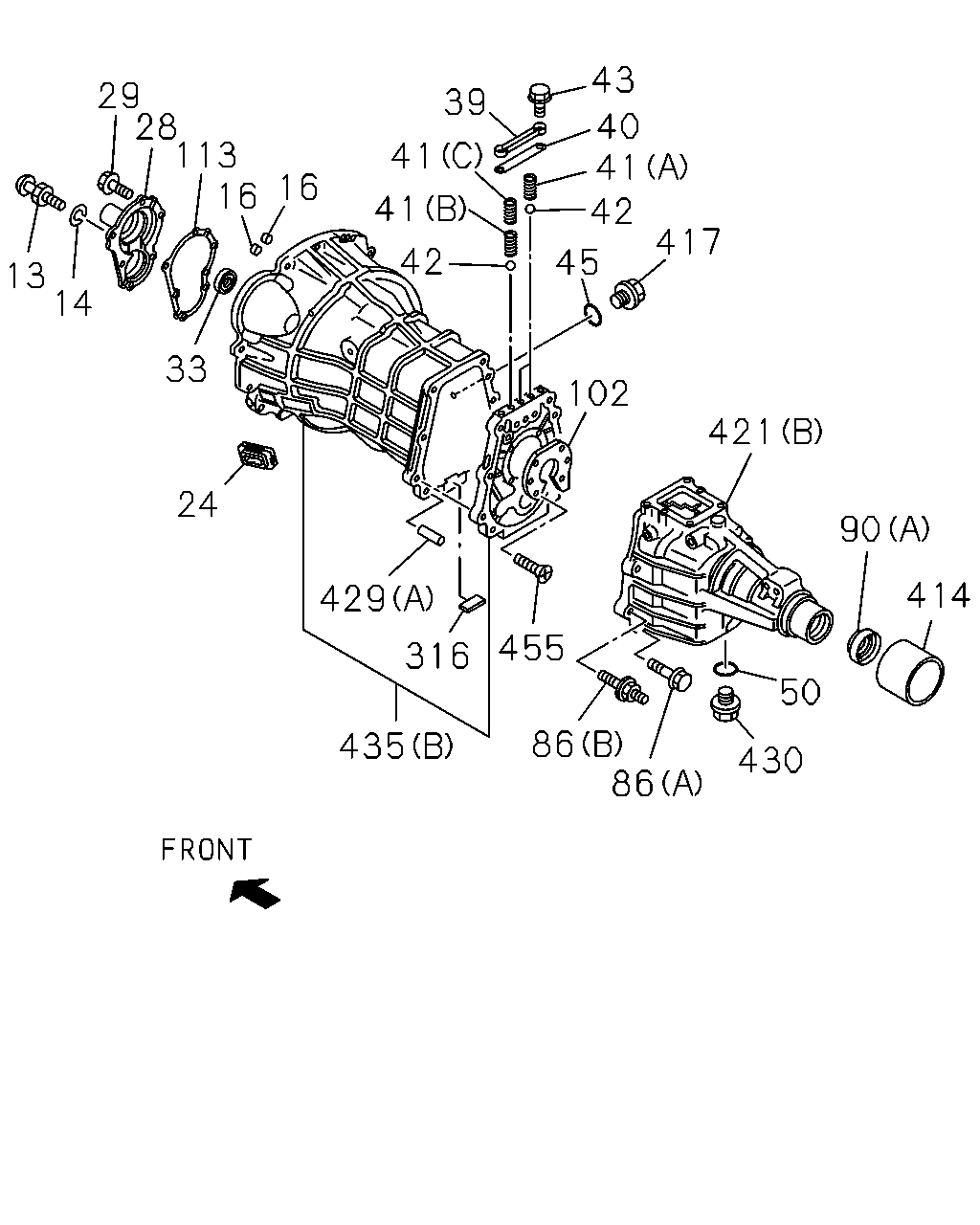

435 86 86 50 430 414 90 421 102 417 45 42 41 40 43 39 41 41 42 455 316 429 24 33 16 16 113 28 29 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1210-	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1210-		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1210-	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1210-	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1210-		●	●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1210-		●	●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1210-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1210-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1210-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1210-	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1210-	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1210-		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1210-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1210-		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1210-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1210-	●	●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1210-		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1210-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1210-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1210-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1210-		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1210-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1210-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1210-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1210-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1210-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1210-		●		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1210-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1210-		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1210-	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1210-		●	●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1210-	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1210-		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1210-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1210-		●		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1210-1405		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1210-1405			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-			●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1210-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-238-0	01	1	1210-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98121-716-0	01	1	1210-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1410-		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1210-	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1210-		●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1210-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1210-		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1210-		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1210-	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1210-		●	●

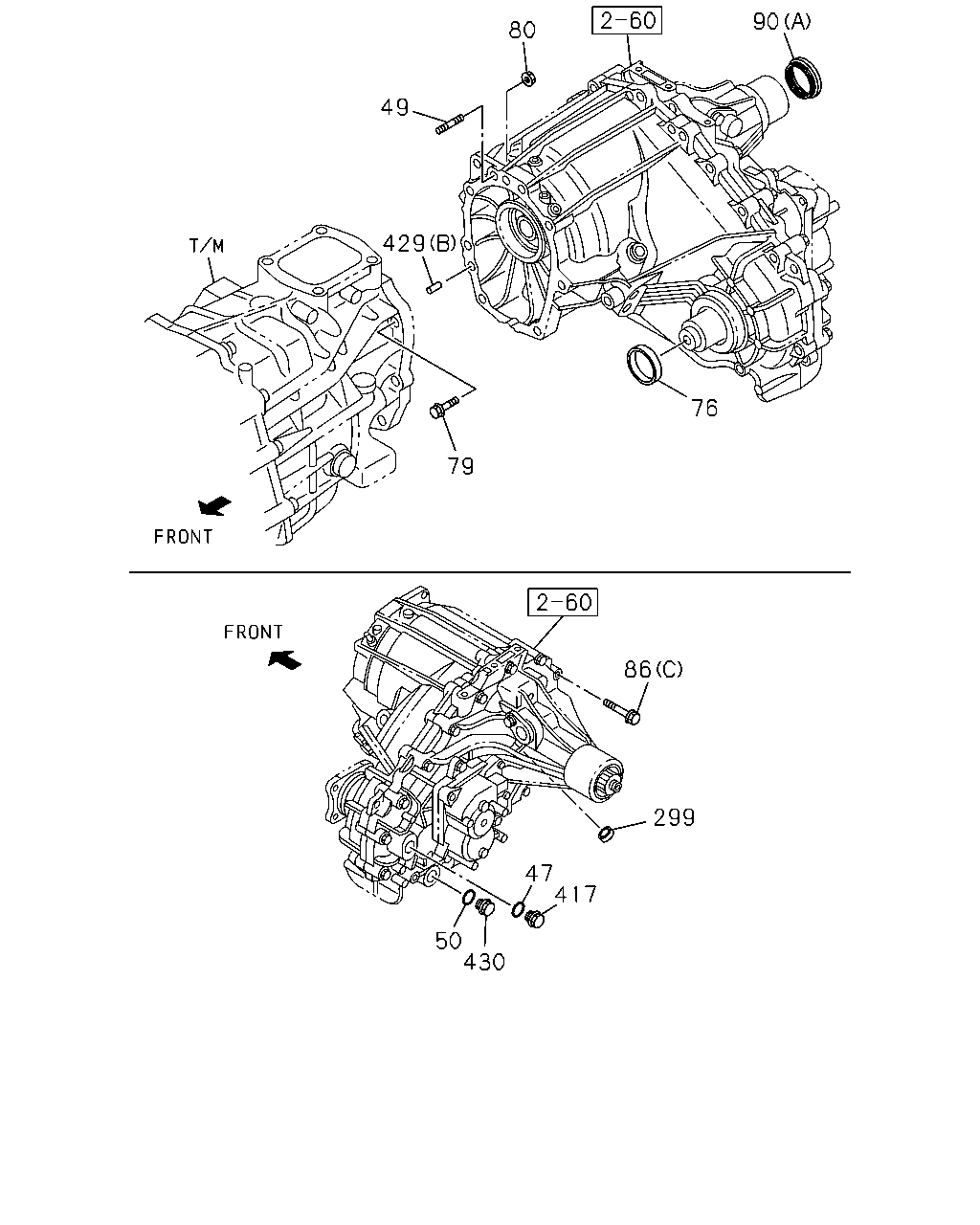

80 90 429 49 76 79 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1210-		●		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1210-		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1210-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1210-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1210-		●		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1210-		●		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1210-		●
79	04.510 BOLT; TRANSFER CASE REGULAR CAB(TF*S) 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1210-				●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1210-		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1210-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1210-		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1210-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1210-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1210-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1210-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1210-		●		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 OD=15.6	8-94173-641-0	02	1	1210-		●		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1210-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1210-		●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1210-	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	1210-		●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1210-	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1210-		●		●

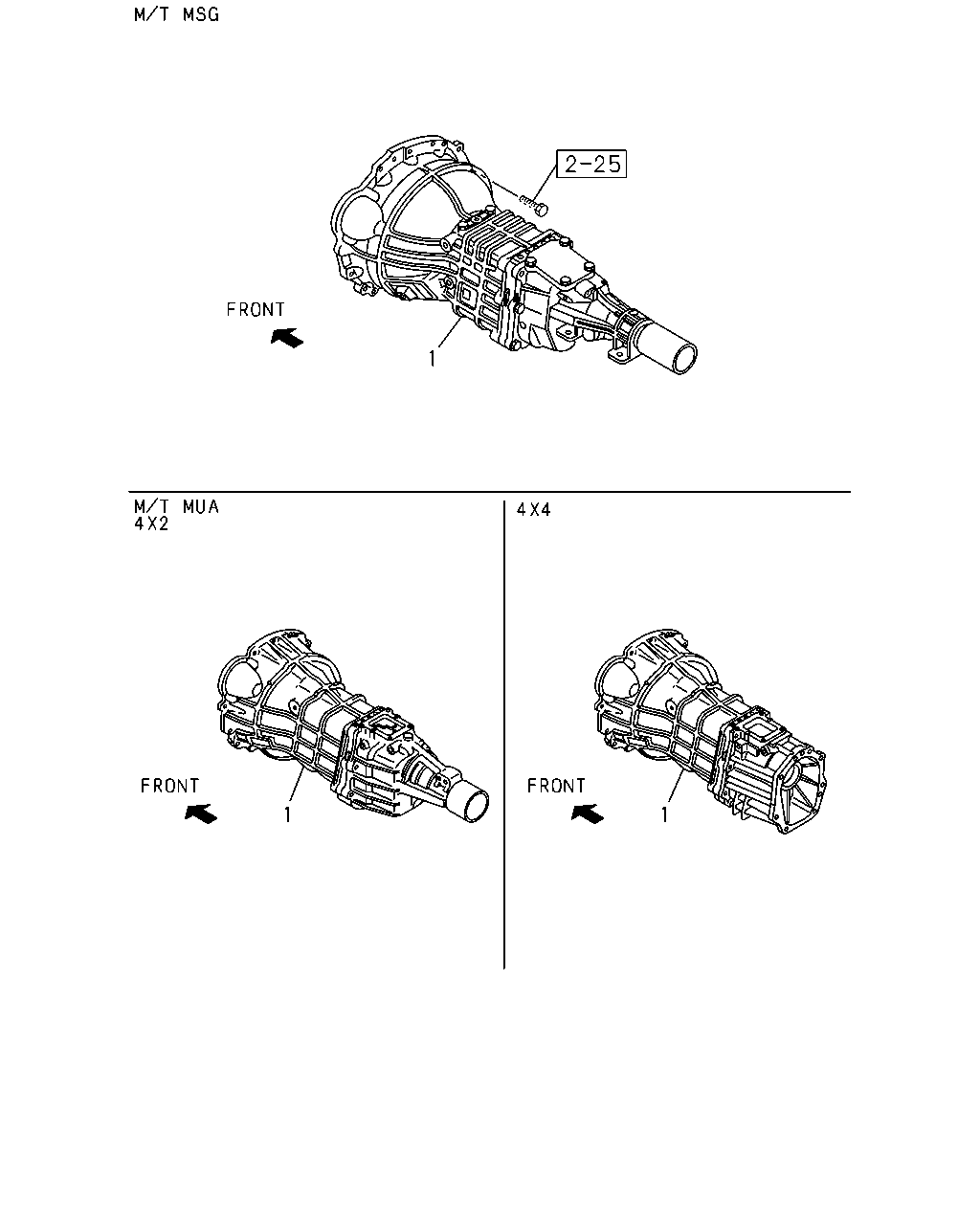

1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1210-	●
1	04.003 TRANSMISSION ASM; MANUAL IDENTIFICATION LABEL FOR KD<6UT>	8-98211-726-0	01	1	1210-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1210-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-180-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1210-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
