Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-10 - REPAIR KIT; TRANSMISSION OVERHAUL
▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL
(#109052) — 15 parça
Tümü

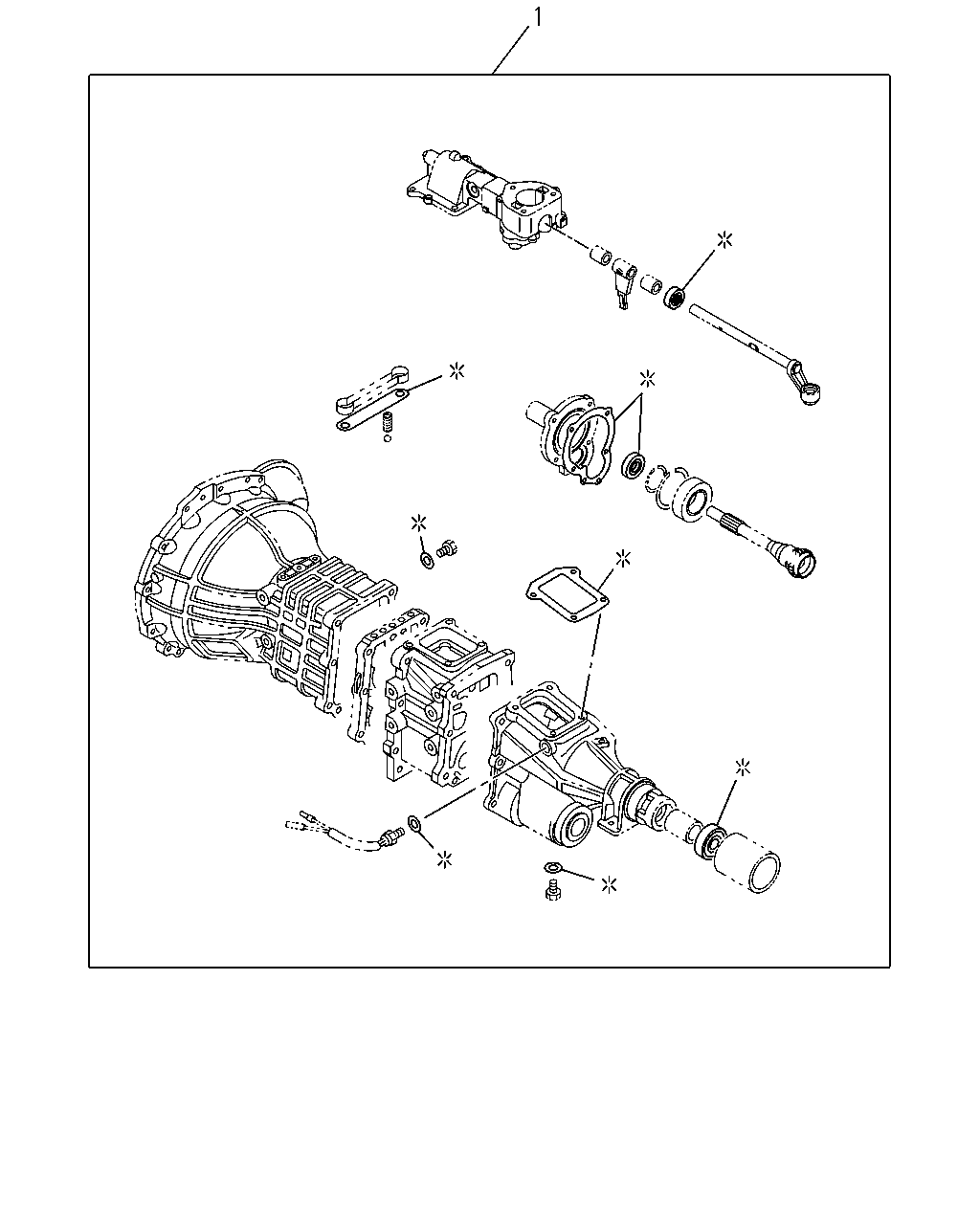

A - M/T MUA 5 SPEED 5H

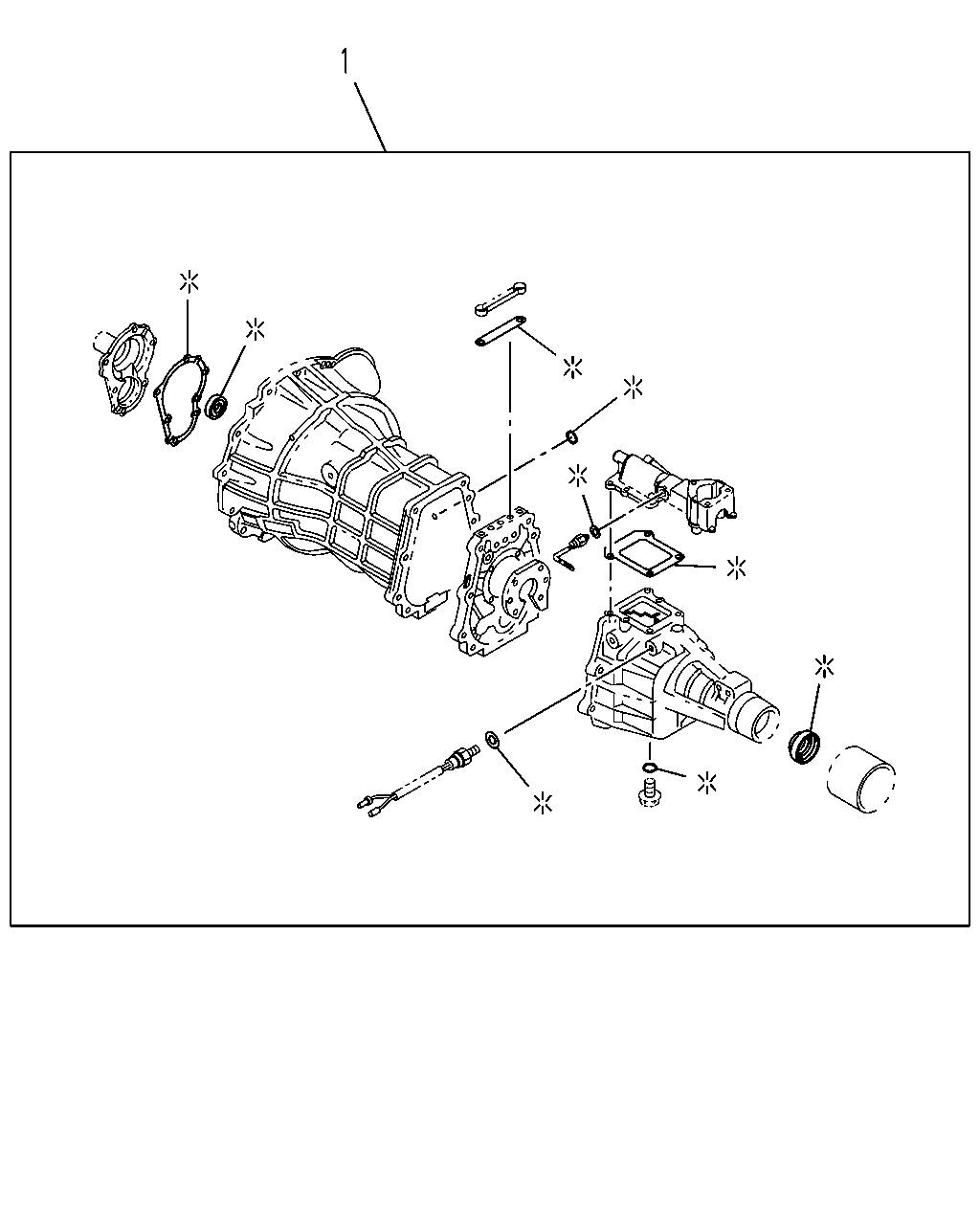

B - M/T MUA 5 SPEED 5G

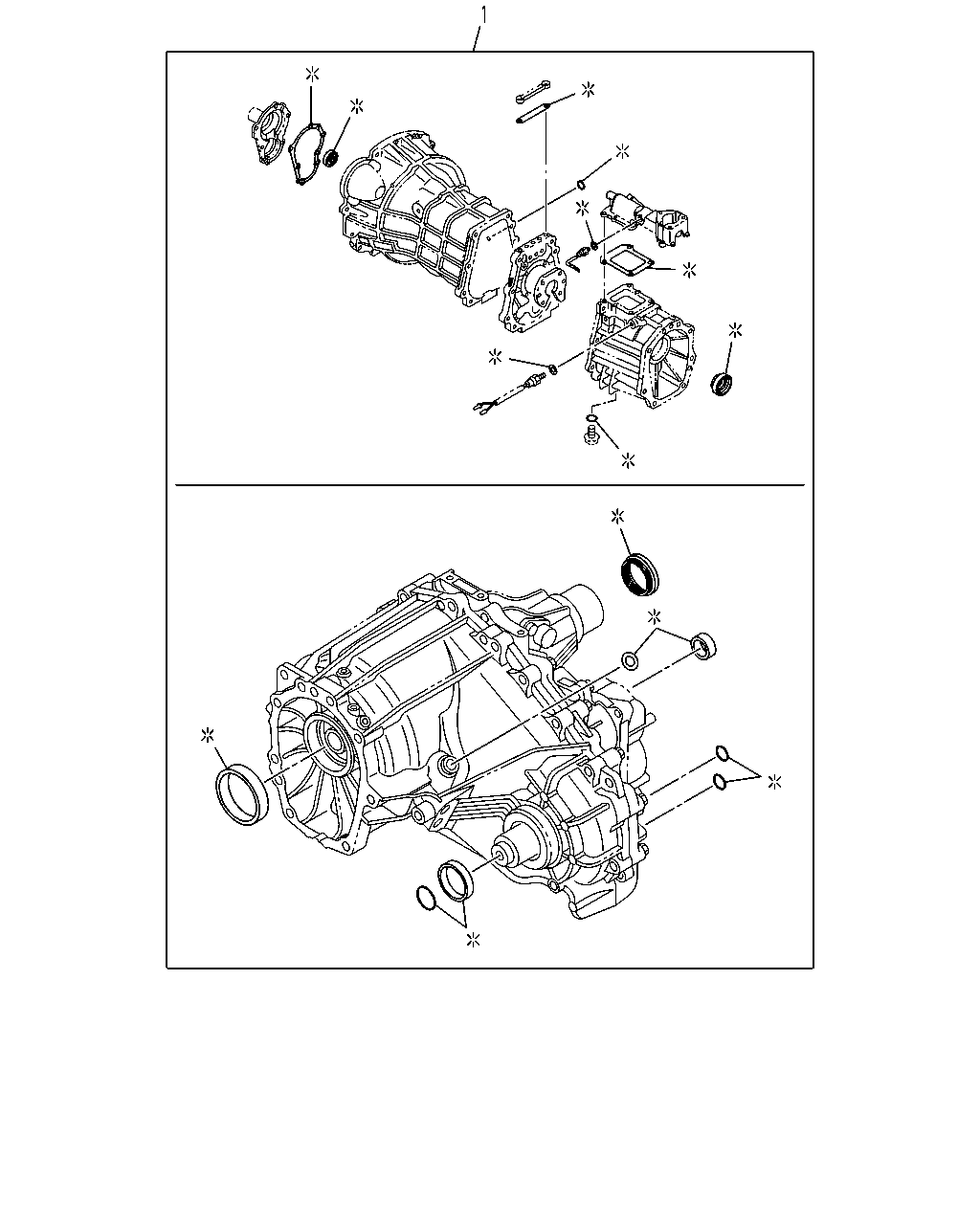

C - M/T MSG 5 SPEED
◀
[210A] M/T MUA;4X2 (5 parça)
[210A] M/T MUA;4X4 (5 parça)
[210A] M/T MSG (5 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1210-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1210-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1210-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1210-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-200-1
01
1
1210-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1210-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1210-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1210-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1210-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-200-1
01
1
1210-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-289-0
01
1
1210-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87832-204-2
01
1
1210-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-231-0
01
1
1210-
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT>
5-87832-278-2
01
1
1210-
●
●
1
04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT>
5-87832-200-1
01
1
1210-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
