Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#10905) — 42 parça
Tümü
A - WHEEL BASE 5700MM
B - WHEEL BASE 6100MM
C - WHEEL BASE 6600MM
◀

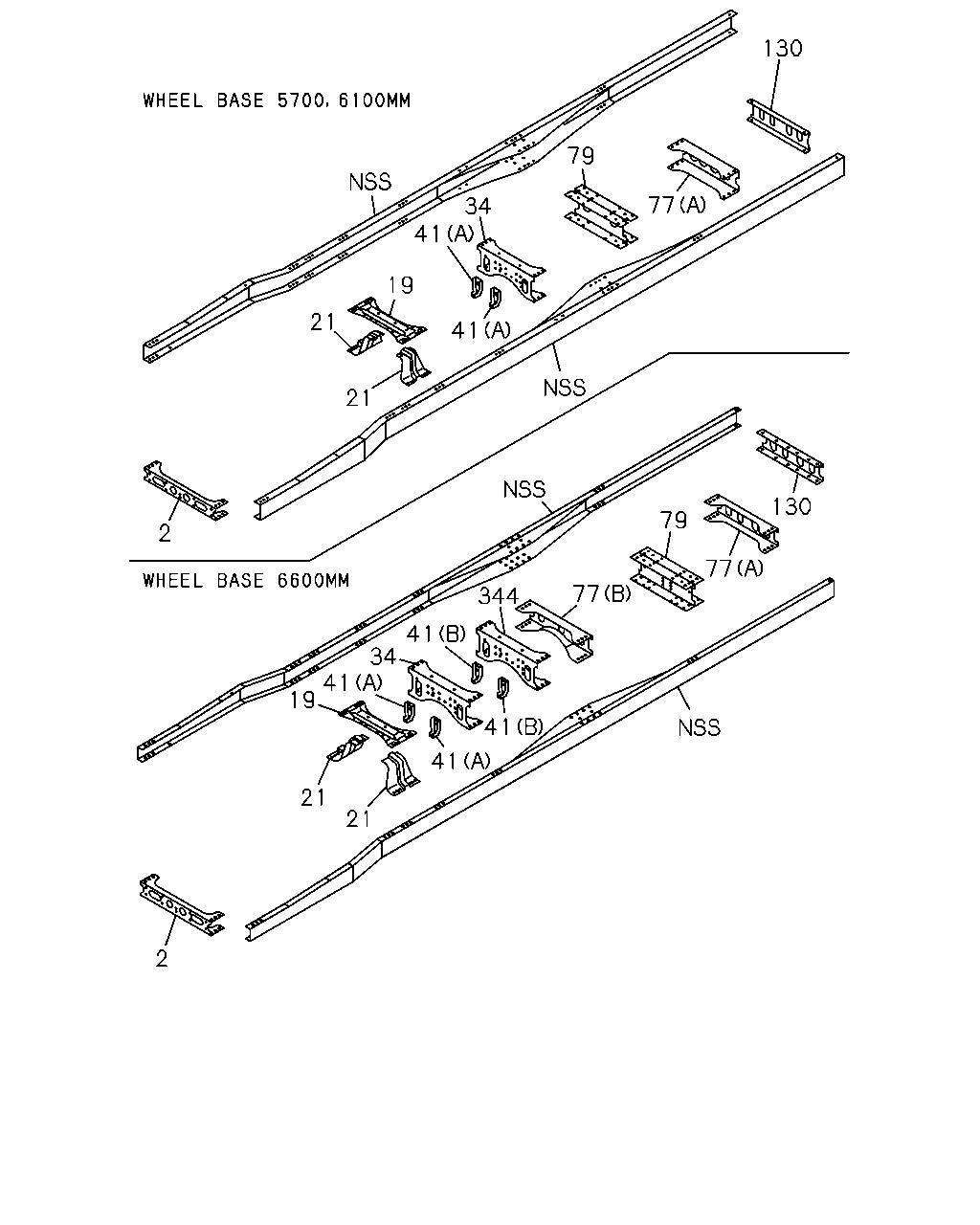

[501A] CROSS MEMBER (13 parça)

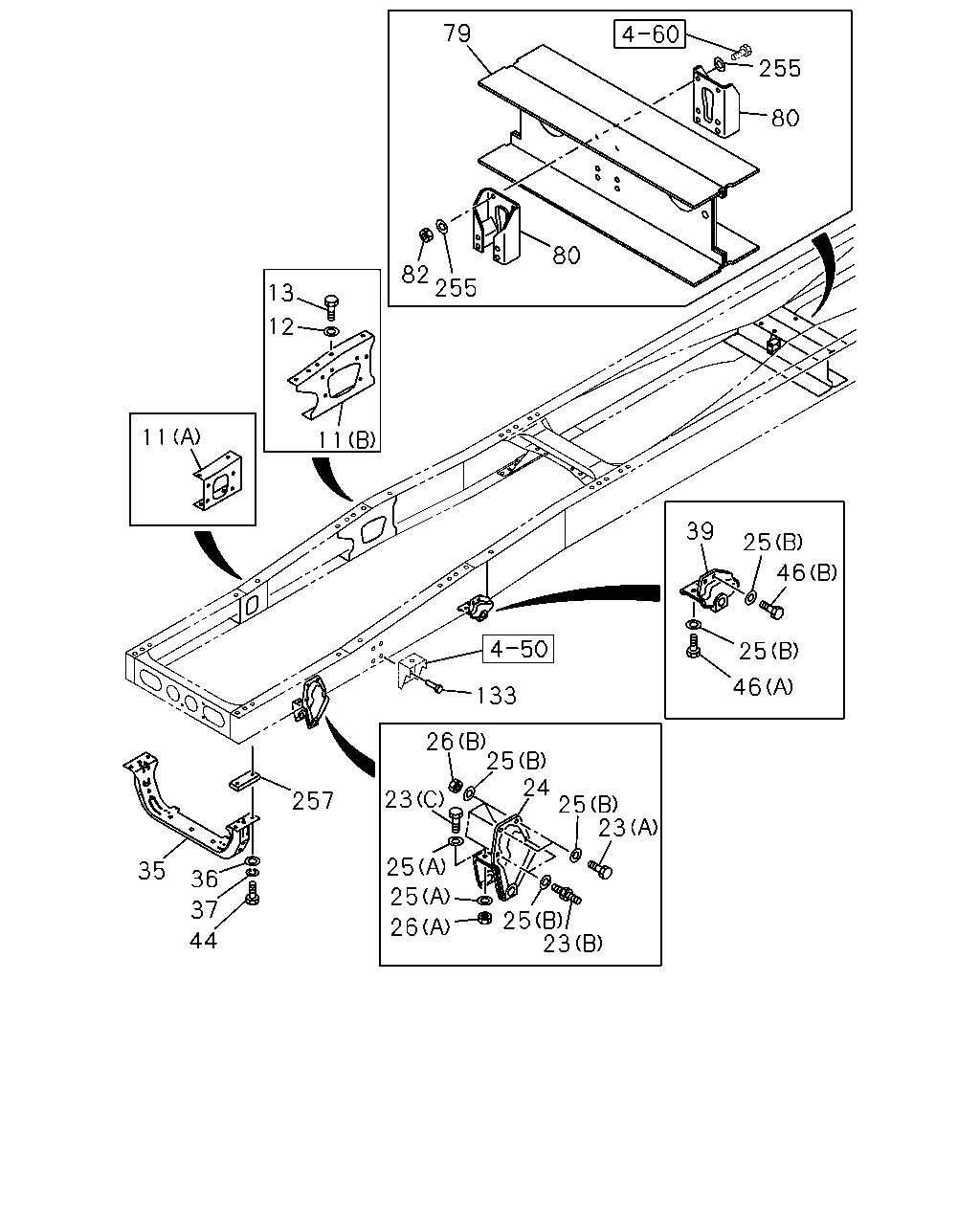

[501A] BRACKET AND UNDER MEMBER (29 parça)
▶
130
79
77
34
41
19
21
41
21
130
77
79
2
77
344
41
34
41
19
41
41
21
21
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
0105-
●
●
●
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0105-
●
●
●
21
GUSSET; 2ND CROSS
1-53164-207-0
02
1
0105-
●
●
●
34
MEMBER; CROSS,3RD
1-53181-640-3
01
1
0105-
●
●
●
41
BRACKET; CENTER BRG,FRAME SIDE
(A) L=315
1-53271-353-0
02
1
0105-
●
41
BRACKET; CENTER BRG,FRAME SIDE
(A) L=335
1-53271-309-1
02
1
0105-
●
41
BRACKET; CENTER BRG,FRAME SIDE
(A) L=305
1-53271-262-2
02
1
0105-
●
41
BRACKET; CENTER BRG,FRAME SIDE
(B) L=330
1-53271-265-2
02
1
0105-
●
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53181-689-1
01
1
0105-
●
●
●
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-693-2
01
1
0105-
●
79
MEMBER; CROSS,TRUNNION ASM
1-53181-657-4
01
1
0105-
●
●
●
130
MEMBER; CROSS,END
1-53181-537-1
01
1
0105-
●
●
●
344
MEMBER; CROSS,4TH
1-53181-640-3
01
1
0105-
●
79
255
80
80
82
255
13
12
11
11
39
25
46
25
46
133
26
25
24
25
23
23
257
25
25
25
26
23
35
36
37
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
BRACKET; ENG MTG
(A)
1-53219-778-1
01
1
0105-
●
●
●
11
BRACKET; ENG MTG
(B)
1-53219-986-1
01
1
0105-
●
●
●
11
BRACKET; ENG MTG
(A)
1-53219-777-1
01
1
0105-
●
●
●
11
BRACKET; ENG MTG
(B)
1-53219-985-0
01
1
0105-
●
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0105-
●
●
●
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0105-
●
●
●
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0105-
●
●
●
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0105-
●
●
●
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0105-
●
●
●
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0105-
●
●
●
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0105-
●
●
●
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
AR
1
0105-
●
●
●
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0105-
●
●
●
26
NUT; BRKT,SPR
(B) M14
9-99110-514-0
AR
1
0105-
●
●
●
26
NUT; BRKT,SPR
(A) M16
9-99110-516-0
AR
1
0105-
●
●
●
35
MEMBER; UNDER
1-53174-214-2
01
1
0105-
●
●
●
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0105-
●
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0105-
●
●
●
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
0105-
●
●
●
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
0105-
●
●
●
44
BOLT; UNDER MBR
M16X65
9-91061-665-0
AR
1
0105-
●
●
●
46
BOLT; BRKT FIX
(B) M14X40
9-92061-440-0
AR
1
0105-
●
●
●
46
BOLT; BRKT FIX
(A) M14X50
9-92061-450-0
AR
1
0105-
●
●
●
79
MEMBER; CROSS,TRUNNION ASM
1-53181-657-4
01
1
0105-
●
●
●
80
BRACKET; C/MBR
1-53363-031-2
02
1
0105-
●
●
●
82
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-
●
●
●
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0105-
●
●
●
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
●
●
●
257
SPACER; UNDER MBR
1-53168-319-0
02
1
0105-
●
●
●
