2-05 — CLUTCH PIPING (#109049) — 12 parça

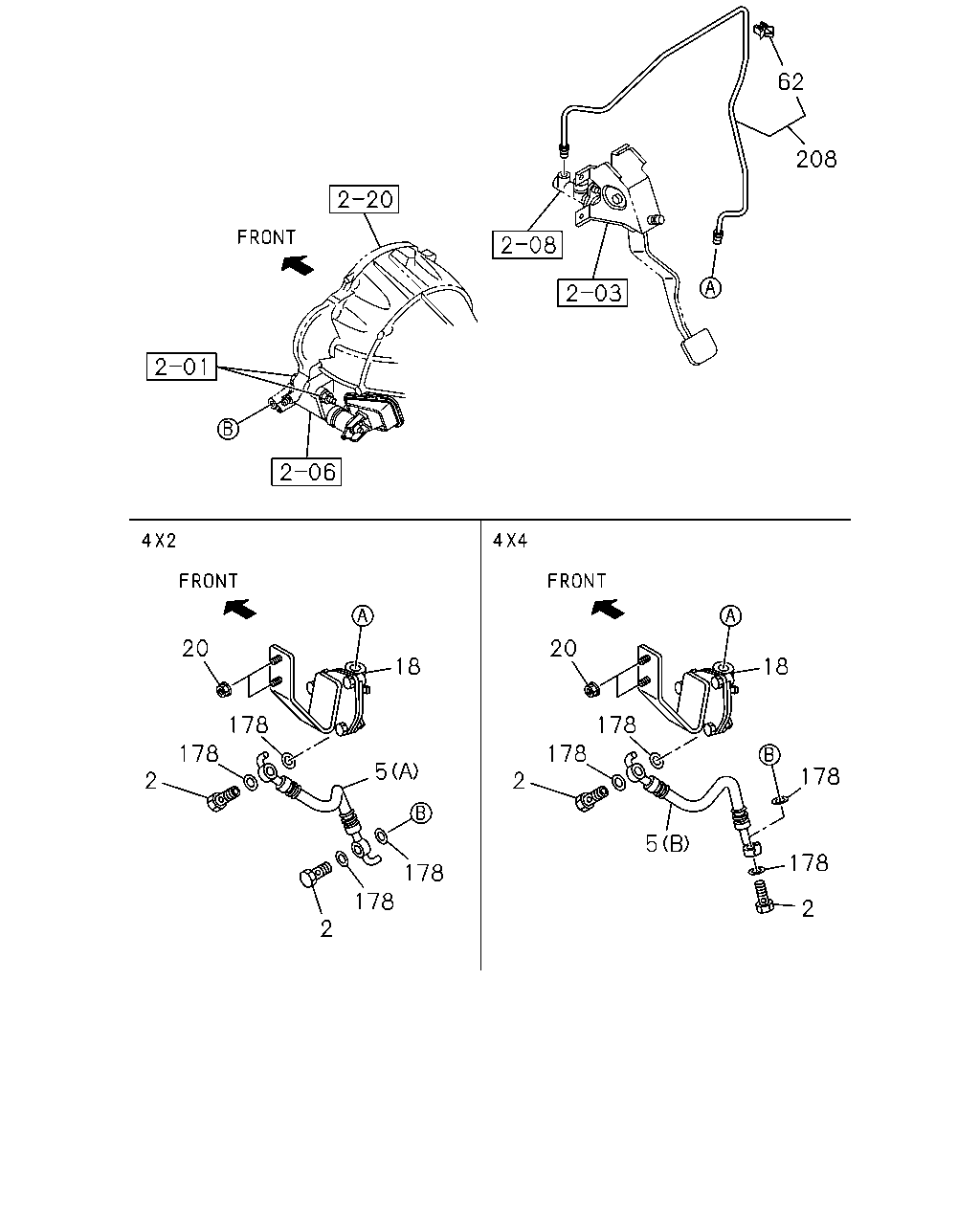

çizim 319101
62 208 18 178 178 2 5 2 178 178 20 18 5 178 178 2 2 178 178 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-97359-818-0 02 1 1210- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98098-317-1 01 1 1210- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4X2(TFB***) (A) 		8-98098-317-1 01 1 1210- ●
5 00.785 HOSE; FLEX,CLU PIPE
4X4(TFS***) (B) 		8-98098-316-1 01 1 1210- ●
18 00.830 DAMPER ASM; CLU OIL 8-97946-616-1 01 1 1210- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1210- ● ● ●
62 00.785 CLIP; CLU PIPE 8-98181-751-0 01 1 1210- ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1210- ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-98100-270-1 01 1 1210- ● ● ●

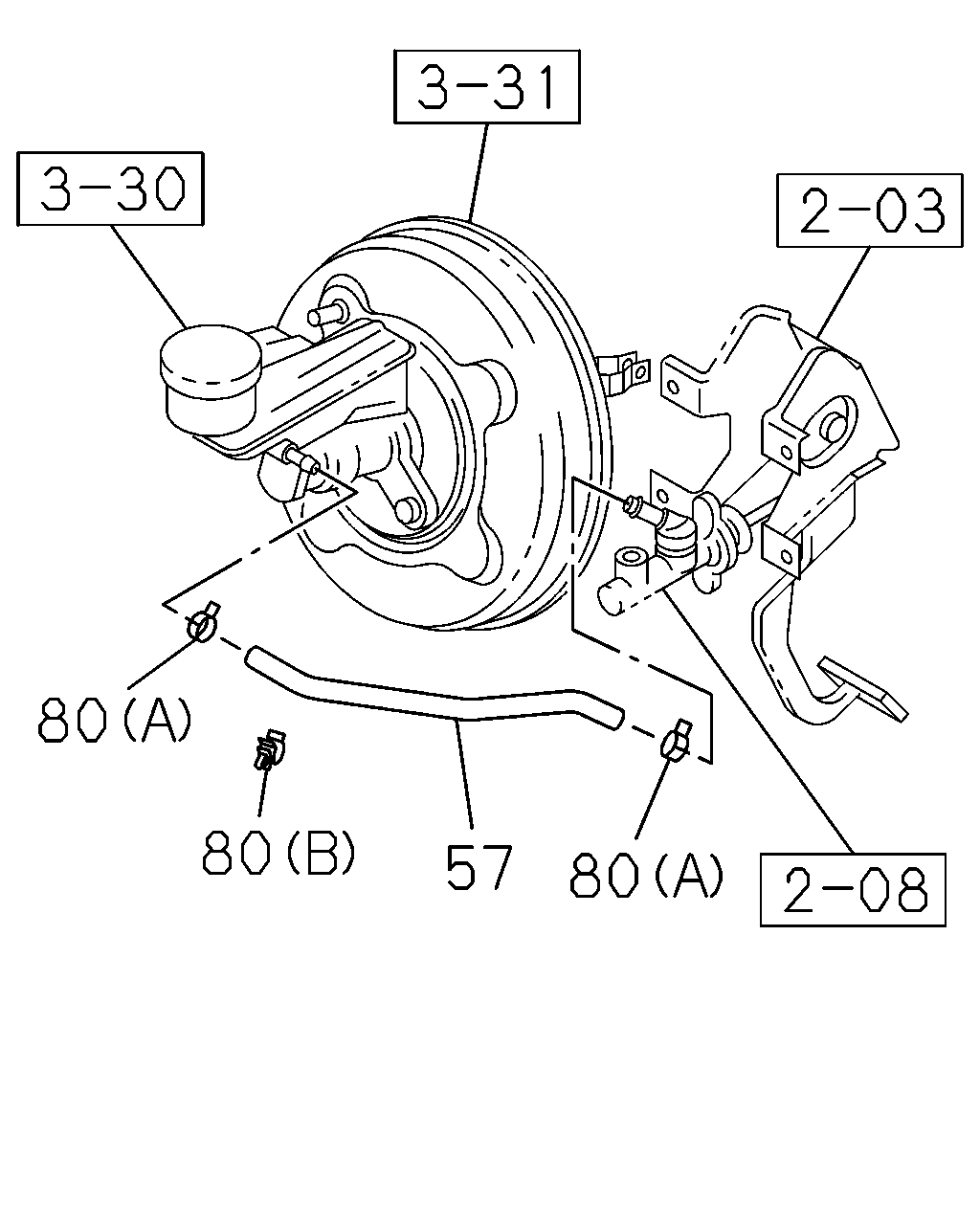

çizim 319439
80 57 80 80
BalonParca AdiParca NoAdetTipApplied Date A B C
57 00.785 HOSE; CLU M/CYL TO OIL TANK 8-98097-544-1 01 1 1210- ● ● ●
80 00.785 CLIP; HOSE
(B) 		8-97947-817-0 01 1 1210- ● ● ●
80 00.785 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-97947-824-0 02 1 1210- ● ● ●
