2-01 — CLUTCH (#109047) — 15 parça

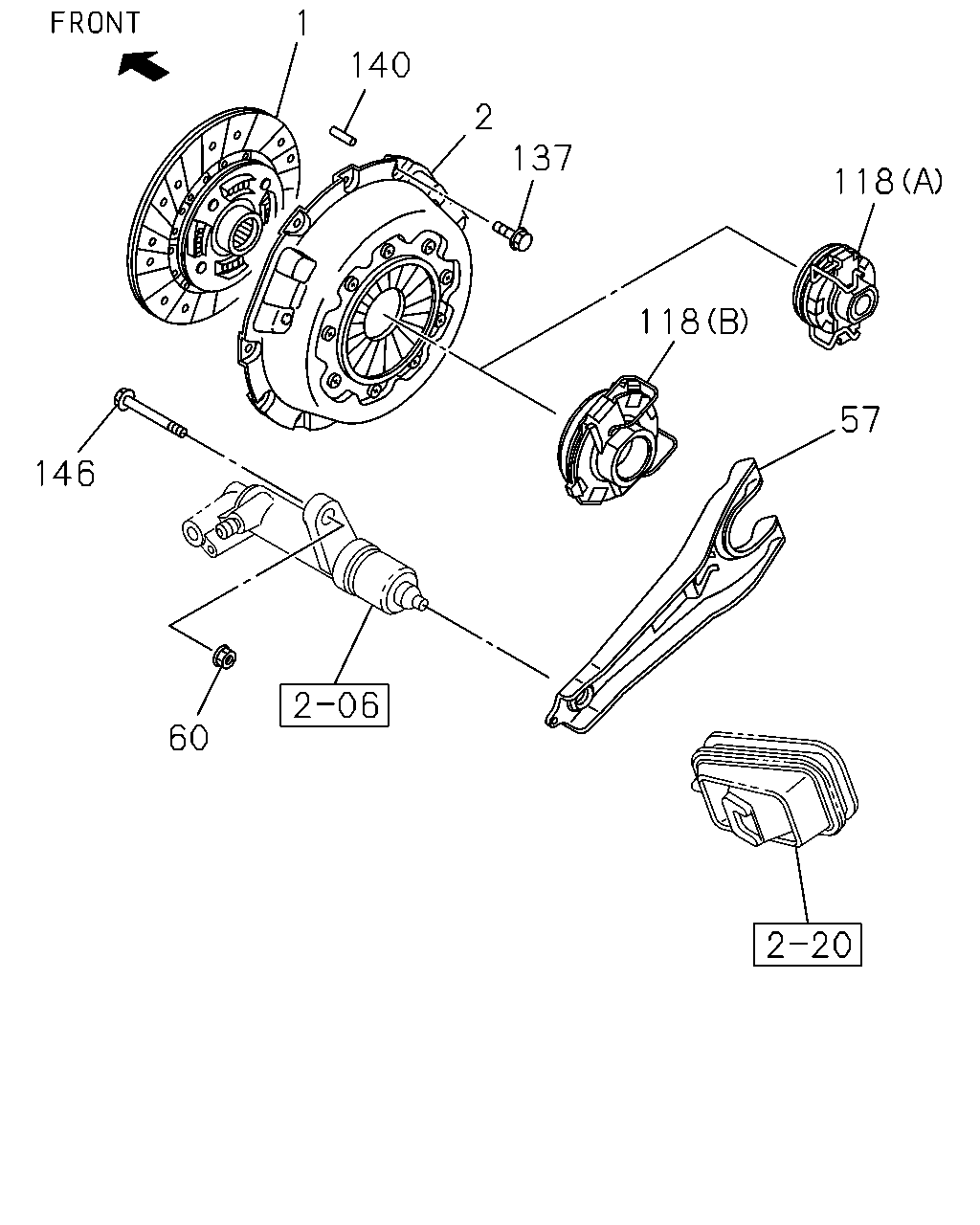

çizim 319099
1 140 2 137 118 118 57 60 146
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-97945-679-0 01 1 1210- ●
1 00.886 DISC; CLUTCH
4JA1-T ENG(LP0) 		8-97941-521-0 01 1 1210- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 		8-97947-516-0 01 1 1210- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JA1-T ENG(LP0) 		8-97943-331-0 01 1 1210- ● ●
57 00.795 FORK; SHIFT,CLU 8-97365-654-0 01 1 1210- ● ●
57 00.795 FORK; SHIFT,CLU 8-94167-751-0 01 1 1210- ●
60 00.780 NUT; SLAVE CYL
02.042 M12 FLANGE 		0-91180-112-0 01 1 1210- ● ● ●
118 00.799 BEARING; CLU RELEASE
(B) NSK ID=44.1 OD=78 		8-98096-168-0 01 1 1210- ●
118 00.799 BEARING; CLU RELEASE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) NSK ID=44.1 OD=78 		8-98096-168-0 01 1 1210- ●
118 00.799 BEARING; CLU RELEASE
(A) NSK ID=56 OD=71.7 		8-97209-197-0 01 1 1210- ●
118 00.799 BEARING; CLU RELEASE
IDENTIFICATION LABEL FOR KD<6UT> (A) NSK ID=56 OD=71.7 		8-97333-487-0 01 1 1210- ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1210- ● ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=27 		8-97945-592-0 02 1 1210- ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 03 1 1210- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M12X90 FLANGE 		0-28051-290-0 02 1 1210- ● ● ●
