Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#109045) — 221 parça

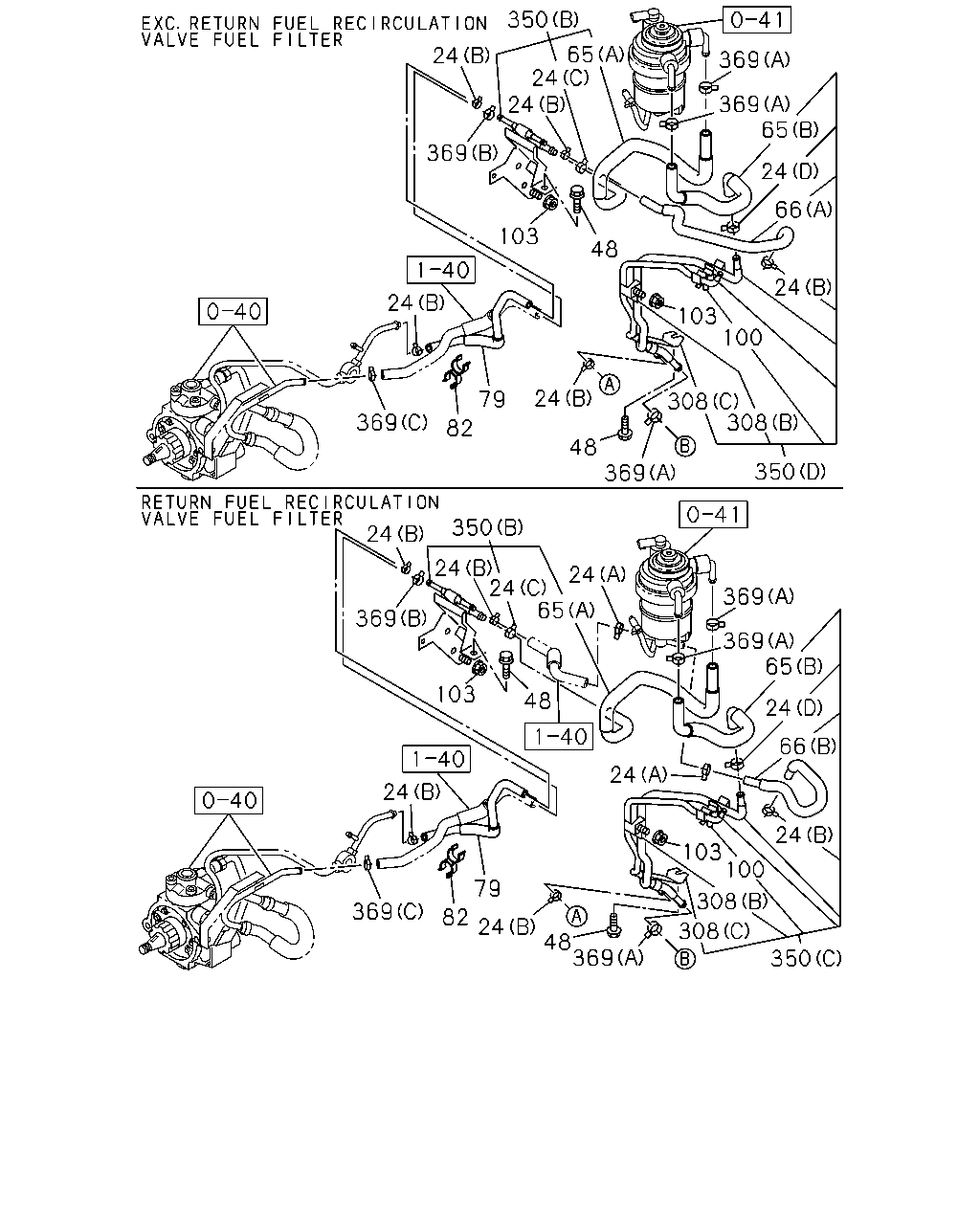

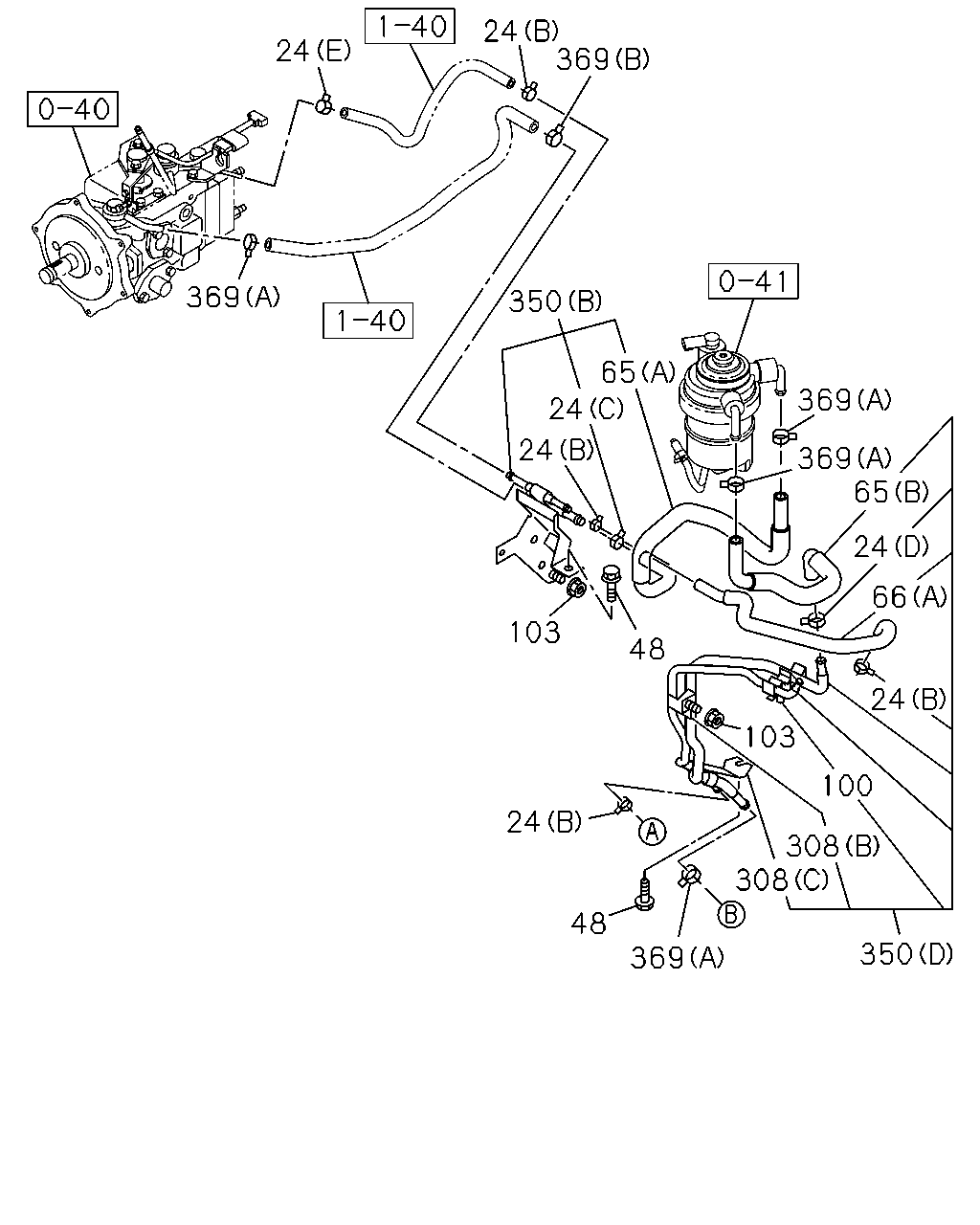

103 48 24 48 369 350 308 100 24 103 65 24 24 350 369 65 369 24 66 369 24 24 369 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (F)	8-98233-886-0	02	1	1301-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (G)	8-98233-887-0	01	1	1301-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	06	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 01.762 (C) ID=16	8-98030-682-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (A) ID=13	8-98150-357-0	02	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (E) ID=11.5	8-98008-096-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	05	1	1210-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1210-	●	●
48	03.162 BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) DELIVERY	8-98100-731-2	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98204-517-0	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98204-517-0	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X4(TFS***) (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (B)	8-98100-725-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) RETURN	8-98113-330-2	01	1	1210-			●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1210-			●
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●
103	03.130 NUT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-			●
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98233-889-0	01	1	1301-			●
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98233-890-0	01	1	1301-			●
308	03.162 BRACKET; FUEL PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1210-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98128-259-0	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98113-293-6	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (D)	8-98100-202-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98100-202-5	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (C)	8-98100-203-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98204-495-1	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98194-762-1	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) ID=15.2	8-98186-048-0	01	1	1210-			●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X4(TFS***) 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	05	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (A) ID=17.2	8-98052-395-0	06	1	1210-			●

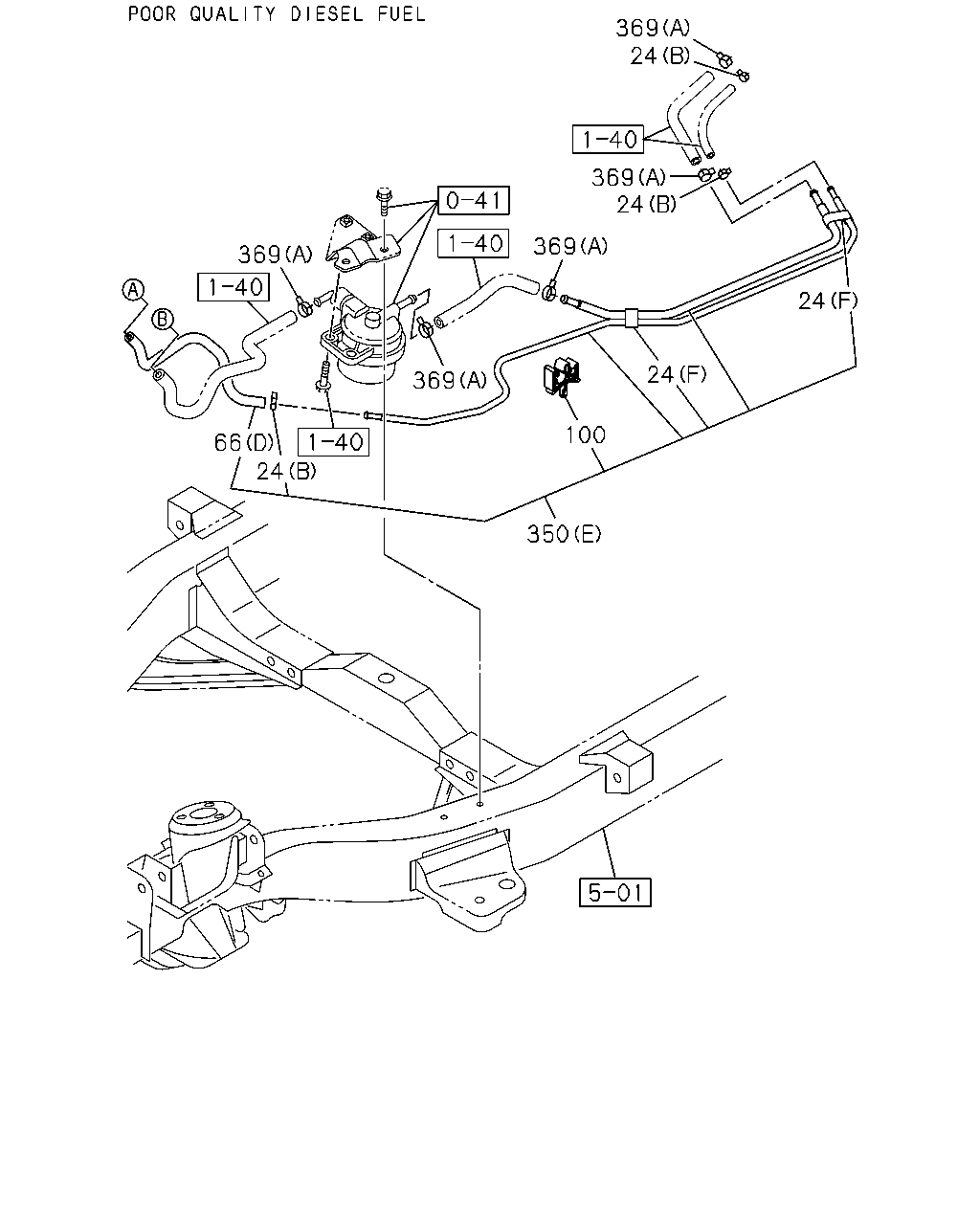

350 100 24 24 369 24 369 369 369 24 66 369 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (F)	8-98233-886-0	02	1	1301-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (G)	8-98233-887-0	01	1	1301-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	06	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 01.762 (C) ID=16	8-98030-682-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (A) ID=13	8-98150-357-0	02	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (E) ID=11.5	8-98008-096-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	05	1	1210-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X4(TFS***) (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (B)	8-98100-725-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) RETURN	8-98113-330-2	01	1	1210-			●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98113-293-6	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (D)	8-98100-202-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98100-202-5	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (C)	8-98100-203-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98204-495-1	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98194-762-1	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) ID=15.2	8-98186-048-0	01	1	1210-			●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X4(TFS***) 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	05	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (A) ID=17.2	8-98052-395-0	06	1	1210-			●

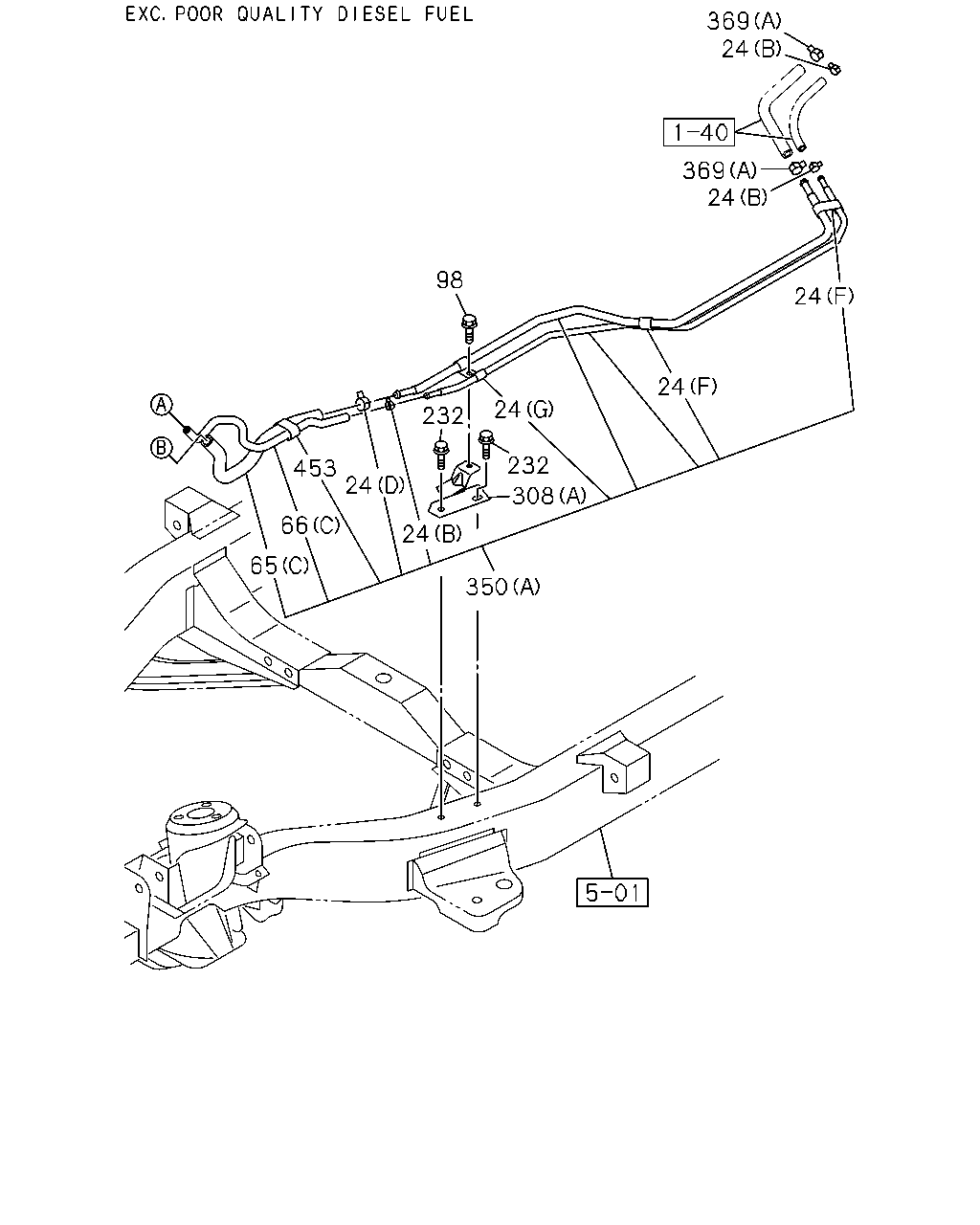

369 369 24 24 232 24 308 24 24 453 66 65 350 232 98 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (F)	8-98233-886-0	02	1	1301-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (G)	8-98233-887-0	01	1	1301-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	06	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 01.762 (C) ID=16	8-98030-682-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (A) ID=13	8-98150-357-0	02	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (E) ID=11.5	8-98008-096-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	05	1	1210-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) DELIVERY	8-98100-731-2	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98204-517-0	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98204-517-0	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X4(TFS***) (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (B)	8-98100-725-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) RETURN	8-98113-330-2	01	1	1210-			●
98	03.162 BOLT; BRKT,FUEL PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1210-	●	●
98	03.162 BOLT; BRKT,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1210-			●
232	03.162 BOLT; CLIP,PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 06.509 M10X25 FLANGE	0-28061-025-0	02	1	1210-	●	●
232	03.162 BOLT; CLIP,PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 06.509 M10X25 FLANGE	0-28061-025-0	02	1	1210-			●
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98233-889-0	01	1	1301-			●
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98233-890-0	01	1	1301-			●
308	03.162 BRACKET; FUEL PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1210-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98128-259-0	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98113-293-6	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (D)	8-98100-202-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98100-202-5	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (C)	8-98100-203-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98204-495-1	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98194-762-1	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) ID=15.2	8-98186-048-0	01	1	1210-			●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X4(TFS***) 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	05	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (A) ID=17.2	8-98052-395-0	06	1	1210-			●
453	03.162 BAND; FLEX HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98233-888-0	01	1	1301-	●	●
453	03.162 BAND; FLEX HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98233-888-0	01	1	1301-			●

24 24 65 24 369 369 65 369 24 66 24 103 48 103 24 79 308 100 308 350 369 48 24 82 369 350 24 350 24 24 65 369 369 65 24 66 24 103 100 308 308 369 350 48 24 82 369 79 24 103 48 369 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (F)	8-98233-886-0	02	1	1301-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1301-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (G)	8-98233-887-0	01	1	1301-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	06	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 01.762 (C) ID=16	8-98030-682-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (A) ID=13	8-98150-357-0	02	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (E) ID=11.5	8-98008-096-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	05	1	1210-			●
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.330 (B) ID=11.5	8-98051-892-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (D) ID=17.2	8-98052-395-0	01	1	1210-			●
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1210-	●	●
48	03.162 BOLT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) DELIVERY	8-98100-731-2	01	1	1210-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98204-517-0	01	1	1210-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98204-517-0	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X4(TFS***) (D)	8-98194-771-0	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1210-			●
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (B)	8-98100-725-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1210-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) RETURN	8-98113-330-2	01	1	1210-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98113-329-4	01	1	1210-	●	●
82	03.163 CLIP; FUEL HOSE ID=13 & 16.5	8-98192-457-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1210-	●	●
100	03.162 CLIP; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1210-			●
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-	●	●
103	03.130 NUT; BRKT EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 01.062 M6 FLANGE	0-91180-106-0	02	1	1210-			●
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98233-889-0	01	1	1301-			●
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98233-890-0	01	1	1301-			●
308	03.162 BRACKET; FUEL PIPE 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1210-	●	●
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98128-259-0	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98113-293-6	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98113-293-6	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUE L FILTER(V10) (D)	8-98100-202-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98100-202-5	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (C)	8-98100-203-5	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1210-	●	●
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98204-495-1	01	1	1210-			●
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) (E)	8-98194-762-1	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 01.762 (C) ID=16	8-98030-682-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B) ID=15.2	8-98186-048-0	01	1	1210-			●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X4(TFS***) 03.145 (A) ID=17.2	8-98052-395-0	08	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL 4X2(TFB***) EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	05	1	1210-	●	●
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) 03.145 (A) ID=17.2	8-98052-395-0	06	1	1210-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
