1-40 — FUEL TANK (#109044) — 64 parça

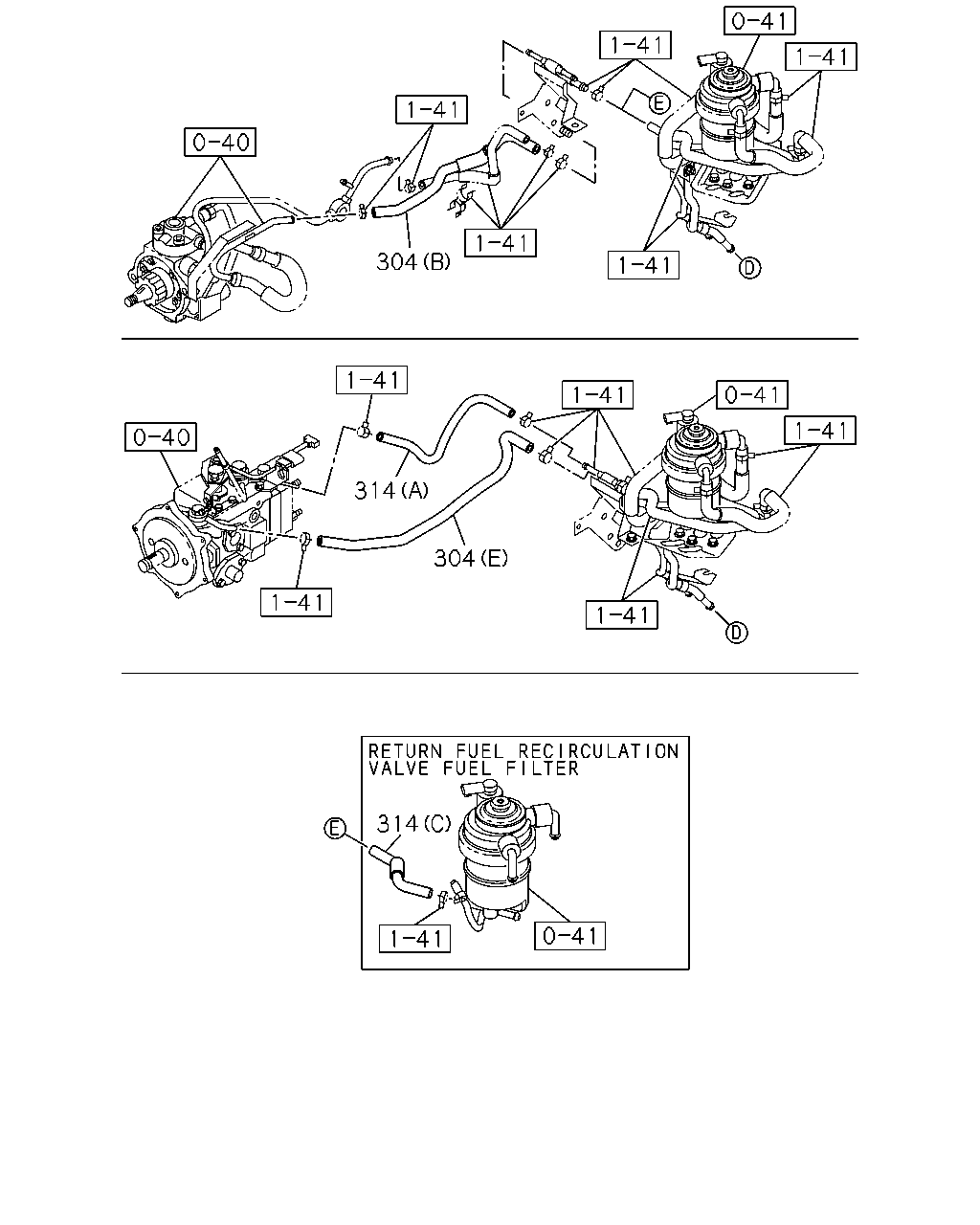

304 304 314 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98113-324-3	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98196-949-0	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-772-0	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) (D)	8-98194-772-0	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1210-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (E)	8-98100-730-1	01	1	1210-			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) (C)	8-97351-313-0	01	1	1210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1210-1404	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (C)	8-98100-723-2	01	1	1210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98100-721-1	01	1	1210-			●

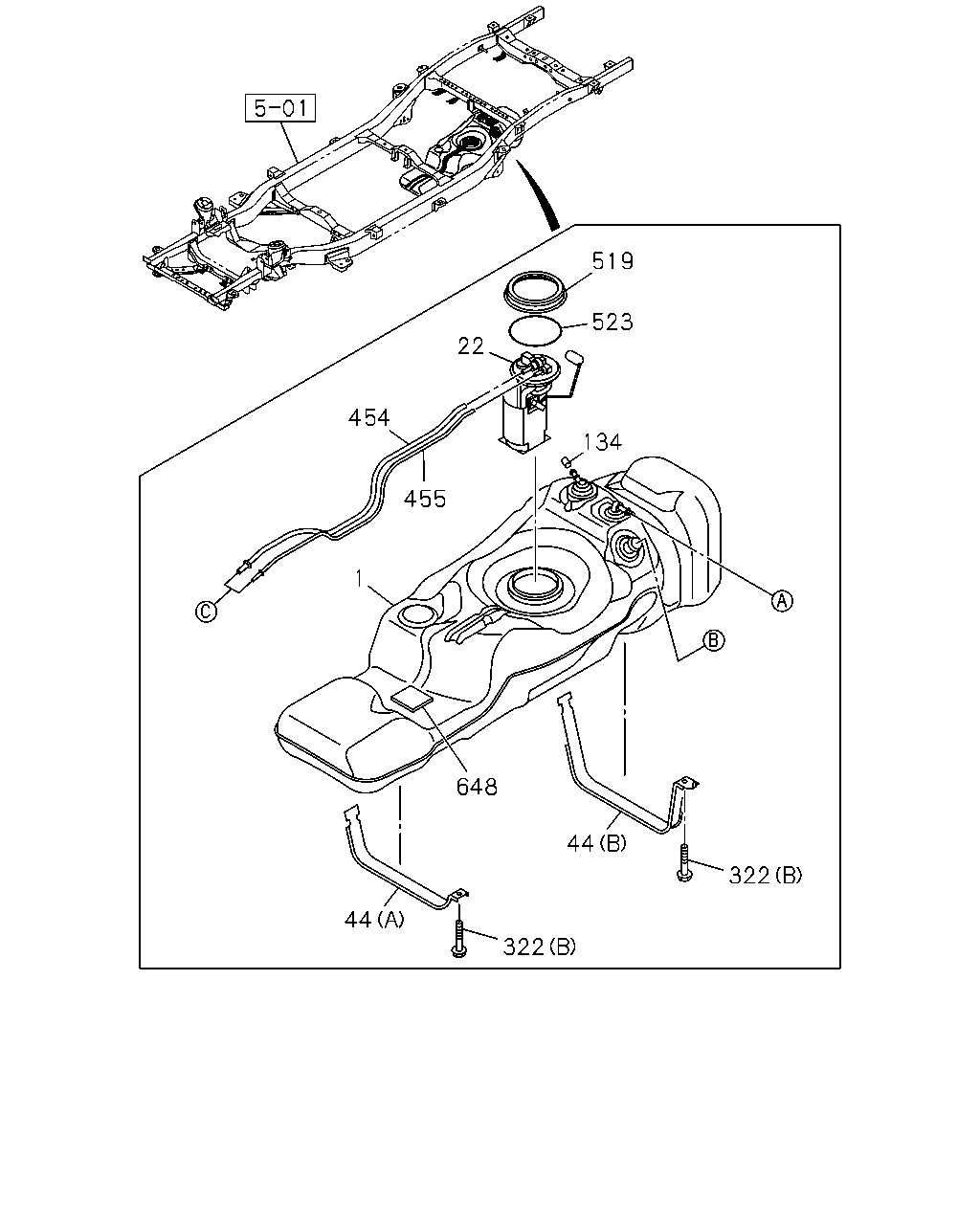

322 44 322 44 648 134 523 519 22 455 454 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 76L	8-97947-077-3	01	1	1210-	●	●	●
22	03.107 UNIT; FUEL TANK	8-97947-151-3	01	1	1210-	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1210-	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1210-	●	●	●
134	03.164 CAP; VALVE,FUEL TANK	8-97947-156-0	01	1	1210-1210	●	●	●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1210-	●	●	●
322	03.895 BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1210-	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1210-	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1210-	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1210-	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1210-	●	●	●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1210-	●	●	●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1210-	●	●	●
648	03.001 RUBBER	8-98191-468-0	01	1	1210-	●	●	●

422

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-98154-084-0	01	1	1210-	●	●	●

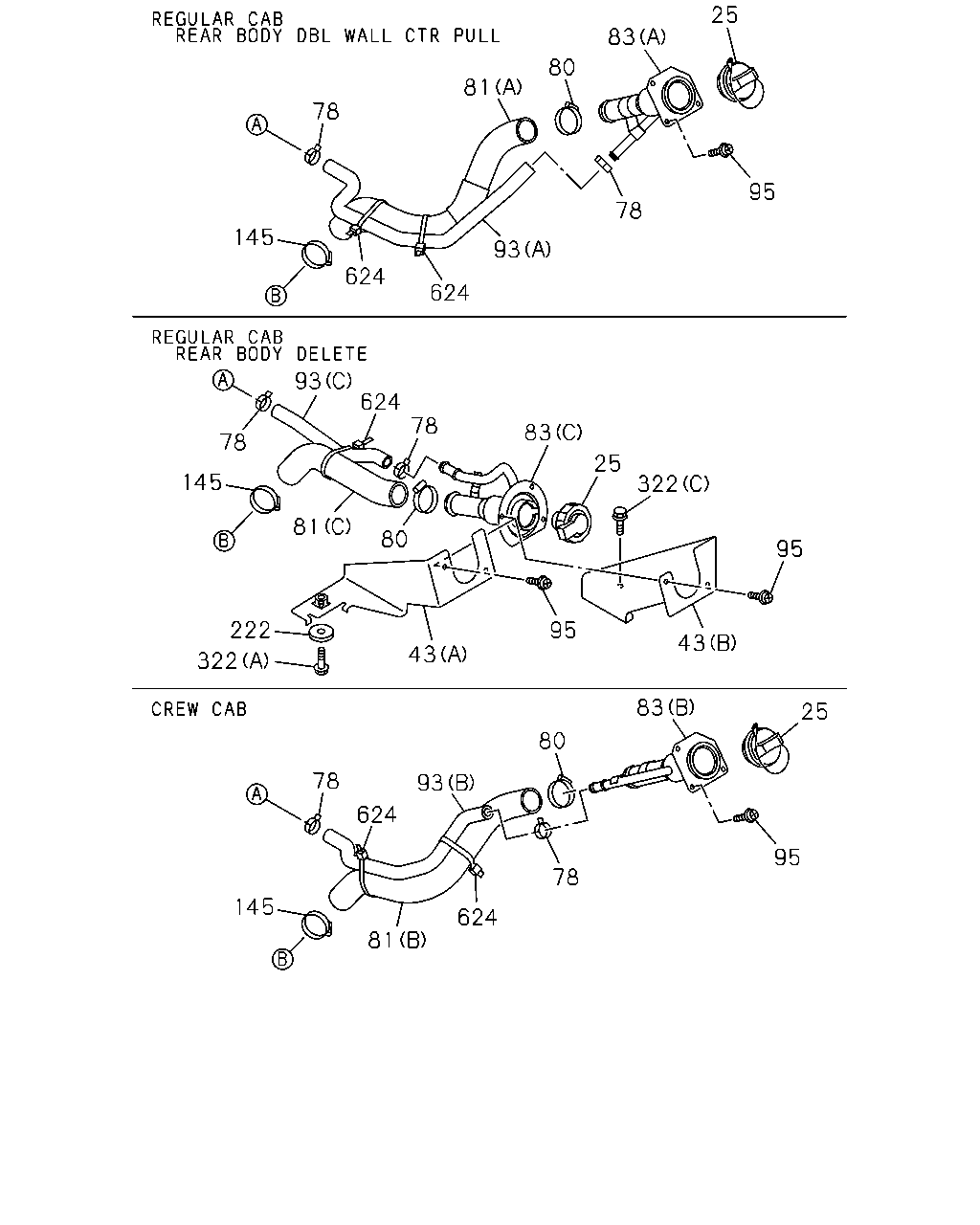

95 25 83 80 78 624 93 624 78 145 81 43 95 322 25 83 95 43 80 78 624 93 81 322 222 78 145 624 624 145 78 81 80 83 25 95 78 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98088-024-0	01	1	1210-1510	●	●	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98327-664-0	01	1	1511-	●	●	●
43	03.015 BRACKET; FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1210-	●	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1210-	●	●	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1210-	●	●	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1210-	●	●	●
80	03.008 CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1210-	●	●	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1210-	●	●	●
81	03.003 HOSE; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1210-	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1210-	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1210-	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1210-	●	●	●
83	03.003 NECK; FUEL FILLER REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1210-	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1210-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1210-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REGULAR CAB(TF*S) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1210-	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1210-	●	●	●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63)	8-98139-595-0	03	1	1210-	●	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1210-	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1210-	●	●	●
222	03.023 WASHER; BRKT,FUEL TANK REGULAR CAB(TF*S) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1210-	●	●	●
322	03.895 BOLT; BRKT FIX REGULAR CAB(TF*S) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1210-	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1210-	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1210-	●	●	●
624	03.162 CLIP; BAND REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	01	1	1210-	●	●	●
624	03.162 CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) 03.008 L=330	5-09709-118-0	02	1	1210-	●	●	●

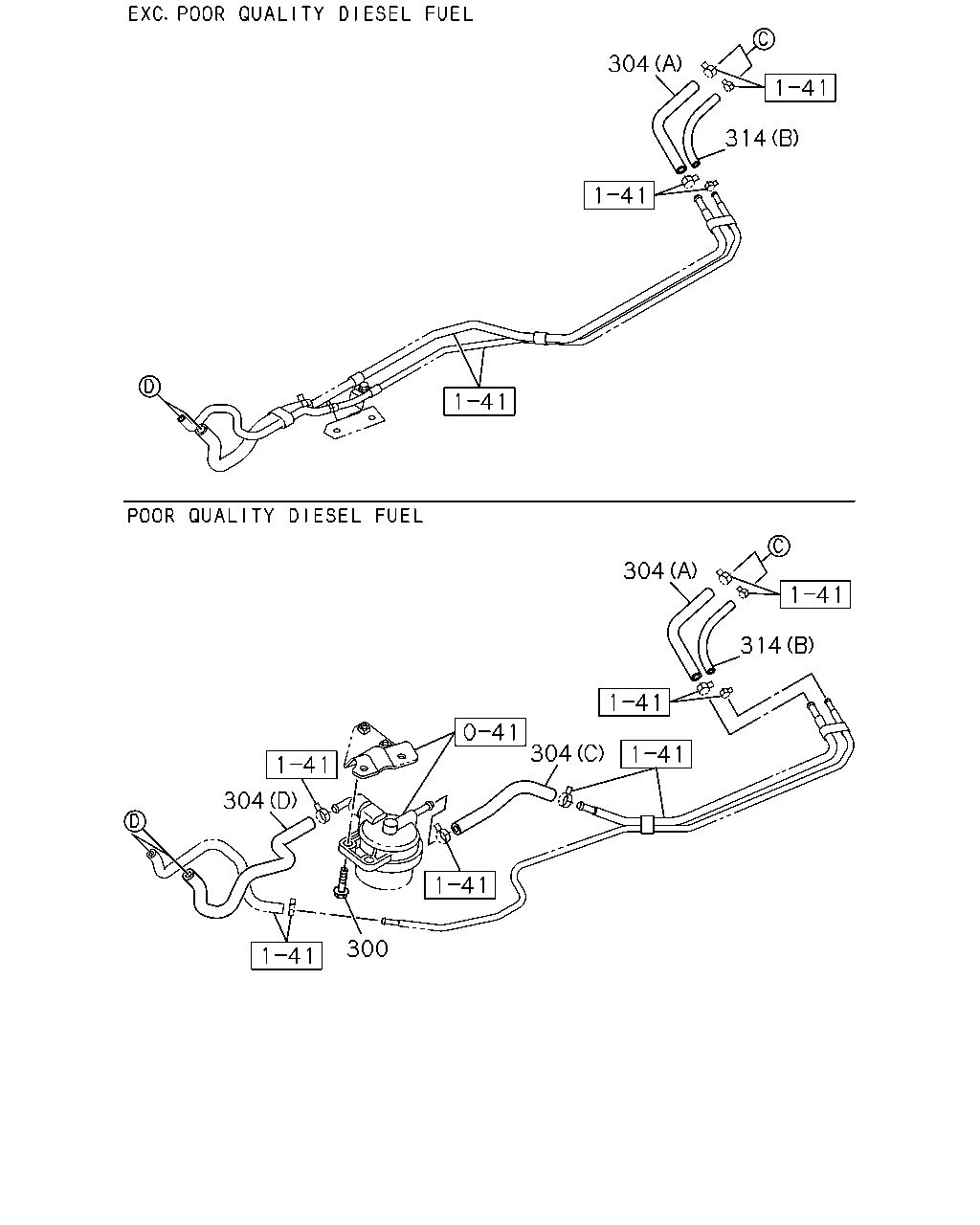

314 304 304 300 304 314 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL<KF0> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98113-324-3	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98196-949-0	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-772-0	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) (D)	8-98194-772-0	01	1	1210-	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1210-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (E)	8-98100-730-1	01	1	1210-			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) (C)	8-97351-313-0	01	1	1210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98113-323-1	01	1	1210-1404	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98258-246-0	01	1	1405-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL FIL TER(V10) (C)	8-98100-723-2	01	1	1210-	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. POOR QUALITY DIESEL FUEL<KF0>, RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98100-721-1	01	1	1210-			●
