1-35 — CHARGE AIR COOLER (#109043) — 33 parça

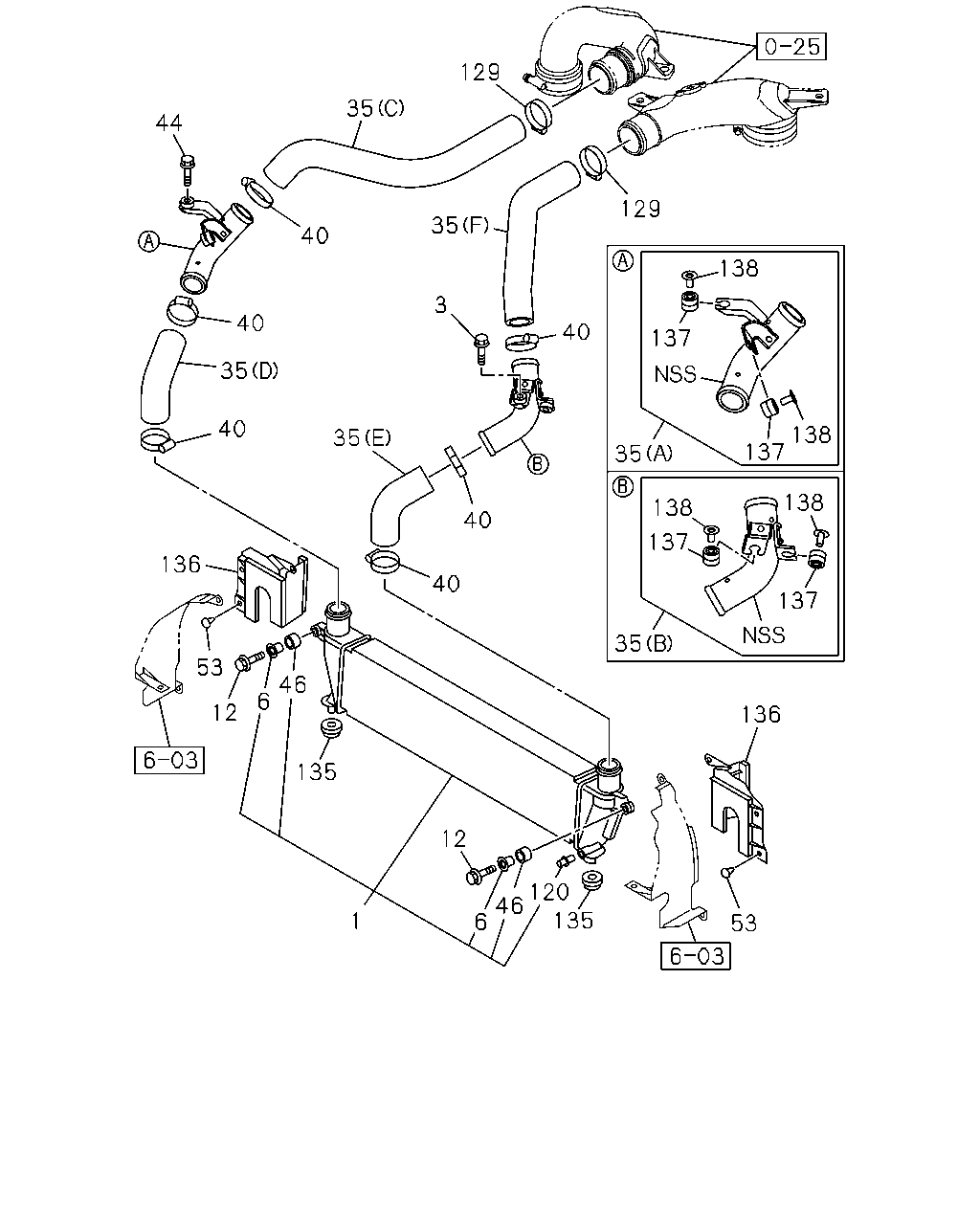

çizim 319437
44 35 129 129 35 40 40 35 40 35 40 40 3 40 137 35 138 137 137 138 137 138 136 120 12 135 46 6 12 53 136 135 35 138 53 46 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.374 COOLER; CHARGE AIR 8-98093-027-4 01 1 1210- ● ●
3 01.540 BOLT; CHARGE AIR COOLER
16.063 M6X33 W/PL WASHER 		8-98048-997-0 02 1 1210- ● ●
6 01.540 COLLAR; MTG,CHARGE AIR COOLER
03.405 		8-97942-932-0 02 1 1210- ● ●
12 01.540 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1210- ● ●
35 01.540 HOSE; CONNECTING
(A) 		8-98065-553-1 01 1 1210- ● ●
35 01.540 HOSE; CONNECTING
(B) 		8-98065-554-1 01 1 1210- ● ●
35 01.540 HOSE; CONNECTING
(C) 		8-98065-695-2 01 1 1210- ● ●
35 01.540 HOSE; CONNECTING
(D) 		8-98065-696-2 01 1 1210- ● ●
35 01.540 HOSE; CONNECTING
(E) 		8-98065-697-2 01 1 1210- ● ●
35 01.540 HOSE; CONNECTING
(F) 		8-98065-698-2 01 1 1210- ● ●
40 03.162 CLIP; RUBBER HOSE
ID=45-65 		8-98133-396-0 02 1 1210- ● ●
40 03.162 CLIP; RUBBER HOSE
ID=45-65 		8-98133-396-0 04 1 1210- ● ●
44 01.540 BOLT; PIPE
16.063 M6X33 W/PL WASHER 		8-98048-997-0 02 1 1210- ● ●
46 01.540 RUBBER; MTG,CHARGE AIR COOLER
03.406 		8-97942-930-0 02 1 1210- ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1210- ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 08 1 1210- ●
120 01.540 PIPE; WATER DRAIN 8-98189-894-0 01 1 1210- ● ●
129 01.159 CLAMP; HOSE
03.162 ID=45-65 		8-98133-396-0 02 1 1210- ● ●
135 01.540 RUBBER; CUSHION
01.270 		8-97249-541-1 02 1 1210- ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1210- ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1210- ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-153-1 01 1 1210- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-154-1 01 1 1210- ●
137 01.540 RUBBER; PIPE 8-98137-144-0 02 1 1210- ● ●
137 01.540 RUBBER; PIPE 8-98137-144-0 02 1 1210- ● ●
138 01.540 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1210- ● ●
138 01.540 COLLAR; RUBBER,PIPE 8-98137-143-0 02 1 1210- ● ●
çizim 319438
136 53 136 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1210- ● ●
53 01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7 		8-94215-211-0 08 1 1210- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-396-0 01 1 1210- ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98166-398-0 01 1 1210- ● ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-153-1 01 1 1210- ●
136 01.540 SEAL; CHARGE AIR COOLER 8-98161-154-1 01 1 1210- ●
