Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#109042) — 28 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JK1-TCS ENG
C - 4JA1-T ENG
◀

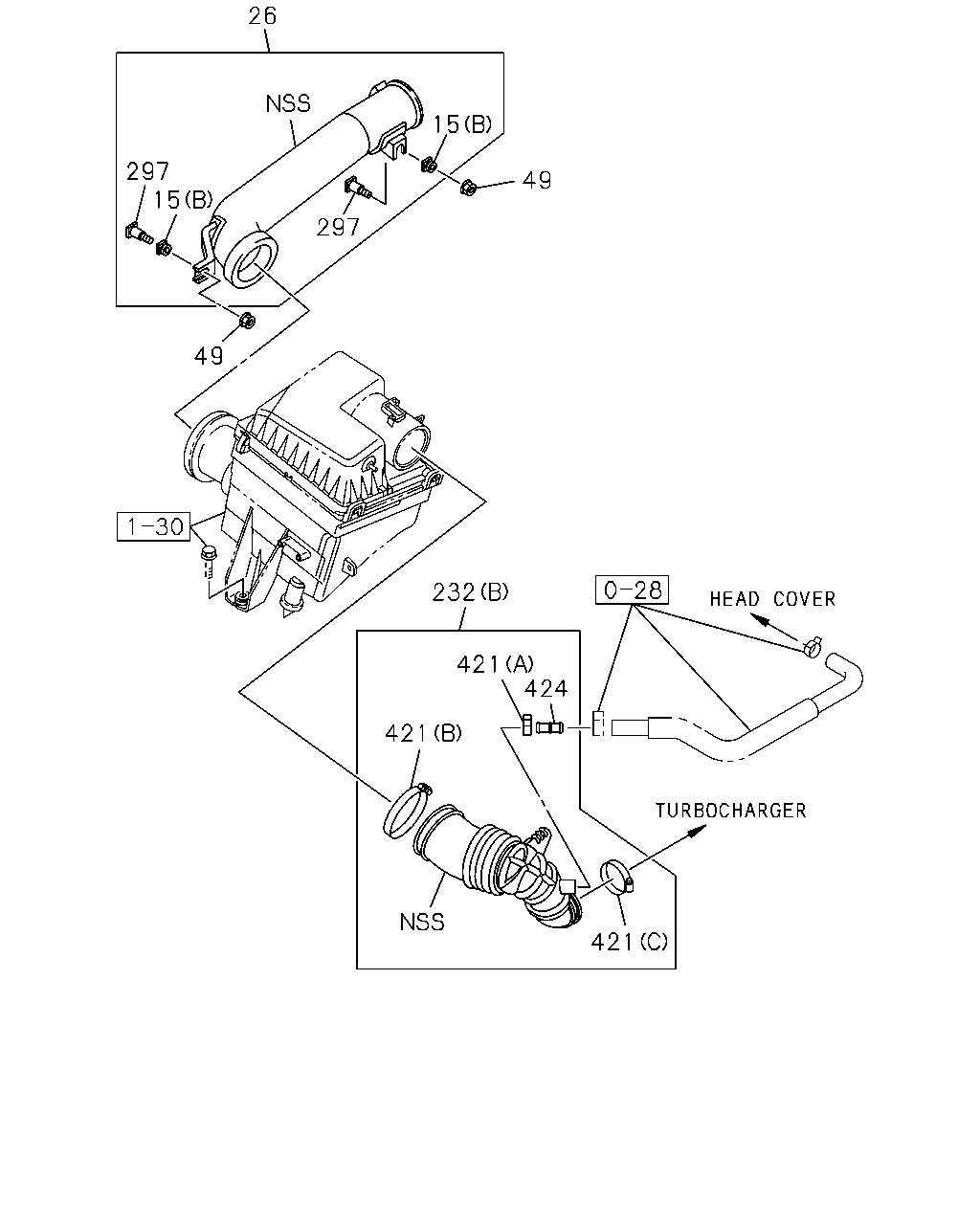

[131A] 4JA1 (13 parça)

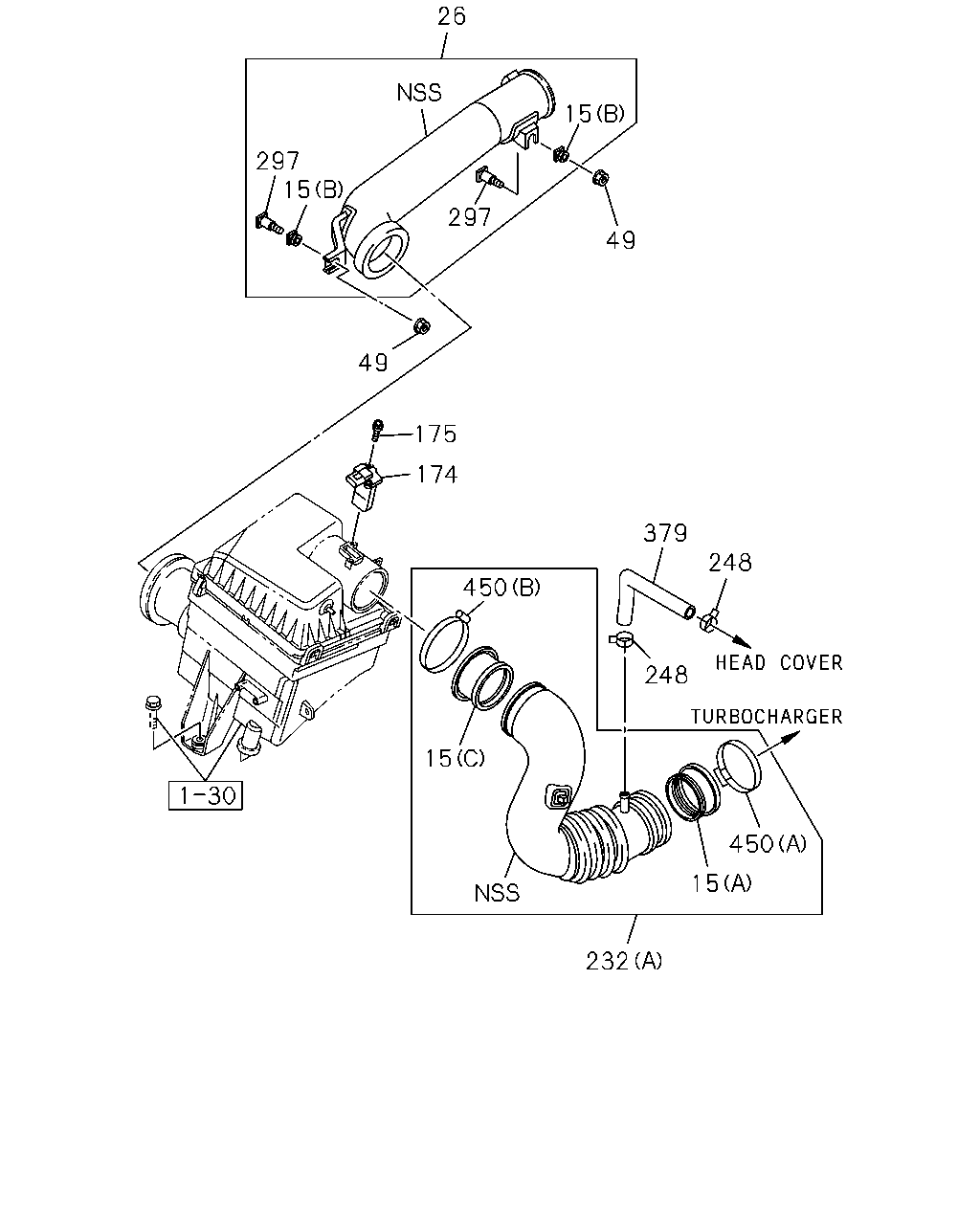

[131A] 4JJ1,4JK1 (15 parça)
▶
49
15
297
26
297
49
15
232
421
424
421
421
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
15
03.417 INSULATOR
(C)
8-98214-036-0
01
1
1210-
●
●
15
03.417 INSULATOR
(A)
8-98137-141-0
01
1
1210-
●
●
15
03.417 INSULATOR
(B)
8-98203-901-0
02
1
1210-
●
●
●
26
03.417 DUCT; AIR INT
8-98065-550-1
01
1
1210-
●
●
●
49
03.417 NUT; AIR DUCT
01.062 M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
●
232
03.417 HOSE; CONN
(A)
8-98212-083-0
01
1
1210-
●
232
03.417 HOSE; CONN
(A)
8-98212-085-0
01
1
1210-
●
232
03.417 HOSE; CONN
(B)
8-98089-970-2
01
1
1210-
●
297
03.417 BOLT; DUCT
8-98203-900-0
02
1
1210-
●
●
●
421
03.407 CLAMP; AIR DUCT
(A)
8-98183-047-0
01
1
1210-
●
421
03.407 CLAMP; AIR DUCT
(B)
8-98183-050-0
01
1
1210-
●
421
03.407 CLAMP; AIR DUCT
(C)
8-98183-051-0
01
1
1210-
●
424
03.417 PIPE; AIR,INL
8-98183-035-0
01
1
1210-
●
15
49
297
26
297
15
49
175
174
450
379
248
248
15
232
15
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
15
03.417 INSULATOR
(C)
8-98214-036-0
01
1
1210-
●
●
15
03.417 INSULATOR
(A)
8-98137-141-0
01
1
1210-
●
●
15
03.417 INSULATOR
(B)
8-98203-901-0
02
1
1210-
●
●
●
26
03.417 DUCT; AIR INT
8-98065-550-1
01
1
1210-
●
●
●
49
03.417 NUT; AIR DUCT
01.062 M6 FLANGE
0-91180-106-0
02
1
1210-
●
●
●
174
03.682 SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1210-
●
●
175
03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1210-
●
●
232
03.417 HOSE; CONN
(A)
8-98212-083-0
01
1
1210-
●
232
03.417 HOSE; CONN
(A)
8-98212-085-0
01
1
1210-
●
232
03.417 HOSE; CONN
(B)
8-98089-970-2
01
1
1210-
●
248
03.417 CLIP; RUBBER HOSE
03.265 ID=20.4
8-94121-113-0
02
1
1210-
●
●
297
03.417 BOLT; DUCT
8-98203-900-0
02
1
1210-
●
●
●
379
03.675 HOSE; RUBBER
8-98065-694-1
01
1
1210-
●
●
450
03.417 CLAMP; HOSE
(B)
8-98136-623-0
01
1
1210-
●
●
450
03.417 CLAMP; HOSE
(A)
8-98136-625-0
01
1
1210-
●
●
