Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

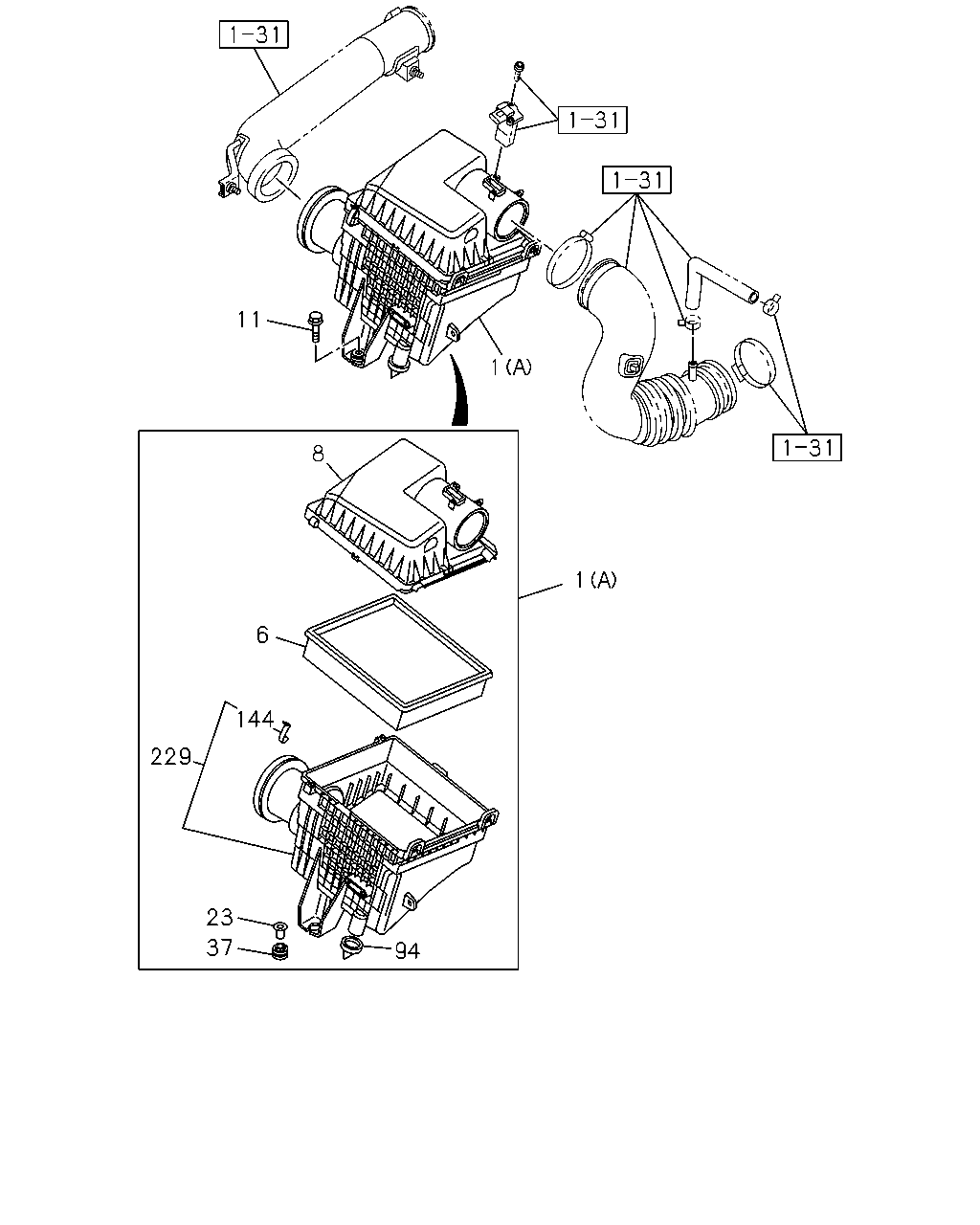

1-30 — AIR CLEANER
(#109041) — 34 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JK1-TCS ENG
C - 4JA1-T ENG
◀
[130A] EXC.HEAVY DUTY AIR CLEANER (17 parça)
[130A] HEAVY DUTY AIR CLEANER (17 parça)
▶
11
1
8
6
1
144
229
23
37
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98103-917-4
01
1
1210-
●
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98103-916-5
01
1
1210-
●
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98140-259-3
01
1
1210-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98140-257-2
01
1
1210-
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1210-
●
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-389-0
01
1
1210-
●
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-264-0
01
1
1210-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-390-0
01
1
1210-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-386-0
01
1
1210-
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1210-
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1210-
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1210-
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1210-
●
●
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1210-
●
●
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1210-
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1210-
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1210-
●
●
●
11
1
8
6
1
229
144
94
23
37
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98103-917-4
01
1
1210-
●
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98103-916-5
01
1
1210-
●
●
1
03.402 CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98140-259-3
01
1
1210-
●
1
03.402 CLEANER ASM; AIR
EXC. HEAVY DUTY AIR CLEANER<K46> (A)
8-98140-257-2
01
1
1210-
●
6
03.410 FILTER; ACL
8-98140-266-0
01
1
1210-
●
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-389-0
01
1
1210-
●
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-264-0
01
1
1210-
●
●
8
03.410 COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-390-0
01
1
1210-
●
8
03.410 COVER ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98141-386-0
01
1
1210-
●
11
03.403 BOLT; ACL
01.060 M8X35 FLANGE
0-28650-835-0
03
1
1210-
●
●
●
23
03.405 COLLAR; ACL STAY
8-98140-270-0
03
1
1210-
●
●
●
37
03.406 RUBBER; MTG,ACL
8-98140-269-0
03
1
1210-
●
●
●
94
03.415 VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
02
1
1210-
●
●
●
94
03.415 VALVE; VACUATOR
EXC. HEAVY DUTY AIR CLEANER<K46>
8-94447-157-0
01
1
1210-
●
●
●
144
03.403 CLIP; ACL
8-97324-624-0
02
1
1210-
●
●
●
229
03.406 BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98141-391-0
01
1
1210-
●
●
●
229
03.406 BODY ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46>
8-98140-267-0
01
1
1210-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
