◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-81 - GOVERNOR; INJECTION PUMP ▶
0-81 — GOVERNOR; INJECTION PUMP (#109034) — 98 parça

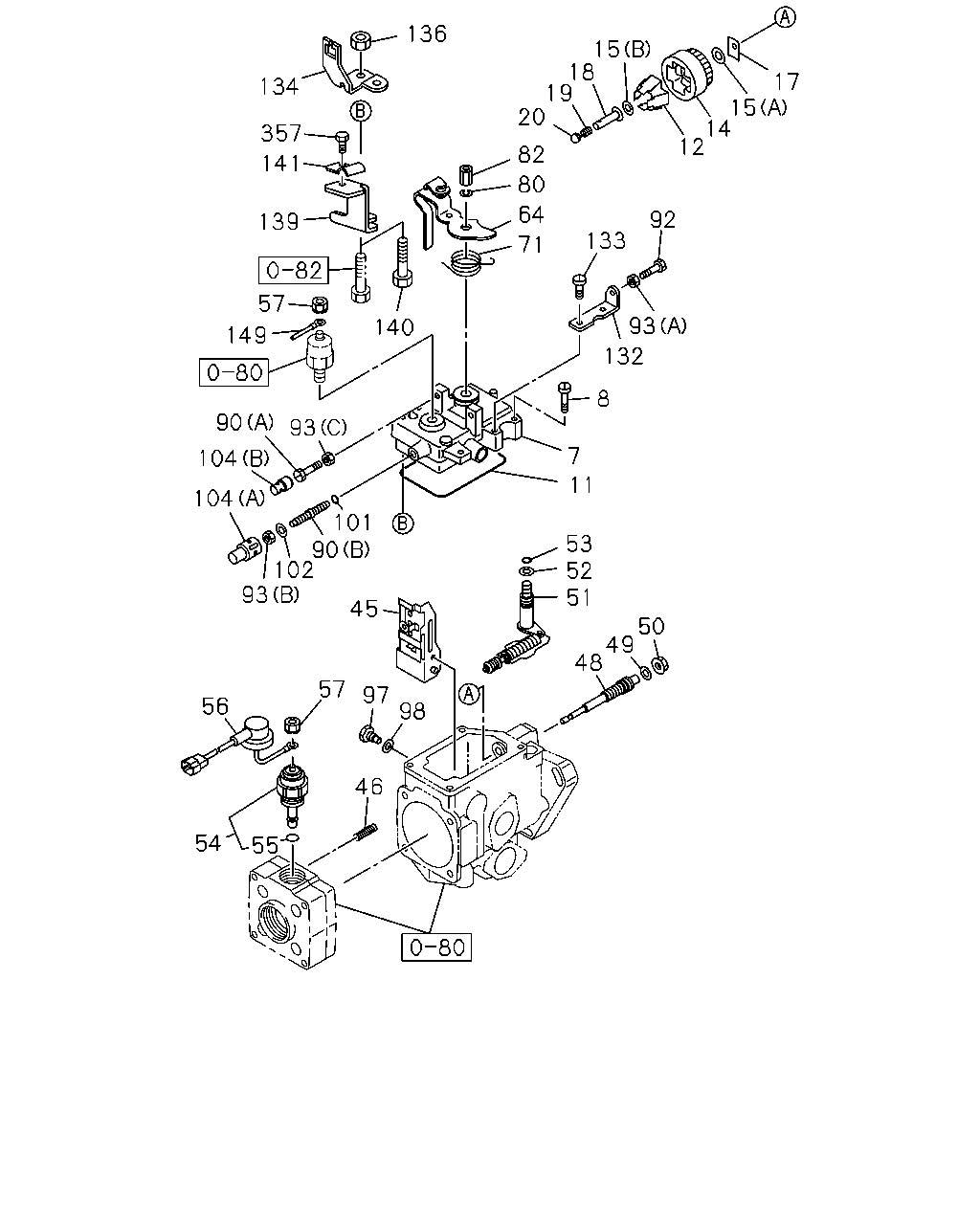

çizim 319436
55 54 56 57 97 98 46 48 49 50 51 52 53 93 102 90 45 101 11 7 8 132 93 133 92 12 14 15 17 15 18 19 20 82 80 64 71 140 104 104 93 90 149 57 139 141 357 134 136
BalonParca AdiParca NoAdetTipApplied Date
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97228-602-0 01 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
03.330 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-636-0 04 1 -
11 03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97136-413-0 01 1 -
12 03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97328-711-0 01 1 -
14 03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP
03.318 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-613-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
03.318, (A) ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-612-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94408-517-0 01 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.05 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-607-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.25 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-608-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.45 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-609-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.65 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-610-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.85 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-611-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.15 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94231-123-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.35 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94231-124-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.55 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94231-125-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.75 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94231-126-0 AR 1 -
18 03.308 SLEEVE; GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-98114-844-0 01 1 -
19 03.308 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-356-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-357-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-358-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-359-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-360-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-361-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-362-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-363-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-364-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-365-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-366-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.00 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-367-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.10 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-368-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.20 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-369-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.30 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-370-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.40 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-371-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.50 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-372-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.60 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-373-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.70 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-374-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.80 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-375-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=6.90 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-376-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.00 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-377-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.10 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-378-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.20 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-379-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.30 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-380-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.40 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-381-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.50 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-382-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.60 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-383-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.70 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-384-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.80 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-385-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=7.90 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-386-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.00 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-387-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.10 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-388-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.20 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-389-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.30 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-390-0 01 1 -
20 03.308 PLUG; CLOSING,GOV SLEEVE
L=8.40 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97144-391-0 01 1 -
45 03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97332-036-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94473-128-0 02 1 -
48 03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94248-002-0 01 1 -
49 03.308 GASKET; GOV SHAFT,INJ PUMP
03.318 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-606-0 01 1 -
50 03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94473-129-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-98114-845-0 01 1 -
52 03.308 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-590-0 01 1 -
53 03.308 GASKET; CONT SHAFT,GOV
03.306 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-585-0 01 1 -
54 03.308 VALVE; MAG,ENG STOP,INJ PUMP
03.314 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94242-275-0 01 1 -
55 03.308 GASKET; MAG VLV,INJ PUMP
03.318 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94239-373-0 01 1 -
56 03.308 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94470-582-0 01 1 -
57 03.318 NUT; VLV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97138-042-1 02 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 118 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97119-200-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 119 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97119-201-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 280 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97328-707-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
STAMP 279 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-98050-935-0 01 1 -
71 03.306 SPRING; CONT LEVER,GOV
03.308 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94313-218-0 01 1 -
80 03.308 WASHER; LK,CONT LEVER,GOV
00.206, ID=6.1 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		9-09150-506-0 01 1 -
82 03.308 NUT; CONT LEVER FIX,GOV
03.318 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		1-15729-006-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=53.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-274-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=55.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-275-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=57.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-276-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
01.531, (A) ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94426-049-0 01 1 -
92 03.308 BOLT; FULL LOAD STOPPER,GOV
01.531 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94426-049-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.318, (A) ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		1-15729-006-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (B) ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-277-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94426-047-1 01 1 -
97 03.308 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-601-0 02 1 -
98 03.308 GASKET; PIVOT BOLT,GOV LEVER
03.306 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-602-0 02 1 -
101 03.308 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-598-0 01 1 -
102 03.308 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94227-593-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-262-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-263-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-264-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-265-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-266-0 01 1 -
132 03.308 BRACKET; ADJ SCREW,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94457-165-1 01 1 -
133 03.308 BOLT; BRKT FIX,GOV
M6X12 ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94313-267-0 02 1 -
134 03.308 BRACKET; CONT CABLE,GOV
ASM PART: B = 8-98110-564-0, 98110564 		8-97322-854-0 01 1 -
136 03.308 NUT; BRKT BOLT
03.318 ASM PART: B = 8-98110-564-0, 98110564 		1-15729-006-0 01 1 -
139 03.485 BRACKET; INJ PUMP
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97263-483-0 01 1 -
140 03.330 BOLT; BRKT,INJ PUMP
03.308 ASM PART: B = 8-98110-564-0, 98110564 		8-94313-264-0 01 1 -
141 03.308 PLATE ASM; PIPE BRKT
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-97182-233-0 01 1 -
149 03.330 WIRE; VLV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94316-278-0 01 1 -
357 03.308 BOLT; PLATE,GOV
ASM PART: A = 8-98110-563-1, 98110563, B = 8-98110-564-0, 98110564 		8-94174-987-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
