Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#109030) — 18 parça
Tümü
A - 4JA1-T ENG
B - 4JJ1-TCS ENG
C - 4JK1-TCS ENG
◀

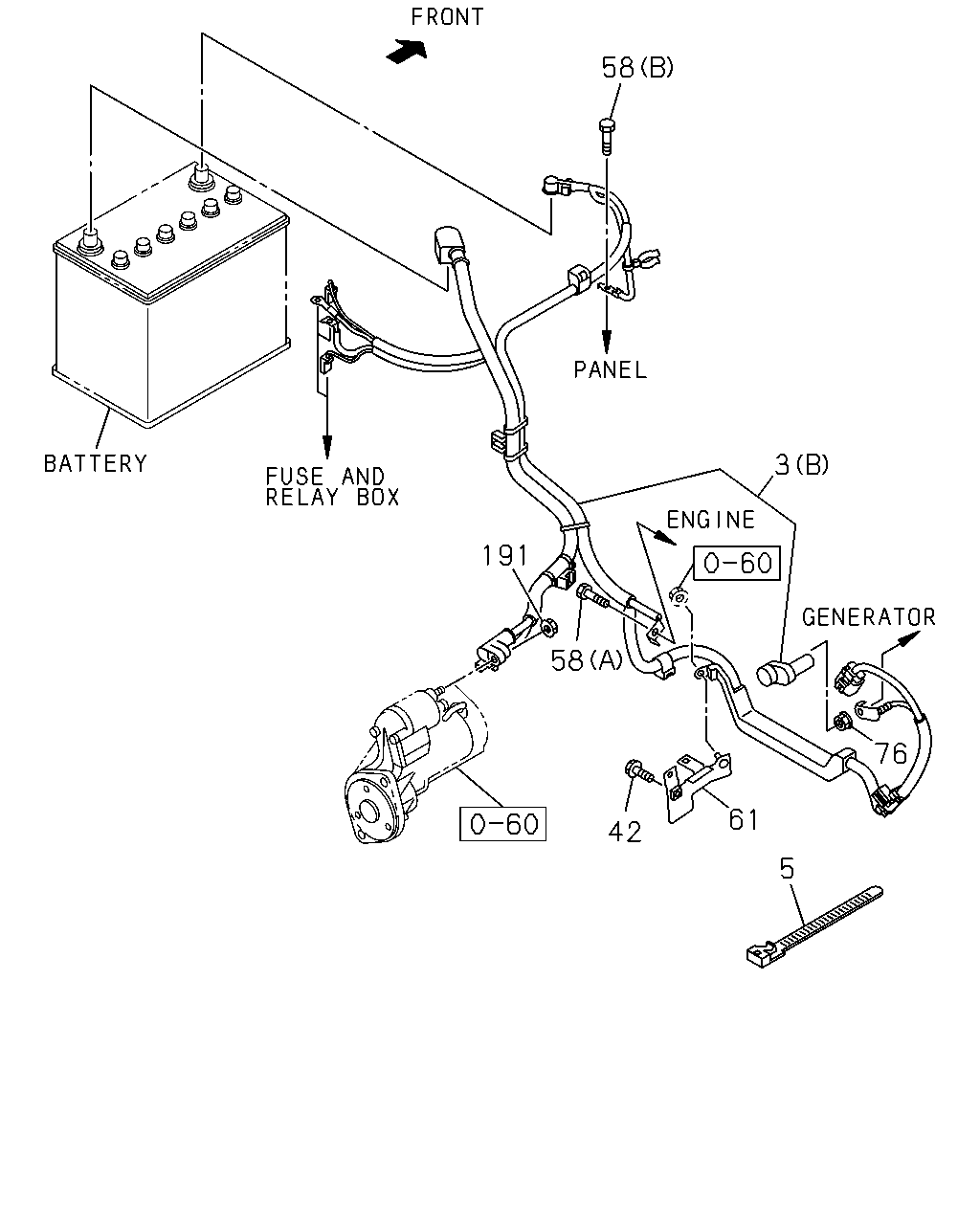

[061A] 4JJ1,4JK1 (7 parça)

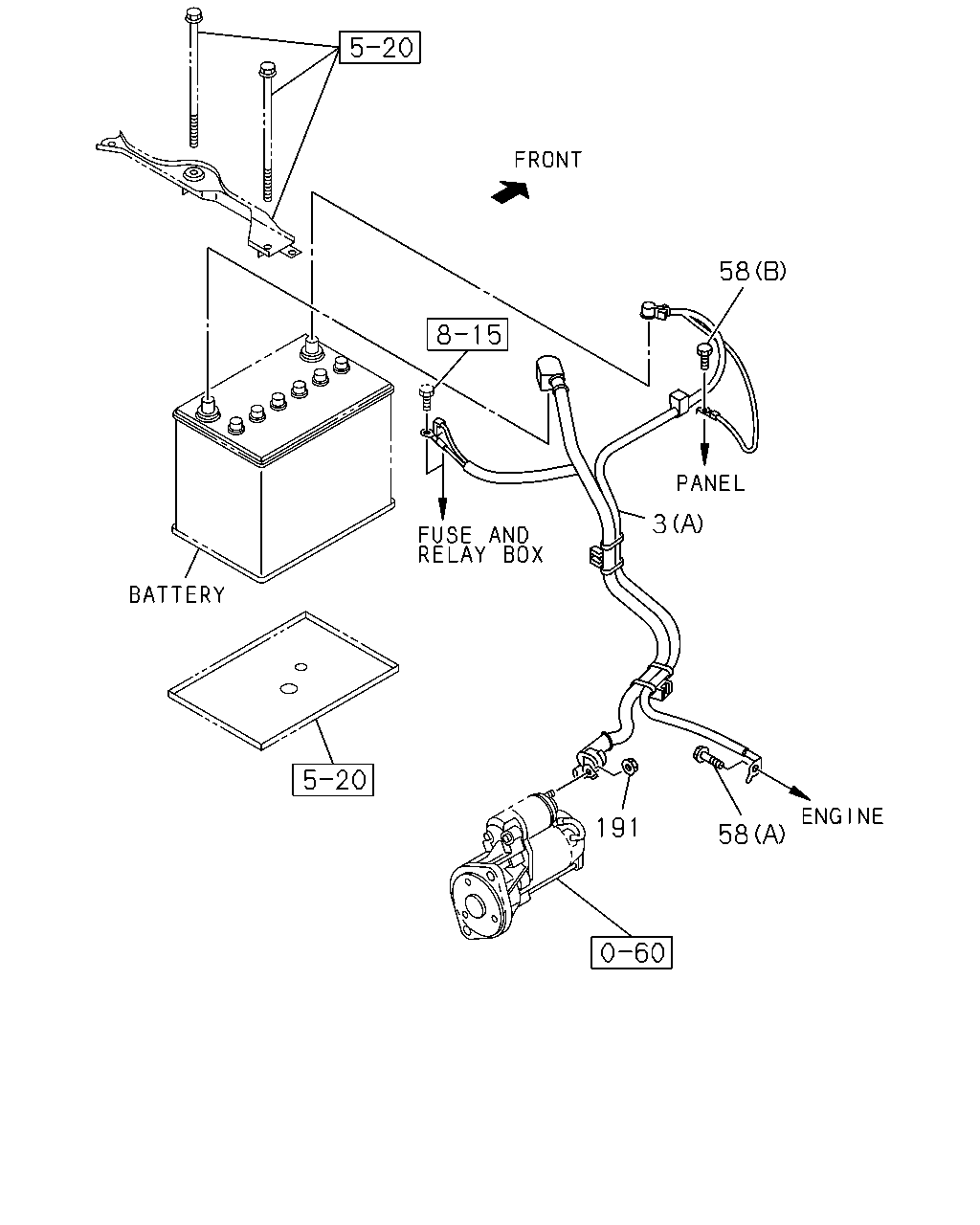

[061A] 4JA1 (11 parça)
▶
3
191
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B)
8-98230-233-1
01
1
1210-
●
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A)
8-98160-809-3
01
1
1210-
●
●
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B)
8-98160-808-3
01
1
1210-
●
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE
0-28651-020-0
01
1
1210-
●
●
●
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1210-1501
●
●
●
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
●
●
●
191
08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE
0-91180-108-0
01
1
1210-
●
●
●
61
5
42
58
191
58
3
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B)
8-98230-233-1
01
1
1210-
●
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A)
8-98160-809-3
01
1
1210-
●
●
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B)
8-98160-808-3
01
1
1210-
●
5
02.559 CLIP; BATTERY CABLE TO BODY
HIGH RIDE SUSPENSION(7YC) 03.162 L=140
5-09707-031-1
01
1
1210-
●
42
02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M6X16 FLANGE
0-28650-616-0
01
1
1210-
●
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE
0-28651-020-0
01
1
1210-
●
●
●
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
1210-1501
●
●
●
58
02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.559 (B) M6X14 W/PL WASHER
8-98164-836-0
01
1
1502-
●
●
●
61
02.333 BRACKET; BATTERY CABLE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)
8-97260-935-2
01
1
1210-
●
76
02.343 NUT; BATTERY CABLE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE
0-91180-108-0
01
1
1210-
●
191
08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M8 FLANGE
0-91180-108-0
01
1
1210-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
