Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#109021) — 42 parça
Tümü
A - 4JJ1-TCS ENG
B - 4JK1-TCS ENG
C - 4JA1-T ENG
◀

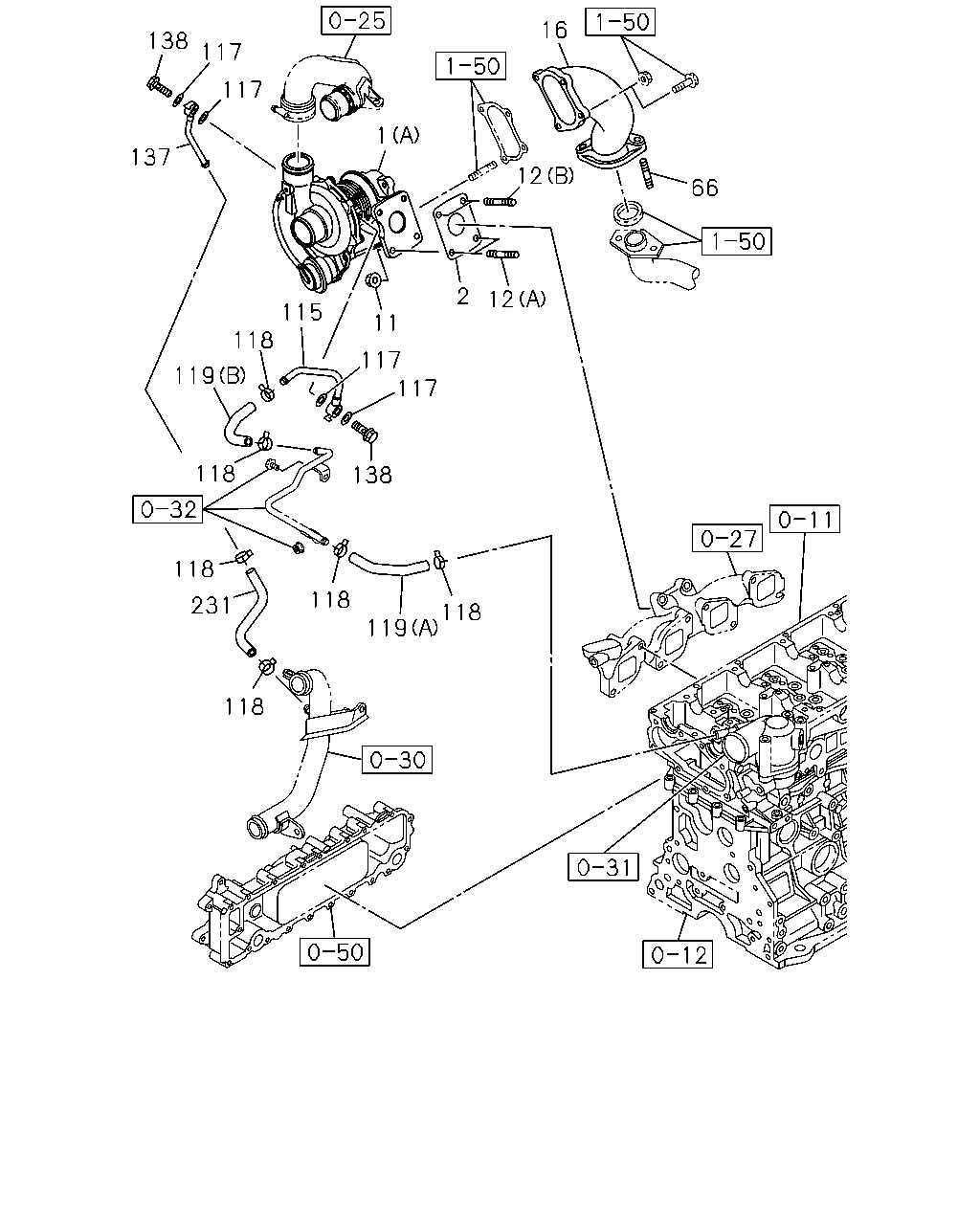

[036A] 4JJ1,4JK1 (21 parça)

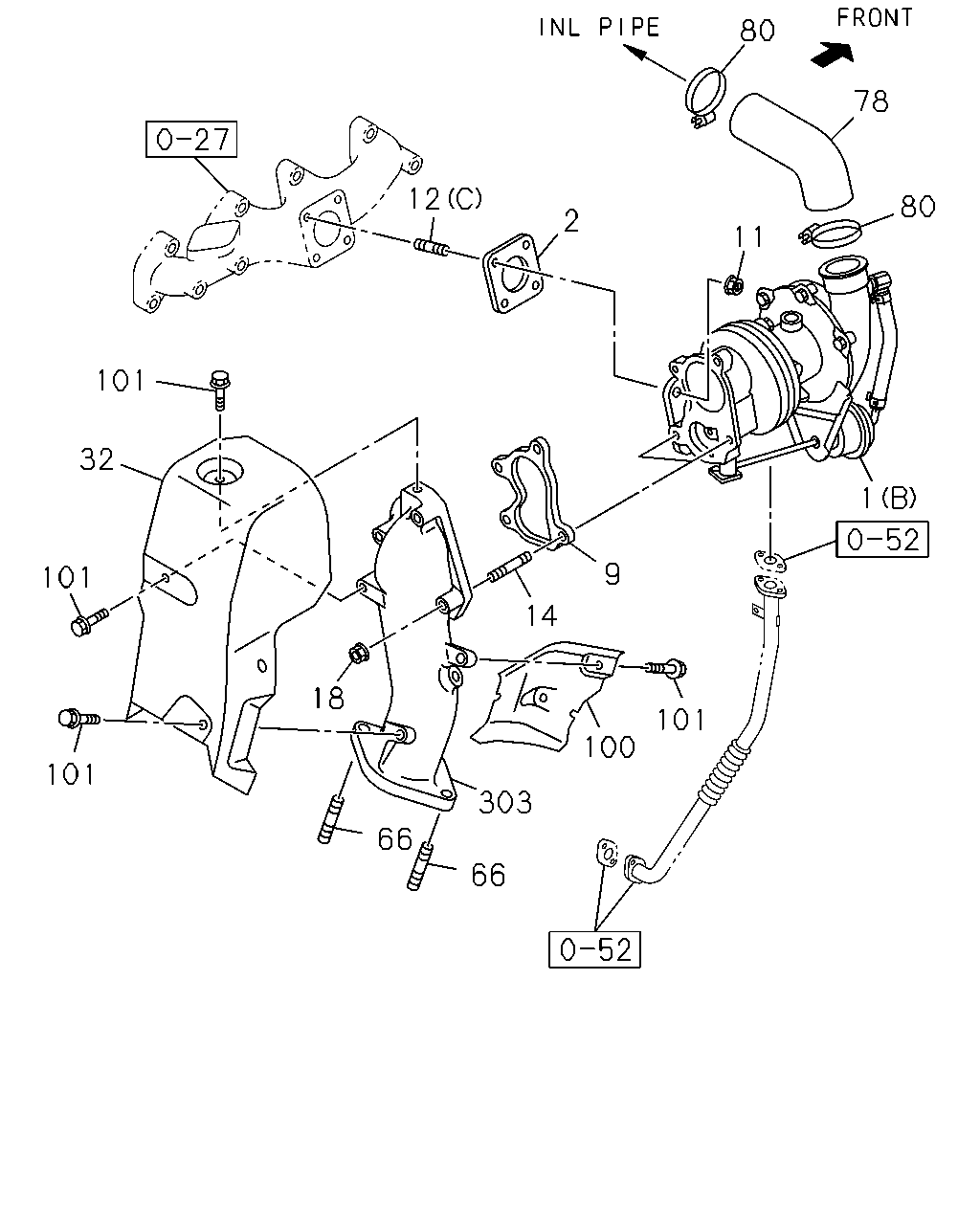

[036A] 4JA1 (21 parça)
▶
138
137
117
16
117
1
12
66
119
118
115
11
2
12
117
117
118
138
118
231
118
119
118
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT.
8-98132-071-0
01
1
1210-
●
1
03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT.
8-98132-072-0
01
1
1210-
●
1
03.342 TURBOCHARGER ASM
(B)
8-97240-210-2
01
1
1210-
●
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98132-073-0
01
1
1210-
●
●
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97315-266-0
01
1
1210-
●
11
03.342 NUT; TURBOCHARGER
M8 FLANGE
8-97379-384-0
04
1
1210-
●
●
11
03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE
8-97161-607-0
04
1
1210-
●
12
03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36
8-97378-062-0
02
1
1210-
●
●
12
03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41
8-97378-064-0
02
1
1210-
●
●
12
03.342 STUD; TURBOCHARGER
(C) M8X20 L=31
8-97378-060-0
04
1
1210-
●
16
03.609 ADAPTER; EXH PIPE
8-98132-080-0
01
1
1210-
●
●
66
03.342 STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
02
1
1210-
●
●
66
03.342 STUD; EXH PIPE
03.613 M10X38 L=53
5-09302-007-0
02
1
1210-
●
115
03.342 PIPE; WATER,TURBOCHARGER OUT
8-98132-443-0
01
1
1210-
●
●
117
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
1210-
●
●
118
03.342 CLIP; WATER HOSE
ID=15.1
8-98179-581-0
06
1
1210-
●
●
119
03.342 HOSE; WATER,TURBOCHARGER
(A)
8-98179-510-0
01
1
1210-
●
●
119
03.342 HOSE; WATER,TURBOCHARGER
(B)
8-98179-580-0
01
1
1210-
●
●
137
01.097 PIPE; WATER,TURBOCHARGER IN
8-98132-444-1
01
1
1210-
●
●
138
03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT
8-98037-067-0
02
1
1210-
●
●
231
03.342 HOSE; RUBBER,TURBOCHARGER OUT
8-98168-392-2
01
1
1210-
●
●
80
78
80
11
2
12
101
32
101
101
66
18
303
66
100
14
101
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT.
8-98132-071-0
01
1
1210-
●
1
03.342 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT.
8-98132-072-0
01
1
1210-
●
1
03.342 TURBOCHARGER ASM
(B)
8-97240-210-2
01
1
1210-
●
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98132-073-0
01
1
1210-
●
●
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97315-266-0
01
1
1210-
●
9
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97139-726-0
01
1
1210-
●
11
03.342 NUT; TURBOCHARGER
M8 FLANGE
8-97379-384-0
04
1
1210-
●
●
11
03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE
8-97161-607-0
04
1
1210-
●
12
03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36
8-97378-062-0
02
1
1210-
●
●
12
03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41
8-97378-064-0
02
1
1210-
●
●
12
03.342 STUD; TURBOCHARGER
(C) M8X20 L=31
8-97378-060-0
04
1
1210-
●
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 M8X25 L=36
8-97378-062-0
04
1
1210-
●
18
03.613 NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
1210-
●
32
03.342 PROTECTOR; HEAT,TURBOCHARGER
8-97087-029-0
01
1
1210-
●
66
03.342 STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
02
1
1210-
●
●
66
03.342 STUD; EXH PIPE
03.613 M10X38 L=53
5-09302-007-0
02
1
1210-
●
78
03.342 HOSE; INL PIPE,TURBOCHARGER
8-97096-628-3
01
1
1210-
●
80
03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5
8-97131-943-0
02
1
1210-
●
100
03.417 PROTECTOR; HEAT,EXH MANIF
8-97038-109-1
01
1
1210-
●
101
03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
06
1
1210-
●
303
03.440 ADAPTER; THROTTLE BODY,EXH
8-98189-770-0
01
1
1210-
●
