0-32 — WATER PIPING; ENGINE (#109019) — 18 parça

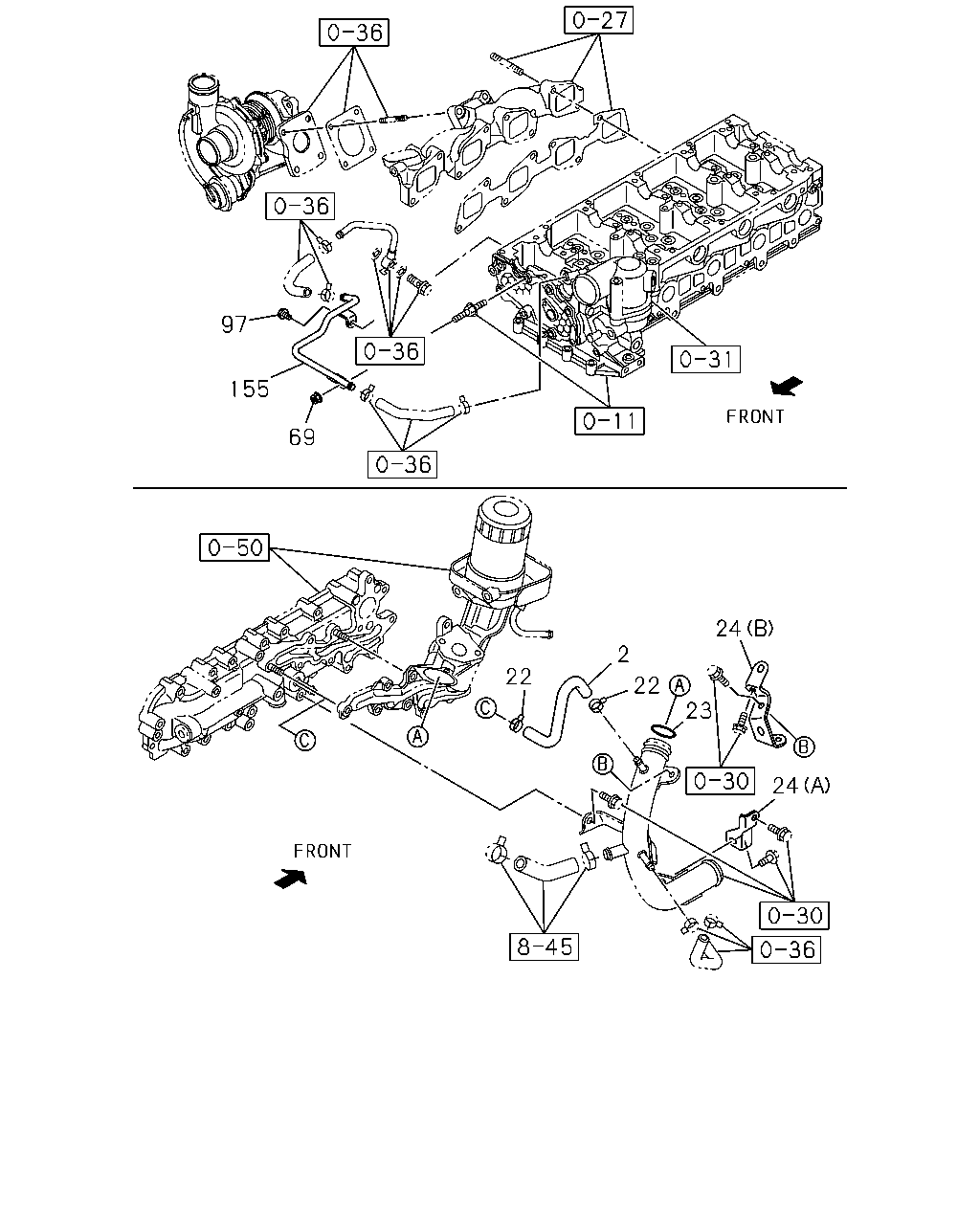

çizim 319027
97 155 22 69 2 22 24 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.097 HOSE; WATER,BY-PASS 8-98168-393-1 01 1 1210- ● ●
22 01.153 CLIP; WATER HOSE
03.342 ID=15.1 		8-98179-581-0 02 1 1210- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1210- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1210- ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-97375-053-2 01 1 1210- ● ●
24 01.166 BRACKET; WATER PIPE
(B) 		8-98132-031-0 01 1 1210- ● ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1210- ● ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1210- ● ●
155 01.153 PIPE ASM; WATER 8-98132-032-0 01 1 1210- ● ●

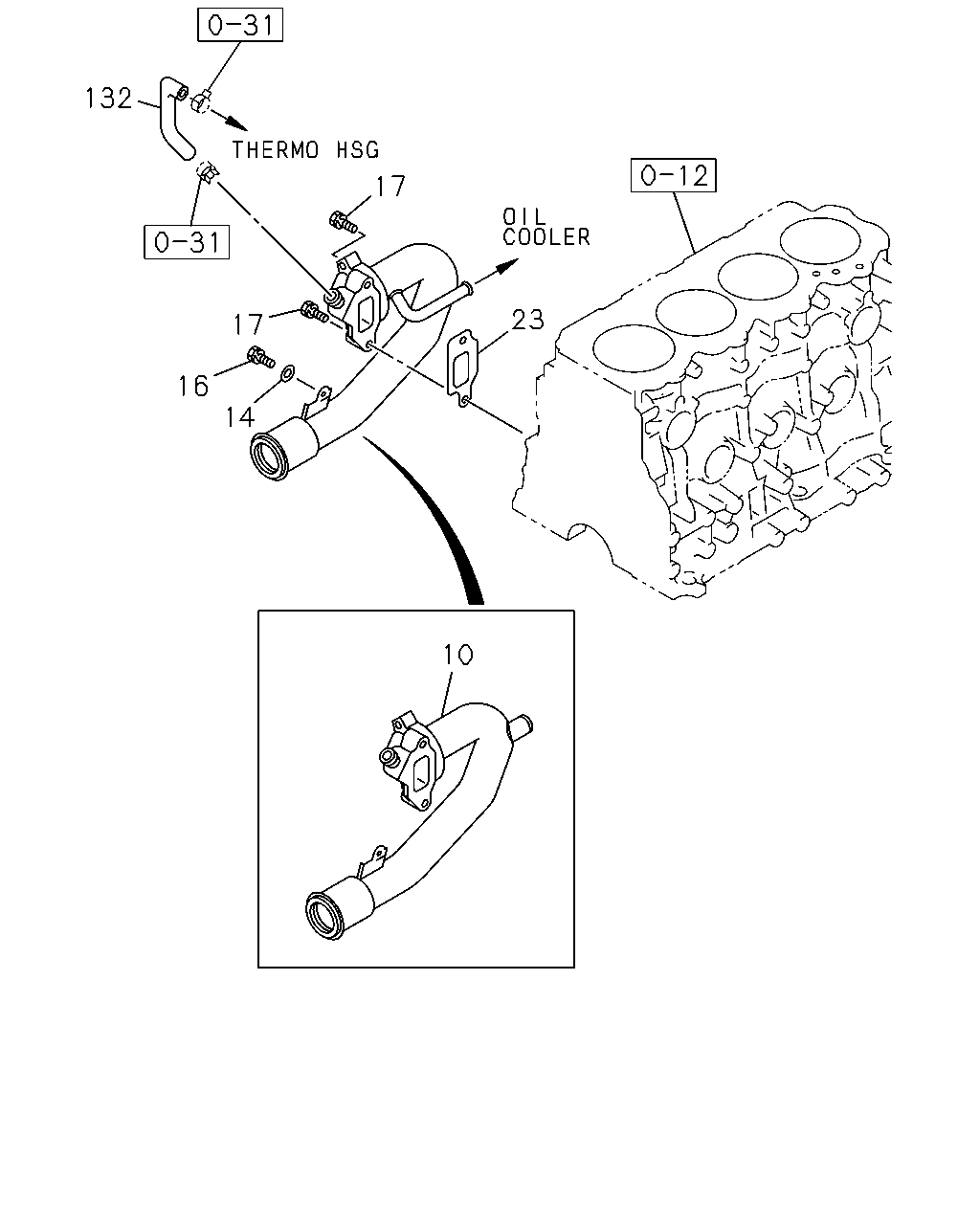

çizim 319028
132 16 14 17 17 23 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 01.153 PIPE; SUCTION 8-97381-633-0 01 1 1210- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 1210- ●
16 01.097 BOLT; INL PIPE
00.206 M8X20 W/LK WASHER 		0-50540-820-0 01 1 1210- ●
17 01.153 BOLT; SUCTION PIPE
00.206 M8X50 W/LK WASHER 		0-50540-850-0 02 1 1210- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1210- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1210- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 1210- ●

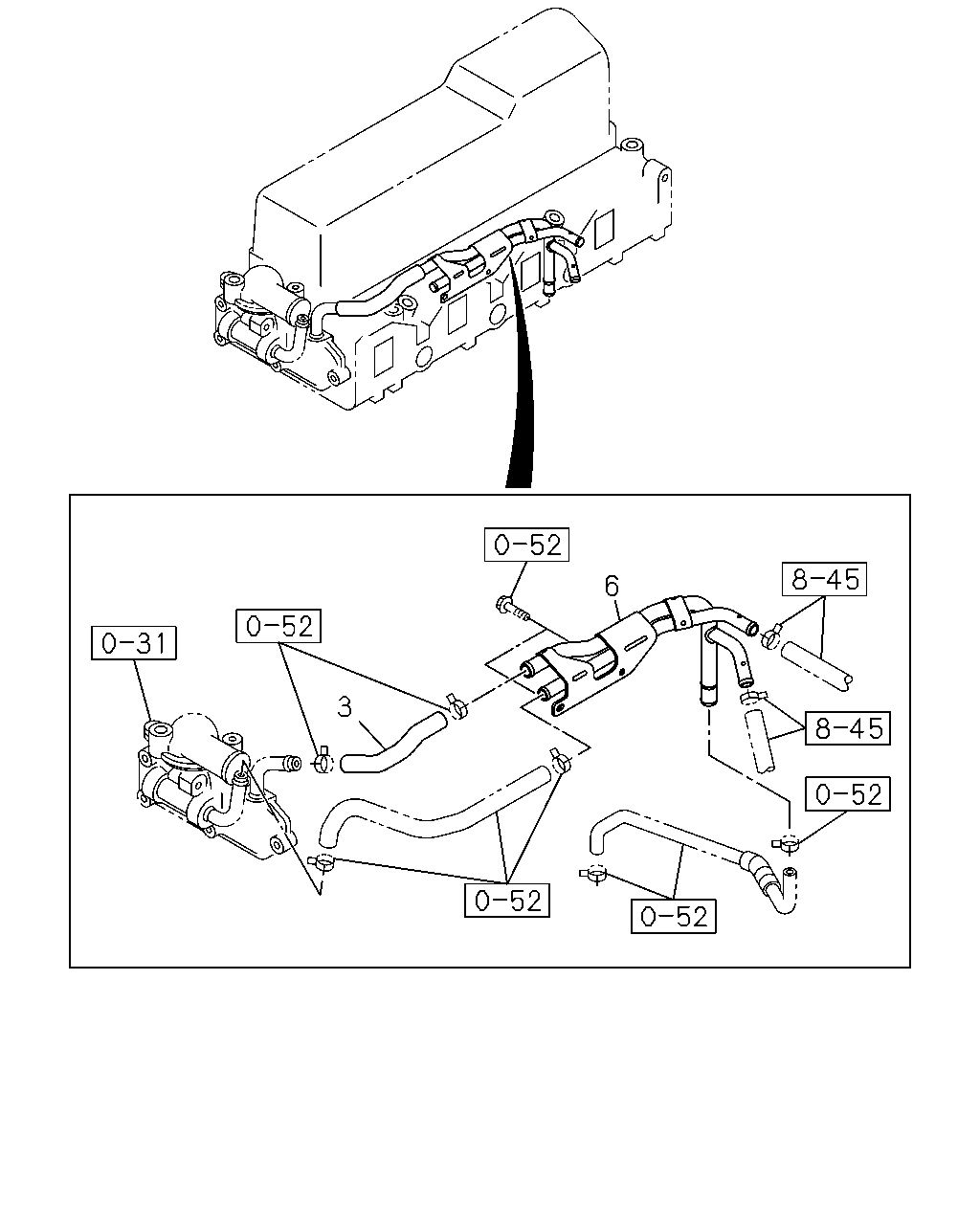

çizim 319408
6 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 01.540 HOSE; WATER,OIL COOLER 8-97354-155-1 01 1 1210- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE 8-98200-080-2 01 1 1210- ●
