0-22 — ENGINE MOUNTING (#109013) — 52 parça

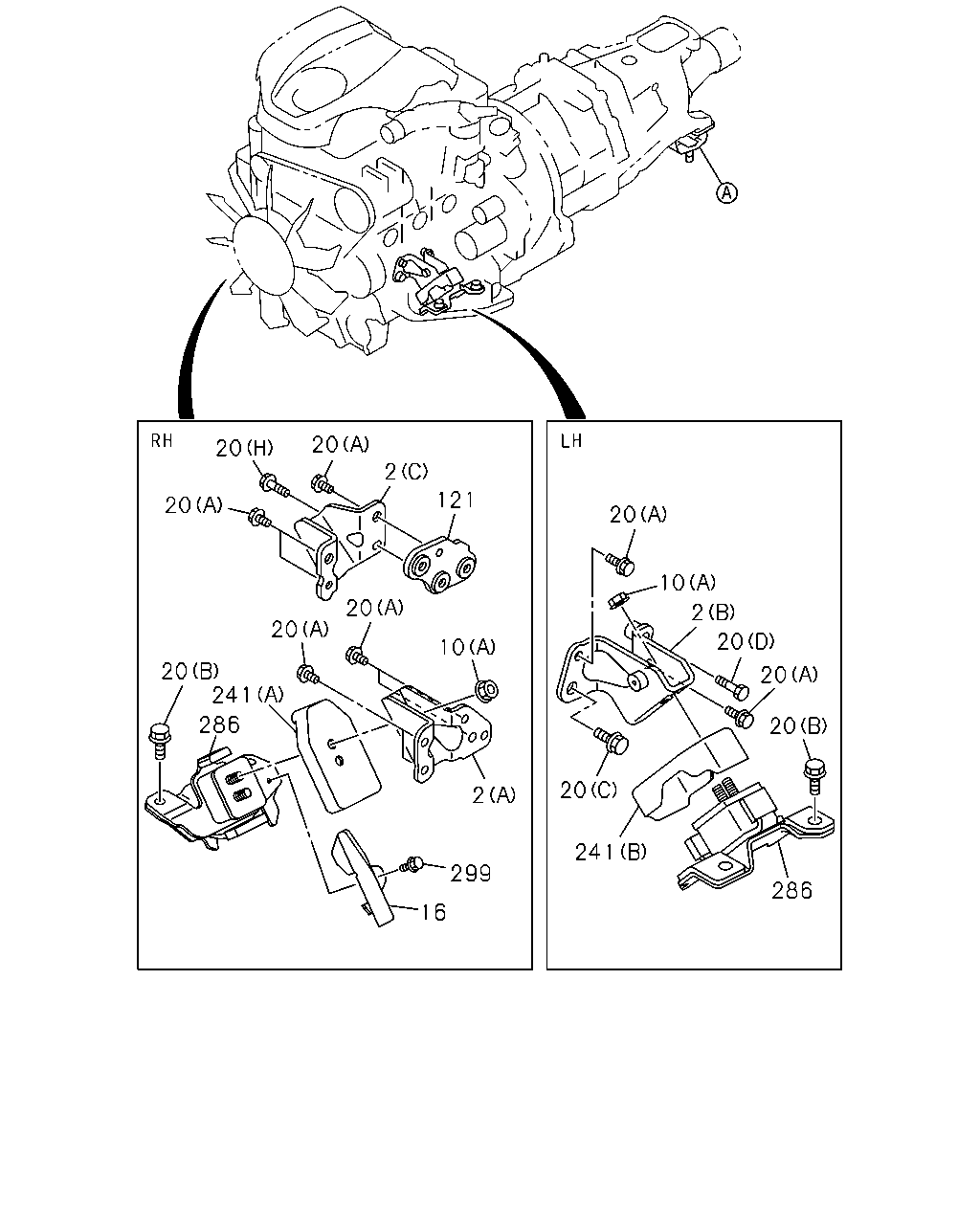

çizim 319018
20 20 121 2 20 20 20 10 20 241 2 286 16 299 20 241 20 10 2 20 20 20 286
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1210- ● ● ●
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1210- ● ●
2 00.029 FOOT; ENG
(C) 		8-98208-226-0 01 1 1210- ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1210- ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE 		0-91180-210-0 02 1 1210- ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 1210- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1210- ● ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1210- ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98215-263-0 01 1 1210- ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1210- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1210- ●
20 00.029 BOLT; ENG FOOT
00.685 (H) M10X40 FLANGE 		0-28051-040-0 01 1 1210- ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE 		0-28651-025-0 04 1 1210- ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1210- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1210- ● ●
121 00.029 BRACKET; ENG FOOT,FRT 8-98208-227-0 01 1 1210- ●
241 00.027 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98101-956-2 01 1 1210- ● ●
241 00.027 COVER; ENG MTG
(A) 		8-98101-956-2 01 1 1210- ●
241 00.027 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98101-957-1 01 1 1210- ● ●
241 00.027 COVER; ENG MTG
(B) 		8-98101-957-1 01 1 1210- ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (A) 		8-98194-507-1 01 1 1210-1406 ●
241 00.027 COVER; ENG MTG
CREW CAB(TF**W*) A/T 5 SPEED-AISIN(MA1) (A) 		8-98194-507-1 01 1 1407- ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1210-1406 ●
241 00.027 COVER; ENG MTG
CREW CAB(TF**W*) A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1407- ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1307-1308 ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1309- ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1210- ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98183-242-0 01 1 1210-1306 ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98183-242-0 01 1 1307-1308 ●
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1210- ● ● ●
çizim 319416
10 10 52 52 20 10 20 78 52 10 20
BalonParca AdiParca NoAdetTipApplied Date A B C
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1210- ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE 		0-91180-210-0 02 1 1210- ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 1210- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1210- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1210- ●
20 00.029 BOLT; ENG FOOT
00.685 (H) M10X40 FLANGE 		0-28051-040-0 01 1 1210- ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1210- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE 		0-28651-025-0 04 1 1210- ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1210- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1210- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98193-626-0 01 1 1210- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-98193-626-0 01 1 1210- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (C) 		8-98193-342-0 01 1 1210- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98193-344-0 01 1 1210- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) (B) 		8-98193-346-0 01 1 1210- ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1210- ●
