◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#109007) — 93 parça

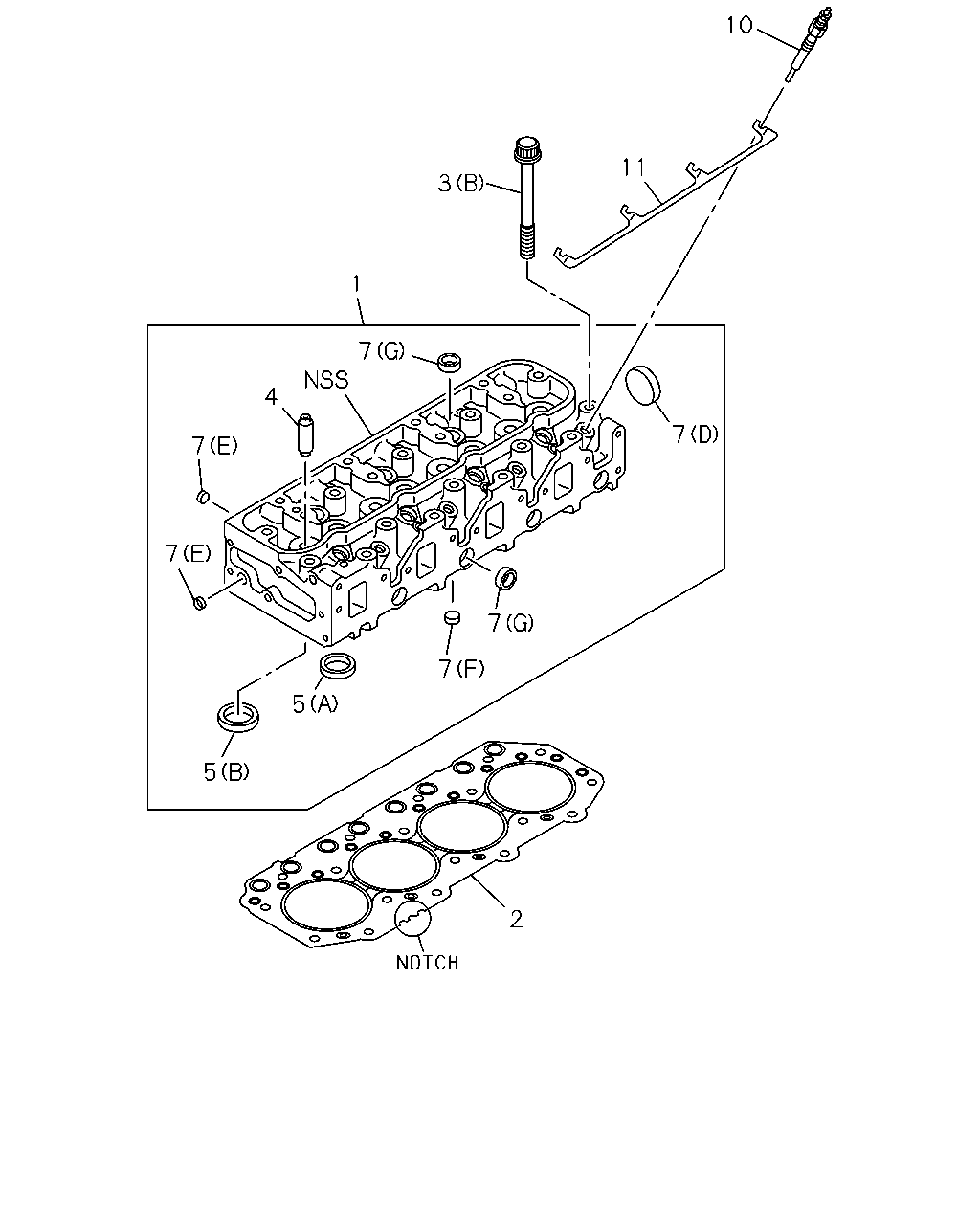

çizim 319005
10 11 3 1 7 4 7 7 5 5 7 7 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-98088-371-4 01 1 1210-1210 ● ●
1 00.269 HEAD ASM; CYL 8-98217-455-0 01 1 1211- ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 1210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.05 1-NOTCH 		8-97328-866-2 01 1 1210-1307 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.10 2-NOTCH 		8-97328-867-2 01 1 1210-1307 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.15 3-NOTCH 		8-97328-868-2 01 1 1210-1307 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OVER SIZE 		8-97388-314-0 01 1 1210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.60 1-NOTCH 		8-97350-318-0 01 1 1210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.65 2-NOTCH 		8-97350-319-0 01 1 1210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.70 3-NOTCH 		8-97350-320-0 01 1 1210- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1210- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X122 		8-97133-416-1 18 1 1210- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1210-1301 ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 32 1 1302- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1210- ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1302- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1302- ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 1210- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1210-1406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 04 1 1407- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1210-1406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 26 1 1407- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1210-1406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 14 1 1407- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 07 1 1210- ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1210- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1210- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1210- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 1210-1303 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1210- ●

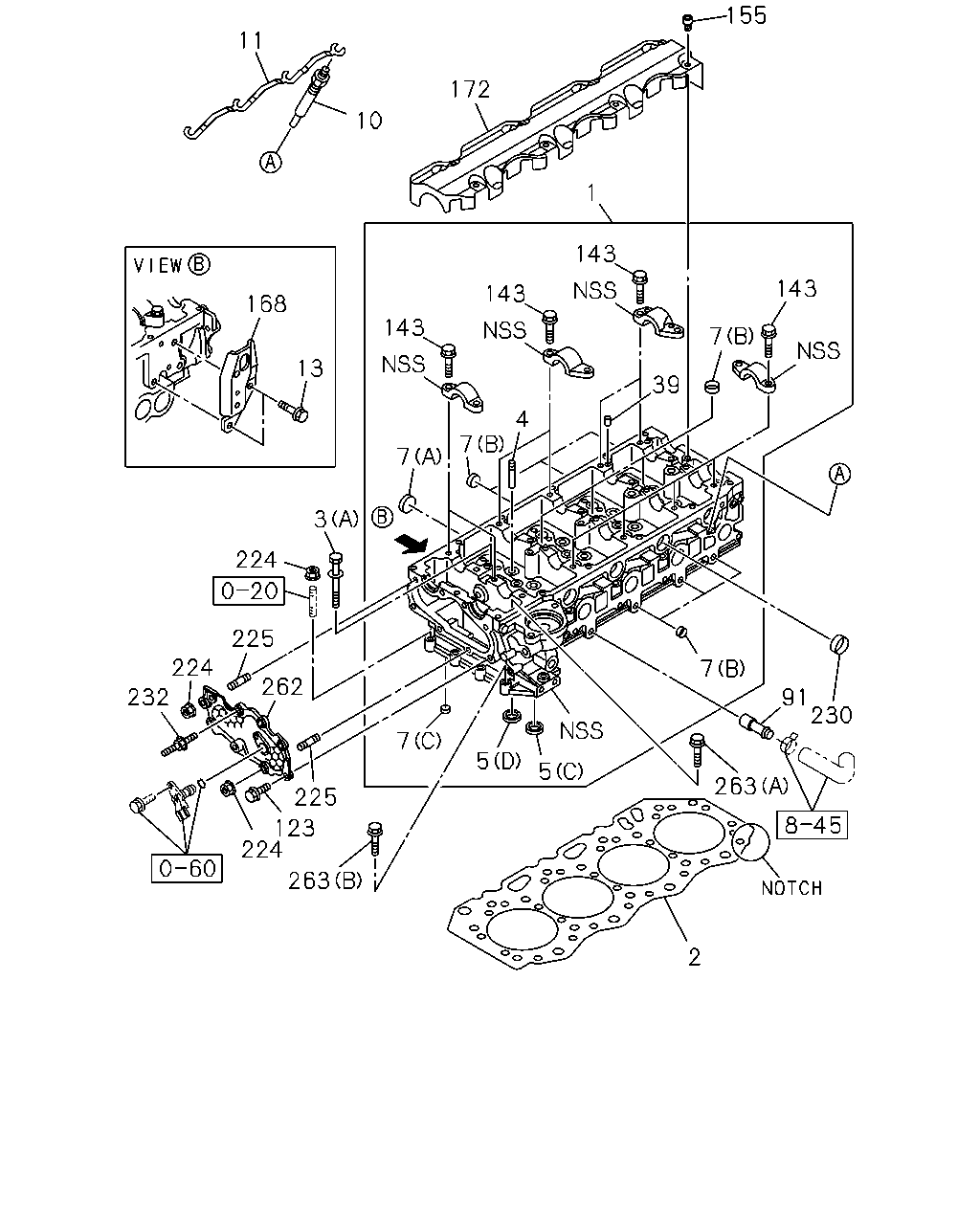

çizim 319006
155 172 10 11 168 13 3 224 225 224 232 262 225 123 224 263 7 5 5 7 143 143 1 143 143 7 39 4 7 7 91 230 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-98088-371-4 01 1 1210-1210 ● ●
1 00.269 HEAD ASM; CYL 8-98217-455-0 01 1 1211- ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-5 01 1 1210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.05 1-NOTCH 		8-97328-866-2 01 1 1210-1307 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE A T=1.05 1-NOTCH 		8-98241-037-0 01 1 1308- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.10 2-NOTCH 		8-97328-867-2 01 1 1210-1307 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE B T=1.10 2-NOTCH 		8-98241-038-0 01 1 1308- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.15 3-NOTCH 		8-97328-868-2 01 1 1210-1307 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) STD GRADE C T=1.15 3-NOTCH 		8-98241-039-0 01 1 1308- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OVER SIZE 		8-97388-314-0 01 1 1210- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.60 1-NOTCH 		8-97350-318-0 01 1 1210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.65 2-NOTCH 		8-97350-319-0 01 1 1210- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.70 3-NOTCH 		8-97350-320-0 01 1 1210- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1210- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M11X122 		8-97133-416-1 18 1 1210- ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1210-1301 ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 32 1 1302- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1210- ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 1302- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1302- ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 1210- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1210-1406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 04 1 1407- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1210-1406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 26 1 1407- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1210-1406 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 14 1 1407- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1210- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 07 1 1210- ●
10 02.270 PLUG; GLOW
NGK 		8-98117-567-1 04 1 1210- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1210- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1210- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97326-045-3 01 1 1210-1303 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1304- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1210- ●
13 00.004 BOLT; HANGER
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1210- ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1210-1406 ● ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 40 1 1407- ● ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 1210- ● ●
123 00.206 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 1210- ● ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1210-1406 ● ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 40 1 1407- ● ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 08 1 1210- ● ●
168 00.004 HANGER; ENG,FRT 8-98131-997-1 01 1 1210- ● ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98105-920-0 01 1 1210- ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1210- ● ●
225 00.349 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1210- ● ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97943-955-0 04 1 1210- ● ●
232 00.413 STUD; CAM,CARRIER
M6X12 M8X17 L=37 		8-97375-460-0 01 1 1210- ● ●
262 00.206 COVER; CYL HEAD 8-98131-992-1 01 1 1210- ● ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1210- ● ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1210- ● ●
