0-10 — CYLINDER HEAD COVER (#109006) — 37 parça

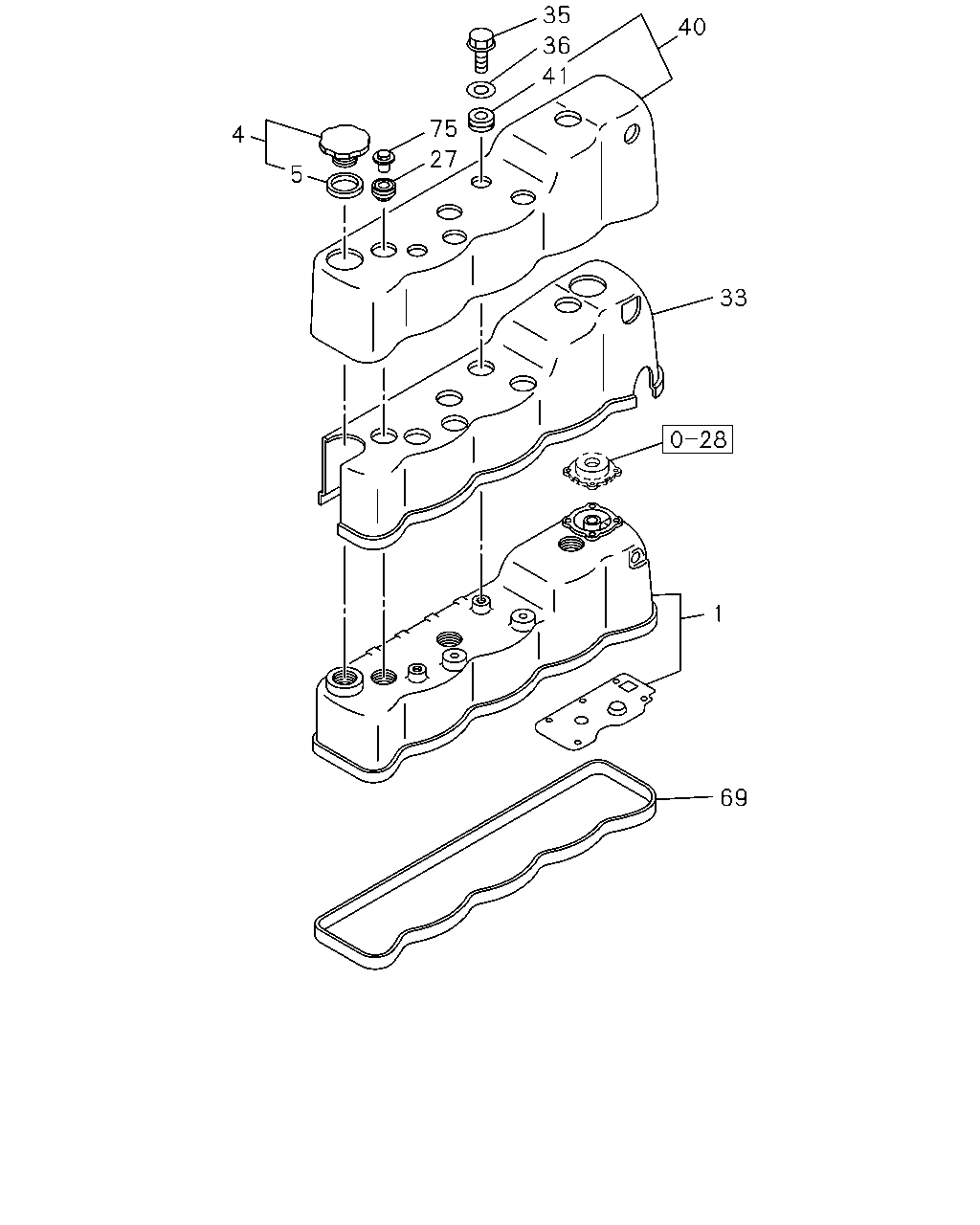

çizim 319003
33 1 69 5 4 27 75 41 36 35 40
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-98136-060-5 01 1 1210- ● ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 1210- ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1210- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1210- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 1210- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1210- ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 1210- ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 1210- ●
35 00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1210- ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 1210- ●
40 00.386 COVER 8-97043-018-0 01 1 1210- ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 1210- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1210- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 1210- ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 1210- ●

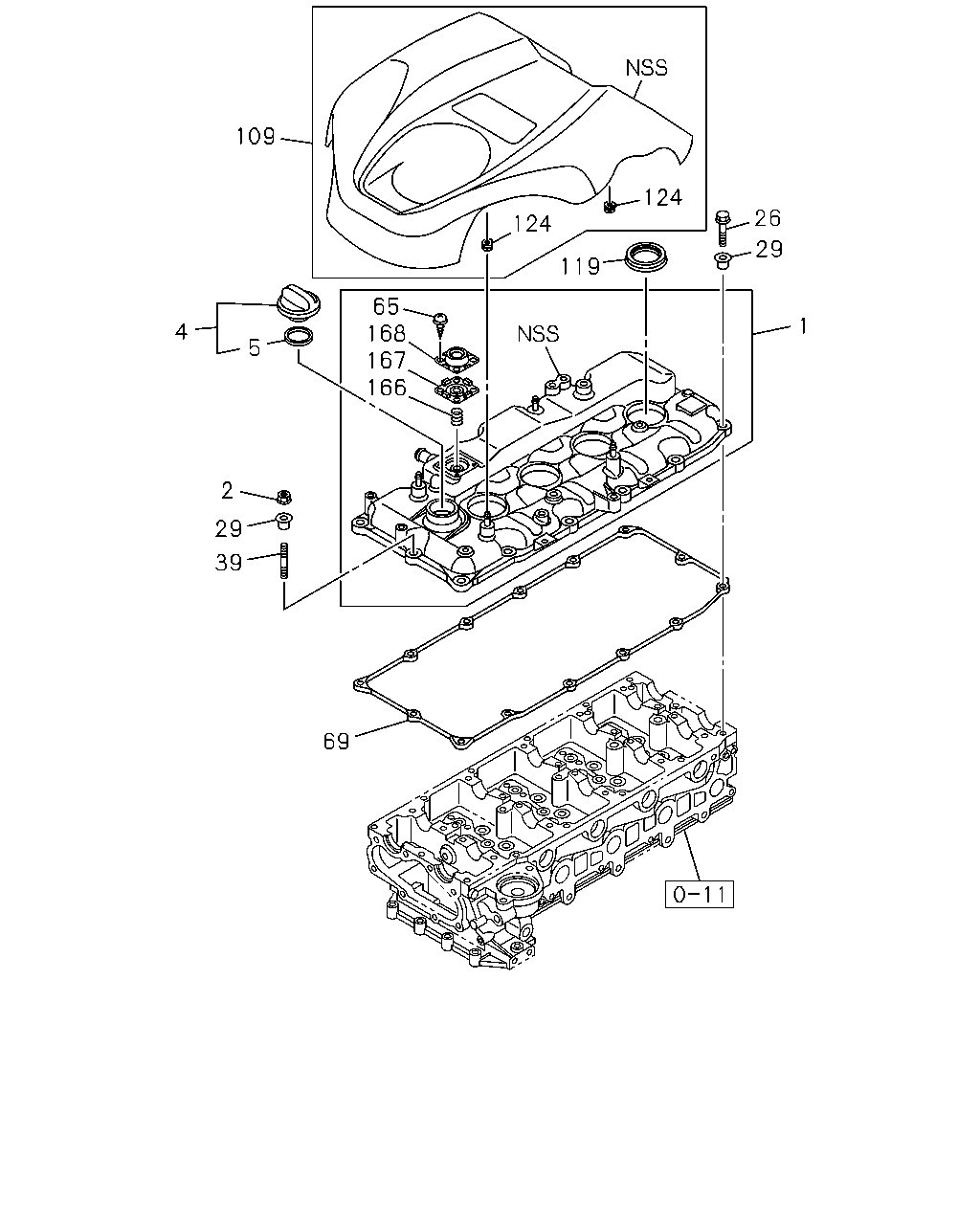

çizim 319004
109 124 124 26 29 1 119 65 168 166 167 5 4 2 29 39 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-98136-060-5 01 1 1210- ● ●
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 1210- ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 1210- ● ●
4 01.758 CAP; OIL FILLER 8-98026-084-0 01 1 1210- ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 1210- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40 		8-97918-298-0 01 1 1210- ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 1210- ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 1210- ● ●
29 00.413 RUBBER; MTG,HD COVER 8-97361-811-1 14 1 1210- ● ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		0-41010-630-0 01 1 1210- ● ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 1210-1303 ● ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 1304- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 1210- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-1 01 1 1210- ●
109 00.386 COVER; ENG
ENG SIGHT SHIELD<8LQ> 		8-98147-402-0 01 1 1210- ● ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 1210- ● ●
124 00.413 RUBBER; MTG,COVER
ENG SIGHT SHIELD<8LQ> 		8-98269-869-0 04 1 1210- ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1210-1303 ● ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1304- ● ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98226-101-0 01 1 1210- ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 1210-1303 ● ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 1304- ● ●
