◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10873 - CXM LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#10900) — 79 parça

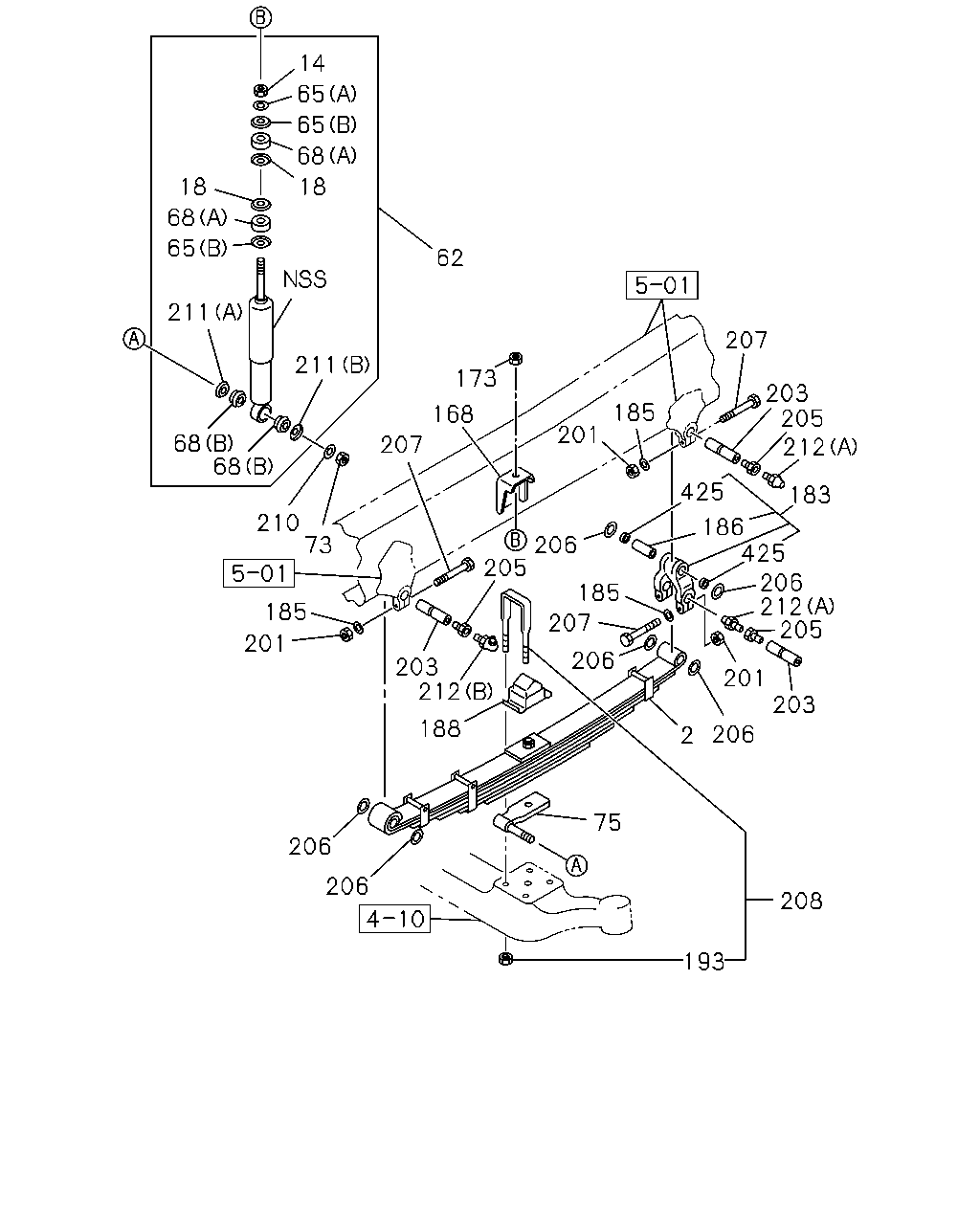

çizim 20230
14 65 65 68 18 18 68 65 62 211 207 211 173 203 205 212 185 168 201 68 68 207 425 183 210 73 186 425 206 205 206 212 205 185 185 207 201 206 203 212 201 203 188 206 2 75 206 206 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 9-LEAF 		1-51130-799-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 9-LEAF 		1-51130-798-0 02 1 0105-
14 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 0110-0211
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0105-0109
14 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 0110-0211
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0212-
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=24 		1-51631-067-0 04 1 0110-0211
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0105-0109
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> ID=24 		1-51631-067-0 04 1 0110-0211
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0212-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 0110-0211
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0105-0109
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 0110-0211
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0212-
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		1-09503-266-0 02 1 0110-0211
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-51631-068-0 04 1 0110-0211
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0105-0109
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		1-09503-266-0 02 1 0110-0211
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0212-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0105-0109
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-51631-068-0 04 1 0110-0211
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0212-
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16 T=25 		1-51631-069-0 04 1 0110-0211
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) 		9-51631-026-0 04 1 0110-0211
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0105-0109
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> (A) ID=16 T=25 		1-51631-069-0 04 1 0110-0211
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0212-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0105-0109
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> (B) 		9-51631-026-0 04 1 0110-0211
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0212-
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 0105-0109
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 04 1 0110-0211
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 0212-0311
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-520-0 02 1 0312-
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-0 01 1 0105-0109
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-0 02 1 0110-0211
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0212-
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-0 01 1 0105-0109
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-0 02 1 0110-0211
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0212-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0105-
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0105-
183 SHACKLE; FRT SUSP 1-51162-064-0 02 1 0105-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0105-
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 02 1 0105-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 0105-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 0105-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0105-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0105-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0105-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0105-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0105-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0105-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0105-
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 0105-0109
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 04 1 0110-0211
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 0212-
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=27 		9-51631-027-0 02 1 0110-0211
211 WASHER; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-51631-028-0 02 1 0110-0211
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0105-0109
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> (A) ID=27 		9-51631-027-0 02 1 0110-0211
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0212-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0105-0109
211 WASHER; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-51631-028-0 02 1 0110-0211
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0212-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 0105-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 02 1 0105-
425 SEAL; DUST 1-51177-321-0 04 1 0105-

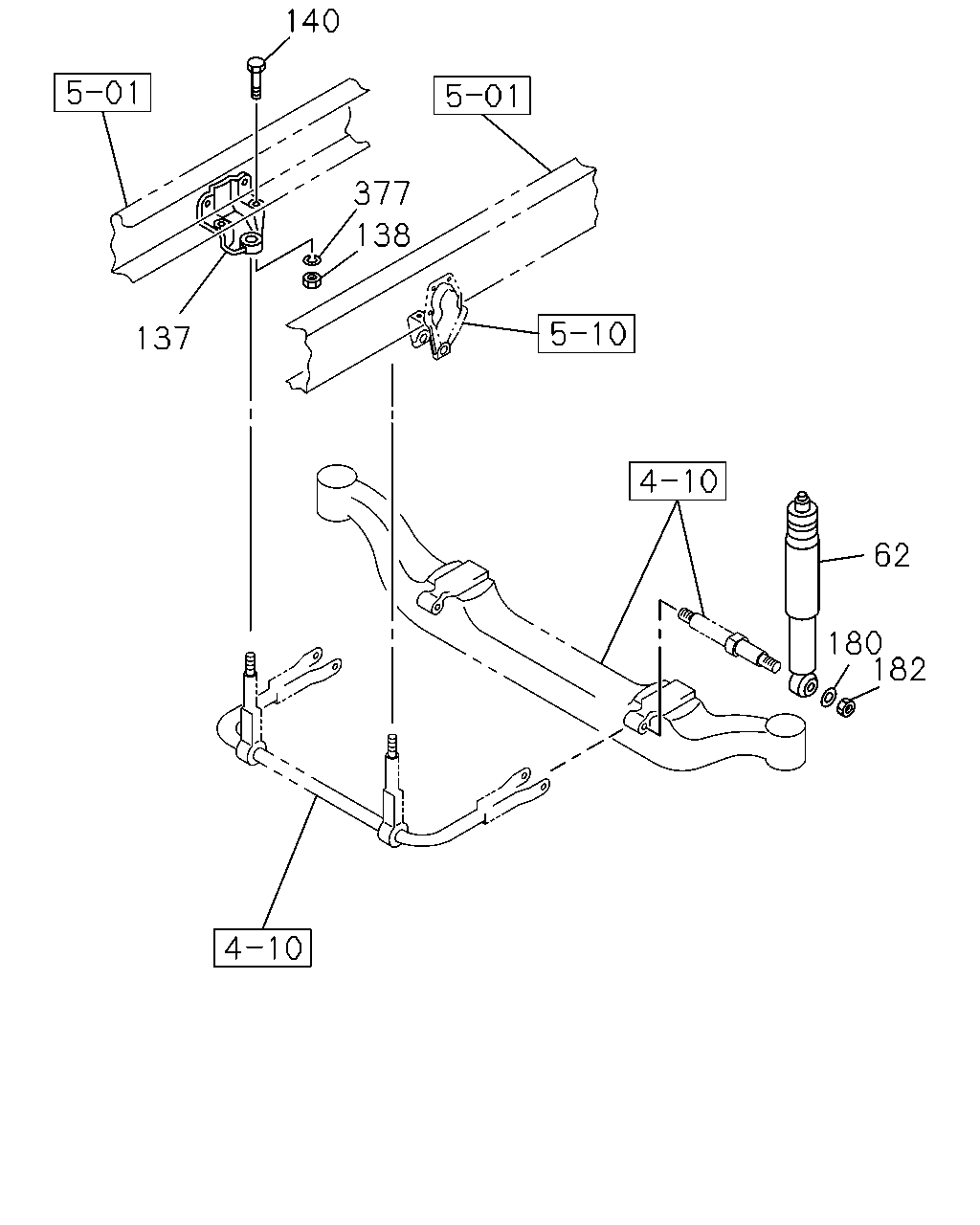

çizim 22169
140 377 138 137 62 180 182
BalonParca AdiParca NoAdetTipApplied Date
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 0110-0211
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0105-0109
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-417-0 02 1 0110-0211
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0212-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 0105-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 02 1 0105-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X50 		9-92061-450-0 04 1 0105-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 0105-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 0105-0311
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-520-0 02 1 0312-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 0105-
