8-03 — LAMP; REAR AND REAR SIDE (#109) — 52 parça

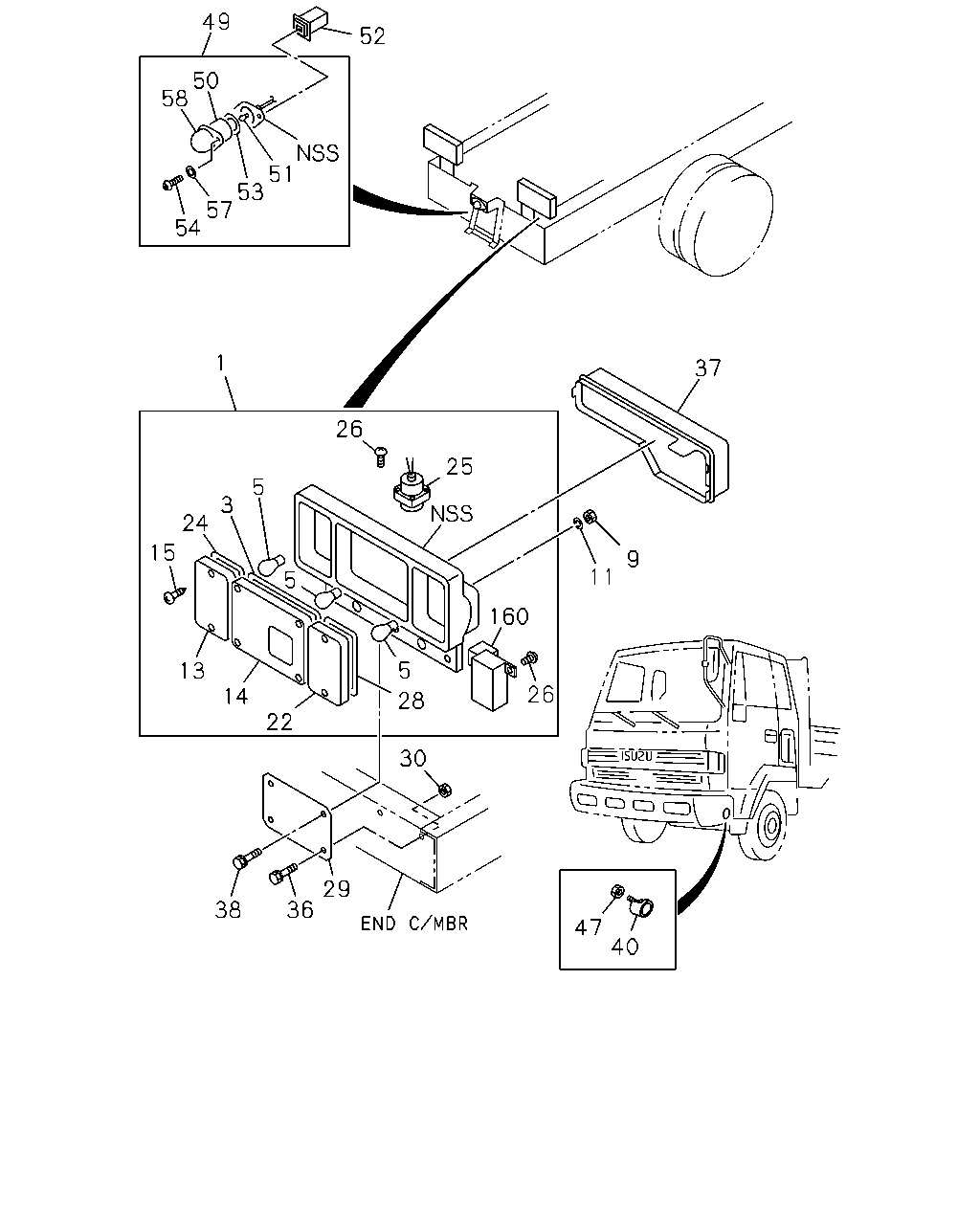

çizim 94464
49 52 50 58 51 53 57 54 1 37 26 25 5 3 24 15 9 11 5 160 5 13 26 14 28 22 30 29 36 38 47 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) INDICATOR TAIL & STOP LAMP<YD6> EXC. LIGHTING SYSTEM ECE<SLC> 		1-82230-145-0 01 1 9202-9402 ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-133-2 01 1 9202- ● ●
1 LAMP ASM; RR COMB
INDICATOR TAIL & STOP LAMP<YD6> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82230-133-2 01 1 9202- ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) LIGHTING SYSTEM ECE<SLC> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 9202- ● ●
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3),INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-135-2 01 1 9202- ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,INDICATOR TAIL & STOP LAMP<YD6> 		1-82230-146-0 01 1 9202-9402 ● ●
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,REVERSING WARNING BUZZER<YM9> 		1-82230-144-0 01 1 9202-9402 ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		1-82230-132-2 01 1 9202- ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		1-82230-134-2 01 1 9202- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 9202- ● ●
5 BULB; RR COMB LAMP
24V 21W 		8-94125-956-0 04 1 9202- ● ●
5 BULB; RR COMB LAMP
24V 21/5W 		8-94125-957-0 02 1 9202- ● ●
9 NUT; LAMP,RR COMB
M6 		9-09110-406-0 08 1 9202- ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		9-09160-706-0 08 1 9202- ● ●
13 LENS; TURN SIGNAL 1-82235-015-0 01 1 9202- ● ●
13 LENS; TURN SIGNAL 1-82235-014-0 01 1 9202- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-511-0 01 1 9202- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-510-0 01 1 9202- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9202- ● ●
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) INDICATOR TAIL & STOP LAMP<YD6> EXC. LIGHTING SYSTEM ECE<SLC> 		1-82239-031-0 02 1 9202-9402 ● ●
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 01 1 9202-9402 ● ●
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) EXC. LIGHTING SYSTEM ECE<SLC>,REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 9202-9402 ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-0 02 1 9202- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 9202- ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 9202- ● ●
26 SCREW; BACK HORN
INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 02 1 9202- ● ●
26 SCREW; BACK HORN
EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-82239-031-0 01 1 9202- ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 02 1 9202- ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 9202- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 9202- ● ●
29 BRACKET; LAMP,RR COMB 1-82237-050-1 02 1 9202- ● ●
30 NUT; BRKT,RR COMB
M10 		9-09110-510-0 04 1 9202- ● ●
36 BOLT; BRKT,RR COMB
M10X20 W/LK WASHER 		9-01901-020-0 04 1 9202-9204 ● ●
36 BOLT; BRKT,RR COMB
M10X20 W/LK WASHER 		0-50041-020-0 04 1 9205- ● ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 9202- ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 9202- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK WASHER 		0-50040-630-0 04 1 9202- ● ●
40 REFLECTOR; REFLEX
BUMPER W/HEADLAMPS<SLB> 		1-82290-036-0 01 1 9202-9406 ● ●
40 REFLECTOR; REFLEX
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-82290-036-0 01 1 9407- ● ●
40 REFLECTOR; REFLEX
BUMPER W/HEADLAMPS<SLB> 		1-82290-037-0 01 1 9202-9406 ● ●
40 REFLECTOR; REFLEX
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-82290-037-0 01 1 9407- ● ●
47 NUT; REFLECTOR
BUMPER W/HEADLAMPS<SLB> M4 		9-99110-404-0 02 1 9202-9406 ● ●
47 NUT; REFLECTOR
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M4 		9-99110-404-0 02 1 9407- ● ●
49 LAMP; LICENSE PLATE 1-82120-021-0 01 1 9202- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9202- ● ●
51 BULB; LICENSE PLATE LAMP
24V 12W 		1-82194-030-0 01 1 9202- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9202- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9202- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9202- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9202- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9202- ● ●
160 INDICATOR; RR COMB LAMP
INDICATOR TAIL & STOP LAMP<YD6> 		1-82550-195-0 01 1 9202- ● ●
