4-20 — REAR AXLE CASE AND SHAFT (#10891) — 137 parça

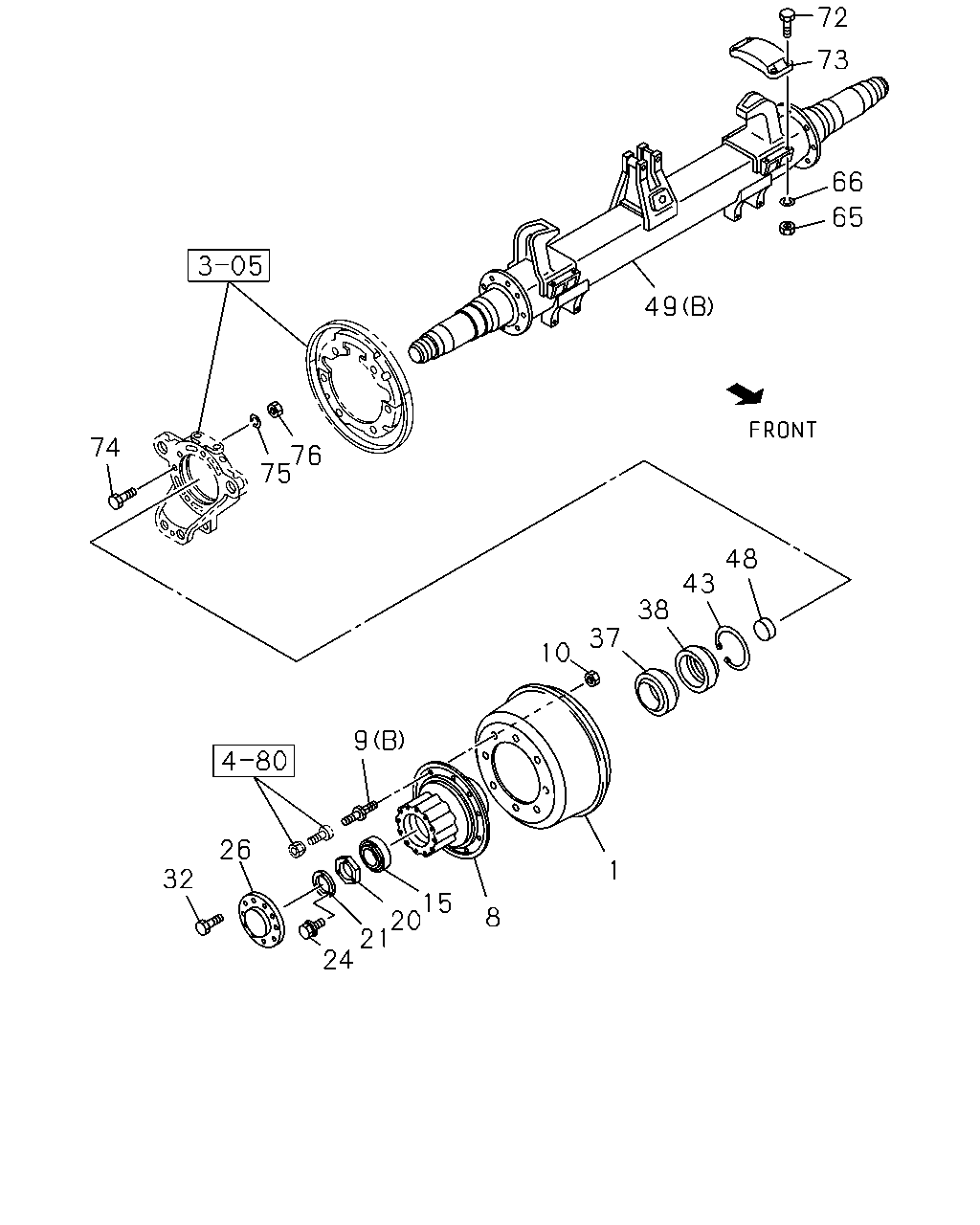

72 73 66 65 49 76 75 74 48 43 38 37 10 9 26 1 32 15 20 21 24 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR WHEEL 10STUD 9.00X22.5 168-14(NJT) REARWARD	1-42315-218-4	02	1	0105-
1	DRUM; BRK,RR WHEEL 10STUD 9.00X22.5 168-14(NJT) FORWARD	1-42315-220-4	02	1	0105-
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) FORWARD	1-42315-194-4	02	1	0105-0204
1	DRUM; BRK,RR WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FORWARD	1-42315-194-4	02	1	0205-
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) REARWARD H=195	1-42315-208-2	02	1	0105-0204
1	DRUM; BRK,RR WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REARWARD H=195	1-42315-208-2	02	1	0205-
8	HUB; RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-42311-085-0	02	1	0105-
8	HUB; RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-42311-085-0	02	1	0105-
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-104-0	02	1	0105-0204
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-104-0	02	1	0105-0204
8	HUB; RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42311-104-0	02	1	0205-
8	HUB; RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42311-104-0	02	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0105-0210
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) (B) M22X55.8,M22X53.5 RH THREAD	1-42337-035-1	20	1	0105-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	0205-
10	NUT; WHEEL PIN,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) M22	1-09400-071-0	20	1	0105-
10	NUT; WHEEL PIN,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) M22	1-09400-071-0	20	1	0105-
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-065-0	16	1	0105-0204
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-065-0	16	1	0105-0204
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	0205-
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	0205-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0105-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0105-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0105-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0105-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0105-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0105-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0105-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0105-
26	CAP; HUB,RR AXLE	1-42313-011-1	02	1	0105-
32	BOLT; HUB CAP M14X35 FLANGE	0-28681-435-0	20	1	0105-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0105-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0105-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0105-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0105-
48	COVER; END	1-42119-035-1	02	1	0105-
49	CASE; RR AXLE (B)	1-42150-837-0	01	1	0105-
49	CASE; RR AXLE (A)	1-42160-459-0	01	1	0105-
65	NUT M14	9-99110-514-0	08	1	0105-
65	NUT M14	9-99110-514-0	08	1	0105-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0105-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0105-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0105-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0105-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0105-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0105-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0105-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0105-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0105-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0105-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0105-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0105-

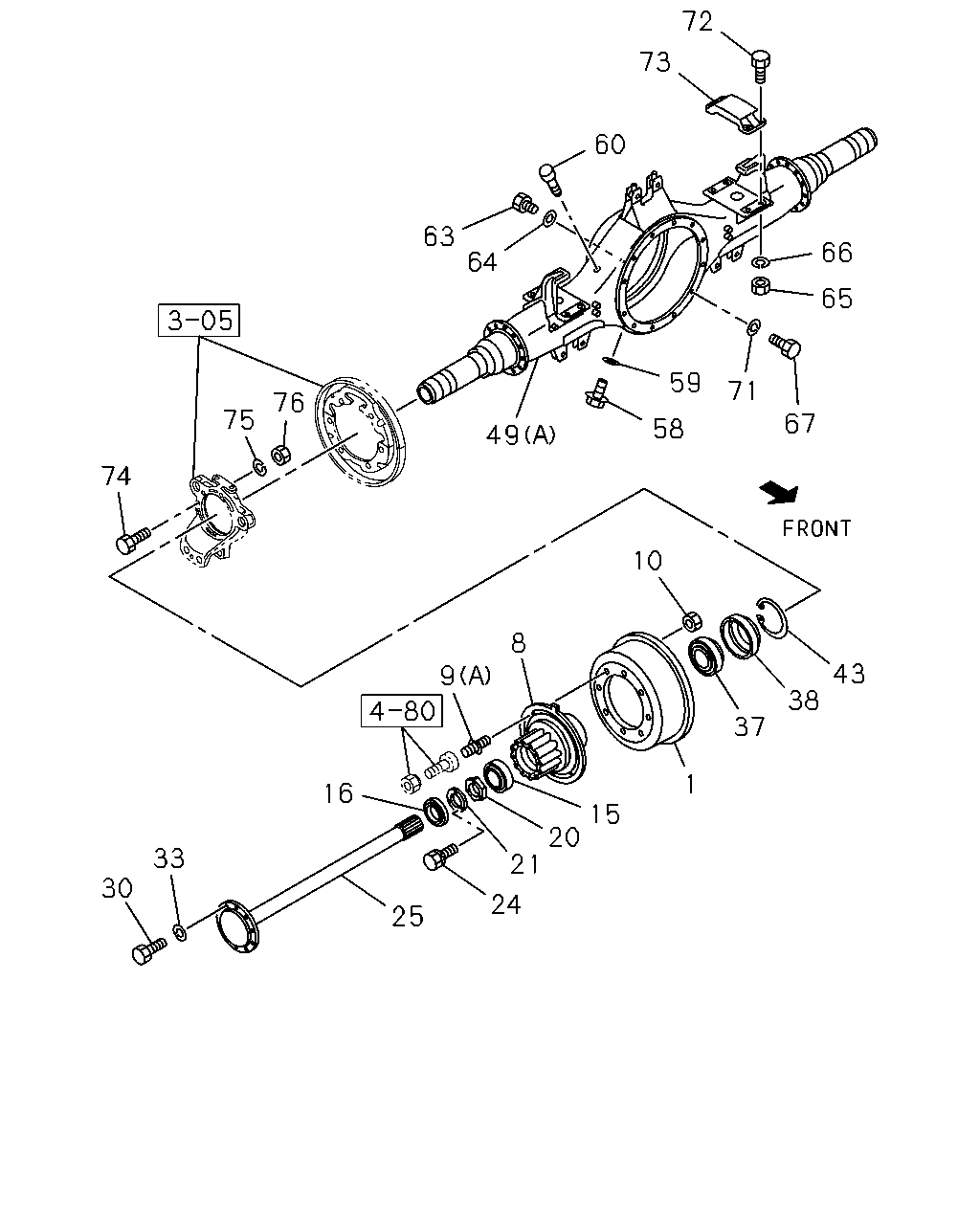

72 73 60 63 64 66 65 59 71 76 75 67 58 49 74 10 8 43 38 9 37 1 16 15 20 21 24 33 30 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR WHEEL 10STUD 9.00X22.5 168-14(NJT) REARWARD	1-42315-218-4	02	1	0105-
1	DRUM; BRK,RR WHEEL 10STUD 9.00X22.5 168-14(NJT) FORWARD	1-42315-220-4	02	1	0105-
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) FORWARD	1-42315-194-4	02	1	0105-0204
1	DRUM; BRK,RR WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FORWARD	1-42315-194-4	02	1	0205-
1	DRUM; BRK,RR WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) REARWARD H=195	1-42315-208-2	02	1	0105-0204
1	DRUM; BRK,RR WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REARWARD H=195	1-42315-208-2	02	1	0205-
8	HUB; RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-42311-085-0	02	1	0105-
8	HUB; RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-42311-085-0	02	1	0105-
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-104-0	02	1	0105-0204
8	HUB; RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42311-104-0	02	1	0105-0204
8	HUB; RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42311-104-0	02	1	0205-
8	HUB; RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV)	1-42311-104-0	02	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0105-0210
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) (A) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) (B) M22X55.8,M22X53.5 RH THREAD	1-42337-035-1	20	1	0105-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0205-
9	PIN; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	0105-0204
9	PIN; WHEEL,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	0205-
10	NUT; WHEEL PIN,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) M22	1-09400-071-0	20	1	0105-
10	NUT; WHEEL PIN,RR AXLE WHEEL 10STUD 9.00X22.5 168-14(NJT) M22	1-09400-071-0	20	1	0105-
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-065-0	16	1	0105-0204
10	NUT; WHEEL PIN,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE	1-09440-065-0	16	1	0105-0204
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	0205-
10	NUT; WHEEL PIN,RR AXLE WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE	1-09440-065-0	16	1	0205-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0105-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0105-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0105-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0105-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0105-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0105-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0105-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0105-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0105-
25	SHAFT; AXLE,RR L=1054	1-42171-355-0	02	1	0105-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0105-
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0105-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0105-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0105-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0105-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0105-
49	CASE; RR AXLE (B)	1-42150-837-0	01	1	0105-
49	CASE; RR AXLE (A)	1-42160-459-0	01	1	0105-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0105-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0105-
60	BREATHER; RR AXLE CASE	1-09893-011-1	01	1	0105-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0105-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0105-
65	NUT M14	9-99110-514-0	08	1	0105-
65	NUT M14	9-99110-514-0	08	1	0105-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0105-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0105-
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0105-
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0105-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0105-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0105-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0105-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0105-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0105-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0105-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0105-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0105-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0105-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0105-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0105-
