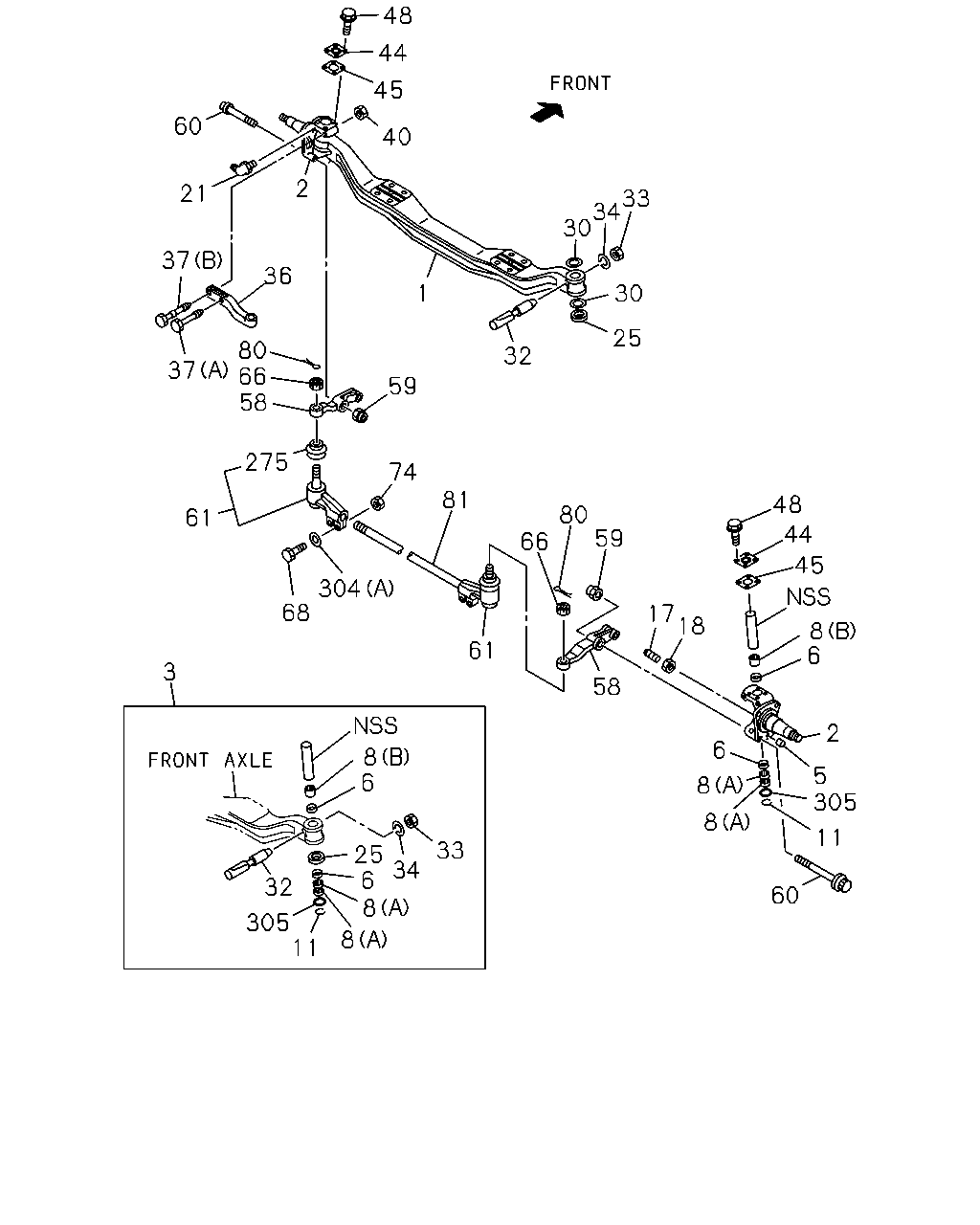

4-10 — FRONT AXLE (#10889) — 81 parça

48 44 45 60 40 2 21 33 34 30 37 36 30 1 25 80 66 58 32 37 59 275 74 81 48 80 59 61 44 66 45 304 68 17 18 8 6 61 3 58 2 6 8 6 5 305 8 8 11 33 25 34 6 8 32 60 305 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0105-
3	KING PIN SET	1-87830-738-4	02	1	0105-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0105-
6	SEAL; KING PIN	9-09926-024-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0105-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0105-
17	BOLT; STOPPER KNUCKLE WHEEL 10STUD 9.00X22.5 168-14(NJT) M18X53	1-09009-066-0	02	1	0105-
17	BOLT; STOPPER KNUCKLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M18X43	1-09009-065-0	02	1	0105-0204
17	BOLT; STOPPER KNUCKLE WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M18X43	1-09009-065-0	02	1	0205-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0105-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0105-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0105-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0105-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0105-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0105-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0105-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0105-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0105-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0105-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0105-
44	COVER; KING PIN	1-43175-014-1	02	1	0105-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0105-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0105-
58	ARM; TIE ROD	1-43135-042-3	01	1	0105-
58	ARM; TIE ROD	1-43134-042-3	01	1	0105-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0105-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0105-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0105-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0105-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0105-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0105-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0105-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0105-
81	ROD; TIE	1-43151-118-0	01	1	0105-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0105-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0105-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0105-

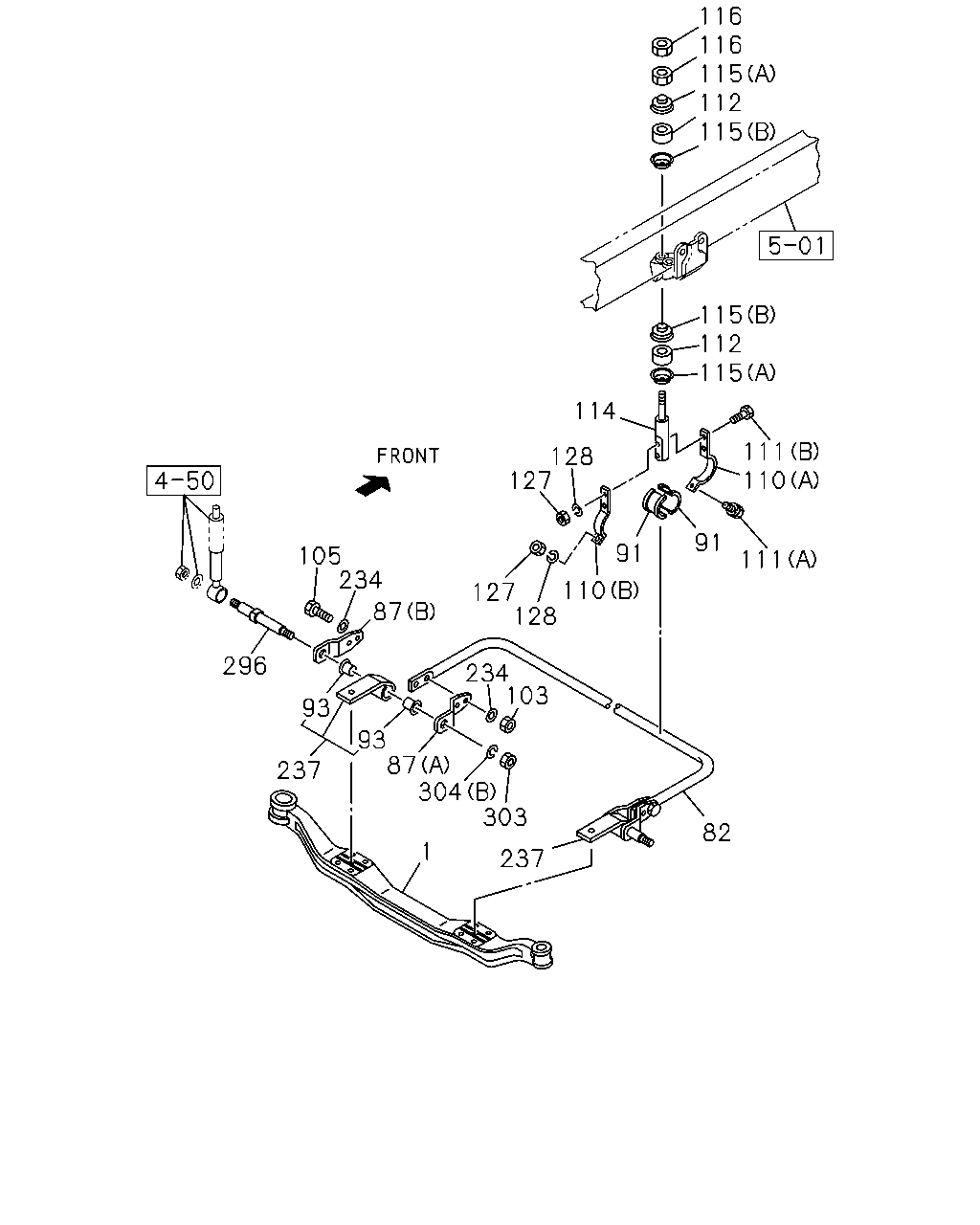

116 116 115 112 115 115 112 115 114 111 110 128 127 91 91 105 234 111 127 110 128 87 296 234 103 93 93 87 304 303 237 82 1 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	0105-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-0	01	1	0105-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0105-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0105-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0105-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	0105-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0105-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	0105-0206
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0207-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0105-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0105-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0105-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0105-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0105-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	0105-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.5	9-51631-040-0	04	1	0105-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=20.8	9-51631-041-0	04	1	0105-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0105-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0105-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0105-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0105-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0105-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0105-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0105-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0105-
