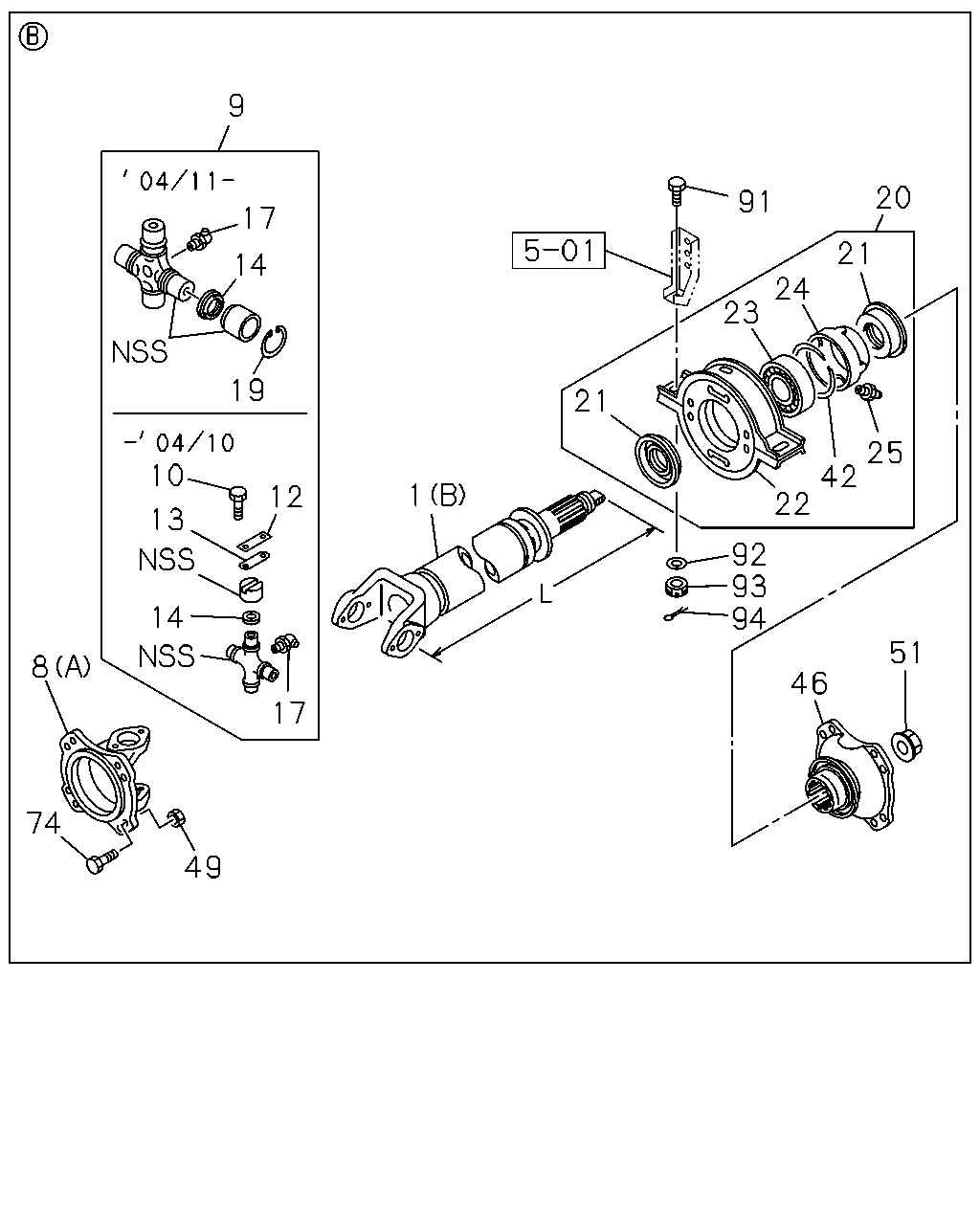

4-01 — PROPELLER SHAFT (#10888) — 126 parça

9 20 91 17 21 14 24 23 19 21 10 25 42 22 1 12 13 92 93 94 14 51 8 46 17 74 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (C) L=1105	1-37123-898-0	01	1	0105-0410	●
1	SHAFT; PROP (C) L=1105	1-37125-202-0	01	1	0411-	●
1	SHAFT; PROP (A) L=856	1-37152-391-0	01	1	0105-	●	●
1	SHAFT; PROP (C) L=1465	1-37124-959-0	01	1	0105-0410		●
1	SHAFT; PROP (C) L=1465	1-37125-215-0	01	1	0411-		●
1	SHAFT; PROP (C) L=895	1-37124-905-0	01	1	0105-0410			●
1	SHAFT; PROP (C) L=895	1-37125-276-0	01	1	0411-			●
1	SHAFT; PROP (A) L=837	1-37151-516-0	01	1	0105-			●
1	SHAFT; PROP (B) L=977	1-37151-580-0	01	1	0105-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	01	1	0105-	●	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	01	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-069-2	01	1	0105-0410	●	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-077-1	01	1	0411-	●	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	02	1	0105-			●
9	JOURNAL ASM; PROP SHAFT	1-37300-093-0	AR	1	0105-0410	●	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-112-0	AR	1	0411-	●	●	●
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	0105-	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-009-0	AR	1	0105-	●	●	●
13	COVER; FRT UJT,PROP SHAFT	1-37355-021-0	AR	1	0105-	●	●	●
14	COVER; DUST,SPIDER	1-37249-133-0	AR	1	0105-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0105-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	AR	1	0411-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	AR	1	0411-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-101-0	01	1	0105-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-101-0	01	1	0105-			●
21	SEAL; OIL,CENTER BRG OD=114	1-09625-222-1	02	1	0105-	●	●	●
21	SEAL; OIL,CENTER BRG OD=114	1-09625-222-1	02	1	0105-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0105-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0105-			●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0105-	●	●	●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0105-			●
24	RETAINER; CENTER BRG,1ST	1-37529-067-0	01	1	0105-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-067-0	01	1	0105-			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0105-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0105-			●
42	RING; SNAP,CTR BRG	1-09587-085-0	01	1	0105-	●	●	●
42	RING; SNAP,CTR BRG	1-09587-085-0	01	1	0105-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37240-088-1	01	1	0105-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37240-088-1	01	1	0105-			●
49	NUT; YOKE M16 FLANGE	1-09449-065-0	08	1	0105-			●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0105-	●	●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0105-			●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	08	1	0105-	●	●	●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	08	1	0105-			●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	0105-			●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	0105-			●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	9-99116-516-0	02	1	0105-			●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	9-08114-025-0	02	1	0105-			●

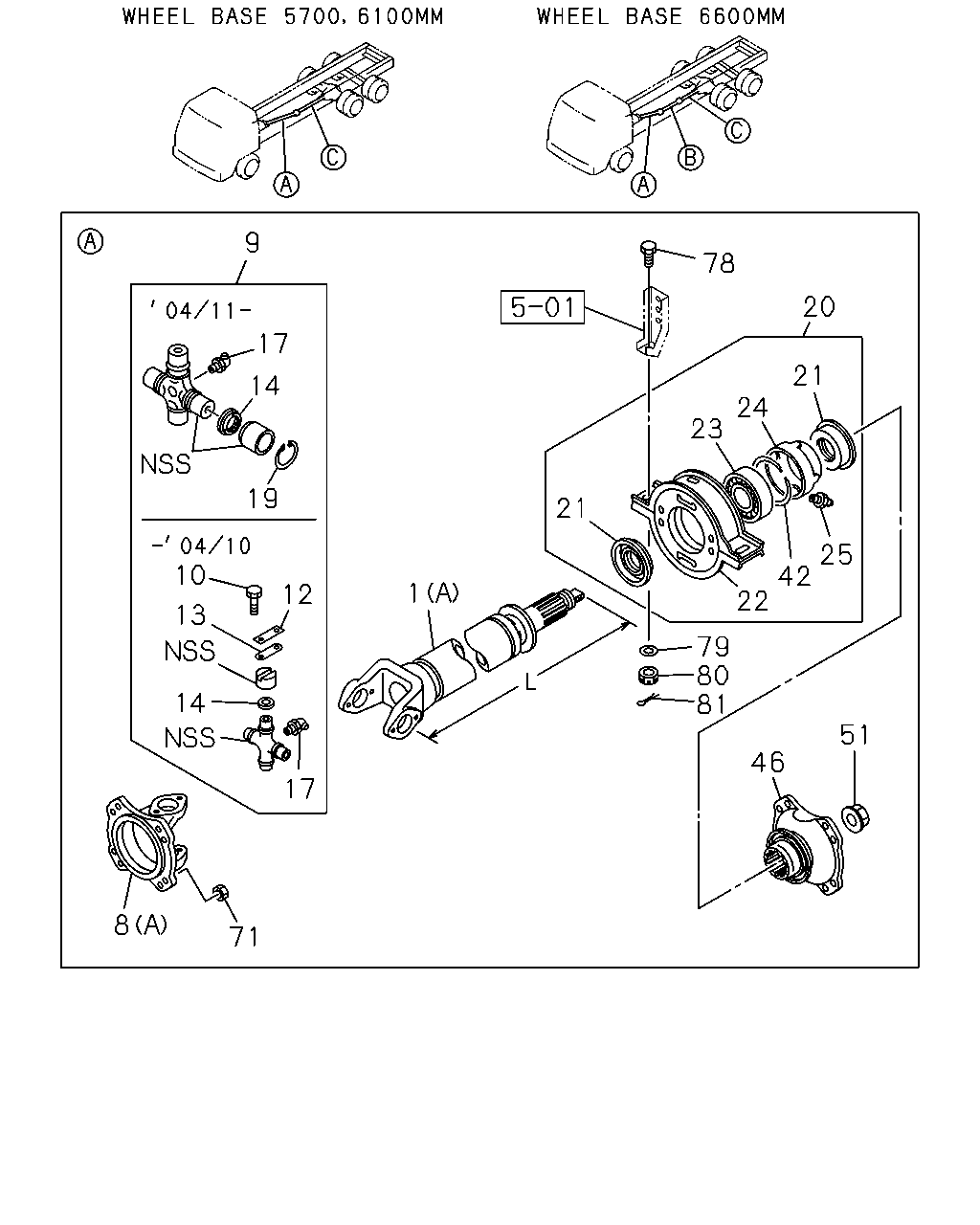

1 128 225 104 9 106 17 8 106 8 13 10 9 14 95 56 17 74 56 14 17 12 14 10 19 13 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (C) L=1105	1-37123-898-0	01	1	0105-0410	●
1	SHAFT; PROP (C) L=1105	1-37125-202-0	01	1	0411-	●
1	SHAFT; PROP (A) L=856	1-37152-391-0	01	1	0105-	●	●
1	SHAFT; PROP (C) L=1465	1-37124-959-0	01	1	0105-0410		●
1	SHAFT; PROP (C) L=1465	1-37125-215-0	01	1	0411-		●
1	SHAFT; PROP (C) L=895	1-37124-905-0	01	1	0105-0410			●
1	SHAFT; PROP (C) L=895	1-37125-276-0	01	1	0411-			●
1	SHAFT; PROP (A) L=837	1-37151-516-0	01	1	0105-			●
1	SHAFT; PROP (B) L=977	1-37151-580-0	01	1	0105-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	01	1	0105-	●	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	01	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-069-2	01	1	0105-0410	●	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-077-1	01	1	0411-	●	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	02	1	0105-			●
9	JOURNAL ASM; PROP SHAFT	1-37300-093-0	AR	1	0105-0410	●	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-112-0	AR	1	0411-	●	●	●
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	0105-	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-009-0	AR	1	0105-	●	●	●
13	COVER; FRT UJT,PROP SHAFT	1-37355-021-0	AR	1	0105-	●	●	●
14	COVER; DUST,SPIDER	1-37249-133-0	AR	1	0105-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0105-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	AR	1	0411-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	AR	1	0411-	●	●	●
56	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0105-	●	●	●
56	NUT; YOKE M16 FLANGE	1-09449-065-0	08	1	0105-	●	●	●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	08	1	0105-	●	●	●
74	BOLT; YOKE,TRANS M16X48	1-09000-383-0	08	1	0105-			●
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	0105-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0105-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-	●	●	●
128	SEAL; SLEEVE	1-37247-020-0	01	1	0105-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=410	1-37241-105-1	01	1	0105-	●	●	●

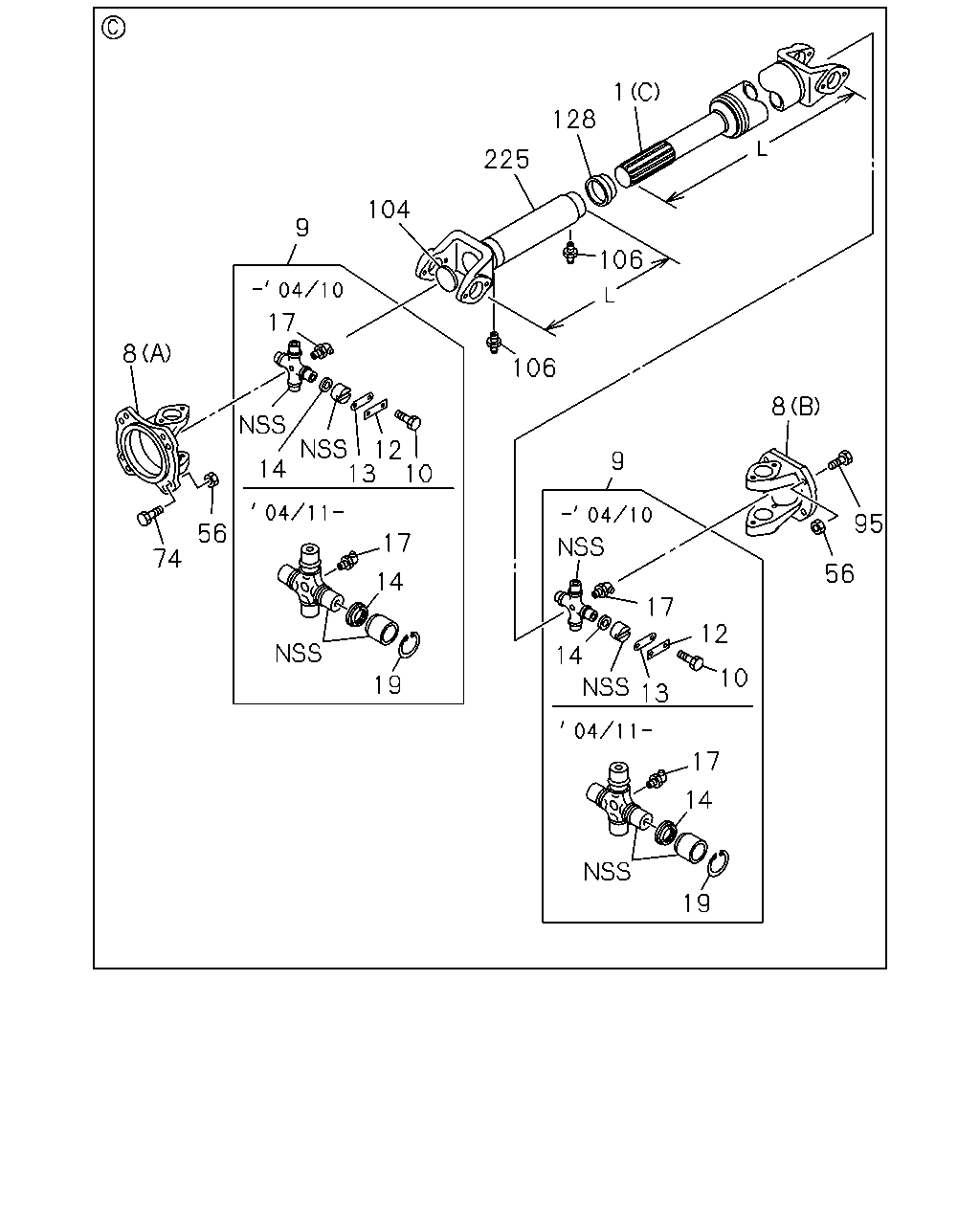

9 78 20 17 21 14 24 23 19 21 10 25 42 22 1 12 13 79 80 81 14 51 46 17 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (C) L=1105	1-37123-898-0	01	1	0105-0410	●
1	SHAFT; PROP (C) L=1105	1-37125-202-0	01	1	0411-	●
1	SHAFT; PROP (A) L=856	1-37152-391-0	01	1	0105-	●	●
1	SHAFT; PROP (C) L=1465	1-37124-959-0	01	1	0105-0410		●
1	SHAFT; PROP (C) L=1465	1-37125-215-0	01	1	0411-		●
1	SHAFT; PROP (C) L=895	1-37124-905-0	01	1	0105-0410			●
1	SHAFT; PROP (C) L=895	1-37125-276-0	01	1	0411-			●
1	SHAFT; PROP (A) L=837	1-37151-516-0	01	1	0105-			●
1	SHAFT; PROP (B) L=977	1-37151-580-0	01	1	0105-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	01	1	0105-	●	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	01	1	0105-	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-069-2	01	1	0105-0410	●	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-077-1	01	1	0411-	●	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-068-1	02	1	0105-			●
9	JOURNAL ASM; PROP SHAFT	1-37300-093-0	AR	1	0105-0410	●	●	●
9	JOURNAL ASM; PROP SHAFT	1-37300-112-0	AR	1	0411-	●	●	●
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	0105-	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-009-0	AR	1	0105-	●	●	●
13	COVER; FRT UJT,PROP SHAFT	1-37355-021-0	AR	1	0105-	●	●	●
14	COVER; DUST,SPIDER	1-37249-133-0	AR	1	0105-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0105-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	AR	1	0411-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	AR	1	0411-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-101-0	01	1	0105-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-101-0	01	1	0105-			●
21	SEAL; OIL,CENTER BRG OD=114	1-09625-222-1	02	1	0105-	●	●	●
21	SEAL; OIL,CENTER BRG OD=114	1-09625-222-1	02	1	0105-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0105-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0105-			●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0105-	●	●	●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0105-			●
24	RETAINER; CENTER BRG,1ST	1-37529-067-0	01	1	0105-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-067-0	01	1	0105-			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0105-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0105-			●
42	RING; SNAP,CTR BRG	1-09587-085-0	01	1	0105-	●	●	●
42	RING; SNAP,CTR BRG	1-09587-085-0	01	1	0105-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37240-088-1	01	1	0105-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37240-088-1	01	1	0105-			●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0105-	●	●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0105-			●
71	NUT; YOKE M16 FLANGE	1-09449-065-0	08	1	0105-	●	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0105-	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0105-	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	0105-	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	0105-	●	●	●
