3-78 — FIXING PARTS; AIR PIPING (#10887) — 164 parça

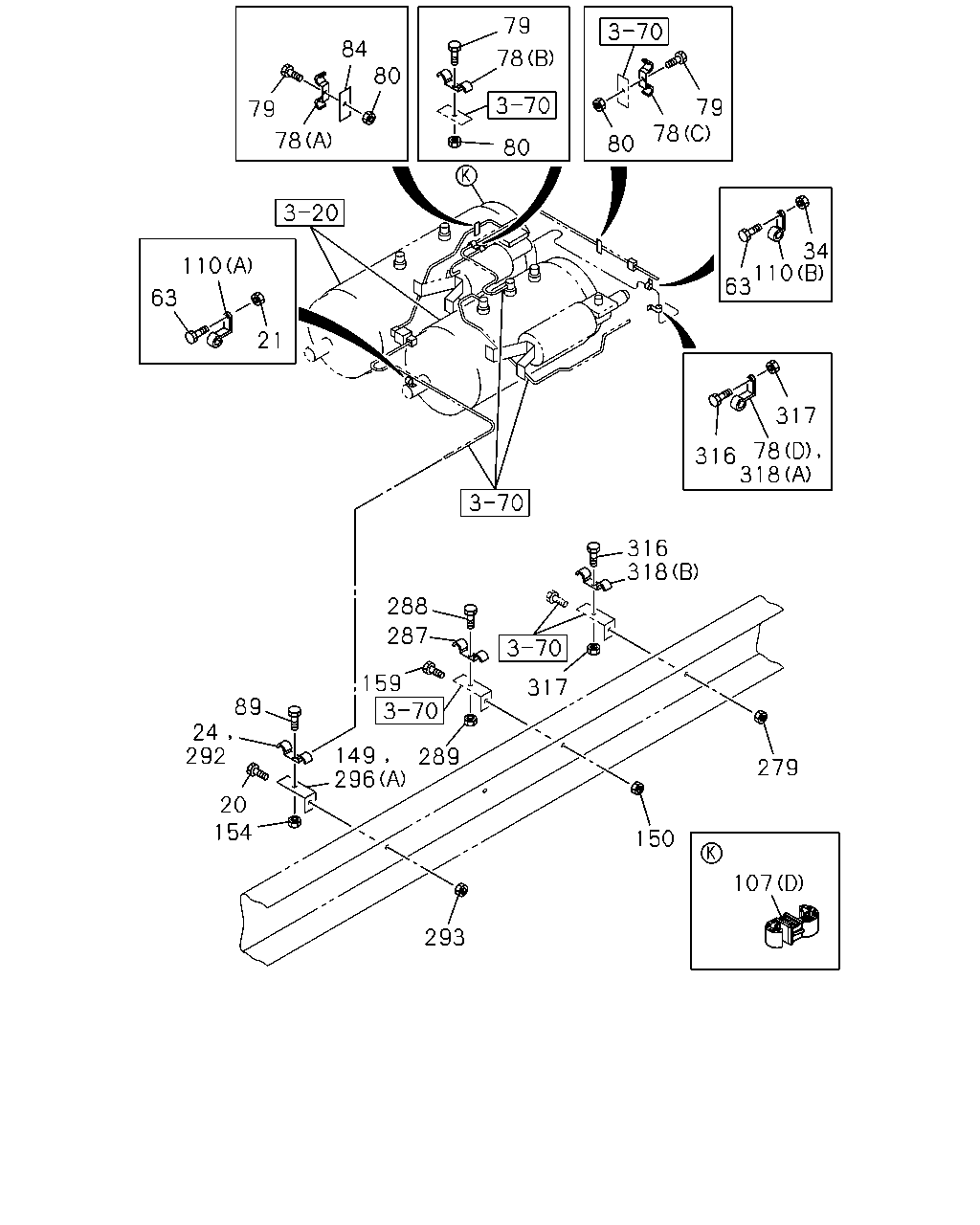

79 84 80 78 79 78 79 78 80 80 34 110 63 110 63 21 317 78 316 318 316 318 288 287 159 317 89 24 292 149 296 289 279 20 154 150 107 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-
20	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0105-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
24	CLIP; PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
63	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0105-
78	CLIP; AIR PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0105-
78	CLIP; AIR PIPE (E) ID=16 L=28	9-09525-556-0	01	1	0105-0106
78	CLIP; AIR PIPE (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
78	CLIP; AIR PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0107-
78	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	0107-
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
79	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	01	1	0107-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0105
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-0106
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-0106
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0107-0107
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0107-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0107-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0107-
84	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	0105-
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-
107	CLIP; NYLON TUBE (C) ID=28 L=40	1-09700-995-1	01	1	0305-
107	CLIP; NYLON TUBE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	0105-0108
107	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0202-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
110	CLIP; BAND,NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (B) ID=31 L=30	1-09700-969-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	10	1	0105-0108
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	06	1	0109-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	19	1	0105-0105
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	02	1	0106-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	0106-0110
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	19	1	0111-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=250	1-09707-126-0	01	1	0109-
149	BRACKET; PIPE CLIP L=55	1-47475-304-0	01	1	0105-
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
154	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
159	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0105-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
287	CLIP; AIR PIPE ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0105-
287	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0105-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
292	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	0105-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0105-
296	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	0105-
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0105-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
317	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
318	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
318	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-

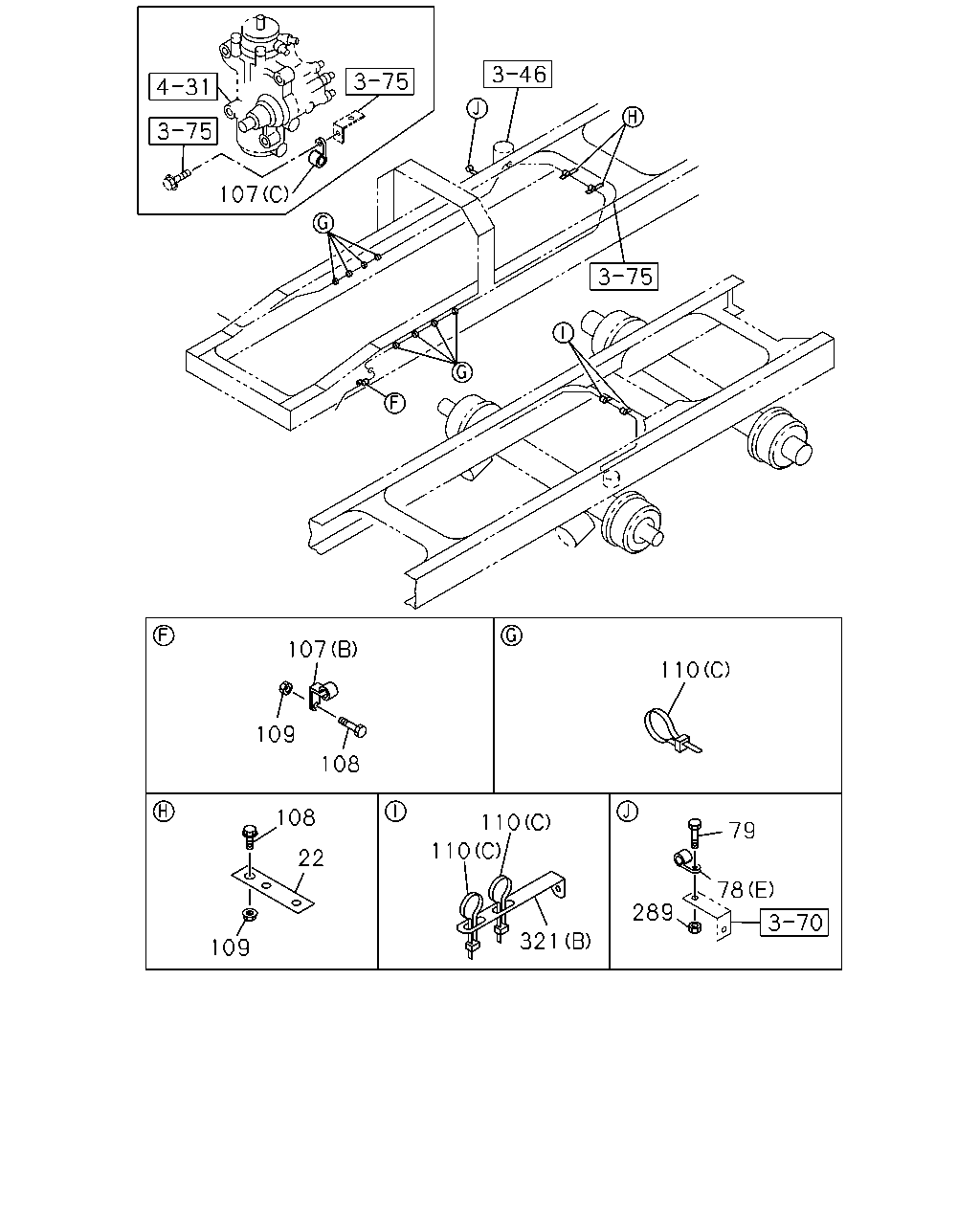

107 107 110 109 108 108 110 79 110 22 78 289 321 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	BRACKET; CLIP L=125	1-47477-975-1	02	1	0105-
78	CLIP; AIR PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0105-
78	CLIP; AIR PIPE (E) ID=16 L=28	9-09525-556-0	01	1	0105-0106
78	CLIP; AIR PIPE (D) ID=18 L=25 H=50	1-09701-096-0	01	1	0107-
78	CLIP; AIR PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0107-
78	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	0107-
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
79	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	01	1	0107-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-
107	CLIP; NYLON TUBE (C) ID=28 L=40	1-09700-995-1	01	1	0305-
107	CLIP; NYLON TUBE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	0105-0108
107	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0202-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	02	1	0305-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	0105-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0108-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0305-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
110	CLIP; BAND,NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (B) ID=31 L=30	1-09700-969-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	10	1	0105-0108
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	06	1	0109-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	19	1	0105-0105
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	02	1	0106-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	0106-0110
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	19	1	0111-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=250	1-09707-126-0	01	1	0109-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP (C)	1-47477-632-0	01	1	0105-
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	0105-

316 296 286 361 321 107 110 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	CLIP; NYLON TUBE (C) ID=28 L=40	1-09700-995-1	01	1	0305-
107	CLIP; NYLON TUBE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	0105-0108
107	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0202-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
110	CLIP; BAND,NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (B) ID=31 L=30	1-09700-969-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	10	1	0105-0108
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	06	1	0109-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	19	1	0105-0105
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	02	1	0106-
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	17	1	0106-0110
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	19	1	0111-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=250	1-09707-126-0	01	1	0109-
270	CLIP; NYLON TUBE ID=28 L=32	1-09701-107-1	04	1	0207-0210
286	CLIP; NYLON TUBE L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0110-
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0105-
296	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	0105-
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0105-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP (C)	1-47477-632-0	01	1	0105-
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	0105-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0105-

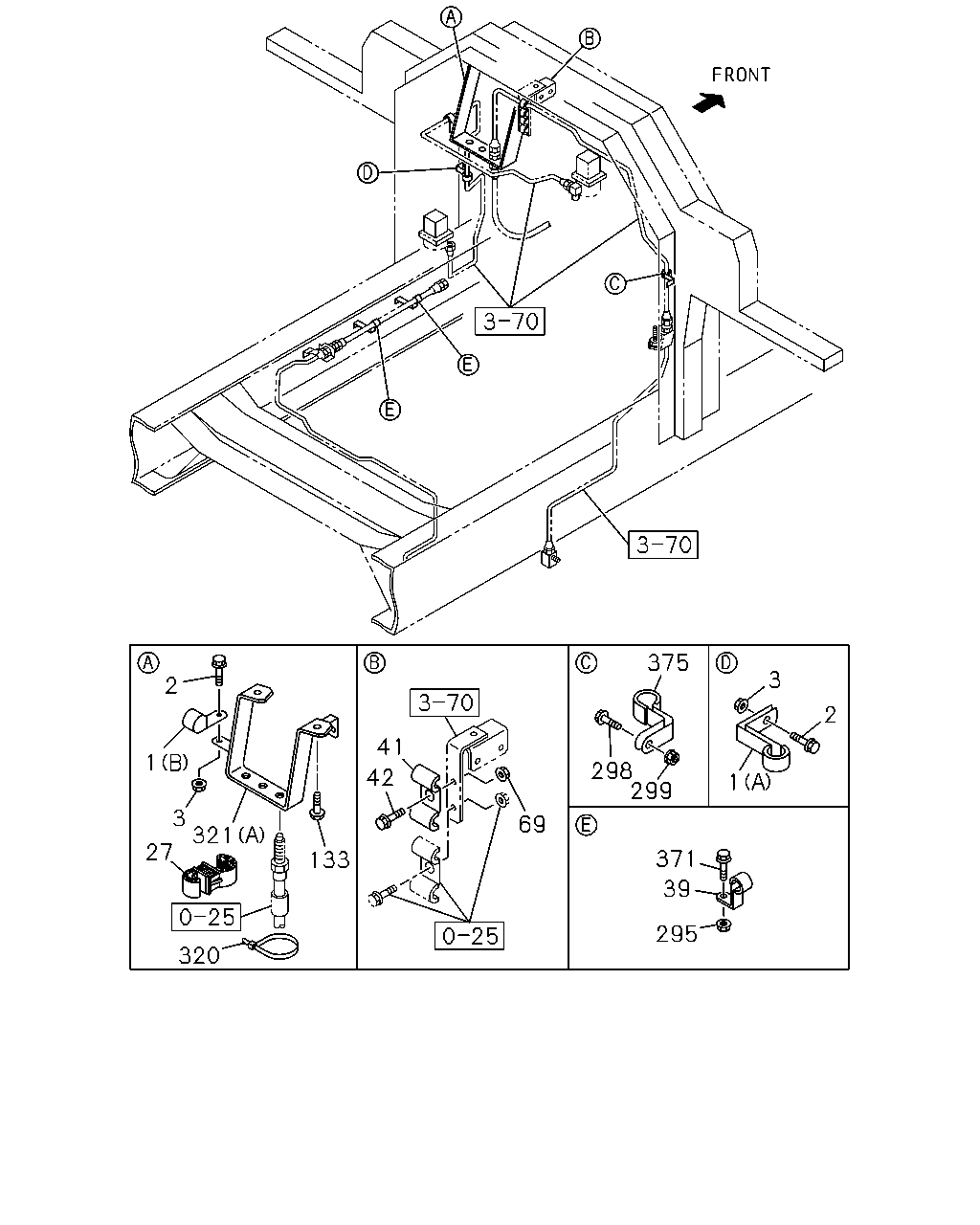

375 3 2 2 41 1 298 299 42 1 3 321 69 27 371 133 39 295 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
1	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0105-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
27	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	0105-
39	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0105-
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0105-0105
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP (C)	1-47477-632-0	01	1	0105-
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	01	1	0105-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
375	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0105-

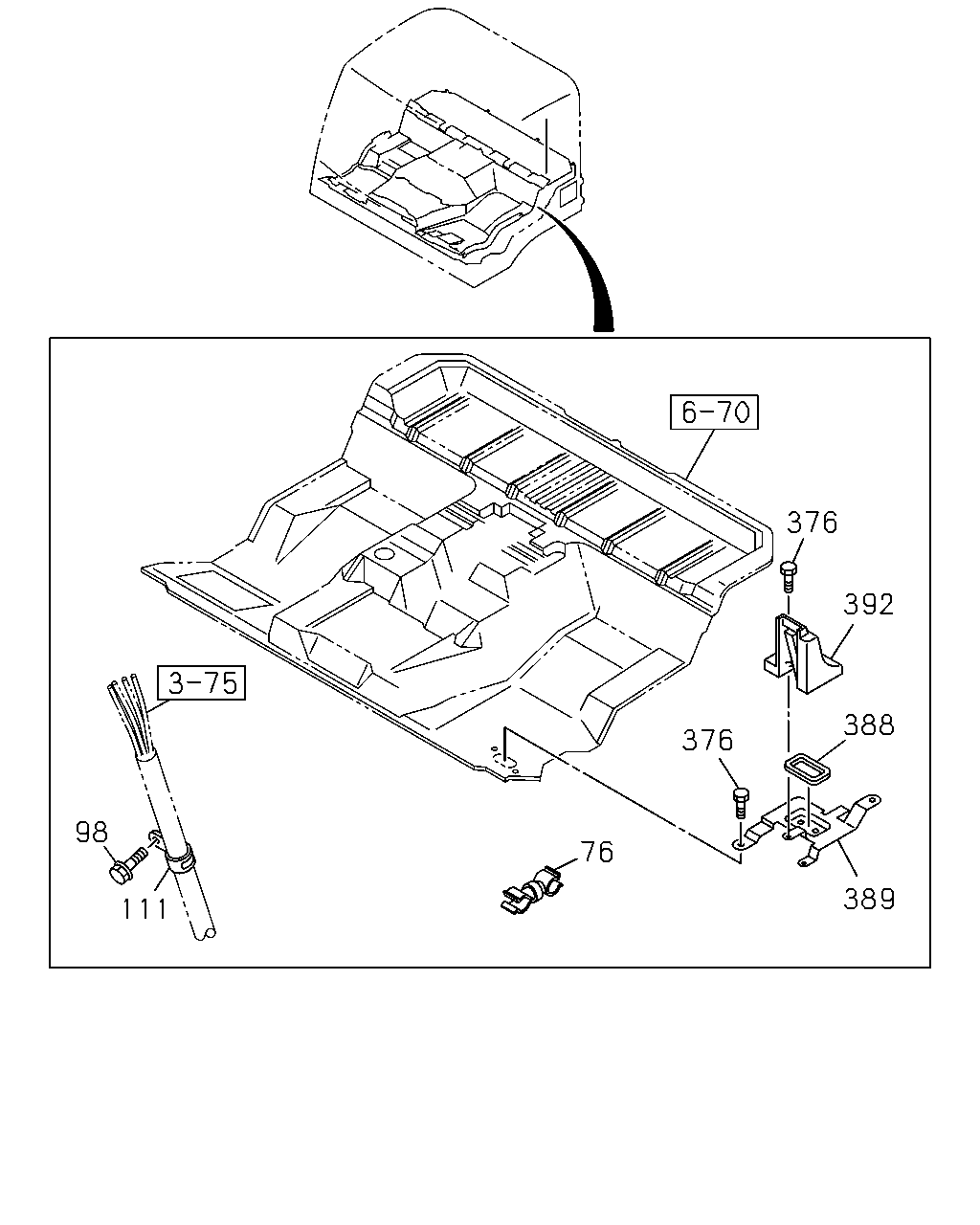

376 392 388 376 98 76 389 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	01	1	0201-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
111	CLIP; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=29 L=35	5-09700-293-1	01	1	0210-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0105-0207
111	CLIP; AIR PIPE ID=28 L=40	1-09700-995-1	01	1	0208-0209
111	CLIP; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=35 L=35	1-09700-895-0	01	1	0210-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0105-0109
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0110-
388	SEAL L=215	1-79738-794-1	01	1	0105-
389	BRACKET; UNION	1-79738-790-1	01	1	0105-
392	COVER; BRKT	1-73996-264-1	01	1	0105-
