Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#10884) — 194 parça

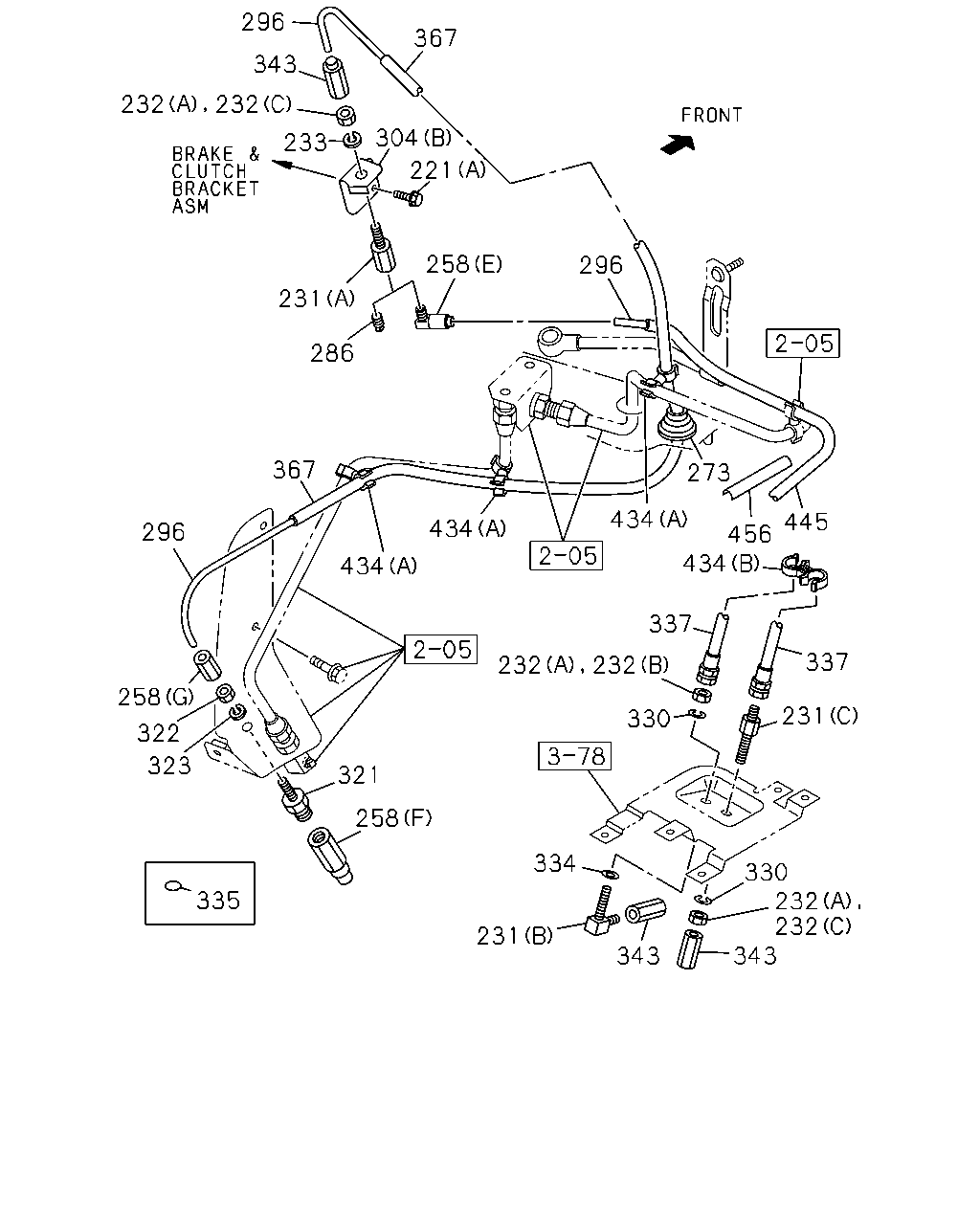

296 367 343 232 304 233 221 258 296 231 286 367 273 434 445 434 296 456 434 434 337 337 232 258 231 330 322 323 321 258 334 330 232 232 343 335 231 343 232 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
221	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	0105-
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	0105-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0105-
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	02	1	0105-0312
232	NUT; UNION,AIR PIPE (B) M10	9-09110-410-0	01	1	0401-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0105-0312
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8	1-09400-029-0	01	1	0401-
232	NUT; UNION,AIR PIPE (C) M10 H=8	1-09400-029-0	01	1	0401-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (G) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0105-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-
304	BRACKET; UNION (A)	1-47477-183-1	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (B)	1-71117-210-0	01	1	0105-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	9-09223-306-1	01	1	0105-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0105-0301
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0302-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0105-
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0105-
335	SEAL; UNION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0105-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0105-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0105-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87410-089-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
434	CLIP (C) D=24 L=21	1-09700-380-0	01	1	0105-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (A) ID=8.3 & 8.3	8-94426-175-0	04	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) L=800	1-83129-031-1	01	1	0105-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) L=800	1-83129-031-1	01	1	0105-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	0105-

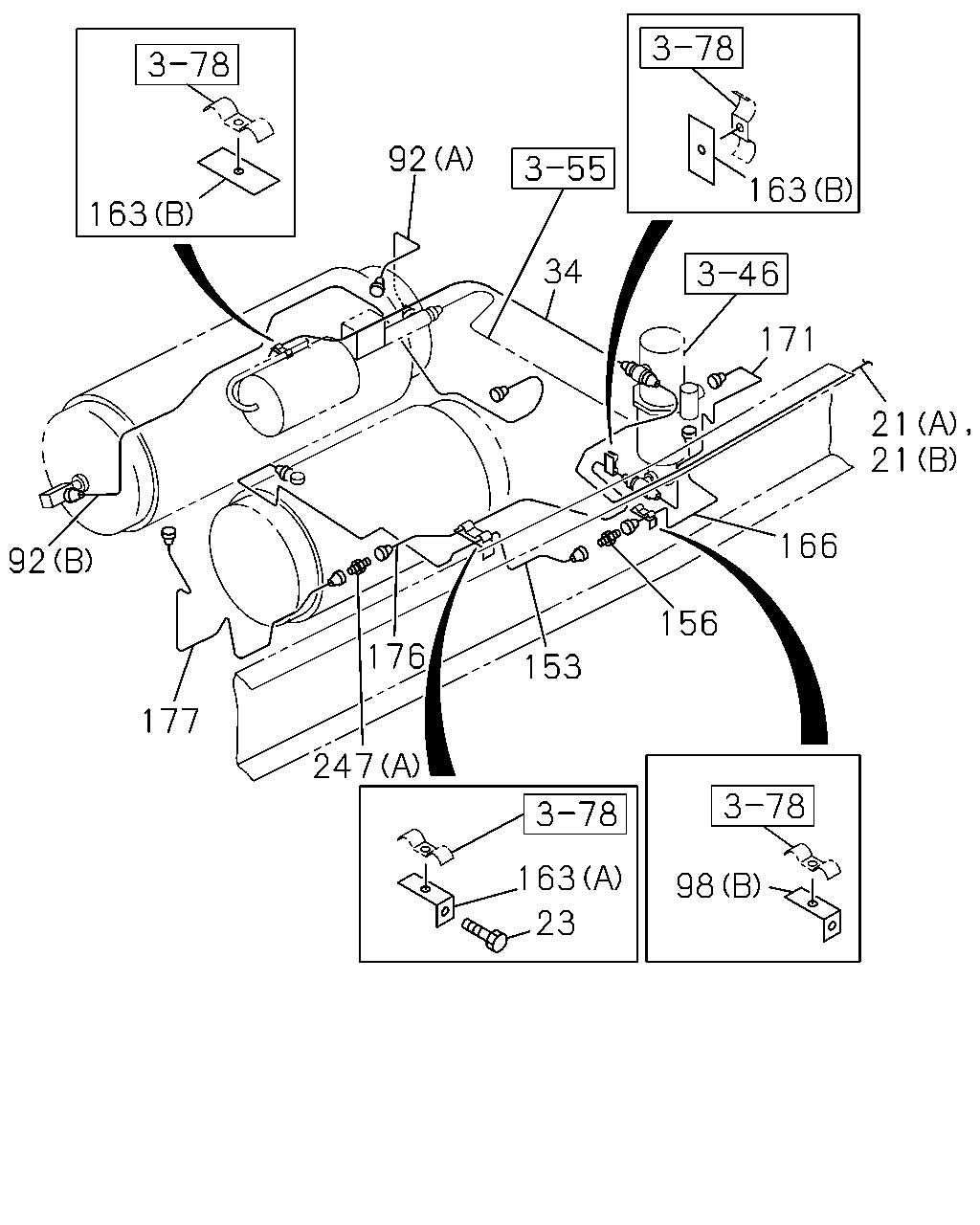

92 163 163 34 171 21 21 166 92 156 176 153 177 247 163 98 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	PIPE; AIR,UNION TO AIR DRYER (A)	1-49122-924-0	01	1	0105-0105
21	PIPE; AIR,UNION TO AIR DRYER (A)	1-49123-149-0	01	1	0106-0106
21	PIPE; AIR,UNION TO AIR DRYER (B)	1-49123-178-0	01	1	0107-0112
21	PIPE; AIR,UNION TO AIR DRYER (B)	1-49123-403-0	01	1	0201-
23	BOLT; BRKT,AIR PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	PIPE; AIR L=1065	1-49121-551-0	01	1	0107-
92	PIPE; AIR,AIR TANK TO AIR MASTER (A) L=541	1-47492-107-0	01	1	0105-
92	PIPE; AIR,AIR TANK TO AIR MASTER (B) L=1509	1-49116-233-0	01	1	0105-
98	BRACKET; AIR PIPE (B) L=55	1-47475-304-0	01	1	0105-
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	0105-
153	PIPE; AIR,AIR TANK TO UNION L=1007	1-49122-280-0	01	1	0105-
156	UNION; AIR PIPE M12 L=40	9-09223-006-1	01	1	0105-
163	BRACKET; AIR PIPE (B) L=50	1-47475-299-2	01	1	0105-0106
163	BRACKET; AIR PIPE (B) L=50	1-47475-299-2	03	1	0107-
163	BRACKET; AIR PIPE (A) L=55	1-47475-304-0	01	1	0105-
166	PIPE; AIR,UNION TO GOV L=464	1-49119-765-0	01	1	0105-
171	PIPE; AIR,GOV TO AIR DRYER L=667	1-49119-766-0	01	1	0105-
176	PIPE; AIR,AIR DRYER TO UNION L=1138	1-49117-410-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION L=803	1-49122-235-0	01	1	0105-
247	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	0105-
247	UNION; AIR PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0105-

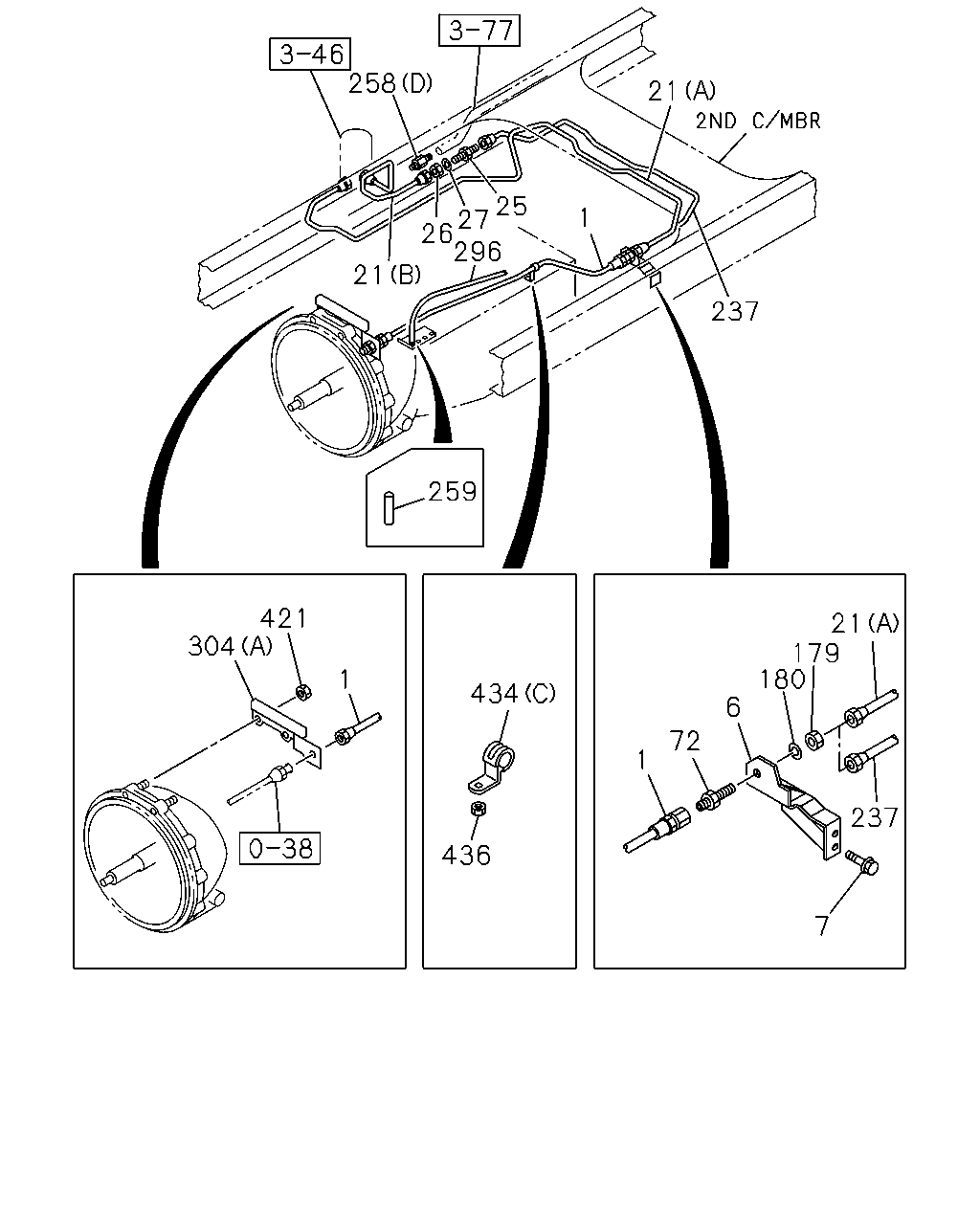

258 21 25 27 26 296 1 21 237 259 421 304 21 179 180 1 434 6 72 1 237 436 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-766-0	01	1	0105-0105
1	HOSE; FLEX,AIR TANK L=720	1-09363-894-0	01	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-720-0	01	1	0105-0105
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-719-1	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
21	PIPE; AIR,UNION TO AIR DRYER (A)	1-49122-924-0	01	1	0105-0105
21	PIPE; AIR,UNION TO AIR DRYER (A)	1-49123-149-0	01	1	0106-0106
21	PIPE; AIR,UNION TO AIR DRYER (B)	1-49123-178-0	01	1	0107-0112
21	PIPE; AIR,UNION TO AIR DRYER (B)	1-49123-403-0	01	1	0201-
25	VALVE; CHECK	1-48320-042-1	01	1	0105-0410
25	VALVE; CHECK	1-48320-057-0	01	1	0411-
26	NUT; CHECK VLV M22	9-09111-422-0	01	1	0105-
27	WASHER; LK,CHECK VLV ID=22.5	9-09150-522-0	01	1	0105-
72	UNION; AIR PIPE	1-09654-097-1	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION	1-49123-176-0	01	1	0107-0112
237	PIPE; AIR,FLEX HOSE TO UNION	1-49123-401-0	01	1	0201-
258	CONNECTOR; NYLON TUBE (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (G) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE L=175	1-09707-178-0	01	1	0109-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-
304	BRACKET; UNION (A)	1-47477-183-1	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (B)	1-71117-210-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-
434	CLIP (C) D=24 L=21	1-09700-380-0	01	1	0105-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (A) ID=8.3 & 8.3	8-94426-175-0	04	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-

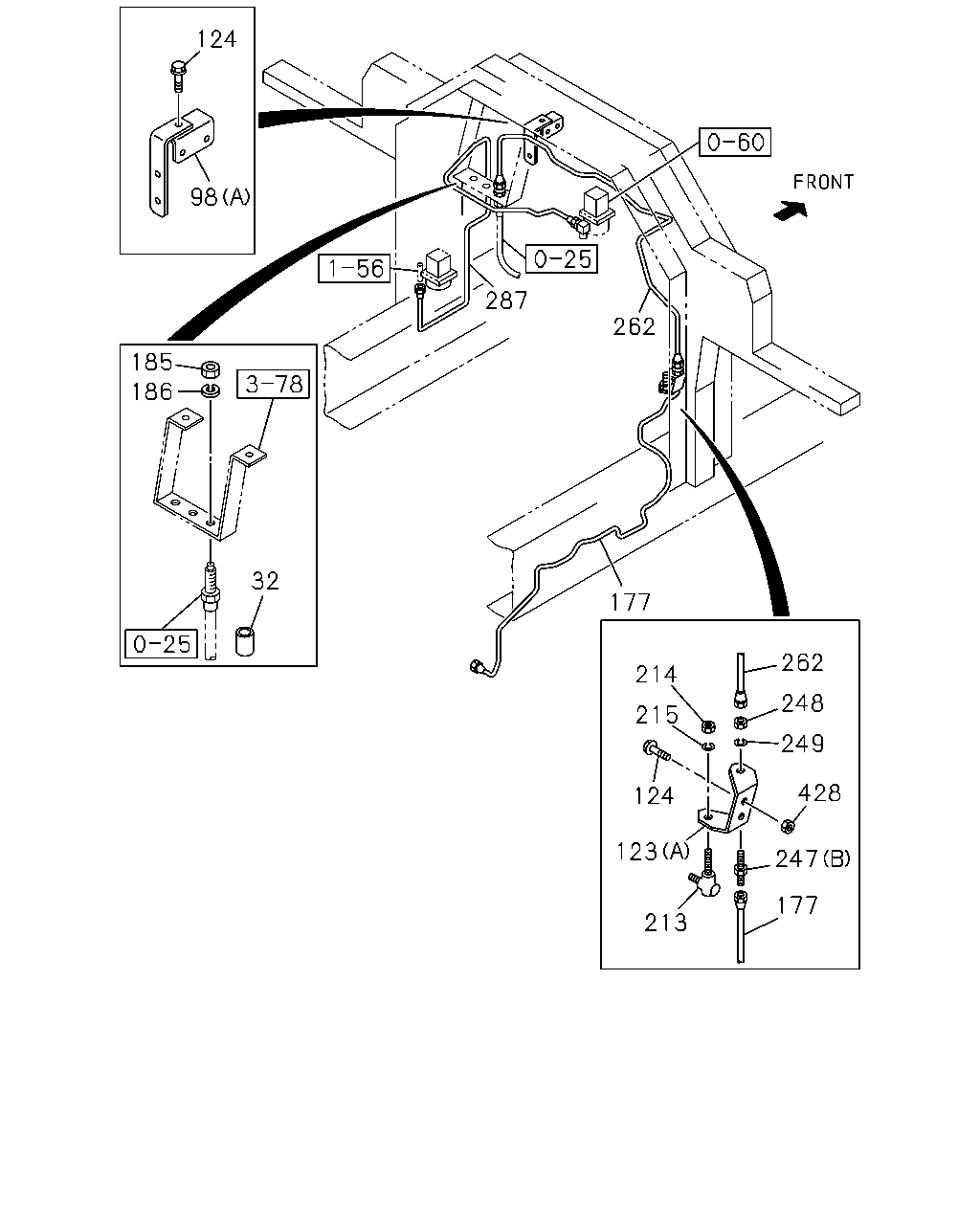

124 98 287 262 185 186 32 177 262 214 248 215 249 428 124 123 247 177 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	0105-0105
98	BRACKET; AIR PIPE (B) L=55	1-47475-304-0	01	1	0105-
98	BRACKET; AIR PIPE (A)	1-47477-471-0	01	1	0105-
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (B)	1-53458-742-1	01	1	0111-0211
123	BRACKET; UNION (B)	1-53457-110-0	01	1	0212-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
124	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION L=803	1-49122-235-0	01	1	0105-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0105-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0105-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0105-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0105-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0105-
247	UNION; AIR PIPE (A) M12 L=40	9-09223-006-1	01	1	0105-
247	UNION; AIR PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0105-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0105-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0105-
262	PIPE; AIR,UNION TO FLEX	1-49121-783-0	01	1	0105-
287	PIPE; AIR,MAG VLV	1-49122-365-0	01	1	0105-0202
287	PIPE; AIR,MAG VLV L=1269 SERVICED BY L=1370	1-47428-818-0	01	1	0203-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-

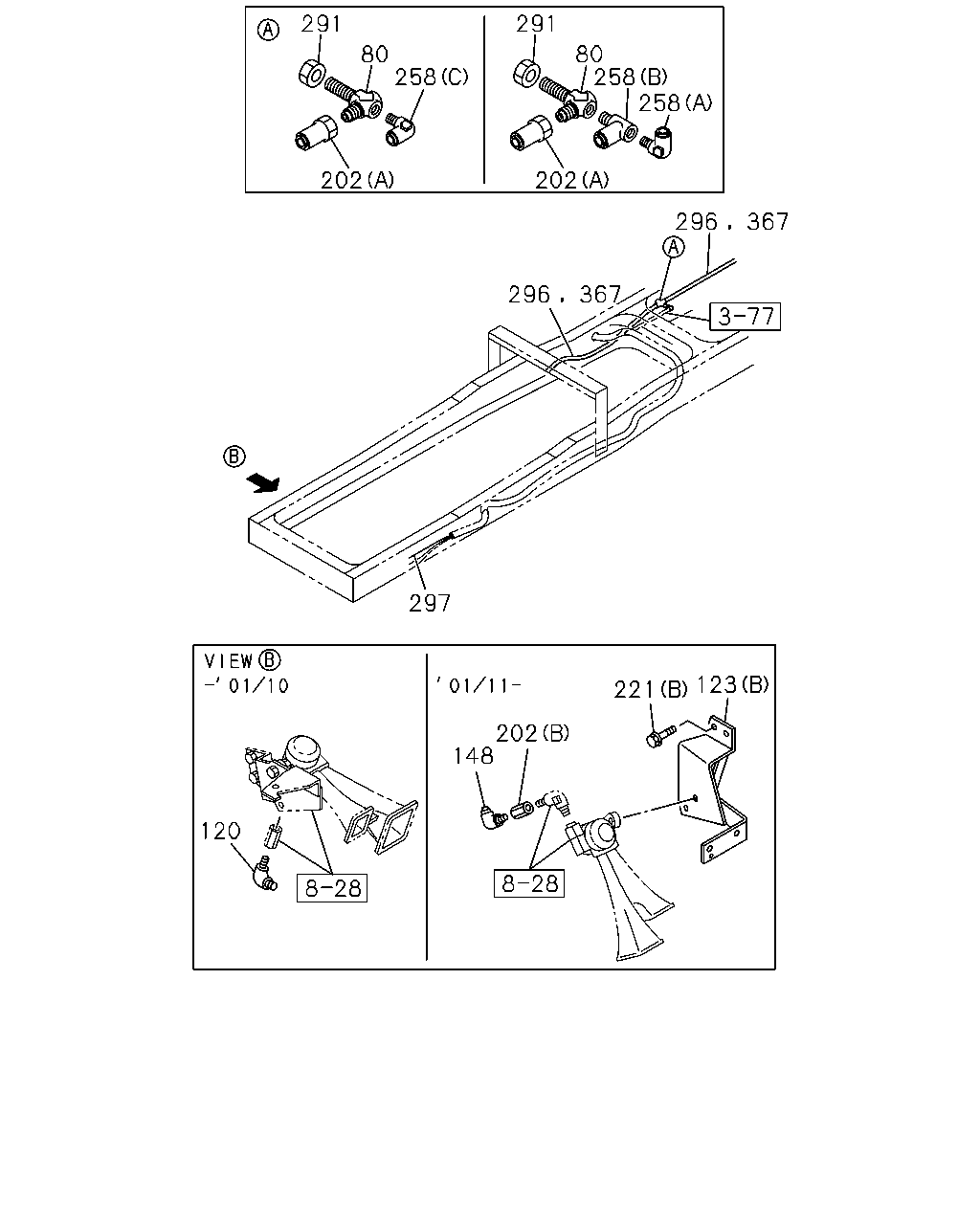

291 291 80 258 80 258 258 202 202 296 367 296 367 297 123 221 202 148 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY M16 & PT3/8 2WAY	1-09654-239-1	01	1	0105-
120	CONNECTOR; AIR PIPE EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0105
120	CONNECTOR; AIR PIPE DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0110
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (B)	1-53458-742-1	01	1	0111-0211
123	BRACKET; UNION (B)	1-53457-110-0	01	1	0212-
148	CONNECTOR; UNION DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-0305
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0306-
221	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (G) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0105-0110
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0111-
258	CONNECTOR; NYLON TUBE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
291	NUT; UNION M16	9-99110-516-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87410-089-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
