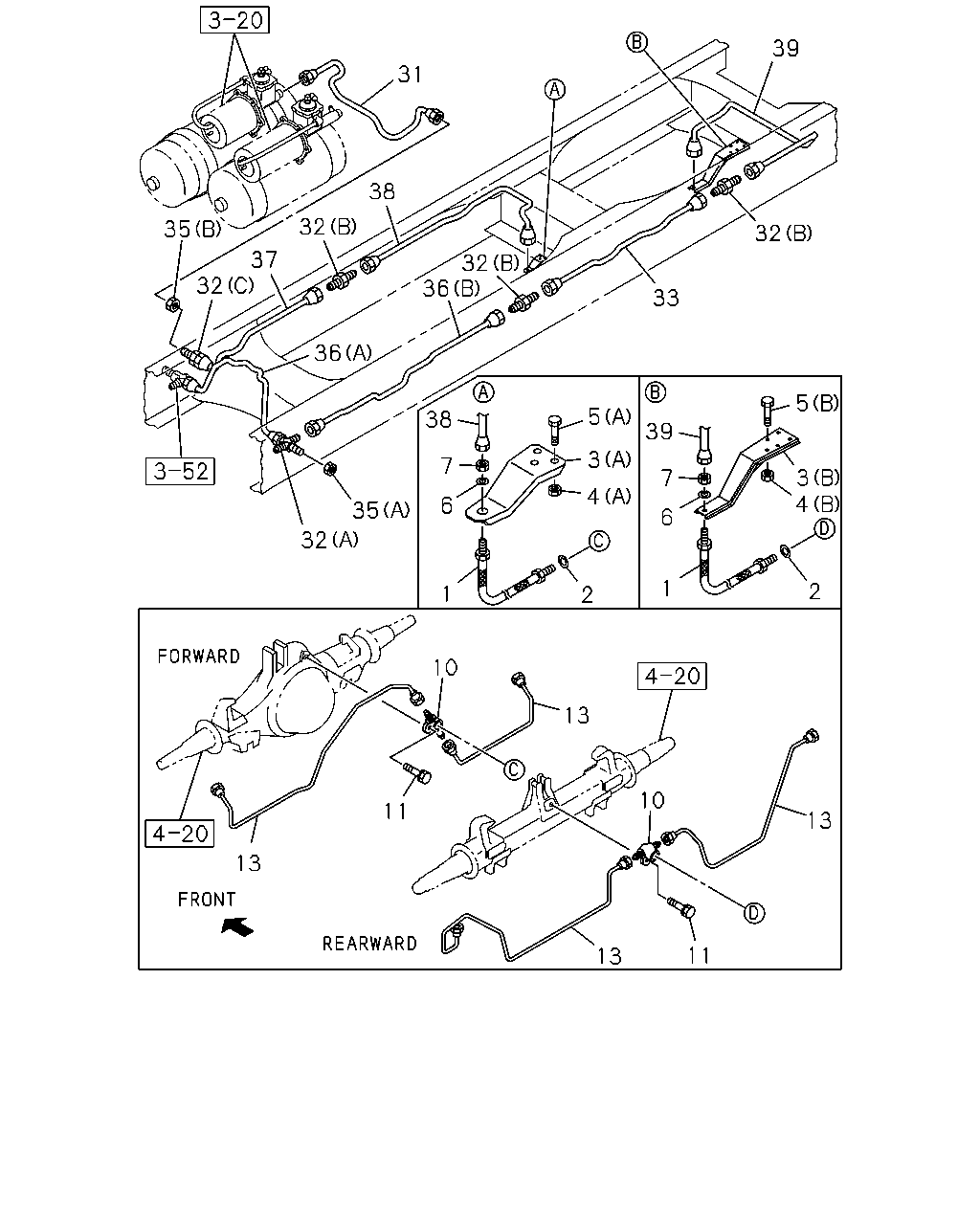

3-55 — BRAKE PIPING; OIL,REAR (#10882) — 40 parça

39 31 38 35 32 32 37 32 32 36 33 36 5 38 5 39 3 7 3 4 7 4 6 35 6 32 1 2 1 2 10 13 10 11 13 13 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	0105-
1	HOSE; FLEX,RR BRK FORWARD L=525	1-09364-191-0	01	1	0105-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	02	1	0105-
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	0105-
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47477-101-0	01	1	0105-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91150-108-0	02	1	0105-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE	0-91150-108-0	04	1	0105-
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X25 FLANGE	0-28080-825-0	02	1	0105-
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X25 FLANGE	0-28680-825-0	04	1	0105-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0105-
7	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0105-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0105-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0105-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0105-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0105-
13	PIPE; BRK,RR AXLE REARWARD	1-47415-518-0	01	1	0105-
13	PIPE; BRK,RR AXLE FORWARD	1-47429-461-0	01	1	0105-
13	PIPE; BRK,RR AXLE REARWARD	1-47415-517-0	01	1	0105-
13	PIPE; BRK,RR AXLE FORWARD	1-47429-460-0	01	1	0105-
31	PIPE; OIL,AIR MASTER TO UNION	1-47426-964-0	01	1	0105-
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	0105-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0105-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0105-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0105-
32	UNION; OIL PIPE (C) M12 L=66.5	9-09223-306-1	01	1	0105-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47426-359-0	01	1	0105-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6100MM(61W) L=2212 SERVICED BY L=2200	1-47426-360-0	01	1	0105-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47426-364-0	01	1	0105-
35	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0105-
35	NUT; UNION (B) M12	9-09840-280-0	01	1	0105-
36	PIPE; OIL,UNION TO UNION (A) L=2262 SERVICED BY L=2350	1-47426-361-0	01	1	0105-
36	PIPE; OIL,UNION TO UNION (B) L=1386 SERVICED BY L=1400	1-47426-389-0	01	1	0105-0105
36	PIPE; OIL,UNION TO UNION (B) L=1296 SERVICED BY L=1400	1-47426-389-0	01	1	0106-0111
36	PIPE; OIL,UNION TO UNION (B)	1-49166-420-0	01	1	0112-0304
36	PIPE; OIL,UNION TO UNION (B) L=1298 SERVICED BY L=1400	1-47426-389-0	01	1	0305-
37	PIPE; BRK,UNION TO UNION WHEEL BASE 5700MM(57W)	1-47429-640-0	01	1	0105-
37	PIPE; BRK,UNION TO UNION WHEEL BASE 6100MM(61W)	1-49165-755-0	01	1	0105-
37	PIPE; BRK,UNION TO UNION WHEEL BASE 6600MM(66W)	1-47429-641-0	01	1	0105-
38	PIPE; OIL,UNION TO FLEX HOSE L=2382	1-49161-331-0	01	1	0105-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47426-356-0	01	1	0105-
