3-52 — BRAKE PIPING; OIL,FRONT (#10881) — 24 parça

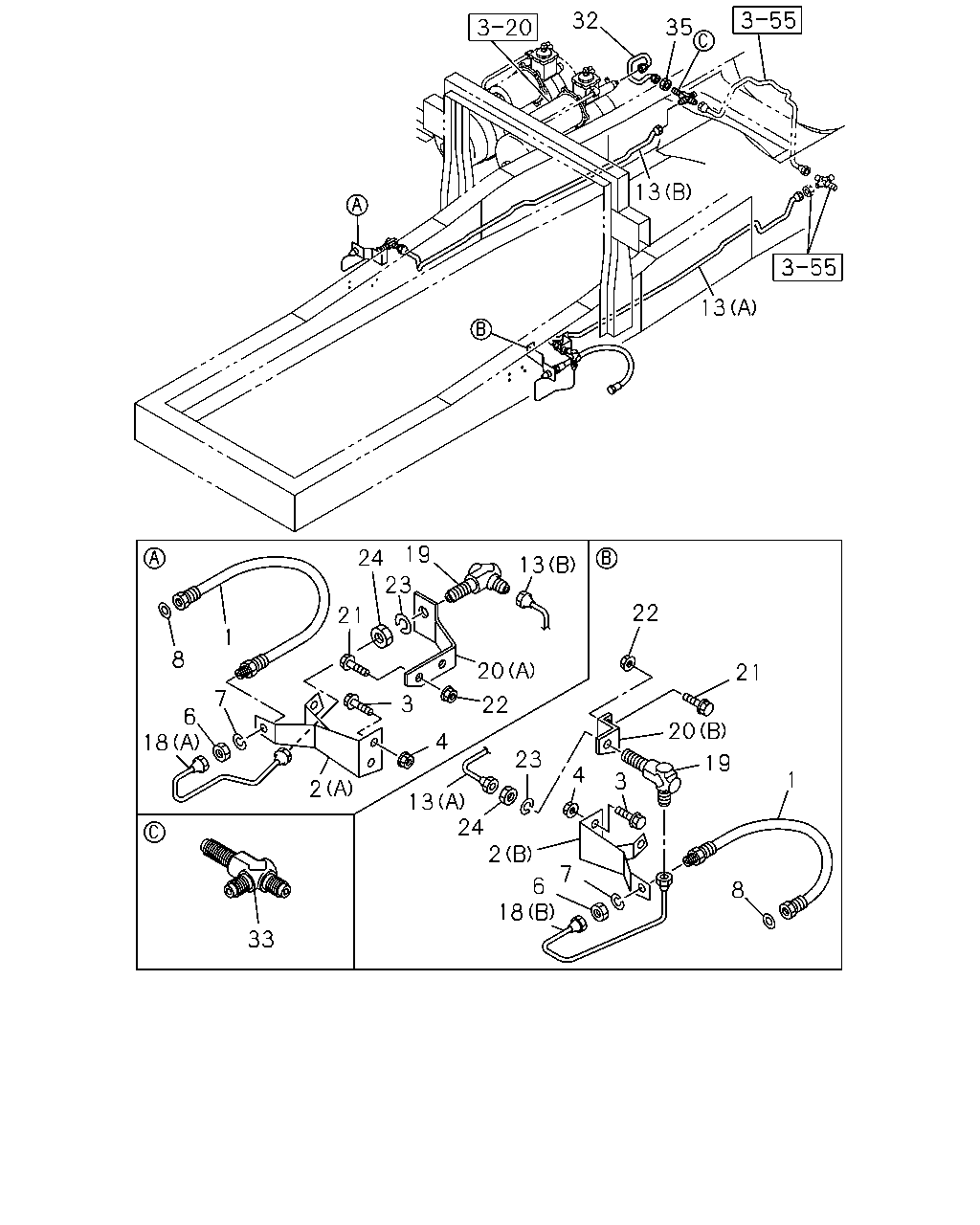

çizim 24966
32 35 13 13 19 24 23 13 22 21 1 8 20 21 7 3 22 6 18 20 4 23 19 4 1 3 2 13 24 2 7 6 18 8 33
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=600 		1-09364-197-0 02 1 0105-
2 BRACKET; FLEX HOSE,FRT BRK
(A) 		1-47477-343-1 01 1 0105-
2 BRACKET; FLEX HOSE,FRT BRK
(B) 		1-47477-553-0 01 1 0105-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X30 FLANGE 		0-28680-830-0 04 1 0105-
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 0105-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0105-
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0105-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0105-
13 PIPE; OIL,UNION TO UNION
(A) L=1712 SERVICED BY L=1820 		1-47426-358-0 01 1 0105-0105
13 PIPE; OIL,UNION TO UNION
(A) L=1724 SERVICED BY L=1820 		1-47426-358-0 01 1 0106-
13 PIPE; OIL,UNION TO UNION
(B) L=1633 SERVICED BY L=1700 		1-47426-357-0 01 1 0105-0505
13 PIPE; OIL,UNION TO UNION
(B) L=1635 SERVICED BY L=1700 		1-47426-357-0 01 1 0506-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=437 		1-47425-854-0 01 1 0105-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=417 		1-47429-250-0 01 1 0105-
19 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 02 1 0105-
20 BRACKET; UNION,OIL PIPE
(A) 		1-47475-222-5 01 1 0105-
20 BRACKET; UNION,OIL PIPE
(B) 		1-47476-168-1 01 1 0105-
21 BOLT; UNION BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
22 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
23 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 02 1 0105-
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 02 1 0105-
32 PIPE; OIL,AIR MASTER TO UNION
L=398 		1-47429-243-0 01 1 0105-
33 UNION; OIL PIPE
M12 & M14X2 3WAY 		1-09656-231-1 01 1 0105-
35 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 0105-
