Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#10880) — 39 parça
◀
[346A] FIXING (8 parça)
[346A] COMPONENT (22 parça)
[346A] THERMOSTAT,PISTON AND REPAIR KIT (9 parça)
▶
13
13
1
11
10
12
8
9
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-168-1
01
1
0105-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
0105-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0105-
9
CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
0105-
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28681-030-0
04
1
0105-
11
BRACKET; AIR DRYER
1-48317-713-0
01
1
0105-
12
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
04
1
0105-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
06
1
0105-
1
73
82
80
73
82
78
79
83
76
81
75
84
5
72
80
82
79
72
71
68
77
70
65
6
7

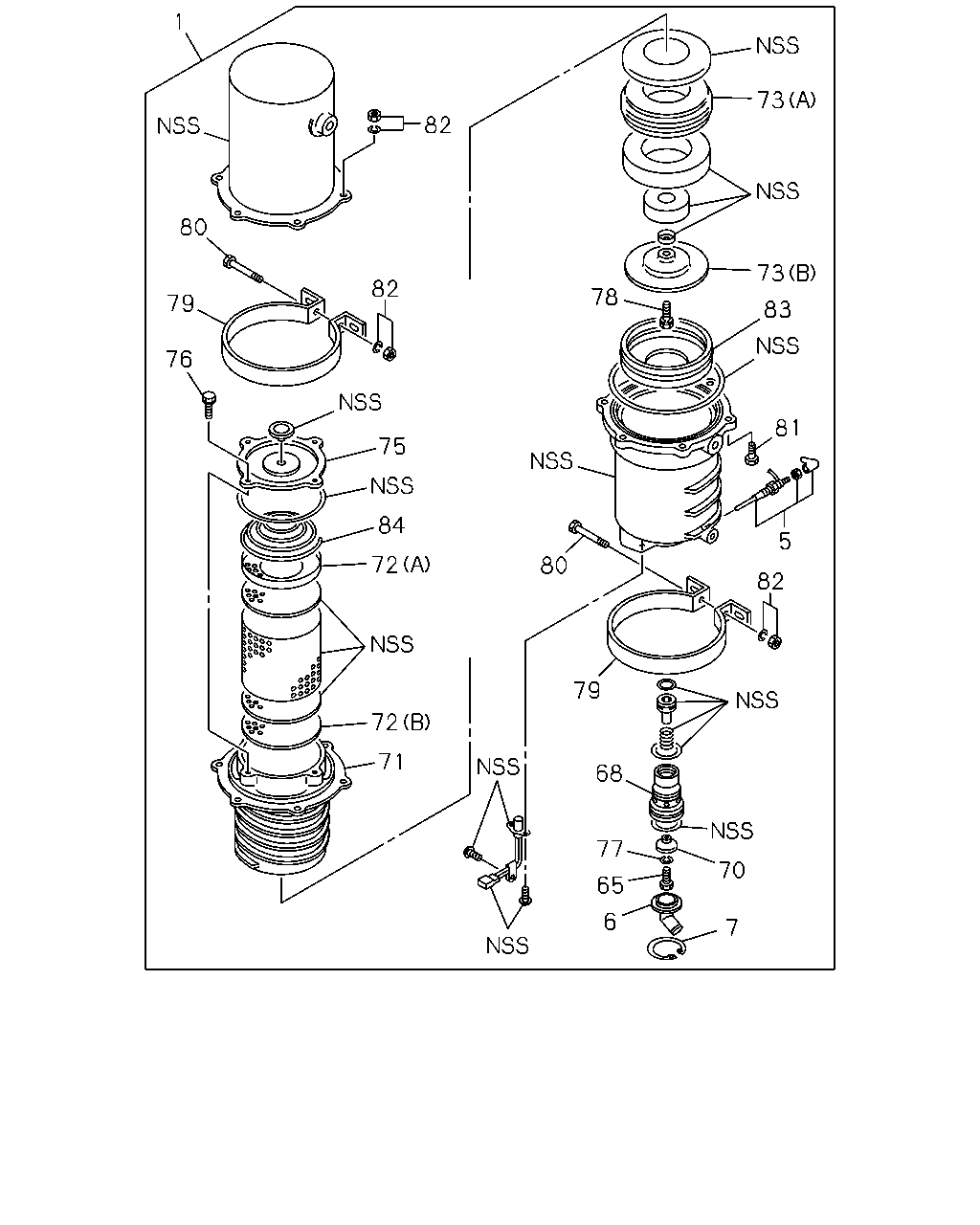

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-168-1
01
1
0105-
5
HEATER ASM; AIR DRYER
1-48199-200-0
01
1
0105-
6
COVER; EXH,AIR DRYER
1-48199-132-0
01
1
0105-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
0105-
65
BOLT; PURGE VLV
1-48199-102-0
01
1
0105-
68
BODY; VALVE
1-48199-216-0
01
1
0105-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0105-
71
CASE; INNER,AIR DRYER
1-48199-374-0
01
1
0105-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-097-0
01
1
0105-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-382-0
01
1
0105-
73
COVER; FILTER,AIR DRYER
(A)
1-48199-377-0
01
1
0105-
73
COVER; FILTER,AIR DRYER
(B)
1-48199-379-0
01
1
0105-
75
COVER; CASE,AIR DRYER
1-48199-383-0
01
1
0105-
76
BOLT; COVER,AIR DRYER
1-48199-385-0
04
1
0105-
77
WASHER; LK,VALVE
1-48199-103-0
01
1
0105-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-380-0
01
1
0105-
79
BRACKET; AIR DRYER
1-48199-209-0
02
1
0105-
80
BOLT; BRKT
1-48199-212-0
02
1
0105-
81
BOLT; CASE,AIR DRYER
1-48199-208-0
06
1
0105-
82
NUT; CASE,AIR DRYER
1-48199-320-0
08
1
0105-
83
BAFFLE; AIR DRYER
1-48199-381-0
01
1
0105-
84
SPRING; AIR DRYER
1-48199-092-0
01
1
0105-
2
3
68
70
77
65
7
6
4
70
7

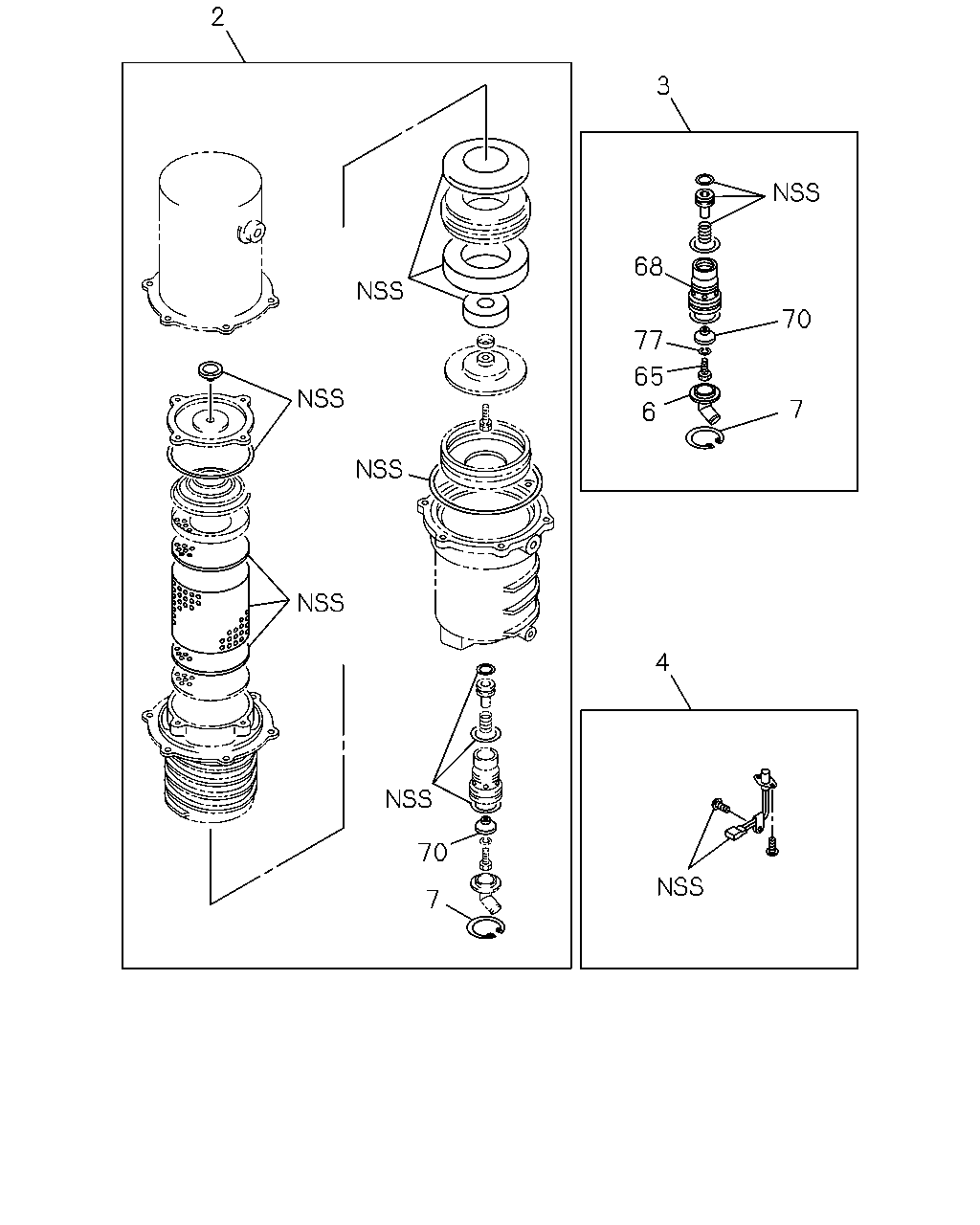

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-161-0
01
1
0105-
3
PISTON KIT; AIR DRYER
1-85576-084-0
01
1
0105-
4
THERMOSTAT KIT; AIR DRYER
1-85576-121-0
01
1
0105-
6
COVER; EXH,AIR DRYER
1-48199-132-0
01
1
0105-
7
RING; SNAP,AIR DRYER
1-48199-100-0
01
1
0105-
65
BOLT; PURGE VLV
1-48199-102-0
01
1
0105-
68
BODY; VALVE
1-48199-216-0
01
1
0105-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0105-
77
WASHER; LK,VALVE
1-48199-103-0
01
1
0105-
