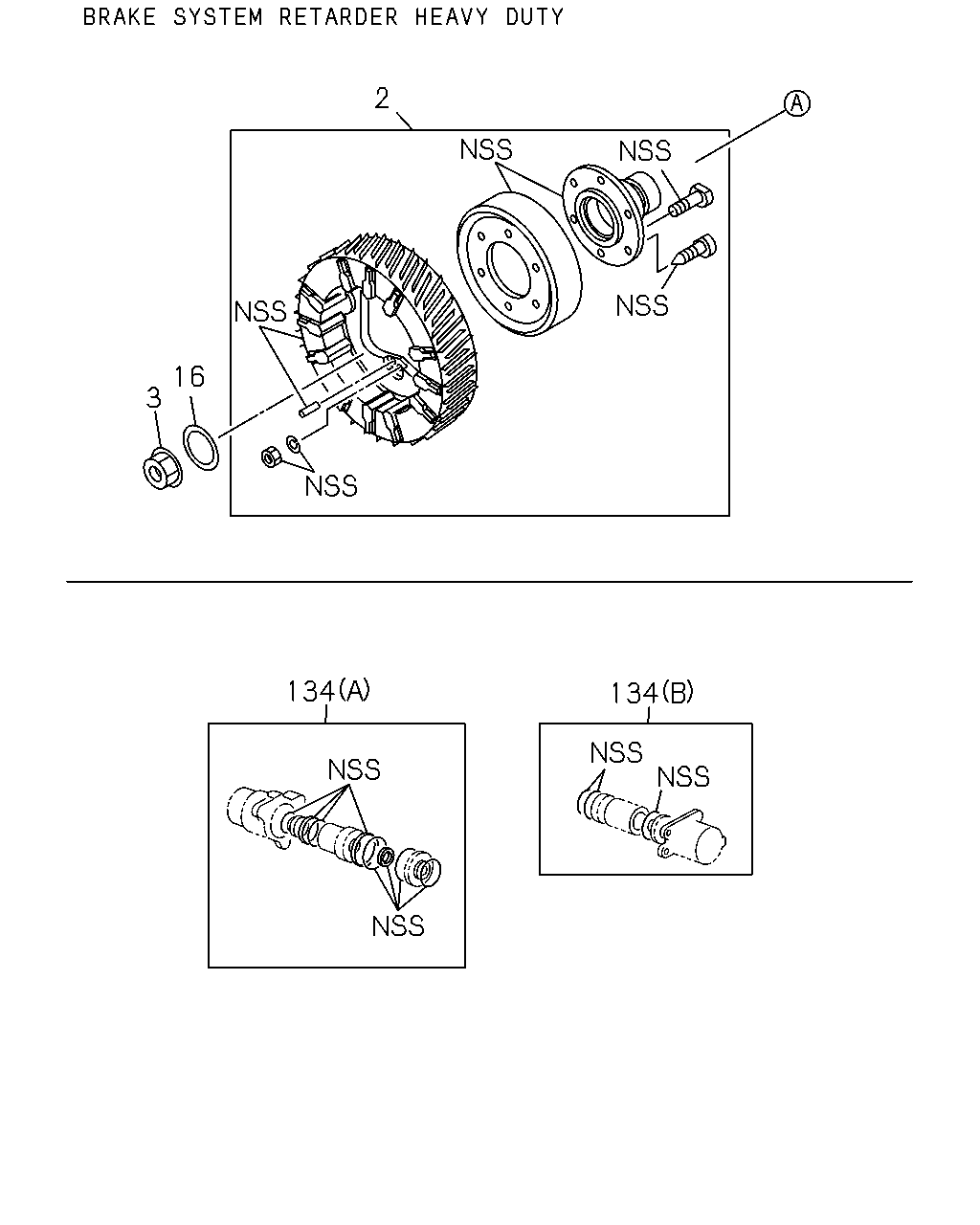

3-08 — PARKING BRAKE (#10873) — 107 parça

2 16 3 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-238-3	01	1	0105-
2	DRUM; PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46211-041-0	01	1	0105-
3	NUT; LK M46	1-09449-062-0	01	1	0105-
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0105-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0105-

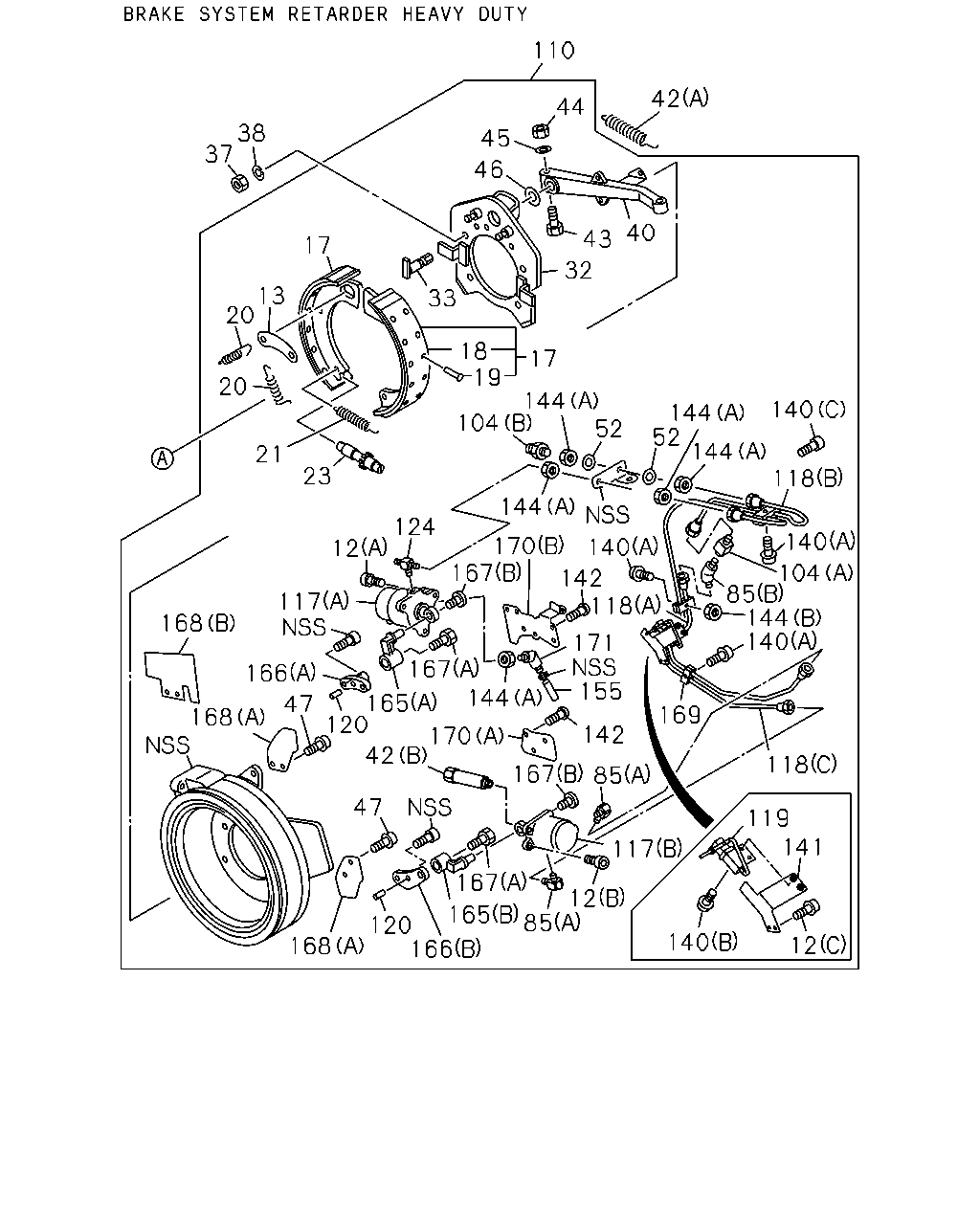

110 42 44 38 37 45 46 40 43 17 32 33 13 20 18 19 17 20 144 104 52 140 144 52 144 118 21 23 144 124 140 170 167 140 12 104 85 144 140 142 118 117 171 155 168 167 166 165 120 144 47 169 168 167 142 170 42 118 85 47 119 141 117 167 12 165 85 120 166 12 140 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-104-0	03	1	0105-
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-148-0	04	1	0105-
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0105-
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0105-
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0105-
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0105-
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0105-
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0105-
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0105-
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0105-
33	SHAFT; CAM,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46251-010-0	01	1	0105-
33	SHAFT; CAM,PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-46251-069-0	01	1	0105-
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	0105-
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0105-
40	LEVER; CM/SHF,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-047-0	01	1	0105-
40	LEVER; CM/SHF,PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-014-0	01	1	0105-
42	SPRING; RETURN,LEVER (A)	1-09583-128-0	01	1	0105-
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-071-1	01	1	0105-
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0105-
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0105-
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0105-
46	WASHER; LEVER	9-09855-362-0	01	1	0105-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	03	1	0105-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0105-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-150-0	01	1	0105-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 & PT1/8	9-09224-306-2	02	1	0105-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0105-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-188-0	01	1	0105-
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-271-2	01	1	0105-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0105-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0105-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0105-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0105-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0105-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0105-
120	PIN; KNOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-08150-616-0	02	1	0105-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-187-0	01	1	0105-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M10X20	1-48629-070-0	04	1	0105-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	02	1	0105-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X18	1-48629-134-0	03	1	0105-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0105-
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0105-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6 FLANGE	5-09440-004-0	01	1	0105-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12	9-09840-280-0	04	1	0105-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	0105-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0105-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0105-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0105-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0105-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0105-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0105-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-106-1	01	1	0105-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0105-
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0105-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0105-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-189-0	01	1	0105-
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0105-

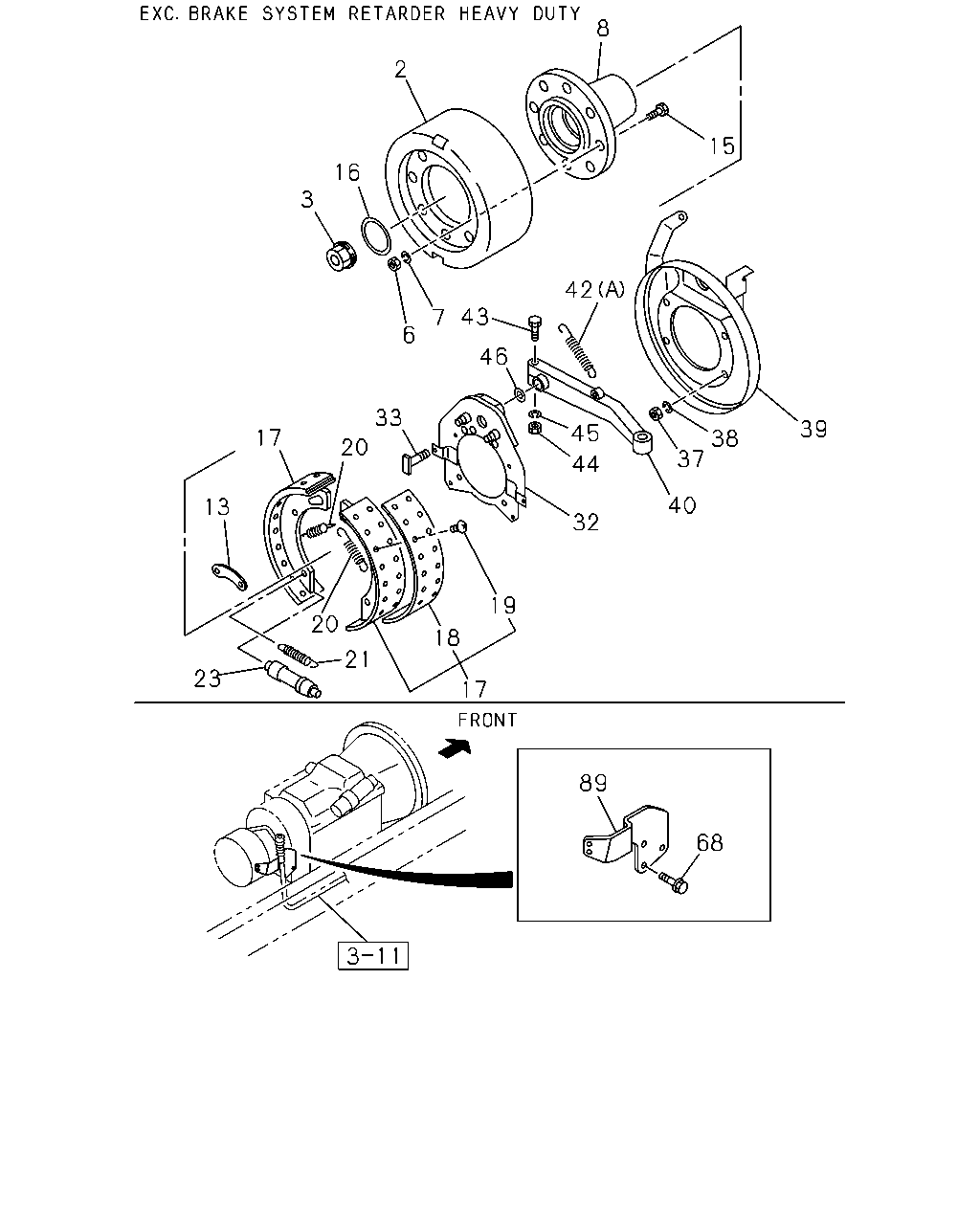

8 2 15 16 3 42 43 7 6 46 33 39 45 17 38 37 20 44 40 13 32 19 20 18 21 2 17 89 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-238-3	01	1	0105-
2	DRUM; PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46211-041-0	01	1	0105-
3	NUT; LK M46	1-09449-062-0	01	1	0105-
6	NUT; FLANGE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16	9-99110-516-0	02	1	0105-
7	WASHER; LK,FLANGE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.2	9-09150-516-0	02	1	0105-
8	FLANGE; PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-37243-187-0	01	1	0105-
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0105-
15	BOLT; FLANGE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X38	1-46219-010-0	02	1	0105-
15	BOLT; FLANGE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X59.5	1-46219-068-0	08	1	0105-
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0105-
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0105-
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0105-
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0105-
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0105-
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0105-
33	SHAFT; CAM,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46251-010-0	01	1	0105-
33	SHAFT; CAM,PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-46251-069-0	01	1	0105-
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	0105-
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0105-
39	COVER; DUST,PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46213-066-1	01	1	0105-
40	LEVER; CM/SHF,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-047-0	01	1	0105-
40	LEVER; CM/SHF,PARKING BRK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-014-0	01	1	0105-
42	SPRING; RETURN,LEVER (A)	1-09583-128-0	01	1	0105-
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-071-1	01	1	0105-
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0105-
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0105-
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0105-
46	WASHER; LEVER	9-09855-362-0	01	1	0105-
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	0105-
89	BRACKET; PARKING BRK CONT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46147-218-2	01	1	0105-
89	BRACKET; PARKING BRK CONT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46147-198-1	01	1	0105-

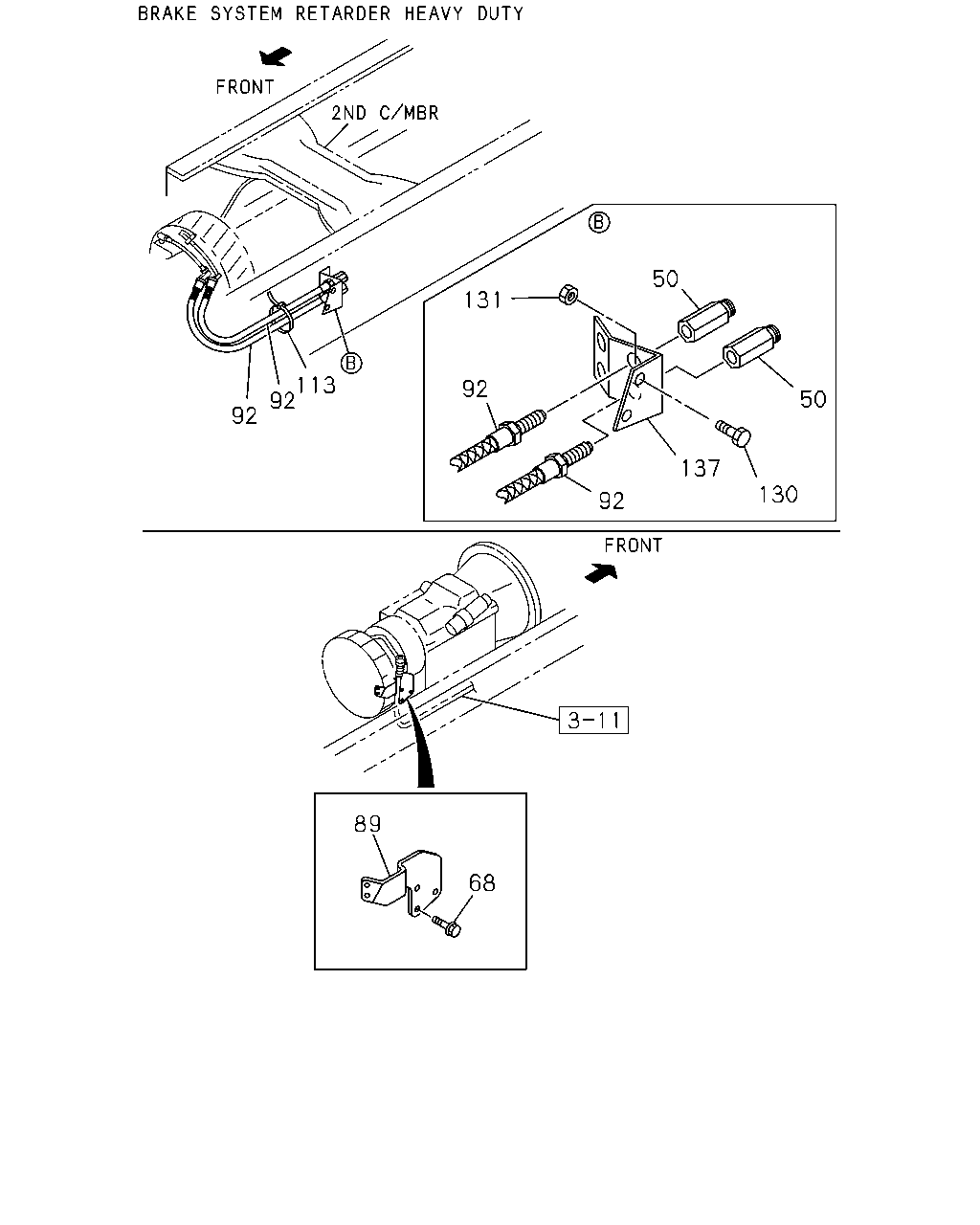

50 131 113 92 92 92 137 130 92 89 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0105-
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	0105-
89	BRACKET; PARKING BRK CONT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46147-218-2	01	1	0105-
89	BRACKET; PARKING BRK CONT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46147-198-1	01	1	0105-
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=430	1-09363-623-0	02	1	0105-0302
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> OD=12.7 L=450	1-09363-631-0	02	1	0303-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=10 & 10	1-09709-277-1	01	1	0105-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28080-825-0	02	1	0105-
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0105-
137	BRACKET; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-47477-635-0	01	1	0105-
