2-20 — MANUAL TRANSMISSION ASM AND CASE (#10860) — 77 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

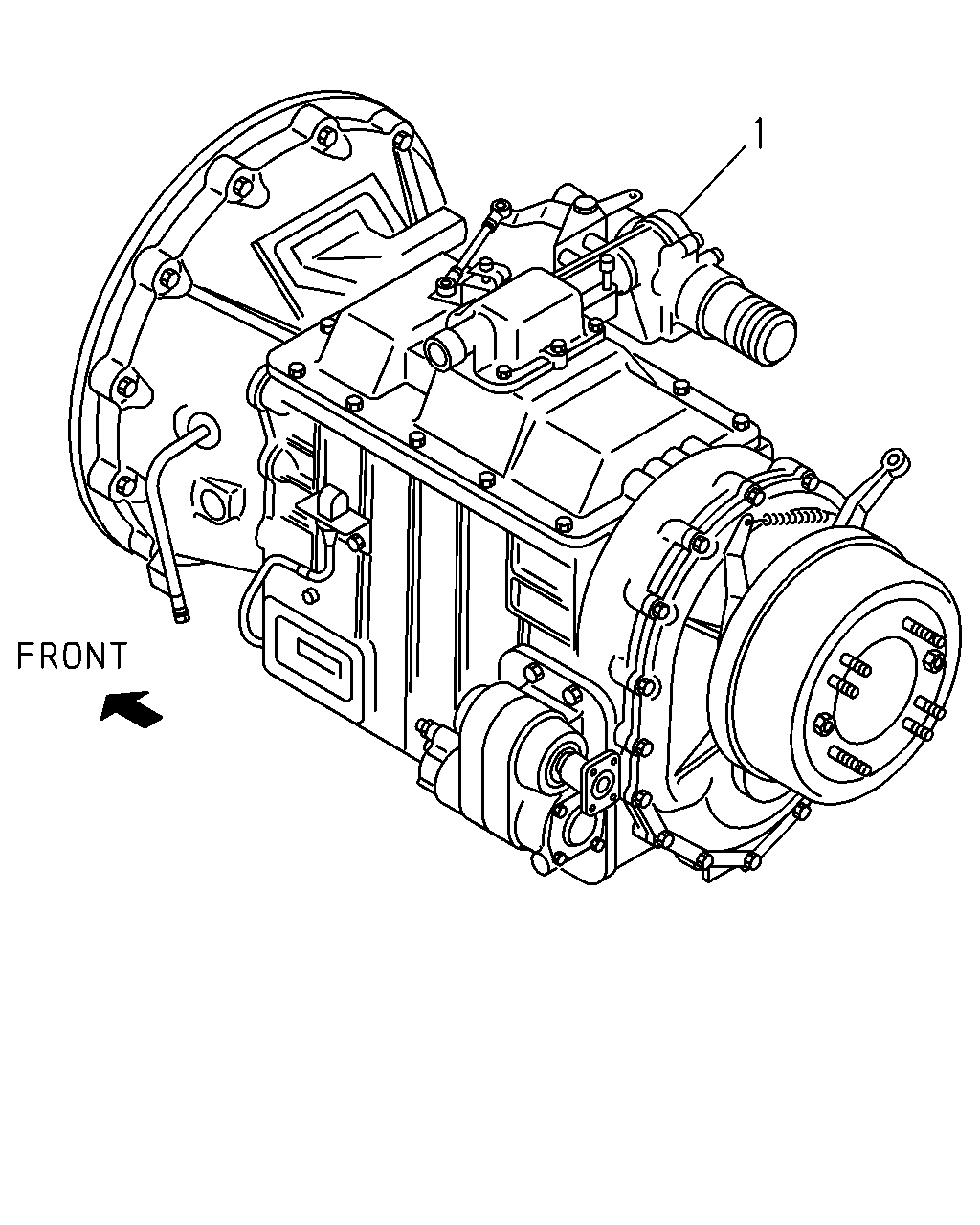

	1	TRANSMISSION ASM; MANUAL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-33043-200-0	01	1	0105-
	1	TRANSMISSION ASM; MANUAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-33043-198-0	01	1	0105-

103 421 97 90 86 86 430 50 104 429 435 45 417 417 83 33 27 28 24 25 37 36 2 36 37 35 29 32 561 561 560 332 559 496 119 121 117 117 72 71 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

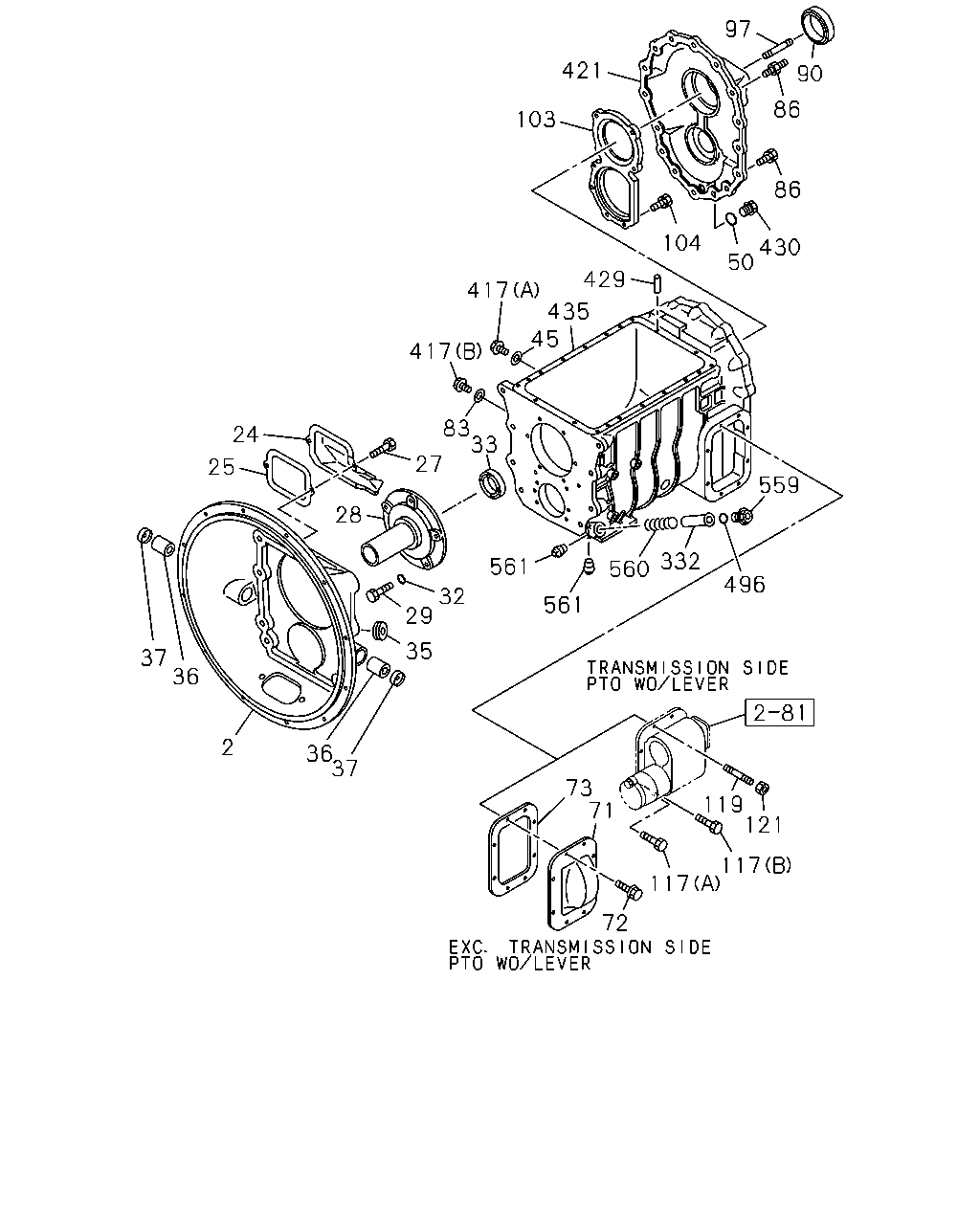

2	HOUSING; CLU	1-31111-203-0	01	1	0105-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0105-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0105-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0105-
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0105-
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0105-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0105-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0105-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0105-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0105-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0105-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0105-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0105-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0105-
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0105-0106
86	BOLT; RR COVER M12X30 FLANGE	0-28181-230-0	14	1	0105-
86	BOLT; RR COVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X30 FLANGE	0-28181-230-0	02	1	0105-
86	BOLT; RR COVER EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0105-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0105-
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0105-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0105-
103	RETAINER; BRG	1-33151-059-0	01	1	0105-
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0105-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0105-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X25 FLANGE	0-28181-225-0	02	1	0105-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X120 FLANGE	0-28186-212-0	02	1	0105-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0105-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0105-
332	FILTER; OIL	1-41383-003-0	01	1	0105-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0105-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0105-0201
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-
421	COVER; RR,TRANS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-33131-237-0	01	1	0105-
421	COVER; RR,TRANS EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-33131-201-1	01	1	0105-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0105-
435	CASE; TRANS	1-33111-321-0	01	1	0105-0510
435	CASE; TRANS	1-33111-356-0	01	1	0511-
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0105-
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0105-
560	SPRING; OIL	1-09580-504-0	01	1	0105-
561	PLUG PT1/4	9-99204-513-0	02	1	0105-

245 245 245 410 404 410 404 405 175 245 179 287 270 265 270 178 439 27 245 265 287 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0105-0105
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-

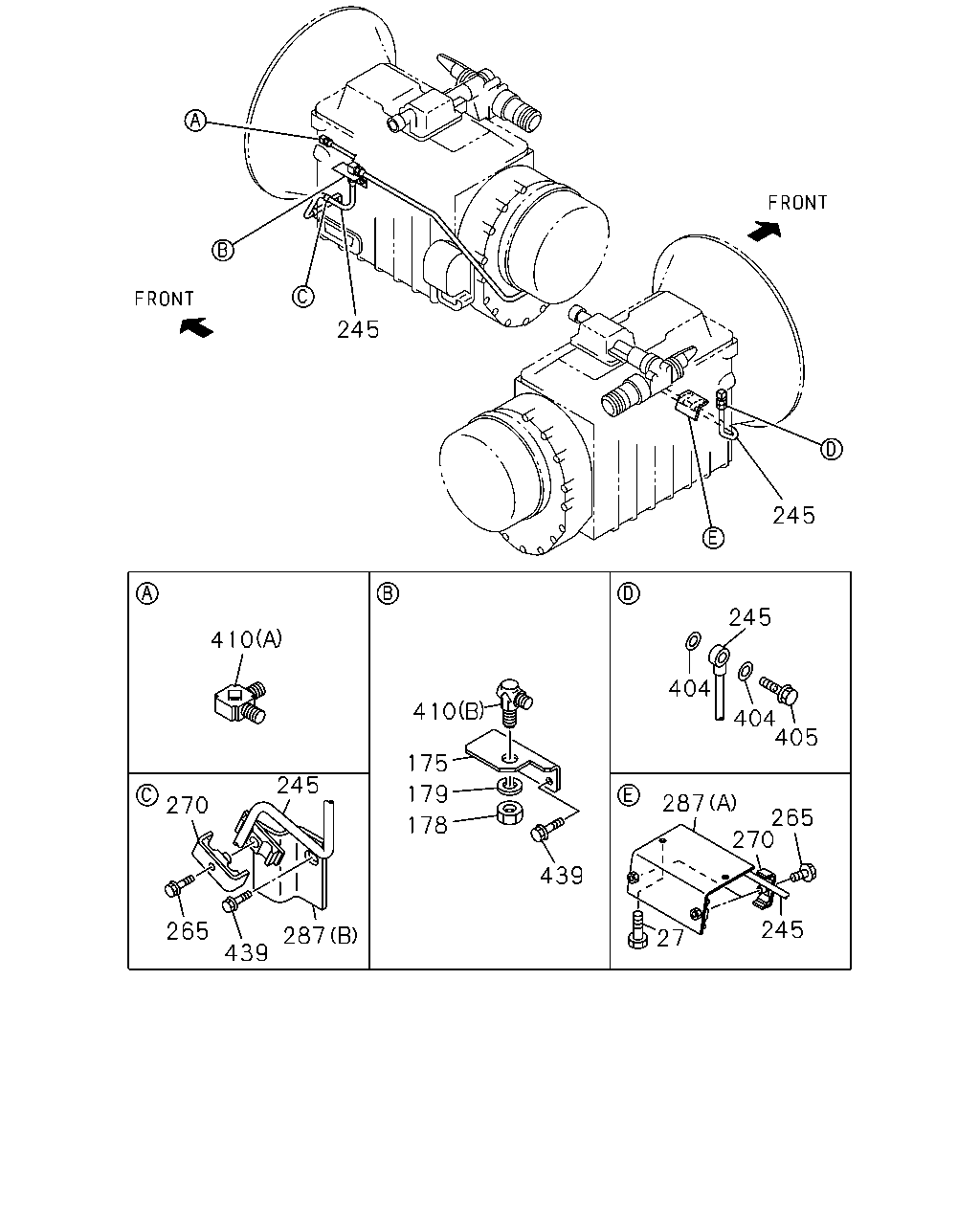

175	BRACKET; UNION	1-46147-216-2	01	1	0105-
178	NUT; UNION M16	9-99111-516-0	01	1	0105-
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0105-
245	PIPE; OIL L=738	1-32571-147-0	01	1	0105-
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0105-
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0105-
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0105-
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0105-
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0105-
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0105-
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0105-

435 260 429 264 329 264 329 502 328 319 503 527 498 500 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

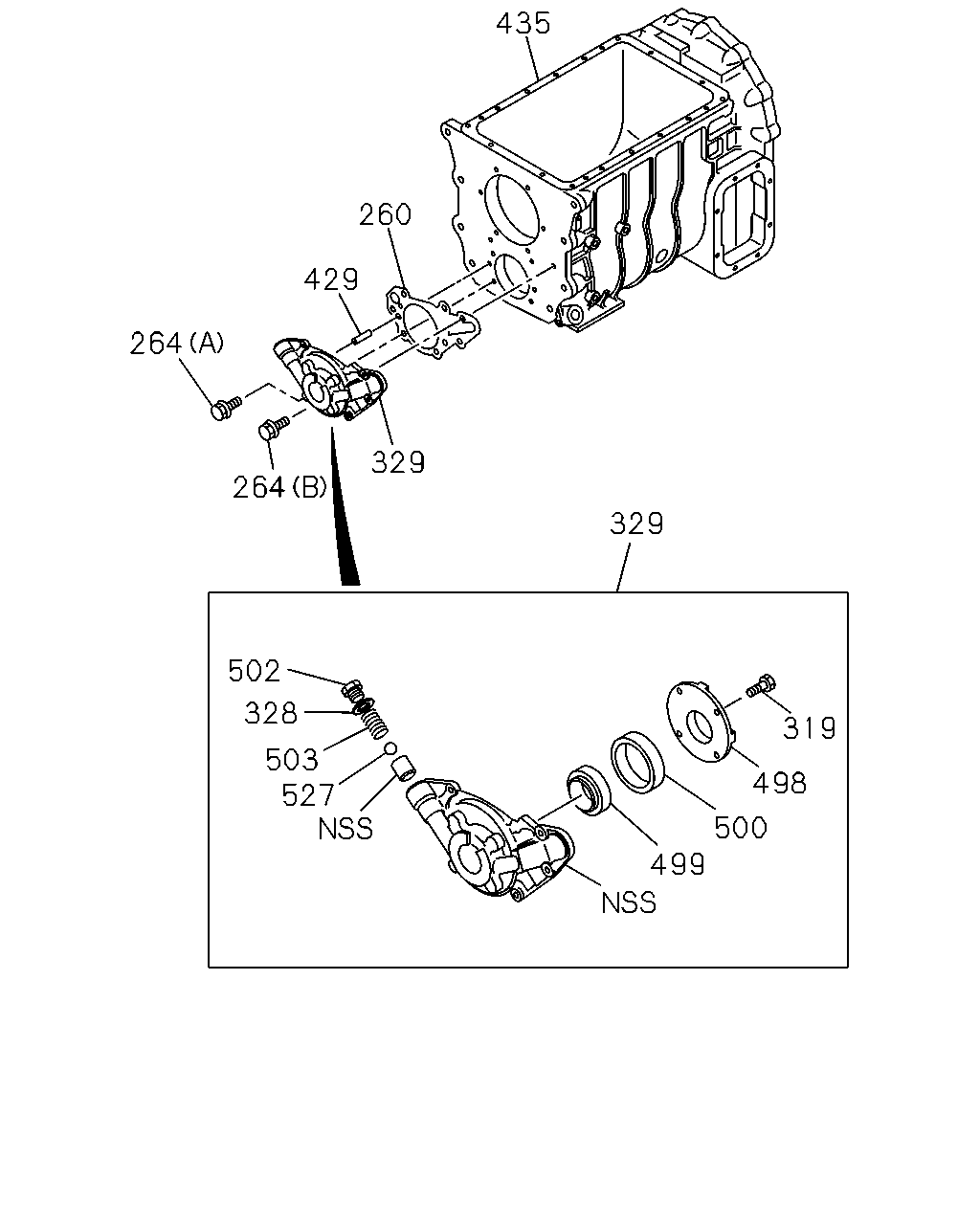

260	GASKET; OIL PUMP	1-34142-026-0	01	1	0105-
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0105-
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0105-
319	BOLT; COVER	1-34159-075-0	04	1	0105-
328	GASKET; PLUG	8-94244-656-0	01	1	0105-
329	PUMP ASM; OIL	1-34150-098-0	01	1	0105-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0105-
435	CASE; TRANS	1-33111-321-0	01	1	0105-0510
435	CASE; TRANS	1-33111-356-0	01	1	0511-
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0105-
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0105-
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0105-
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0105-
503	SPRING; OIL PUMP	5-09580-098-0	01	1	0105-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0105-
