Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#1086) — 362 parça

114 98 63 47 29 19 47 27 29 96 97 62 45 47 29 79 8 12 31 2 9 30 35 33 12 12 34 38 82 4 52 4 1 52 12 65 134 82 81 66 68 6 1 52 52 52 25 14 7 14 25

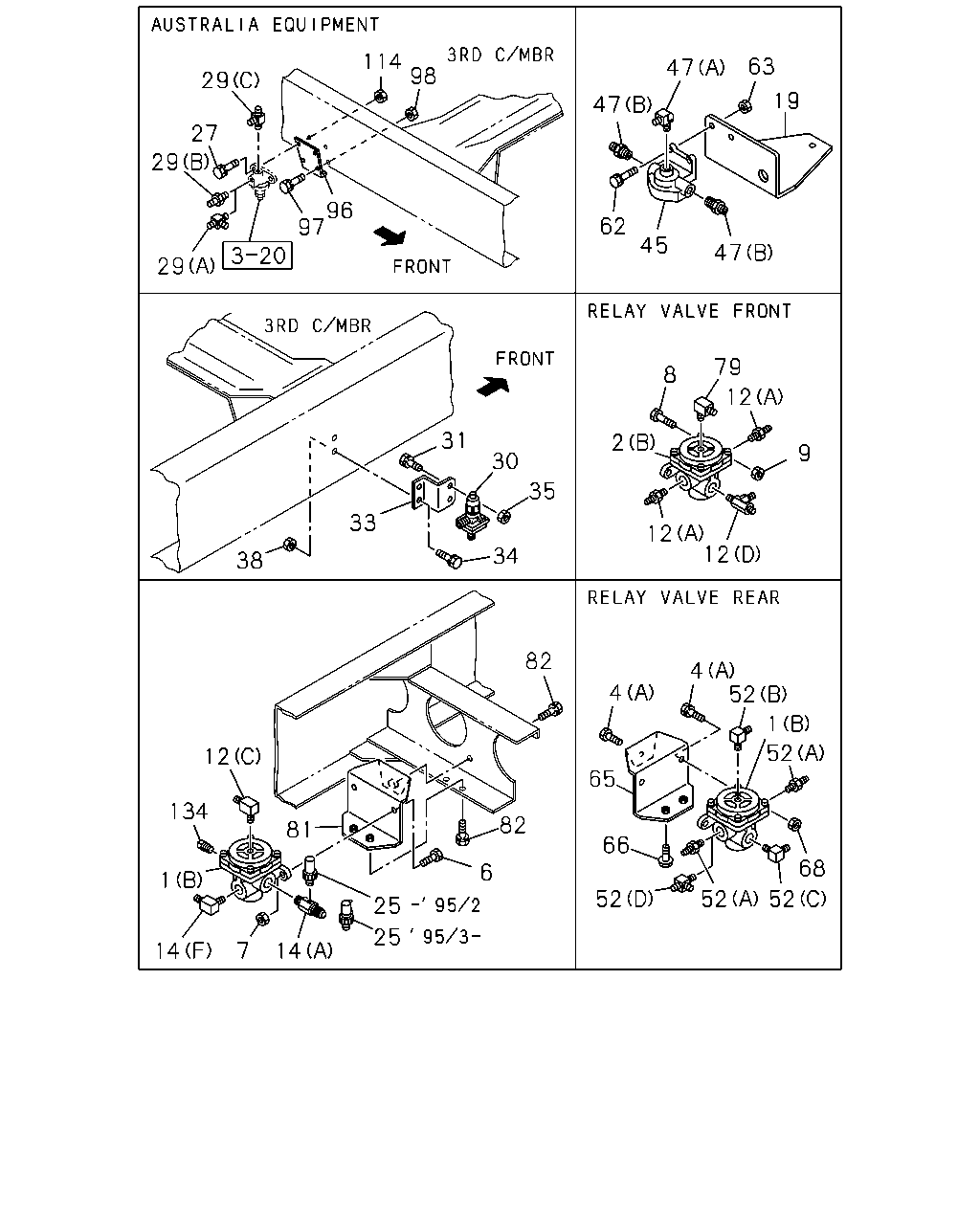

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-408-0	01	1	9202-9202	●	●
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48210-278-0	01	1	9203-9307	●	●
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-278-0	01	1	9308-		●
2	VALVE; RELAY (C)	1-48210-407-0	01	1	9202-9202	●	●
2	VALVE; RELAY (D)	1-48210-408-0	02	1	9202-9202	●	●
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9203-	●	●
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9202-9307	●	●
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48210-143-0	01	1	9308-		●
4	BOLT; RELAY VLV TO BRKT (A) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●	●
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	01	1	9202-9202	●	●
4	BOLT; RELAY VLV TO BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-116-0	01	1	9202-9202	●	●
6	BOLT; VLV M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●	●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9202-	●	●
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●	●
9	NUT M10	9-09110-510-0	02	1	9202-	●	●
12	CONNECTOR; RELAY VLV (A)	1-09650-406-0	02	1	9202-9202	●	●
12	CONNECTOR; RELAY VLV (A)	1-09650-245-1	02	1	9203-	●	●
12	CONNECTOR; RELAY VLV (B)	1-09660-540-0	01	1	9202-9202	●	●
12	CONNECTOR; RELAY VLV (B)	1-09660-569-0	01	1	9203-9205	●	●
12	CONNECTOR; RELAY VLV (C)	1-09660-570-0	01	1	9206-	●	●
12	CONNECTOR; RELAY VLV (D)	1-09660-645-0	01	1	9203-	●	●
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9202-9202	●	●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9203-	●	●
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-287-0	01	1	9202-	●	●
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-290-0	01	1	9202-	●	●
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-0	01	1	9202-9202	●	●
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-571-0	01	1	9203-9307	●	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (F)	1-09660-571-0	01	1	9308-		●
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9202-9202	●	●
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1)	1-48495-135-0	01	1	9203-		●
25	SWITCH; PRESSURE	1-82410-138-0	01	1	9202-9502	●	●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9503-	●	●
27	BOLT; AIR VLV AUSTRALIA EQUIPMENT(RR3) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9202-	●
29	CONNECTOR; AIR VLV AUSTRALIA EQUIPMENT(RR3) (A)	1-09660-594-0	01	1	9202-9205	●
29	CONNECTOR; AIR VLV AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-577-0	01	1	9206-	●
29	CONNECTOR; AIR VLV AUSTRALIA EQUIPMENT(RR3) (C)	1-09664-182-0	01	1	9202-	●
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9202-9208	●	●
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
33	BRACKET; GOV,AIR CONT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7>	1-48359-069-0	01	1	9202-		●
33	BRACKET; GOV,AIR CONT 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7>	1-48359-045-0	01	1	9202-9202		●
33	BRACKET; GOV,AIR CONT 6HE1 STD ENG(46L)	1-48359-045-0	01	1	9202-9202		●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9203-	●
33	BRACKET; GOV,AIR CONT 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7>	1-48359-045-0	01	1	9203-		●
33	BRACKET; GOV,AIR CONT 6HE1 STD ENG(46L)	1-48359-045-0	01	1	9203-		●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28010-825-0	02	1	9202-9202		●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28010-825-0	02	1	9203-9204	●	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9202-	●	●
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9202-		●
45	VALVE; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-052-1	01	1	9203-9307		●
45	VALVE; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-320-0	01	1	9308-		●
47	CONNECTOR; RELAY VLV,CONT HONG KONG EQUIPMENT(PQ1) (A)	1-09656-056-1	01	1	9203-9302		●
47	CONNECTOR; RELAY VLV,CONT HONG KONG EQUIPMENT(PQ1) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-		●
47	CONNECTOR; RELAY VLV,CONT HONG KONG EQUIPMENT(PQ1) (B)	1-09660-569-0	02	1	9203-		●
52	CONNECTOR; RELAY VLV EXC. AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9308-	●
52	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9308-		●
52	CONNECTOR; RELAY VLV EXC. AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-475-1	01	1	9308-	●
52	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-475-1	01	1	9308-		●
52	CONNECTOR; RELAY VLV (A)	1-09650-407-0	02	1	9202-9202	●	●
52	CONNECTOR; RELAY VLV (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9203-9307	●	●
52	CONNECTOR; RELAY VLV AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9308-	●
52	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9308-		●
52	CONNECTOR; RELAY VLV (B)	1-09660-530-0	01	1	9202-9202	●	●
52	CONNECTOR; RELAY VLV (B)	1-09660-570-0	01	1	9203-	●	●
52	CONNECTOR; RELAY VLV (C)	1-09660-532-0	01	1	9202-9202	●	●
52	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9203-	●	●
62	BOLT; BRKT FIX HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	02	1	9203-		●
63	NUT; BRKT FIX HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-208-0	02	1	9203-		●
65	BRACKET; RELAY VLV RR	1-48495-132-0	01	1	9203-	●	●
66	BOLT; BRKT,RELAY VLV RR M8X20 FLANGE	0-28080-820-0	03	1	9203-	●	●
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9202-	●	●
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09660-295-0	01	1	9202-	●	●
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09660-530-0	01	1	9202-9202	●	●
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09660-570-0	01	1	9203-9307	●	●
79	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1)	1-09660-570-0	01	1	9308-		●
81	BRACKET; RELAY VLV,PARKING BRK EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48495-132-0	01	1	9203-	●	●
82	BOLT; BRKT,RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	03	1	9203-	●	●
96	BRACKET AUSTRALIA EQUIPMENT(RR3)	1-48195-058-0	01	1	9202-	●
97	BOLT; VLV BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
97	BOLT; VLV BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
98	NUT; VLV BRKT AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9202-	●
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9209-9310	●	●
114	NUT; VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9311-	●	●
134	PLUG; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PT1/2	9-09204-521-0	01	1	9202-9202	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9203-	●	●
134	PLUG; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09605-103-0	01	1	9202-9202	●	●

25 2 1 14 14 7 79 10 25 134 14 10 14 134 10 14 6 2 2 9 7 10 52 52 52 12 6 12 52 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

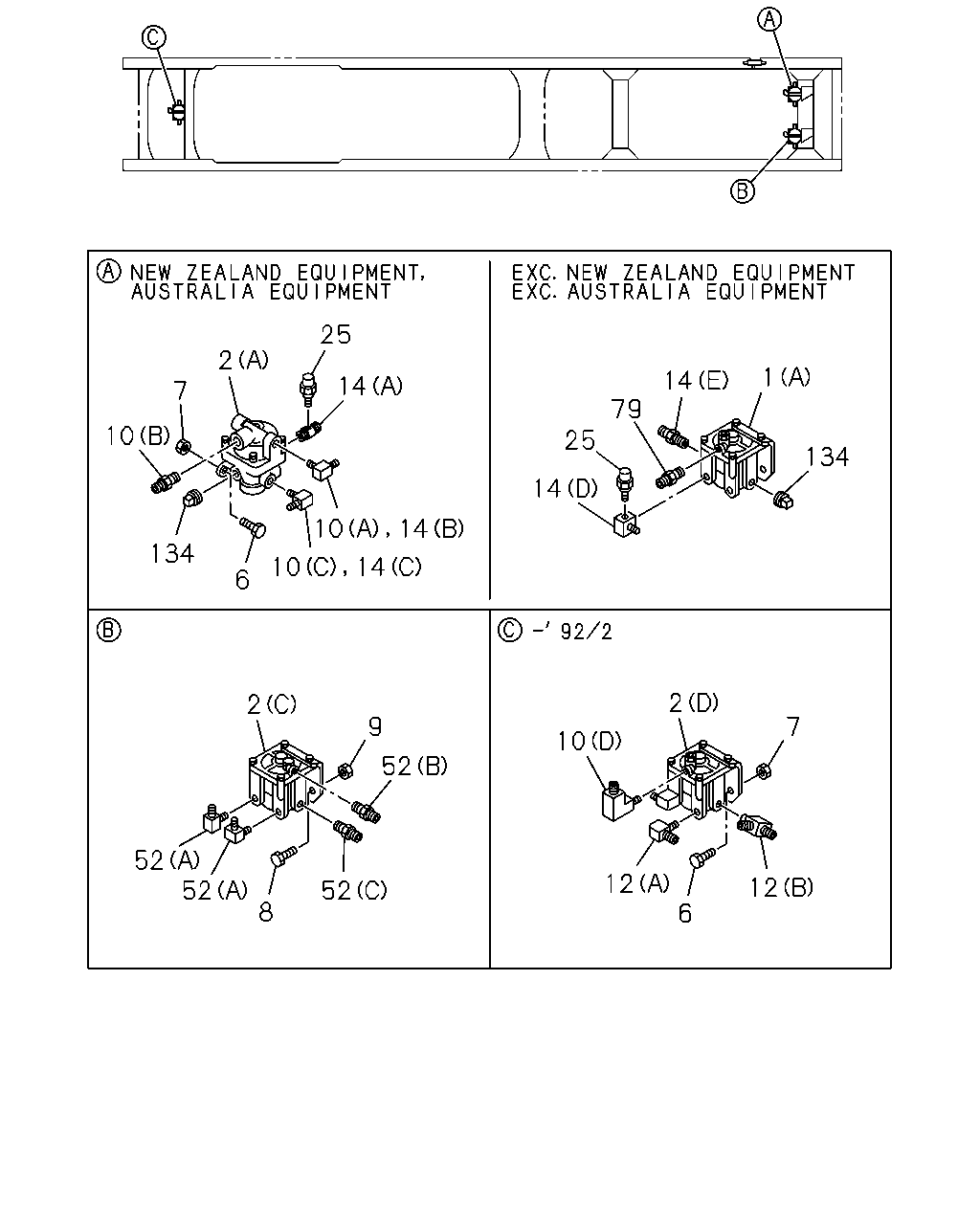

1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-408-0	01	1	9202-9202	●	●
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48210-278-0	01	1	9203-9307	●	●
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-278-0	01	1	9308-		●
2	VALVE; RELAY (C)	1-48210-407-0	01	1	9202-9202	●	●
2	VALVE; RELAY (D)	1-48210-408-0	02	1	9202-9202	●	●
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9203-	●	●
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9202-9307	●	●
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48210-143-0	01	1	9308-		●
6	BOLT; VLV M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●	●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9202-	●	●
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●	●
9	NUT M10	9-09110-510-0	02	1	9202-	●	●
10	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9308-	●
10	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9308-		●
10	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-569-0	01	1	9308-	●
10	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-569-0	01	1	9308-		●
10	CONNECTOR EXC. AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9308-	●
10	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-571-0	01	1	9308-		●
10	CONNECTOR (D)	1-09660-533-0	01	1	9202-9202	●	●
12	CONNECTOR; RELAY VLV (A)	1-09650-406-0	02	1	9202-9202	●	●
12	CONNECTOR; RELAY VLV (A)	1-09650-245-1	02	1	9203-	●	●
12	CONNECTOR; RELAY VLV (B)	1-09660-540-0	01	1	9202-9202	●	●
12	CONNECTOR; RELAY VLV (B)	1-09660-569-0	01	1	9203-9205	●	●
12	CONNECTOR; RELAY VLV (C)	1-09660-570-0	01	1	9206-	●	●
12	CONNECTOR; RELAY VLV (D)	1-09660-645-0	01	1	9203-	●	●
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09656-476-0	01	1	9202-9202	●	●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9203-	●	●
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-287-0	01	1	9202-	●	●
14	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-09660-290-0	01	1	9202-	●	●
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-641-0	01	1	9202-9202	●	●
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (F)	1-09660-571-0	01	1	9203-9307	●	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (F)	1-09660-571-0	01	1	9308-		●
14	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (E)	1-09660-532-0	01	1	9202-9202	●	●
25	SWITCH; PRESSURE	1-82410-138-0	01	1	9202-9502	●	●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9503-	●	●
52	CONNECTOR; RELAY VLV EXC. AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9308-	●
52	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9308-		●
52	CONNECTOR; RELAY VLV EXC. AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-475-1	01	1	9308-	●
52	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (D)	1-09656-475-1	01	1	9308-		●
52	CONNECTOR; RELAY VLV (A)	1-09650-407-0	02	1	9202-9202	●	●
52	CONNECTOR; RELAY VLV (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9203-9307	●	●
52	CONNECTOR; RELAY VLV AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9308-	●
52	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9308-		●
52	CONNECTOR; RELAY VLV (B)	1-09660-530-0	01	1	9202-9202	●	●
52	CONNECTOR; RELAY VLV (B)	1-09660-570-0	01	1	9203-	●	●
52	CONNECTOR; RELAY VLV (C)	1-09660-532-0	01	1	9202-9202	●	●
52	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9203-	●	●
79	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09660-295-0	01	1	9202-	●	●
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09660-530-0	01	1	9202-9202	●	●
79	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09660-570-0	01	1	9203-9307	●	●
79	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1)	1-09660-570-0	01	1	9308-		●
134	PLUG; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) PT1/2	9-09204-521-0	01	1	9202-9202	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9203-	●	●
134	PLUG; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09605-103-0	01	1	9202-9202	●	●

155 170 167 164 166 157 158 161 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-408-0	01	1	9202-9202	●	●
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48210-278-0	01	1	9203-9307	●	●
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-278-0	01	1	9308-		●
2	VALVE; RELAY (C)	1-48210-407-0	01	1	9202-9202	●	●
2	VALVE; RELAY (D)	1-48210-408-0	02	1	9202-9202	●	●
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9203-	●	●
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9202-9307	●	●
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48210-143-0	01	1	9308-		●

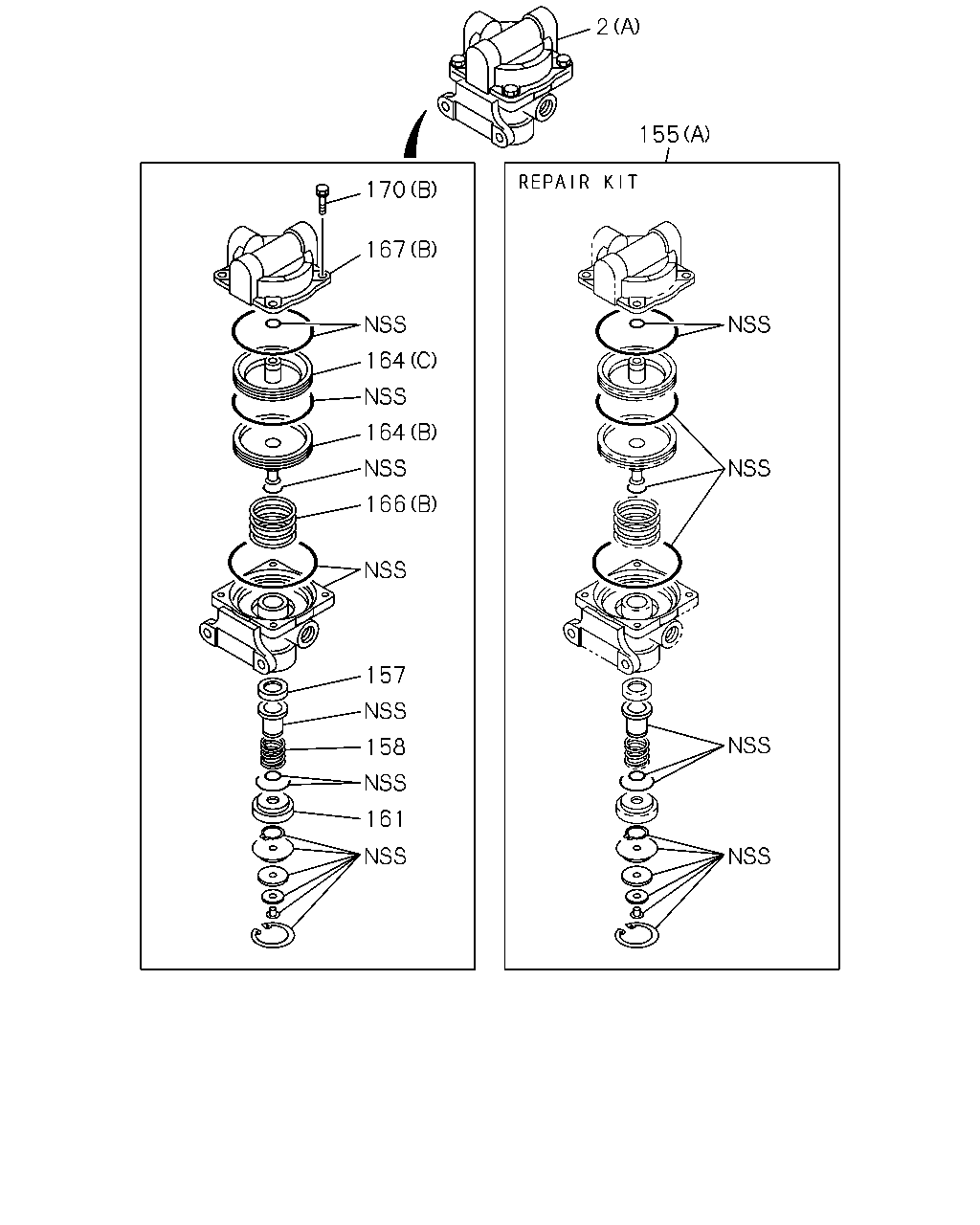

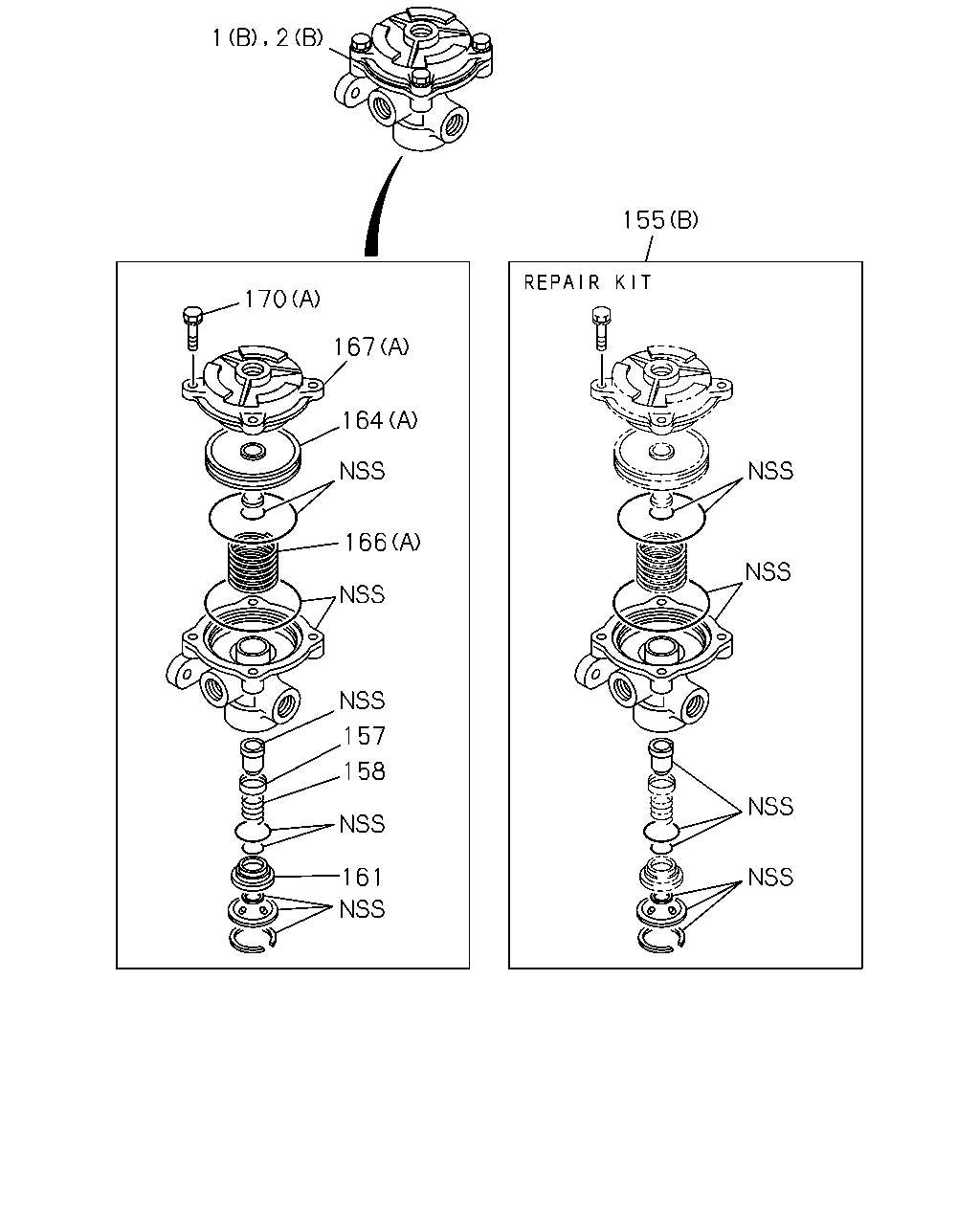

155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9203-9307	●	●
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-033-0	01	1	9203-9307	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9308-	●	●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-033-0	01	1	9308-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9308-		●
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-035-0	01	1	9202-9307	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	9308-	●
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-85576-035-0	01	1	9308-		●
157	RETAINER; VALVE	1-48219-121-0	01	1	9202-9202	●	●
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-121-0	01	1	9202-9202	●	●
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48213-002-0	01	1	9202-9202	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9203-	●	●
158	SPRING; VALVE	1-48219-112-0	01	1	9202-9202	●	●
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-112-0	01	1	9202-9202	●	●
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-47819-089-0	01	1	9202-9202	●	●
158	SPRING; VALVE	1-47819-089-0	01	1	9203-	●	●
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	9202-9202	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9203-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-107-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-107-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9203-9307	●	●
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9203-9307	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9308-	●	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-071-0	01	1	9308-		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9308-		●
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-032-0	01	1	9202-9307	●	●
164	PISTON; RELAY VALVE (B)	1-48219-032-0	01	1	9308-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9308-		●
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-047-0	01	1	9202-9307	●	●
164	PISTON; RELAY VALVE (C)	1-48219-047-0	01	1	9308-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-48219-110-0	01	1	9202-9202	●	●
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-110-0	01	1	9202-9202	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9203-9307	●	●
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9203-9307	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9308-	●	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9308-		●
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-048-0	01	1	9202-9307	●	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	9308-	●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9308-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	9203-9307	●	●
167	COVER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	9203-9307	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	9308-	●	●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-070-0	01	1	9308-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	9308-		●
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-050-1	01	1	9202-9307	●	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	9308-	●
167	COVER; VALVE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-050-1	01	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-123-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9203-9307	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-039-0	04	1	9203-9307	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9308-	●	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (A)	1-48219-039-0	04	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9308-		●
170	SCREW; COVER TO BODY (B)	1-48219-124-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-041-0	04	1	9202-9307	●	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	9308-	●
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9308-		●

2 155 170 167 164 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY (C)	1-48210-407-0	01	1	9202-9202	●	●
2	VALVE; RELAY (D)	1-48210-408-0	02	1	9202-9202	●	●
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9203-	●	●
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9202-9307	●	●
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48210-143-0	01	1	9308-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9203-9307	●	●
155	REPAIR KIT; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-85576-033-0	01	1	9203-9307	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9308-	●	●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-85576-033-0	01	1	9308-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9308-		●
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-85576-035-0	01	1	9202-9307	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	9308-	●
155	REPAIR KIT; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-85576-035-0	01	1	9308-		●
157	RETAINER; VALVE	1-48219-121-0	01	1	9202-9202	●	●
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-121-0	01	1	9202-9202	●	●
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48213-002-0	01	1	9202-9202	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9203-	●	●
158	SPRING; VALVE	1-48219-112-0	01	1	9202-9202	●	●
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-112-0	01	1	9202-9202	●	●
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-47819-089-0	01	1	9202-9202	●	●
158	SPRING; VALVE	1-47819-089-0	01	1	9203-	●	●
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48129-014-0	01	1	9202-9202	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9203-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-107-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-107-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9203-9307	●	●
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9203-9307	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9308-	●	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-071-0	01	1	9308-		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9308-		●
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-032-0	01	1	9202-9307	●	●
164	PISTON; RELAY VALVE (B)	1-48219-032-0	01	1	9308-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9308-		●
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-047-0	01	1	9202-9307	●	●
164	PISTON; RELAY VALVE (C)	1-48219-047-0	01	1	9308-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-48219-110-0	01	1	9202-9202	●	●
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-110-0	01	1	9202-9202	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9203-9307	●	●
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9203-9307	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9308-	●	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9308-		●
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-048-0	01	1	9202-9307	●	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	9308-	●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9308-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	9203-9307	●	●
167	COVER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-070-0	01	1	9203-9307	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	9308-	●	●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-070-0	01	1	9308-		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	9308-		●
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-050-1	01	1	9202-9307	●	●
167	COVER; VALVE (B)	1-48219-050-1	01	1	9308-	●
167	COVER; VALVE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-050-1	01	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-123-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9203-9307	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-039-0	04	1	9203-9307	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9308-	●	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (A)	1-48219-039-0	04	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9308-		●
170	SCREW; COVER TO BODY (B)	1-48219-124-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-041-0	04	1	9202-9307	●	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	9308-	●
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9308-		●

1 170 170 165 168 165 168 164 156 113 166 156 159 157 159 158 160 162 186 187 4 163 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-408-0	01	1	9202-9202	●	●
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48210-278-0	01	1	9203-9307	●	●
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1) (B)	1-48210-278-0	01	1	9308-		●
2	VALVE; RELAY (C)	1-48210-407-0	01	1	9202-9202	●	●
2	VALVE; RELAY (D)	1-48210-408-0	02	1	9202-9202	●	●
2	VALVE; RELAY (B)	1-48210-278-0	02	1	9203-	●	●
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48210-143-0	01	1	9202-9307	●	●
2	VALVE; RELAY (A)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-48210-143-0	01	1	9308-		●
4	BOLT; RELAY VLV TO BRKT (A) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●	●
4	BOLT; RELAY VLV TO BRKT (B)	1-48219-116-0	01	1	9202-9202	●	●
4	BOLT; RELAY VLV TO BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-116-0	01	1	9202-9202	●	●
113	BOLT; VLV	1-48219-108-0	01	1	9202-9202	●	●
113	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-108-0	01	1	9202-9202	●	●
156	VALVE ASM; INL (A)	1-48219-111-0	01	1	9202-9202	●	●
156	VALVE ASM; INL EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-111-0	01	1	9202-9202	●	●
156	VALVE ASM; INL (B)	1-48219-120-0	01	1	9202-9202	●	●
156	VALVE ASM; INL EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-120-0	01	1	9202-9202	●	●
157	RETAINER; VALVE	1-48219-121-0	01	1	9202-9202	●	●
157	RETAINER; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-121-0	01	1	9202-9202	●	●
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48213-002-0	01	1	9202-9202	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	9203-	●	●
158	SPRING; VALVE	1-48219-112-0	01	1	9202-9202	●	●
158	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-112-0	01	1	9202-9202	●	●
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-47819-089-0	01	1	9202-9202	●	●
158	SPRING; VALVE	1-47819-089-0	01	1	9203-	●	●
159	GASKET; INL VALVE (A)	1-48219-119-0	01	1	9202-9202	●	●
159	GASKET; INL VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-119-0	01	1	9202-9202	●	●
159	GASKET; INL VALVE (B)	1-48219-122-0	01	1	9202-9202	●	●
159	GASKET; INL VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-122-0	01	1	9202-9202	●	●
160	GASKET; VALVE GUIDE	1-48219-113-0	01	1	9202-9202	●	●
160	GASKET; VALVE GUIDE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-113-0	01	1	9202-9202	●	●
162	COVER ASM; EXH	1-48219-114-0	01	1	9202-9202	●	●
162	COVER ASM; EXH EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-114-0	01	1	9202-9202	●	●
163	RING; RET,EXH COVER	1-48219-118-0	01	1	9202-9202	●	●
163	RING; RET,EXH COVER EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-118-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE (A)	1-48219-107-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-107-0	01	1	9202-9202	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9203-9307	●	●
164	PISTON; RELAY VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-071-0	01	1	9203-9307	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9308-	●	●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-071-0	01	1	9308-		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	9308-		●
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-032-0	01	1	9202-9307	●	●
164	PISTON; RELAY VALVE (B)	1-48219-032-0	01	1	9308-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-032-0	01	1	9308-		●
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-48219-047-0	01	1	9202-9307	●	●
164	PISTON; RELAY VALVE (C)	1-48219-047-0	01	1	9308-	●
164	PISTON; RELAY VALVE EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-48219-047-0	01	1	9308-		●
165	GASKET; PISTON	1-48219-109-0	01	1	9202-9202	●	●
165	GASKET; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-109-0	01	1	9202-9202	●	●
166	SPRING; PISTON (A)	1-48219-110-0	01	1	9202-9202	●	●
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-110-0	01	1	9202-9202	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9203-9307	●	●
166	SPRING; PISTON EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-47819-090-0	01	1	9203-9307	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9308-	●	●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9308-		●
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-048-0	01	1	9202-9307	●	●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	9308-	●
166	SPRING; PISTON EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9308-		●
168	GASKET; COVER TO BODY	1-48219-109-0	01	1	9202-9202	●	●
168	GASKET; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-109-0	01	1	9202-9202	●	●
170	SCREW; COVER TO BODY (A)	1-48219-123-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-123-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9203-9307	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-48219-039-0	04	1	9203-9307	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9308-	●	●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (A)	1-48219-039-0	04	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9308-		●
170	SCREW; COVER TO BODY (B)	1-48219-124-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-124-0	02	1	9202-9202	●	●
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-48219-041-0	04	1	9202-9307	●	●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	9308-	●
170	SCREW; COVER TO BODY EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9308-		●
186	DIAPHRAGM; RELAY VLV	1-48219-115-0	01	1	9202-9202	●	●
186	DIAPHRAGM; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-115-0	01	1	9202-9202	●	●
187	WASHER; RELAY VLV	1-48219-117-0	01	1	9202-9202	●	●
187	WASHER; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-48219-117-0	01	1	9202-9202	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
